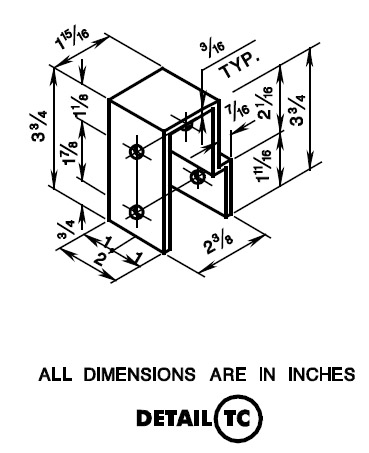

Top Caps are designed for construction of bridge protection screens but can be used for other applications as well. Top caps fit a 2" post and secures a 1-1/2" top rail above the post. The top cap fastens with two carriage bolts, one to secure the top rail and the other to fasten the top cap to the post. Carriage bolts and nuts are sold separately.
Note: Items are custom fabricated and for that reason, once an order is placed, orders cannot be altered or cancelled. Items are not non-returnable.
Size (Post x Rail) | Bolt Size |
---|---|
2" x 1-5/8" | (1) 3/8" x 2-1/2" and (1) 3/8" x 3" carriage bolts and nuts per fitting (not included) |
