Locinox Motorized Gate Closer for Pedestrian Swing Gates

Motorized Gate Closer for Pedestrian Swing Gates (VENUS)

The Venus is a plug-and-play motorized gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor's performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

The VENUS motorized gate closer is specifically designed for pedestrian gates up to 4.6 ft and 220 lbs.

VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.

Uncompromising Closure: Every swing is guaranteed thanks to VENUS's controlled movement, ensuring optimal security and peace of mind.

Inclusive Access: Designed with accessibility in mind, VENUS empowers seamless passage for all users, including those with wheelchairs and bicycles.

Versatility Defined: VENUS is not just a closer; it is a gateway to enhanced security. Seamlessly add access control features to transform your entry point.

Strength & Style: Don't underestimate the power within VENUS's compact and elegant aluminum housing. It is a marvel of engineering, delivering robust performance with a touch of sophistication.

Sturdiness and Reliability

The VENUS is equipped with a reversible brushless motor rated at 150 Nm. VENUS guarantees controlled closing in just 5 seconds after the gate has been opened. This leaves plenty of time for wheelchair users and pedestrians, even those with bicycles.

Thanks to its self-disengaging system, it is impossible to block the VENUS, which drastically reduces the need for after-sales service.

Easy

To make life easier for installers, VENUS comes with a plug-and-play installation process. The motor, electronic board, input / output connectors, flash lamp and software are fully integrated into the aluminum case. VENUS offers ease and versatility of installation. The VENUS is delivered with the arm depending on the configuration. Installation is via Quick-Fix plugs. As soon as the 240V wiring is connected, the VENUS immediately functions as a gate closer.

And that's not all: by simply connecting any type of access control to one of the inputs, you can turn the VENUS into a low-energy gate opener.

VENUS Features:
• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection
• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light
• Easy setup with free mobile app
• Motorized gate closer with integrated electronics
• 150 Nm torque
• Fits on 3 2/16" mm profiles
• For pedestrian gates up to 4.6 ft wide and 100 kg
• Steel gear box
• Anodized aluminium cover

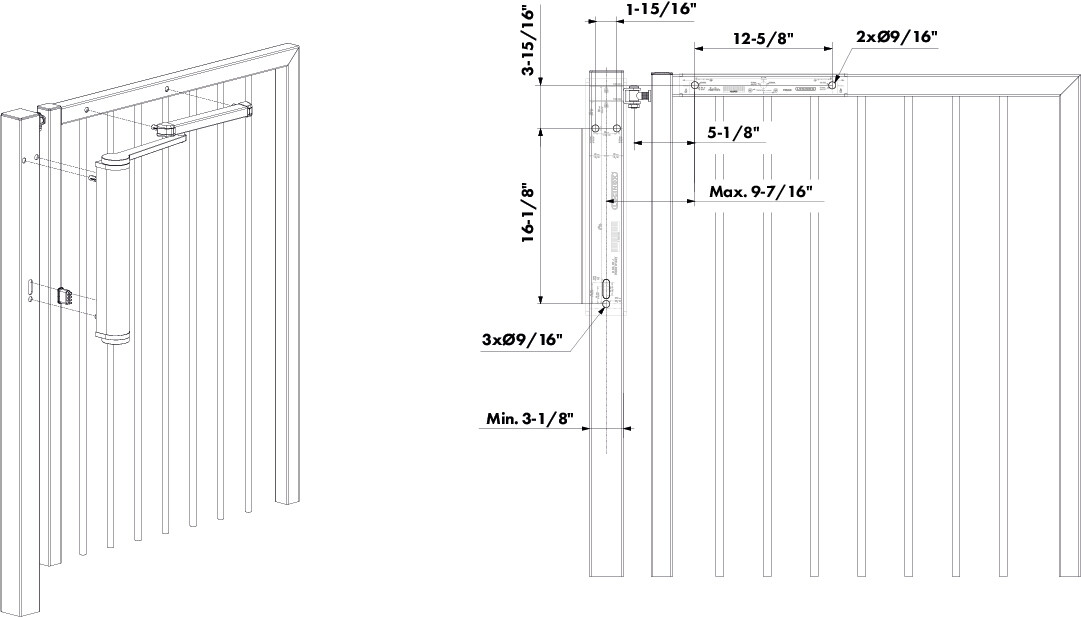

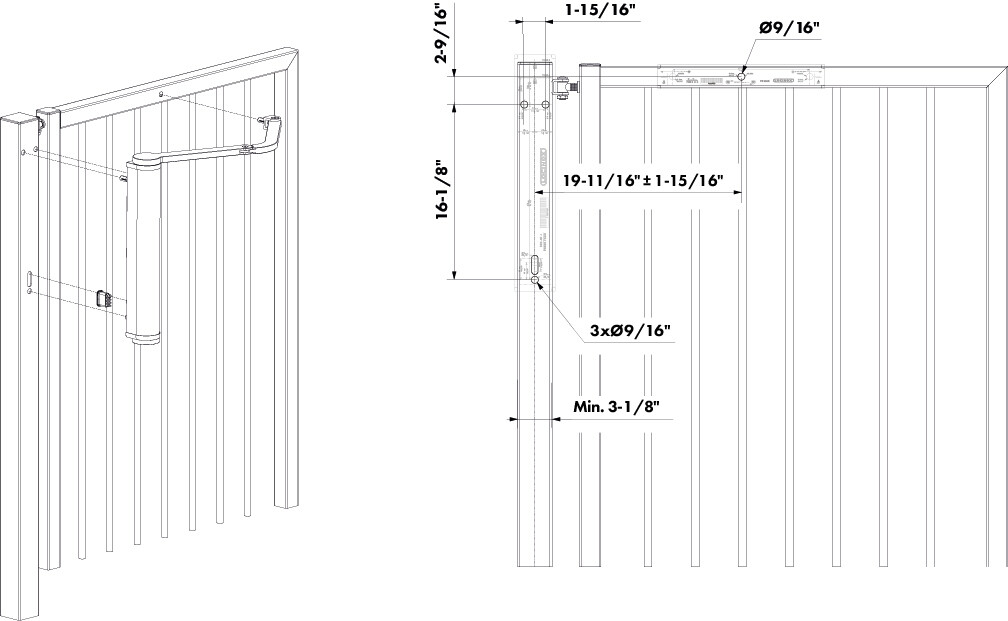

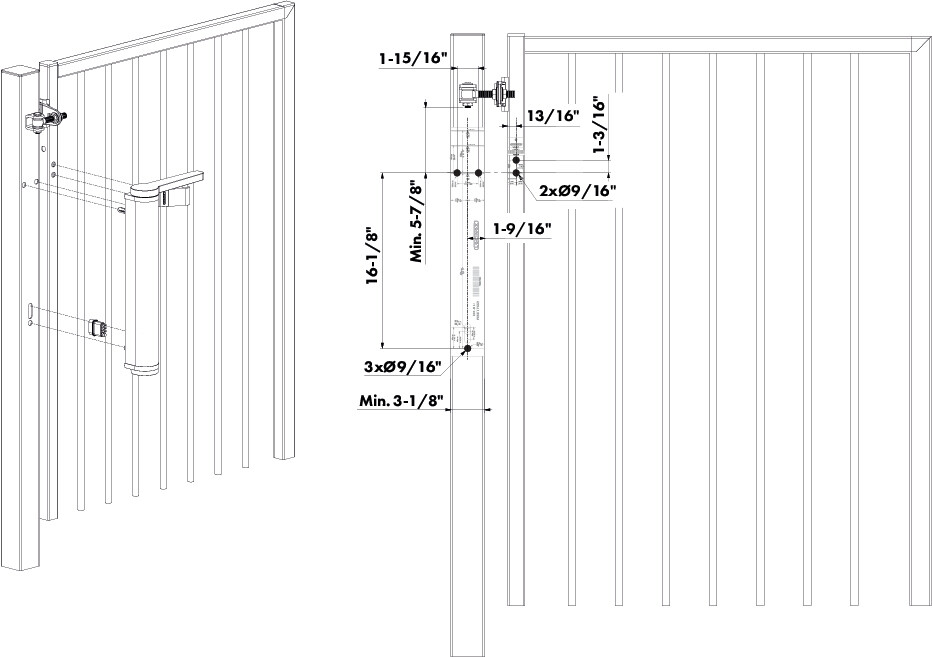

• 3 different arm options for installation (Sliding Arm Included, Replacement Arms Sold Separately)
• Fast and easy installation with Quick-Fix
• Compact and vandal-proof design
• Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
• Motor voltage: 24V DC
• Integrated warning light
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use - to be combined with a lock
• ETL-tested
• 2-Year Warranty
