Snug Cottage Hardware Stainless Steel Greased Ball Bearing Barrel Hinges
Item # 9100
Details
Details
Stainless Steel Greased Ball Bearing Hinges (9100)
Snug Cottage Hardware's Stainless Steel Greased Ball Bearing Hinges provide smooth, reliable operation for ornamental iron gates and steel-framed gates clad in wood or cellular PVC. Available in Weld-to-Weld and J-Bolt-to-Weld configurations. Sold in pairs.
About the Material: Manufactured from polished 304 stainless steel, these hinges combine corrosion resistance with a clean appearance for outdoor gate applications.
The Weld-to-Weld model requires a minimum 1-7/8" gap between the gate and post. The J-Bolt-to-Weld model requires a minimum 3-1/4" gap and accommodates a maximum through-post thickness of 5-1/2".
Stainless Steel Greased Ball Bearing Hinges (9100) Features:
- Greased ball bearing design for smooth gate movement.
- Available in Weld-to-Weld and J-Bolt-to-Weld configurations.
- Suitable for ornamental metal gates and steel-framed clad gates.
- 3/4" diameter hinge pin.
- Manufactured from 304 stainless steel.
- Polished stainless steel finish.
- Sold in pairs.
Available Models and Installation Requirements
| Item Number | Mounting Style | Size | Minimum Gate-to-Post Gap |
|---|---|---|---|

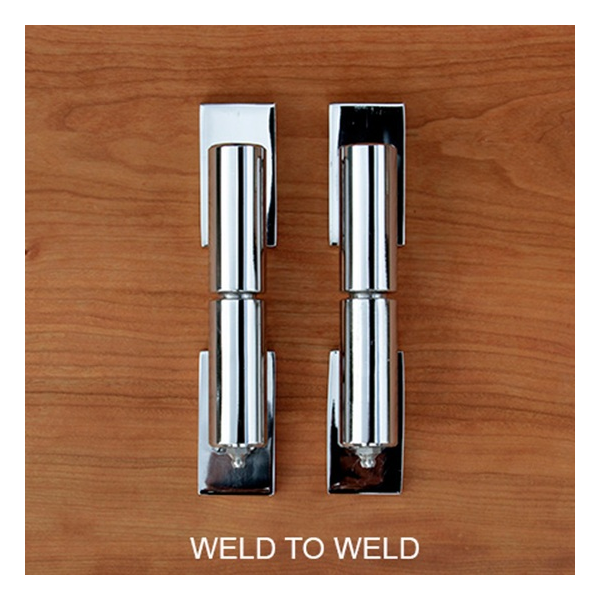

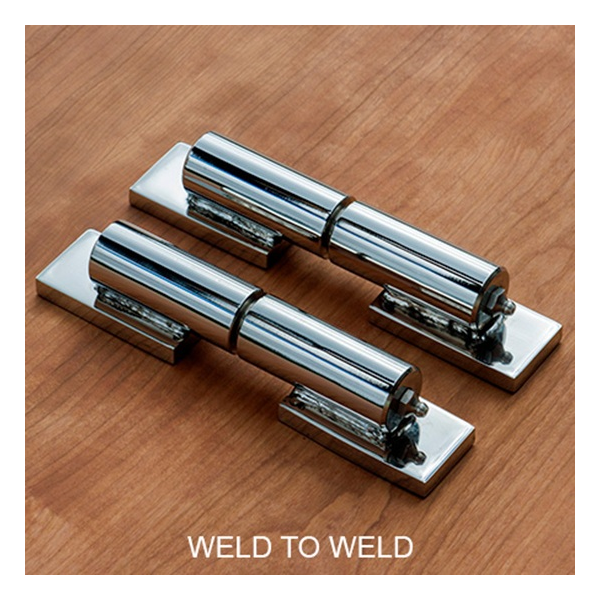

| 9100-BHSS | Weld-to-Weld | 6" Barrel Height | 1-7/8" |

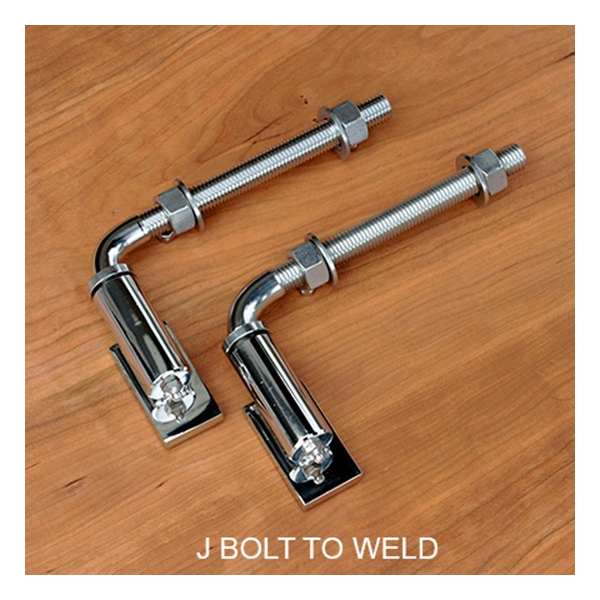

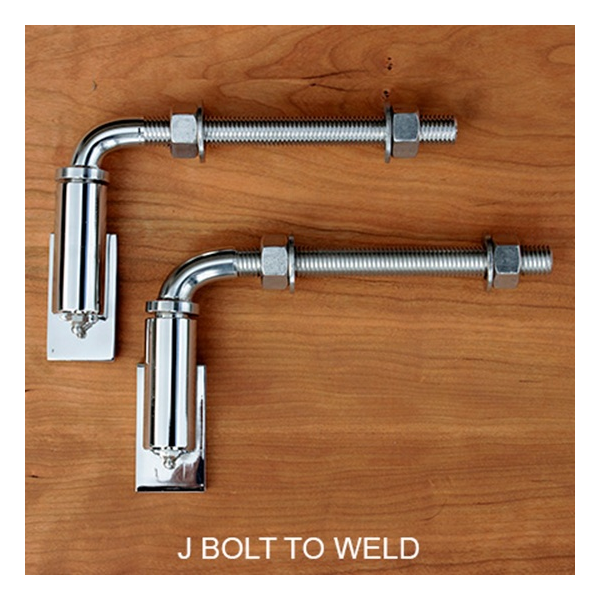

| 9100-JBSS | J-Bolt-to-Weld | 8-1/2" Overall J-Bolt Length | 3-1/4" |
Please Note: Select the mounting style appropriate for your gate and post installation.
