LiftMaster 120V AC Single Swing Gate Operator

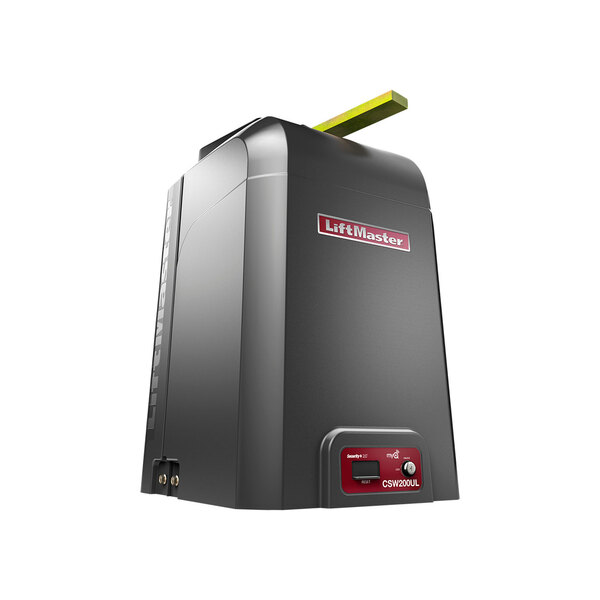

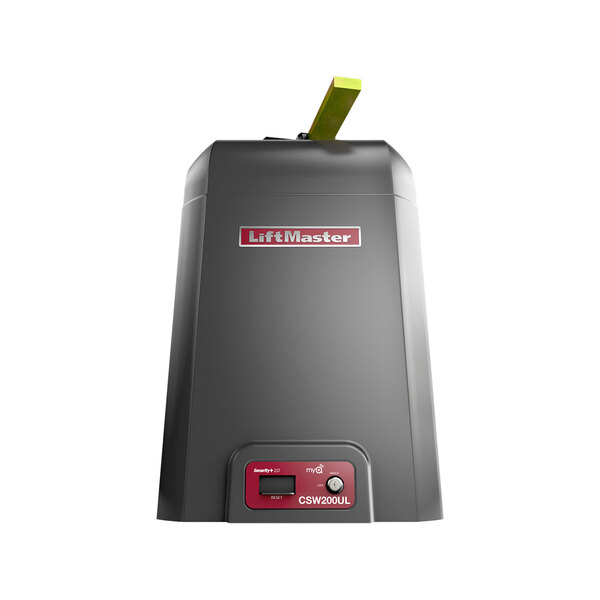

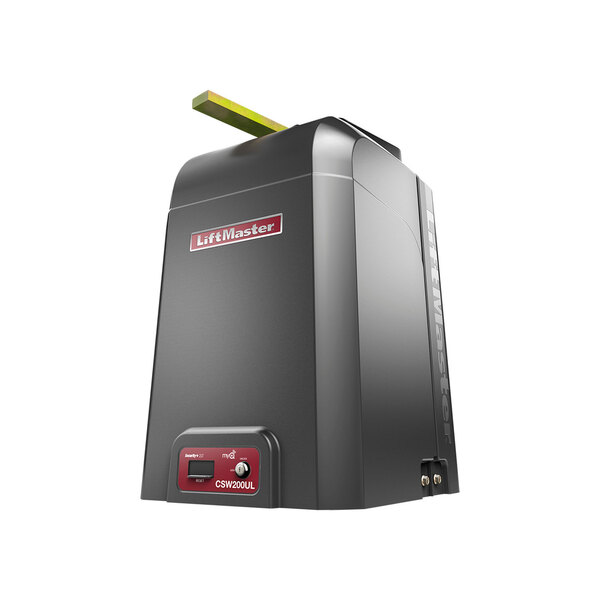

120V AC Single Swing Gate Operator (CSW200)

Open and close your swing gate without ever getting out of your car with the LiftMaster CSW200UL Series Swing Gate Operators. Available in the CSW200501UL 1/2 HP and CSW200101UL 1 HP models, these 120 VAC continuous-duty operators are designed for demanding, high-traffic applications. Ideal for large gated communities and commercial facilities, both models provide reliable operation with integrated safety, security, and access control features.

The CSW200501UL 1/2 HP model is rated for gates up to 18' long or 1,600 lbs., while the CSW200101UL 1 HP model accommodates gates up to 22' long or 2,000 lbs. Allowable gate weight varies with gate length; refer to the manufacturer's capacity chart when selecting your operator.

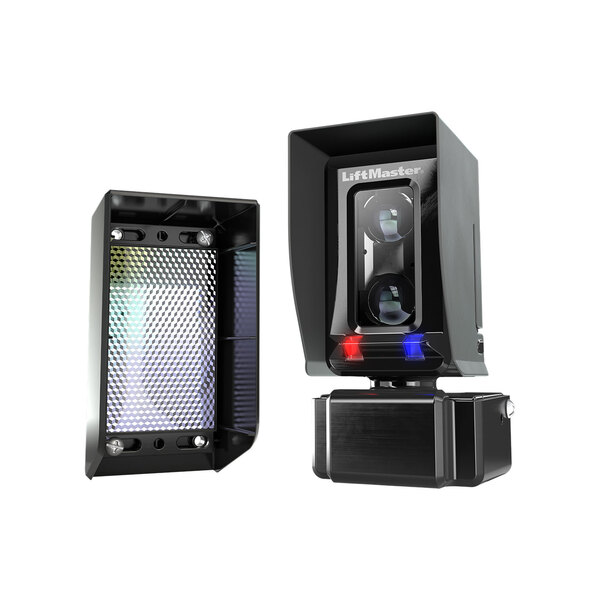

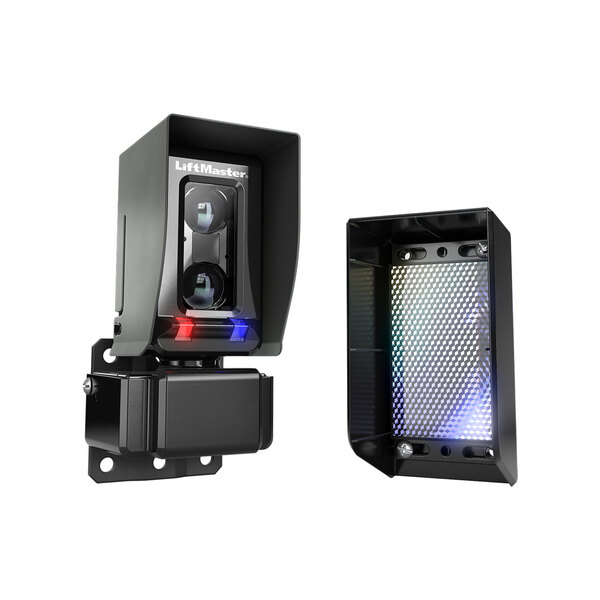

Both models include an LMRRUL monitored retro-reflective photo eye with an adjustable swivel mounting bracket and an integrated heater to help keep the lens clear of moisture. Additional monitored entrapment protection devices may be required based on your installation.

Note: Order 1 operator for single swing gates and 2 operators for double swing gate applications.

CSW200UL Series Gate Safety and Security Features:

Gate Safety Sensors
Monitored photo eye protection helps prevent the gate from closing when an obstruction interrupts the sensor beam.

Inherent Reversing Sensors
Built-in obstruction detection helps stop or reverse gate movement when an obstruction is detected.

Security+ 2.0®
Encrypted radio communication helps secure property access while providing extended remote-control range.

Quick Close Feature
Helps reduce unauthorized entry by promptly closing the gate after a vehicle passes.

UL Listed
UL 325 listed operators support monitored entrapment protection. Your installer will determine the photo eyes, edge sensors, and other protection required for your gate installation.

CSW200UL Series Gate Connectivity Features:

Securely Monitor and Control
Compatible myQ® technology allows convenient remote gate monitoring and control when equipped with the required connectivity accessories.

Easy Access Control
Integrates with compatible LiftMaster access control systems to manage entry at gated communities and commercial properties.

Gate Real-Time Alerts
Receive gate activity notifications through a compatible myQ® setup.

Close with a Tap
Control your gate remotely through the myQ® app with the required Internet Gateway and compatible configuration.

CSW200UL Series Gate Power and Model Options:

CSW200501UL – 1/2 HP
120 VAC continuous-duty swing gate operator rated for gates up to 18' long or 1,600 lbs., subject to the manufacturer's gate length and weight capacity chart.

CSW200101UL – 1 HP
120 VAC continuous-duty swing gate operator rated for gates up to 22' long or 2,000 lbs., subject to the manufacturer's gate length and weight capacity chart.
