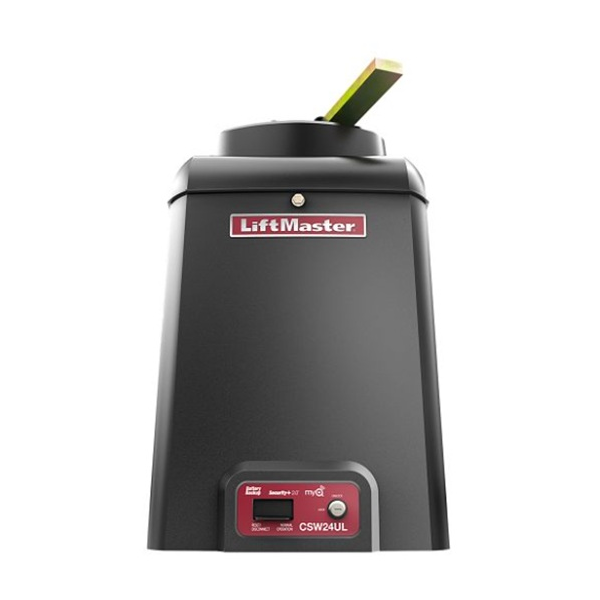

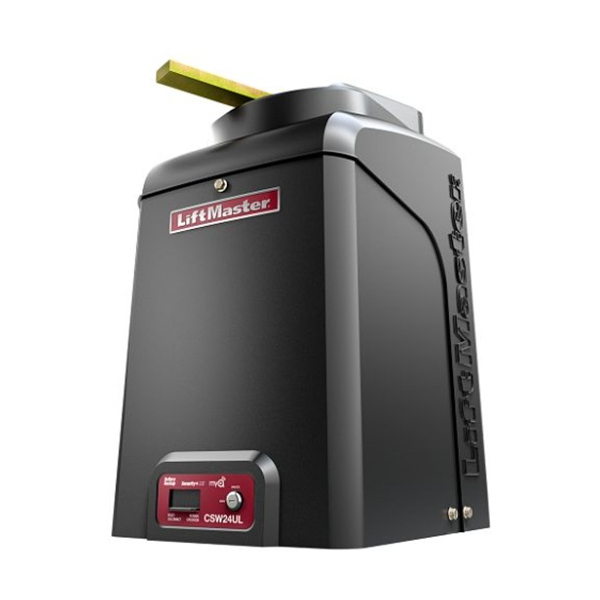

LiftMaster 24 Volt DC Swing Gate Operator with Battery Backup

24 Volt DC Swing Gate Operator with Battery Backup (CSW24UL)

Open and close your swing gate without leaving your vehicle with the LiftMaster CSW24UL 24VDC Swing Gate Operator. Built for high-traffic commercial applications, gated communities, and demanding residential installations, this continuous-duty operator combines a heavy-duty gear-driven transmission with battery backup for dependable access during power outages. The CSW24UL supports gates up to 18' long or up to 1,600 lbs., depending on the gate's length and weight. Refer to the manufacturer's capacity chart for allowable combinations.

The LiftMaster CSW24UL includes an LMRRUL monitored reflective photo eye with a swivel mounting bracket and an integrated heater to help keep the lens clear of moisture. Additional monitored photo eyes or edge sensors may be required based on your installation's entrapment zones.

Note: Order 1 operator for single swing gates and 2 operators for a double swing gate application.

CSW24UL Gate Safety and Security Features:

Gate Safety Sensors
Monitored safety sensors detect obstructions to help prevent the gate from closing on objects in its path.

Inherent Reversing Sensor
Built-in obstruction sensing reverses a closing gate or stops/reverses an opening gate when an obstruction is detected.

Security+ 2.0®
Encrypted radio communication helps safeguard property access while supporting compatible LiftMaster remote controls.

Quick Close Feature
Helps reduce tailgating by closing the gate promptly after a vehicle clears the interrupt safety sensor.

UL Listed
UL 325 listed gate operator. Proper installation requires external monitored entrapment protection devices. Your installer will determine the photo eyes or edge sensors needed for your gate system.

CSW24UL Gate Power and Performance Features:

24VDC Continuous-Duty Motor
Designed to handle frequent gate operation in high-traffic applications.

Battery Backup
Provides up to 146 cycles or 24 days of standby power with two 7Ah batteries in a stand-alone system. Actual backup performance varies with gate conditions, accessories, and battery condition.

Heavy-Duty Transmission
Commercial oil-bath gearboxes deliver reliable power for demanding swing gate applications.

Wireless Dual-Gate Communication
Synchronizes two operators in double swing gate installations without requiring a communication cable across the driveway.

Solar-Ready System
Compatible solar equipment allows operation where electrical power is difficult to access. Solar panels and any required additional equipment are sold separately.

Smooth Operation
Smooth start and stop operation helps reduce wear on the gate and operator.

CSW24UL Gate Connectivity Features:

myQ® Connectivity
Supports remote gate monitoring and control through compatible myQ® solutions. Additional connectivity hardware, internet service, and applicable subscriptions may be required.

Easy Access Control
Integrates with compatible LiftMaster access control equipment to manage entry at commercial properties and gated communities.

Gate Activity Alerts
Stay informed about gate activity with alerts available through a compatible connected myQ® system.
