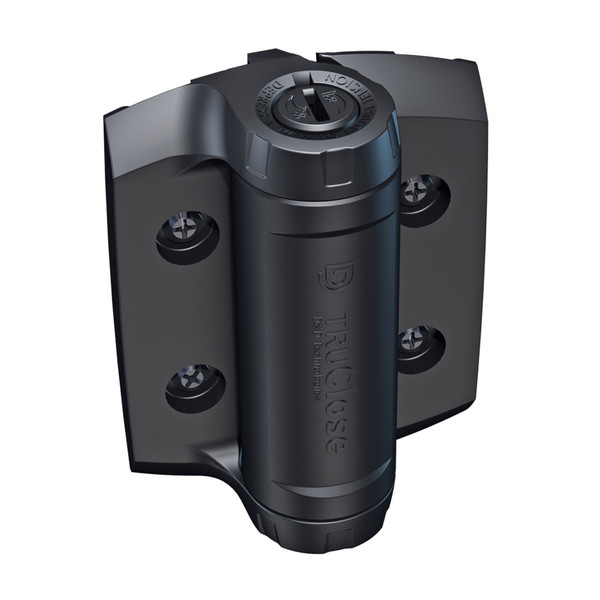

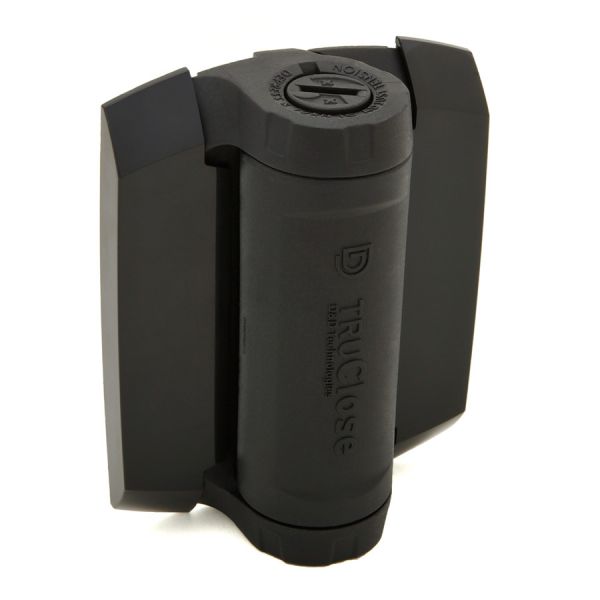

D&D Technologies TruClose Series 3 Heavy Duty Hinges for Metal Gates - No Legs
Item # TCHD1AS3-P
Details
Details
TruClose® Overview | TruClose® Brochure
D&D Technologies TruClose Series 3 Heavy Duty Hinges for Metal Gates - No Legs (TCHD1AS3)
TruClose® Safety Gate Hinges are the world's most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose HEAVY DUTY range of hinges are designed for heavy or high-traffic gates weighing up to 70kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools*, childcare centers, schools, homes, playgrounds and hotels/resorts. TruClose hinges are quick and easy to install and to adjust for self-closing speed. They come with trim covers, which means there are no visible fasteners. D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide.
The ideal self-closing (tension-adjustable) hinge for mid-weight to heavy-weight metal gates. Tough, molded construction with stainless steel torsion spring. 100% rust-free for life. No binding, no sagging, no staining. Quick and easy adjustment feature. No fasteners included (requires 10-gauge fasteners).
Heavy Duty - For heavy duty range square frame gates weighing up to 154 lbs (70 kg.). Works best with metal gates in high use areas. This model features no legs.
*When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.
TruClose Series 3 Heavy Duty Hinges for Metal Gates Features:
- Self-Closing Hinges for High-Traffic & Pool Gates
- Model ideal for Metal Gates, No Fixing Legs
- For pool and safety gates install a hinge safety cap (optional)
- Quick and easy to install
- Self-closes gates up 66 lb (30kg)
- Won’t rust, bind, sag or stain
- Simple, adjustable closing tension (from either end of hinge)
- Super-strong polymer and stainless steel construction
- UV-stabilized and self-lubricating durability
- Decorative trim covers (no visible fasteners)
- Coordinates with LokkLatch Magnetic (LLMK)
- Lifetime Warranty
Specifications
Specifications
TruClose Heavy Duty Specifications

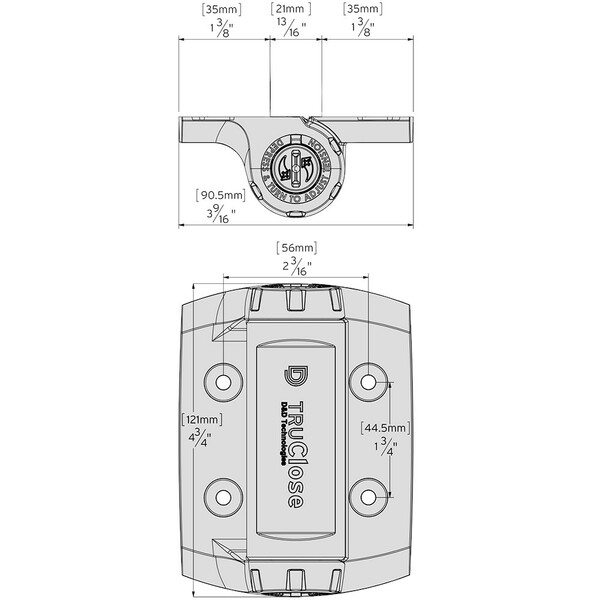

D&D Technologies TruClose Series-3 Hinge Dimensions
Regular Duty vs. Heavy Duty Comparison
| Specification | Regular | Heavy Duty |
|---|---|---|
| Cycles | 150,000 | 500,000 |
| Self-Closing Max | 66 lbs. (30kgs) | 154 lbs. (70kgs) |
| Point Load Max | 660 lbs. (300kgs) | 990 lbs. (450kgs) |
| Point Load Max (2-Legs) |
770 lbs. (350kgs) | 1,100 lbs. (500kgs) |
| Product Code | TCHD1AS3 |
|---|---|
| Gate Application | Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate |
| Gate Type | Self-Closing |
| Gate Material | Aluminum, Steel/Ornamental Iron |
| Self-Closing Gate Weight | Up to 154lb (70kg) |
| Approx Gate Size | 4ft W x 6ft H (1.2m x 1.8m) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 1-3/8"+ (35mm) |
| Ideal Gate Gap | 3/4" (19mm) |
| Fixing Method | Screw-On |
| Fasteners Included | No |
| Color/Finish | Black |
