Detex Surface Mount Detex Exit Bar with Alarm
Item # D-6006-P
Details
Details
Surface Mount Detex Exit Bar with Alarm (D-6006-P)
The D-6006 (36") and D-6008 (48") Surface Mount Detex Exit Bars provide free exit/egress from gates or doors with the added security of an approximately 100 dB alarm. These Detex Value Series V40xEBxW devices feature weatherized construction for outdoor and wet environments.
When armed, operating the pushpad activates the alarm to alert personnel to an unauthorized exit. The battery-powered alarm supports standalone operation, while remote bypass and remote signaling connections allow integration with compatible external security equipment.
Features:
- Reversible for left- or right-hand applications.
- Dead latch design with stainless steel latch mechanism.
- Key-operated alarm arming and disarming.
- Black ABS head cover and anodized aluminum bar.
- Bright red pushpad with alarm warning.
- Weatherized construction for outdoor applications.
- Approximately 100 dB alarm.
- Powered by a 9-volt battery.
- Low battery alert with audible beep and flashing red LED.
- Visual and audible arming indicators.
- Selectable armed and disarmed status indication.
- Selectable continuous alarm with manual reset or 2-minute alarm operation with automatic rearming.
- Remote bypass and remote signaling capabilities.
- Cylinder dogging available on compatible non-fire-rated configurations.
- D-6006: nominal 36" size.
- D-6008: nominal 48" size.
- ANSI/BHMA A156.3, Grade 1.
- UL Listed.
- Detex V40xEBxW Series.
Ordering Notes:
Select D-6006 for the nominal 36" model or D-6008 for the nominal 48" model. Confirm opening dimensions, mounting hardware, cylinder inclusion, and dogging configuration before ordering.
Alarm Settings: Detex ships the alarm with automatic rearming and the armed/disarmed status indicator turned off. These functions can be enabled according to the manufacturer's instructions.
Remote Connections: Remote bypass and remote signaling require wiring to compatible external equipment. These functions are separate from the unit's standalone battery-powered alarm operation.
Dogging Configuration: Non-fire-rated units equipped with cylinder dogging can hold the pushpad depressed and the latch retracted. Units supplied without dogging do not provide this function. Fire-rated devices must not be mechanically dogged.
Dogging Feature (Non-Fire-Rated Units Equipped with Cylinder Dogging Only):
- Depress the pushpad.
- While holding the pushpad down, turn the key clockwise (CW). The pushpad should remain depressed and the latch retracted.
- Return the key to the horizontal position to remove it. The alarm is now disarmed.
Specifications
Specifications
D-6006/D-6008 Alarmed Panic Bar Manual (PDF)
| Size | Weight Each |
|---|---|
| 36" Bar | 15.0 lbs. |
| 48" Bar | 18.0 lbs. |
Weights shown are approximate.
Customer Photos
Customer Photos

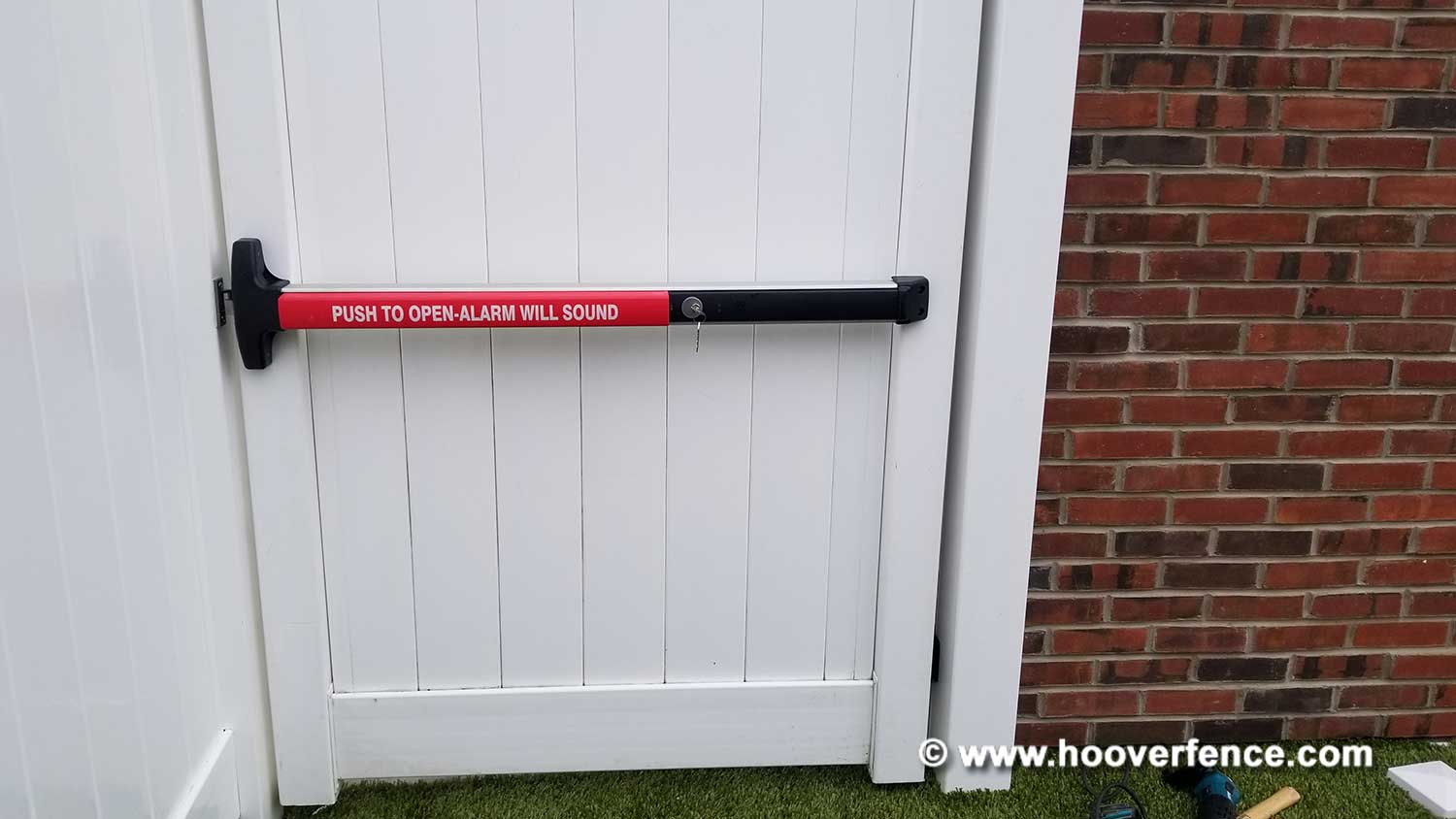

Here are a couple of images from our customer Bill over in Glenside, PA, of an installation of a D-6008 panic bar on a vinyl perimeter gate at an early childhood education center. Thank you Bill, the project looks great, thank you for the pictures!
Note: Panic bars can be installed on vinyl gates but these products are heavy so you need to make sure that the vinyl gate has a robust internal frame, typically of aluminum. Our Bufftech vinyl fence gates are very strong and can easily accommodate a panic bar or other free egress hardware.
