FIRESTROBE Emergency Vehicle Strobe Detector

Item # FS-2000

Actual product(s) may vary from pictures shown

FIRESTROBE Emergency Vehicle Strobe Detector (FS-2000)

Details

The Fire Strobe 2000 is received optically by line of sight. The range varies with the ambient light and intensity of the strobe emitter. A typical range varies from 150 feet to 500 feet. The detector will not allow false operation with unwanted signals from radio interference, and/or flashing headlights or loud sounds. The acquisition time from the emitter light source and the discriminate module is approximately 0.5 seconds.

The Fire Strobe 2000 is widely used for security/electric gate access. It can be used for firehouse garage doors, and other related access needed for emergency vehicles. This emergency vehicle strobe detector provides rapid access to any gated community that has been serviced by fire and emergency equipment on the OPTICOM Strobe System.(™ of 3M).

Fire Strobe 2000 Features:

Rapid Detection of Any Emergency Strobe - Ideal for:

Fire
Paramedics
911 Response Vehicles

Field Programmable - Provides for:

Easy Frequency Changes
Set-up of 2 Delay Outputs
Adjusting Relay Timing

Ease of Installation - Because of:

Fire Strobe 2000 can be installed on any existing gate system
Sensitive photodiode complete with PVC housing and lens assembly can be mounted in a variety of ways
Fire Strobe 2000 is designed to accommodate AC or DC operation
Units are provided with 12 VAC plug in transformer

Specifications

Fire Strobe 2000 Technical Specifications:

Frequency 14.035 Hz+/- .25 Hz for class II signals. Optional frequencies available.
The Fire Strobe 2000 is fully compatible with the OPTICOM™ priority control emitter.
The strobe acquisition time is approximately .5 seconds.
The PC board construction is mounted in the enclosed 8" x 8" x 4" rain-tight NEMA J-box.
The weight is approximately 7 pounds.
The power requirements are 12/24 volts AC/DC non polarity conscious, approximately 1 watt draw.

Warranty

The Fire Strobe 2000 has a 1 year warranty when used according to the manufacturer's specifications. This warranty does not apply when the Fire Strobe 2000 has been abused, over voltaged, or altered in any way. The warranty coverage is at the sole discretion of the manufacturer. This unit is to be used only for the operations described above.

Instructions

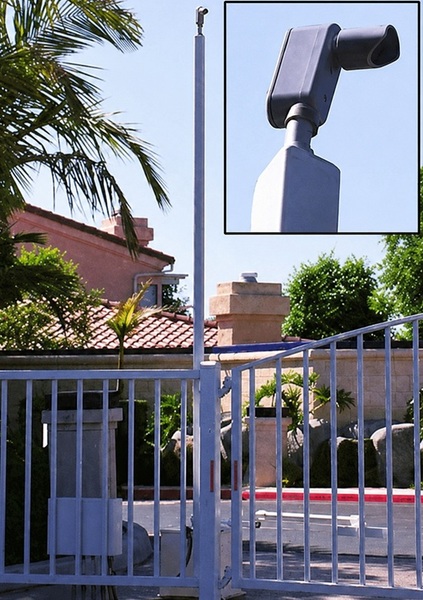

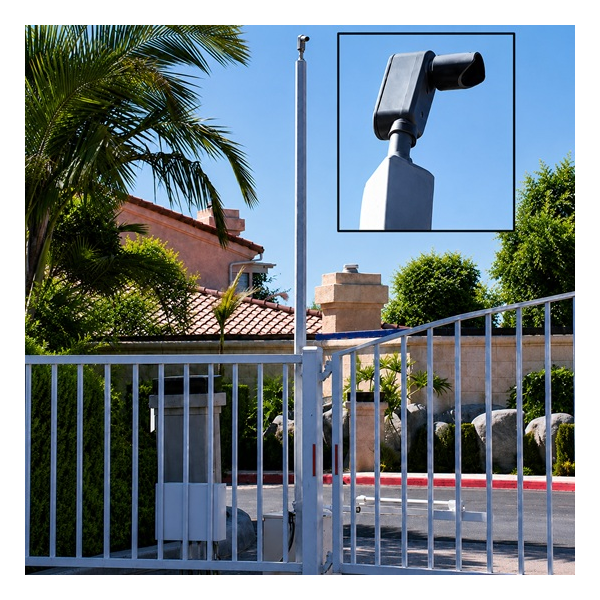

Complete Installation Instructions are provided with the Fire Strobe 2000 for simple hook-up of the unit to interface with your gate or access control. Two dry contacts are also provided for bi-directional operation where needed. The photoeye is typically mounted 8 to 10 feet above street level and is aimed for optimal strobe signal. [A total of (2) photoeye assemblies may be used]. A 12 VAC power supply is provided with the Fire Strobe 2000 system.

Fire Strobe 2000 Installation Guide (PDF)
