Pre-Hung Panic Bar Chain Link Pedestrian Gates
Hoover Fence Company's ready-to-install pre-fabricated and pre-hung gates make quick work of installing pedestrian gates. This gate kit is designed to be an easy installation access gate that can be added to new installations or existing fence lines. This gate kit takes the trouble out of ordering custom sized gates to fit specific gate openings. Gate kit assemblies arrive completely fabricated. Simply dig two fence post holes and cement posts in place with posts plumb, or mount to concrete surface with posts plumb.

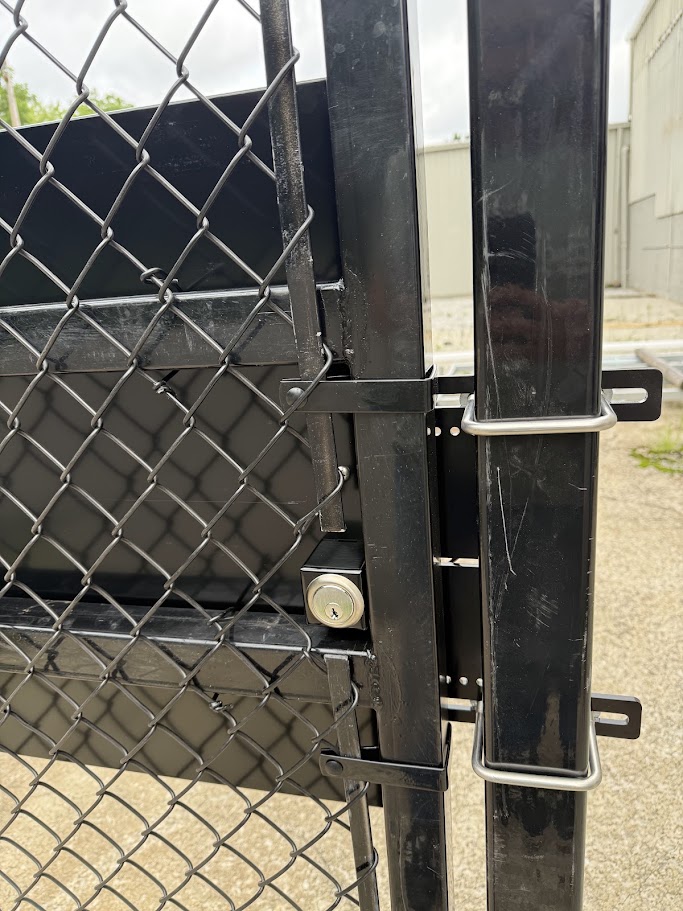

Our panic hardware allow for free exit in an emergency by simply pushing on the panic bar to open the gate. The Installed lock box allows for controlled entry with a provided keys.

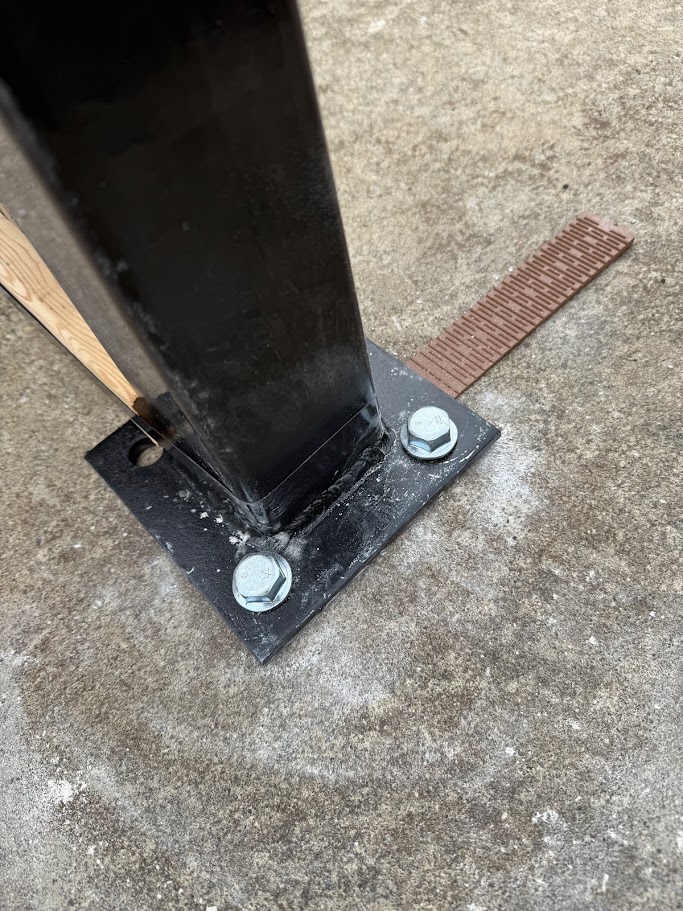

Standard Kits are designed for in-ground installations allowing for post lengths sufficient to concrete into the ground. Pad mount kits are available as an option allowing these kits to install on concrete surfaces.
Pre-Hung Panic Bar Chain Link Pedestrian Gate Features:
- Panic bar gates feature weatherized Detex D-6003 surface mount panic bar, 24"H mounting plate, adjustable receiver bracket, lock box, and keyed cylinder with two keys. All panic hardware installed with stainless steel fasteners.
- Heavy-Duty 3" round HF40 or 3" square 12ga. galvanized perimeter frame with post caps.
- Header placed approximately 7' above grade on 7'H x 4'W models and 8' above grade on the 8'H+1'B x 4'W models.
- Fully welded commercial grade chain link gate, pre-hung in perimeter frame.
- Gate frame constructed of 2" round HF40 or 2" square 14ga galvanized framework.
- Gate comes fully stretched with 9 Gauge galvanized chain link fabric.
Ordering Notes:
Our gates are built to fit the opening size shown, the space in-between the hinge posts or the hinge and latch post. Gates are also built approximately 2" shorter than the heights shown to allow space under the gate for it to swing. We can build to 'finish size' by request. View Specifications for Actual dimensions. Custom built sizes and configurations by special request. Please contact a sales representative for all custom requests.
This Pre-Hung Gate Kit does not include installation services for add-on hardware, such as self-closing hinges or outside trim. Gate Add-ons are linked in "Parts for this Product" below.
Pre-Hung Gates are custom made-to-order products and once an order is placed, it may not be altered or cancelled. Gates are non-returnable.
Specifications
Specifications
All of our Pre-Hung Panic bar gates feature a 24" tall security shield and Detex V40 Series Panic Bars. Individual specifications listed below.
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimeter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 7' High x 4' Wide (True Measurement: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"

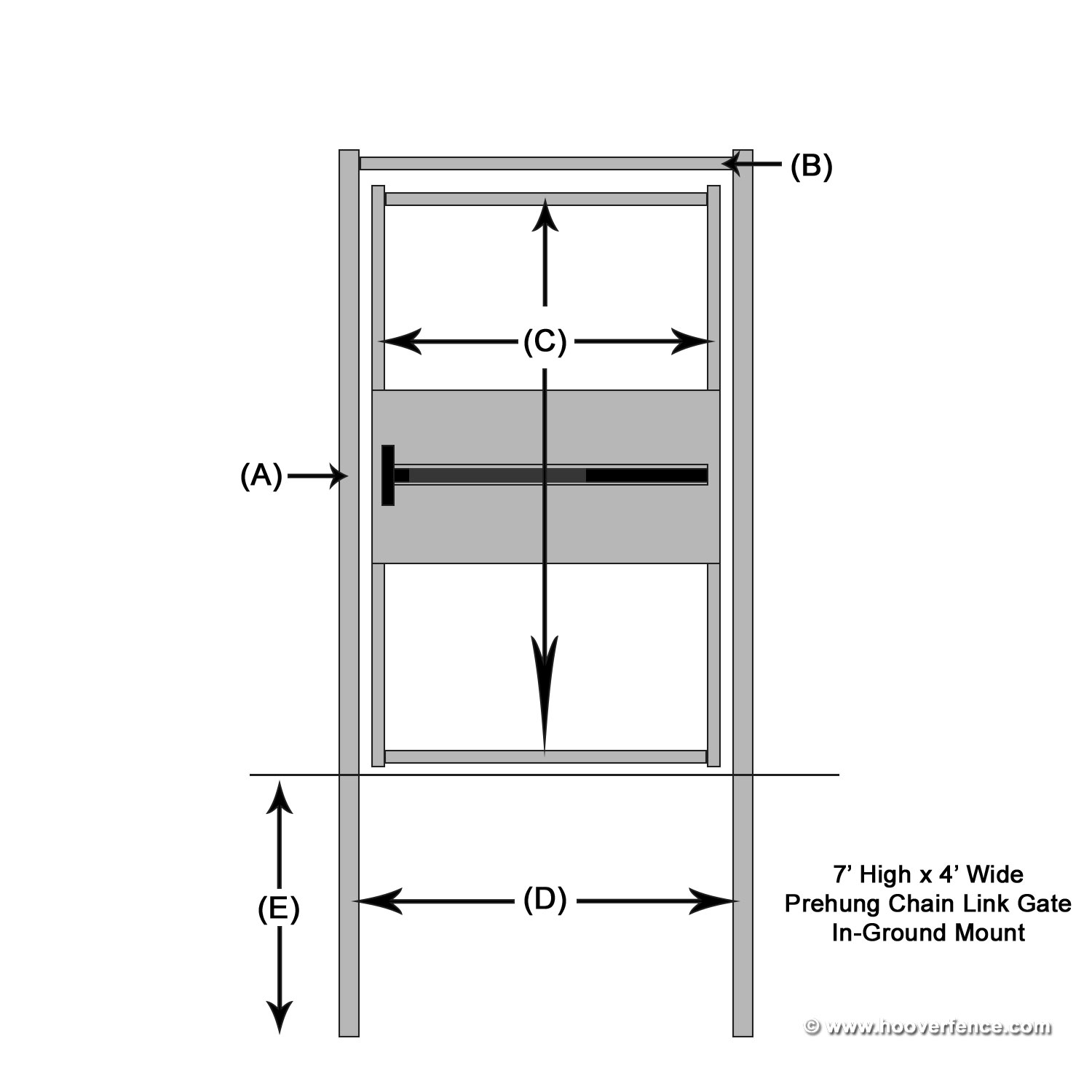

Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimeter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 7' High x 4' Wide (True Measurement: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimeter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 7' High x 4' Wide (True Measurement: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimeter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 7' High x 4' Wide (True Measurement: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimeter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 8' High x 4' Wide (True Measurement: 92" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"

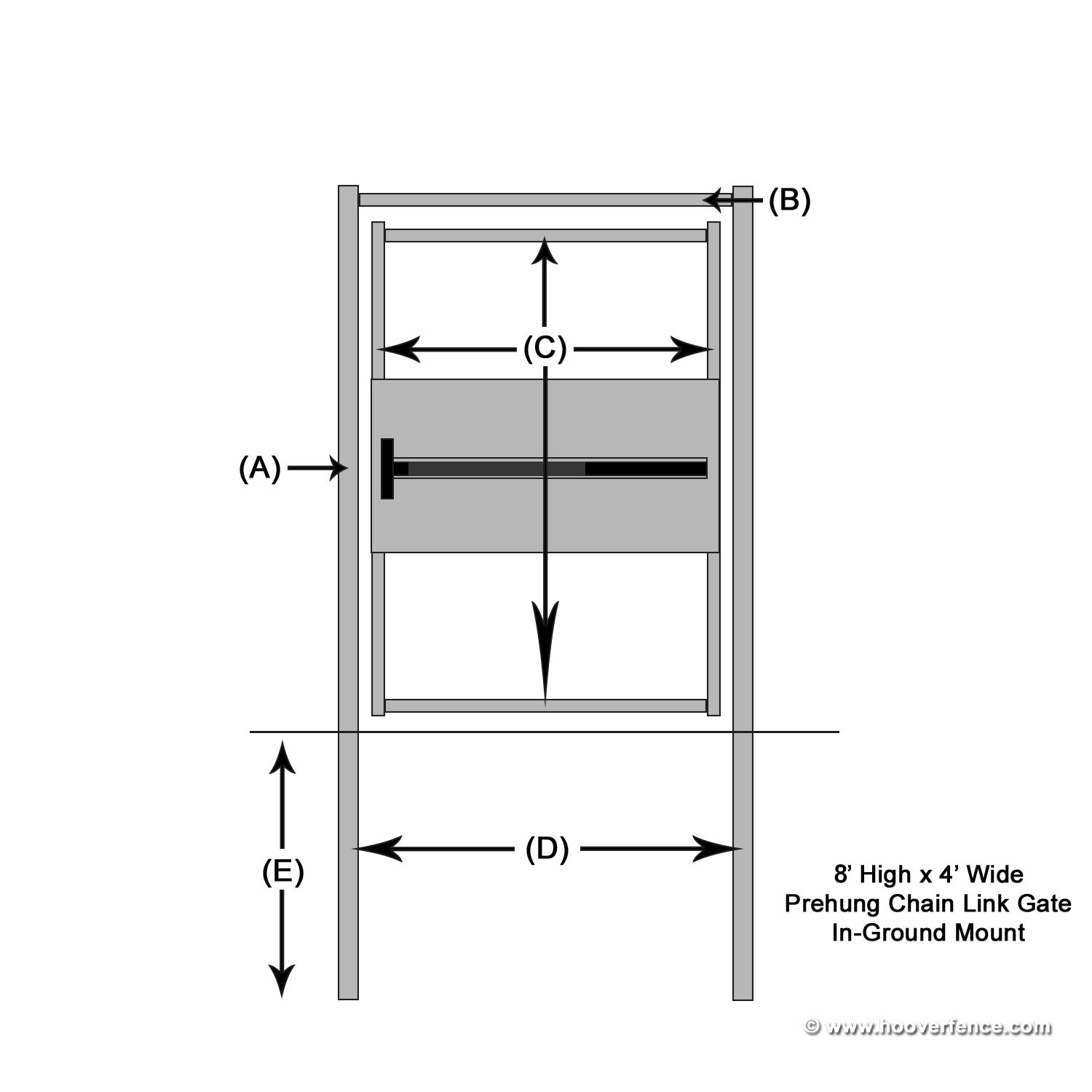

Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimeter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 8' High x 4' Wide (True Measurement: 92" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimeter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 8' High x 4' Wide (True Measurement: 92" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimeter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 8' High x 4' Wide (True Measurement: 92" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Customer Photos
Customer Photos

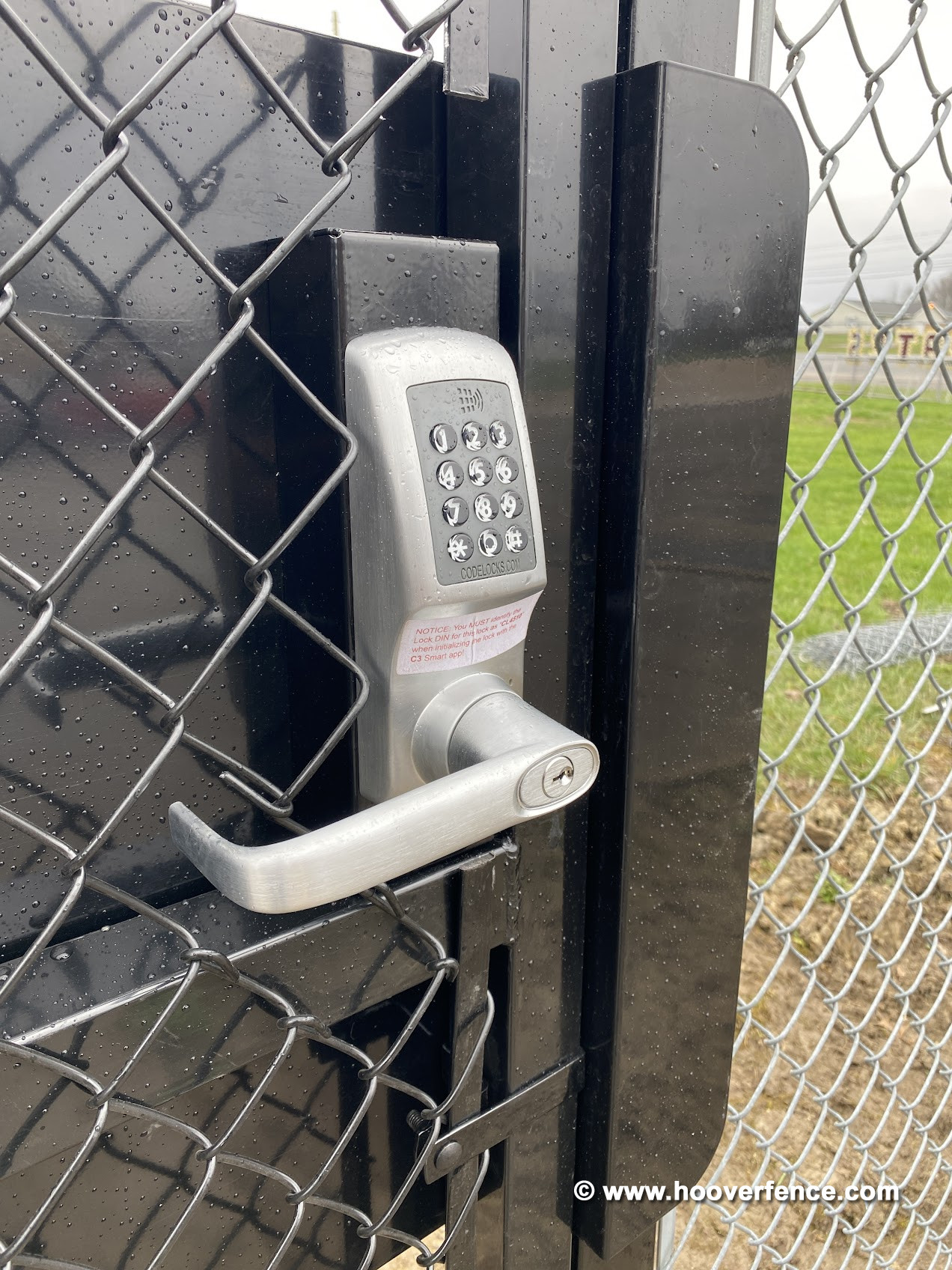

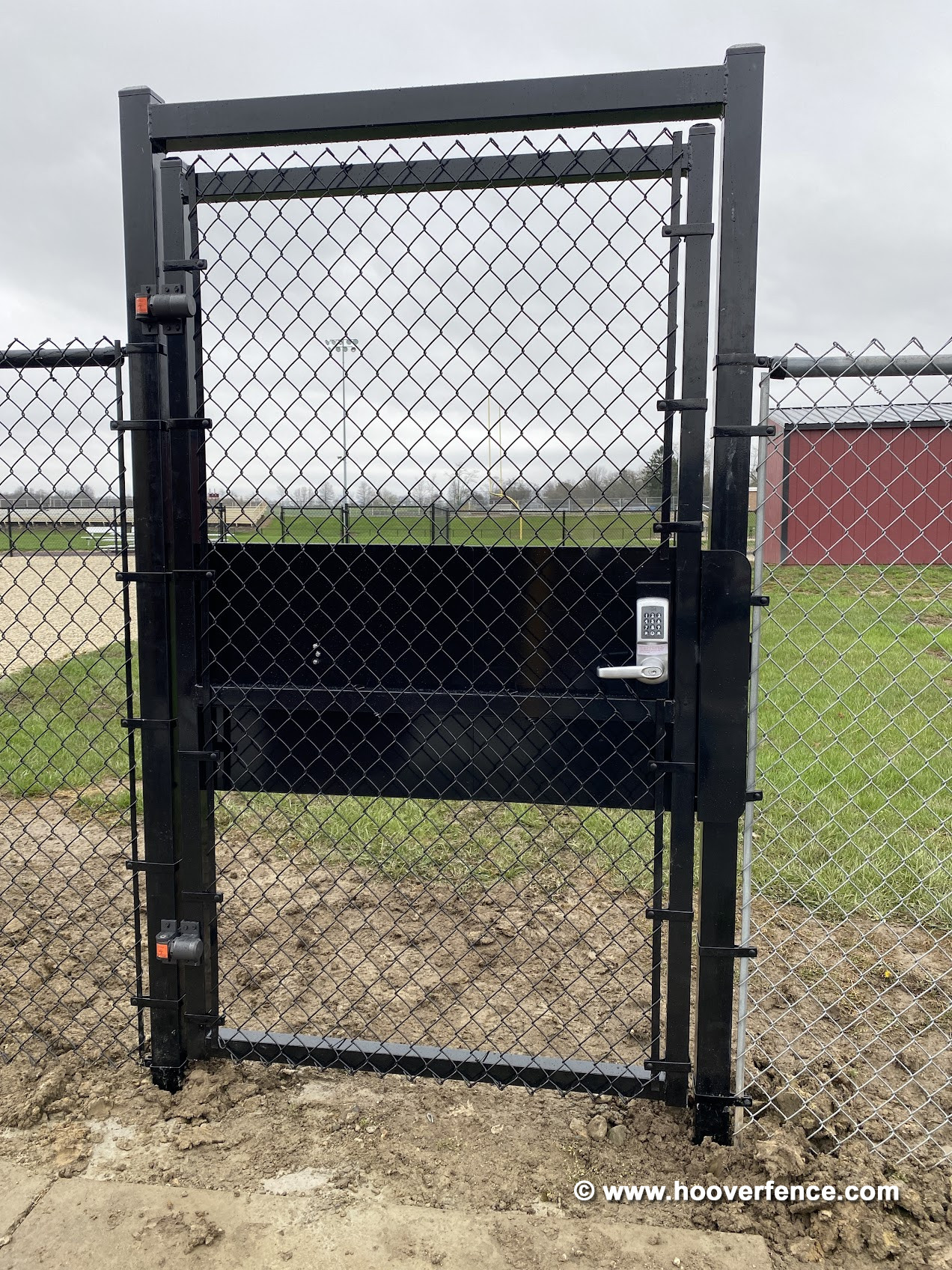

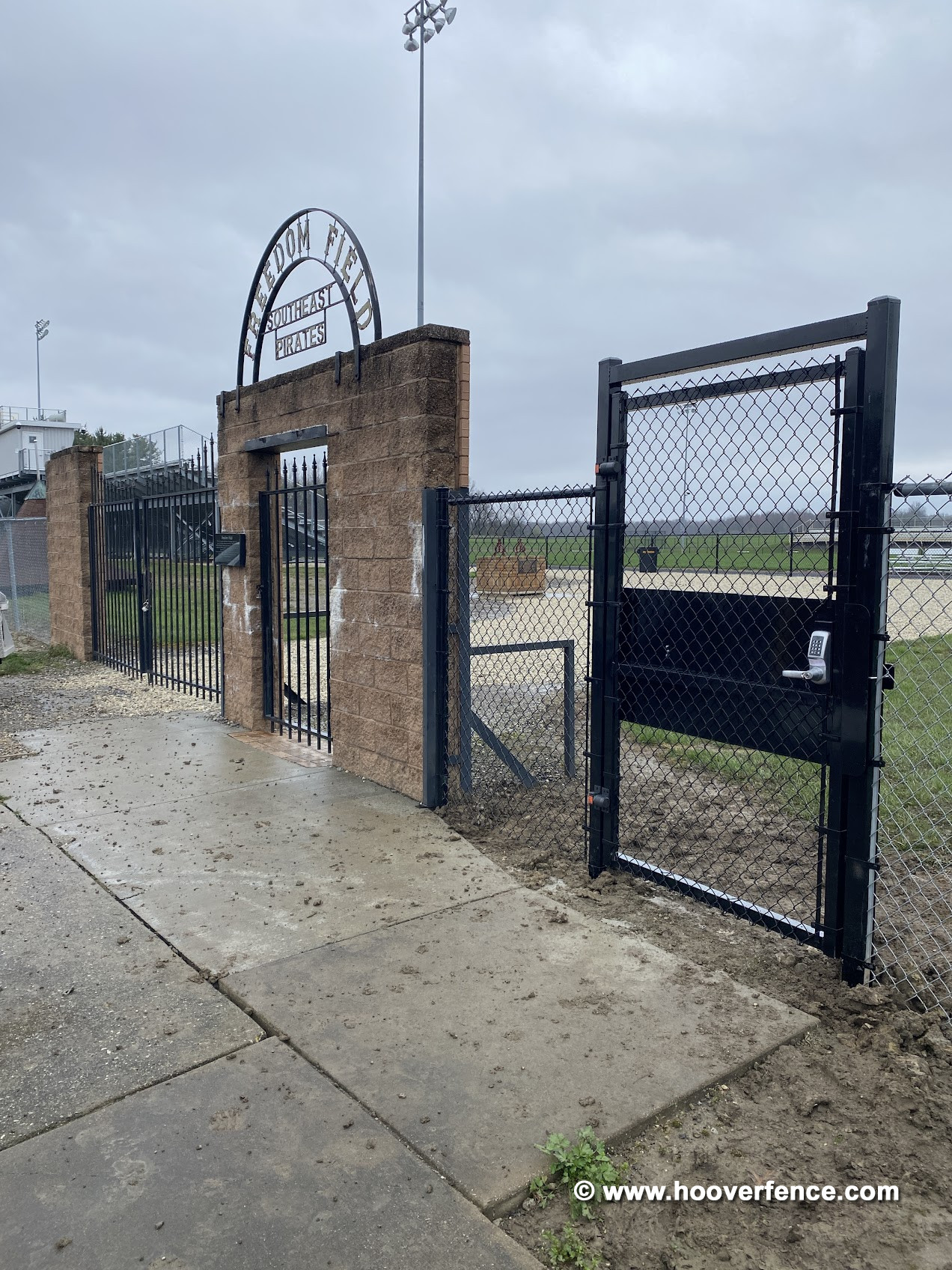

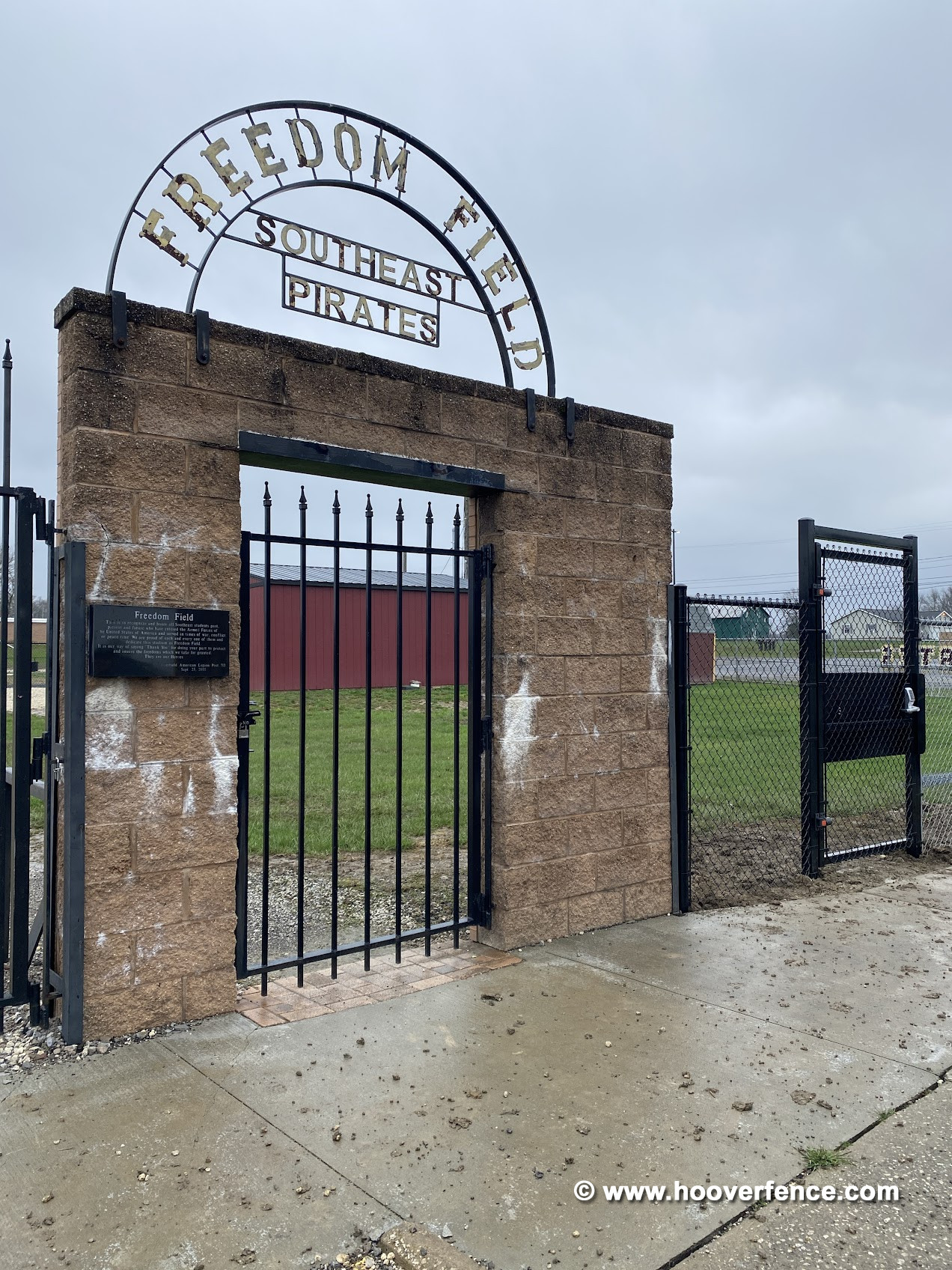

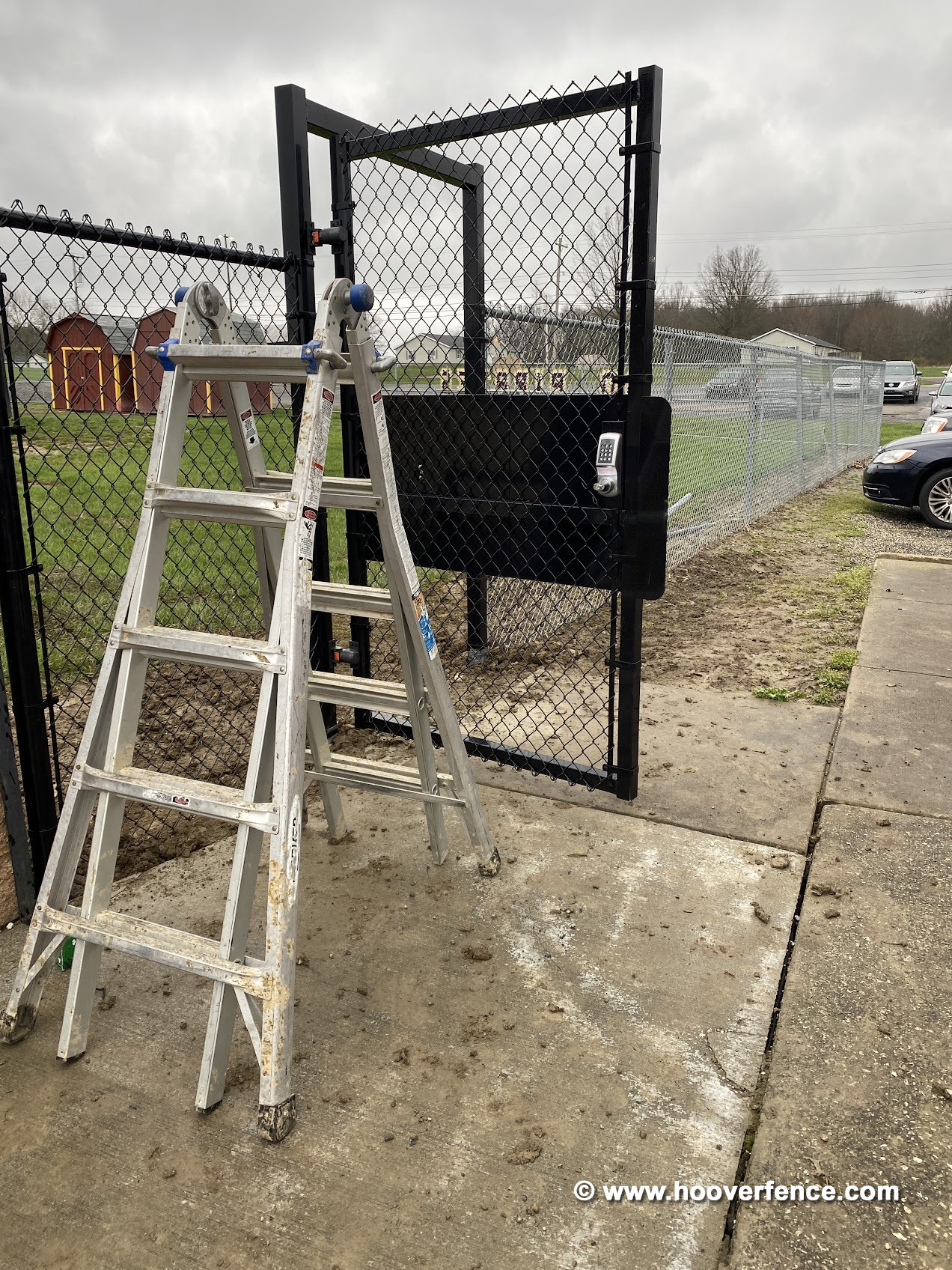

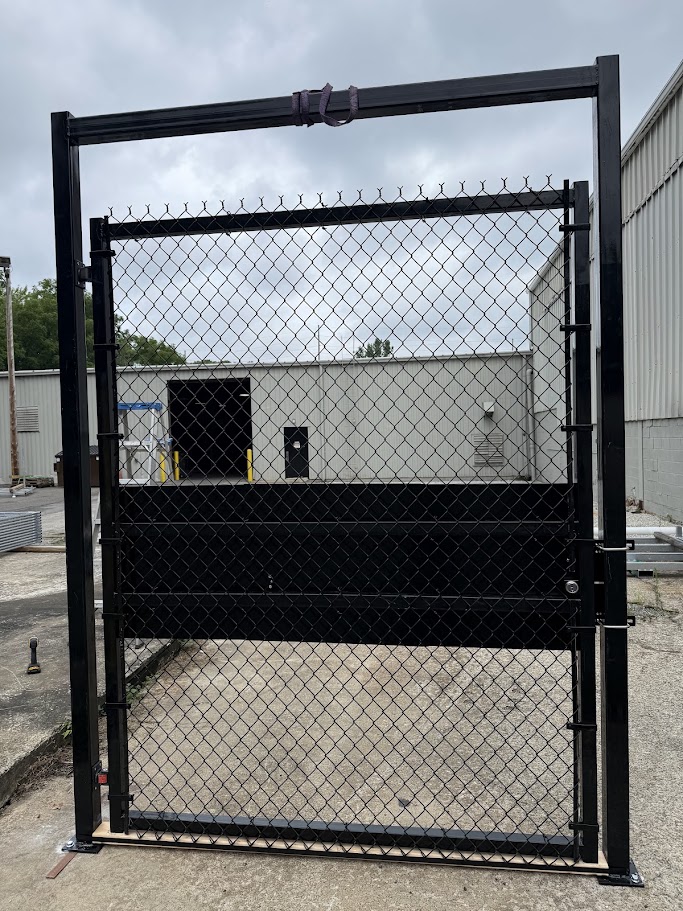

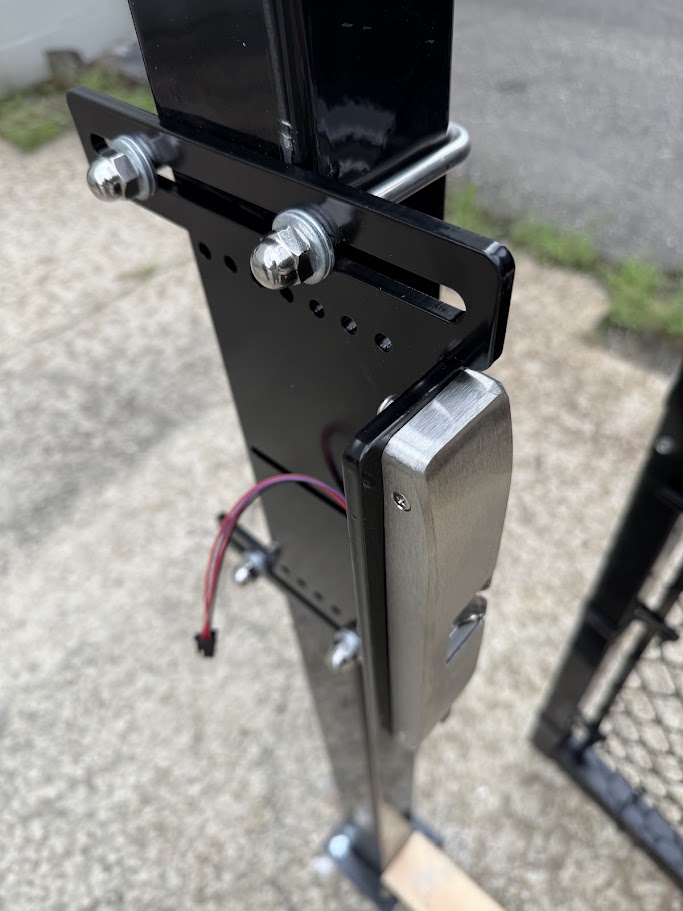

Prefabricated & PreHung Panic Bar Gate with Controlled Access using Codelocks U.S. Access Control featuring access with Memory by Smartphone, PC, Keypad, RFID Card, RFID Keyfob, RFID Wristband, RFID Sticker, and Time-Sensitive Temporary Access via SMS Text/ Email.

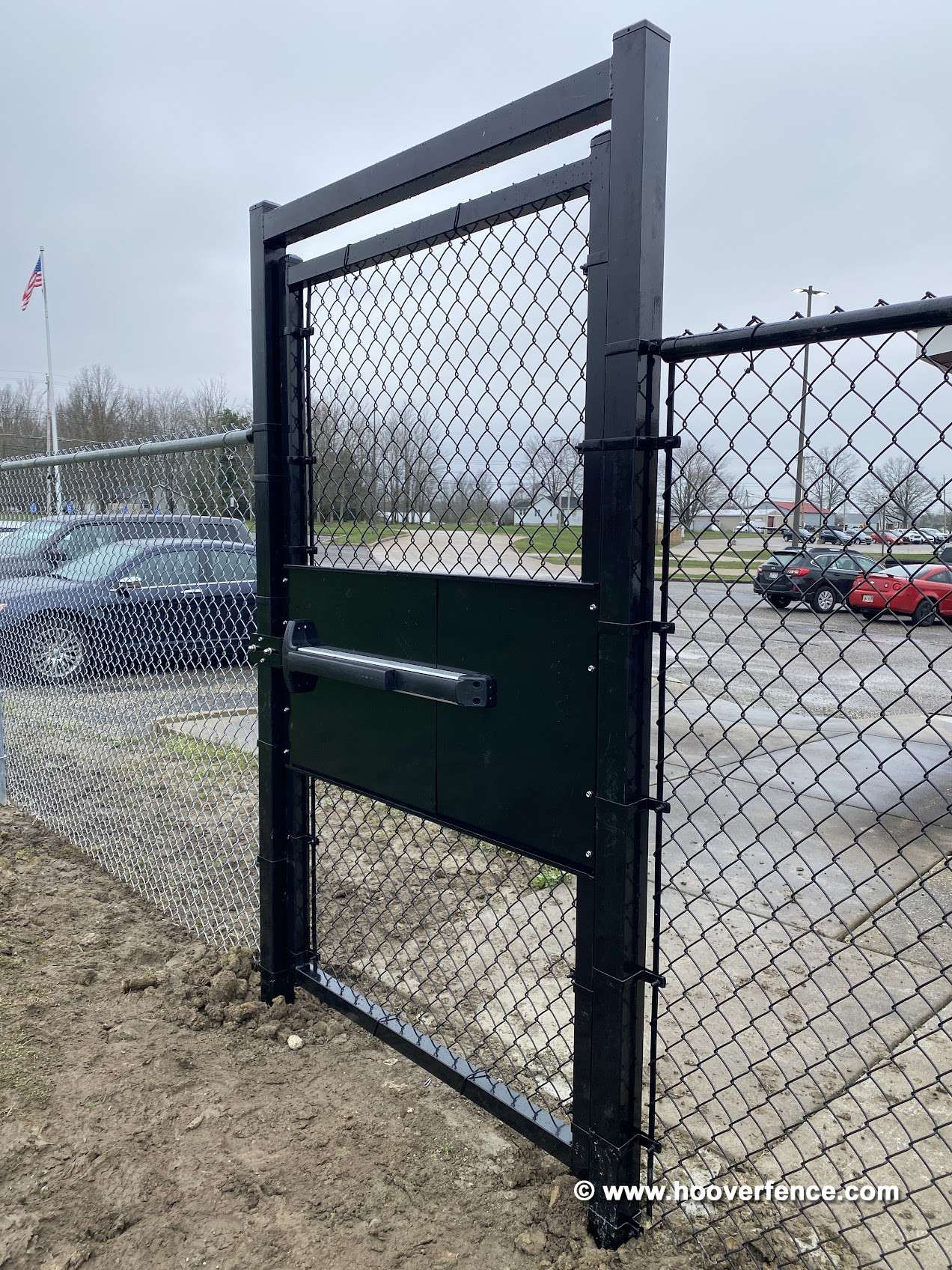

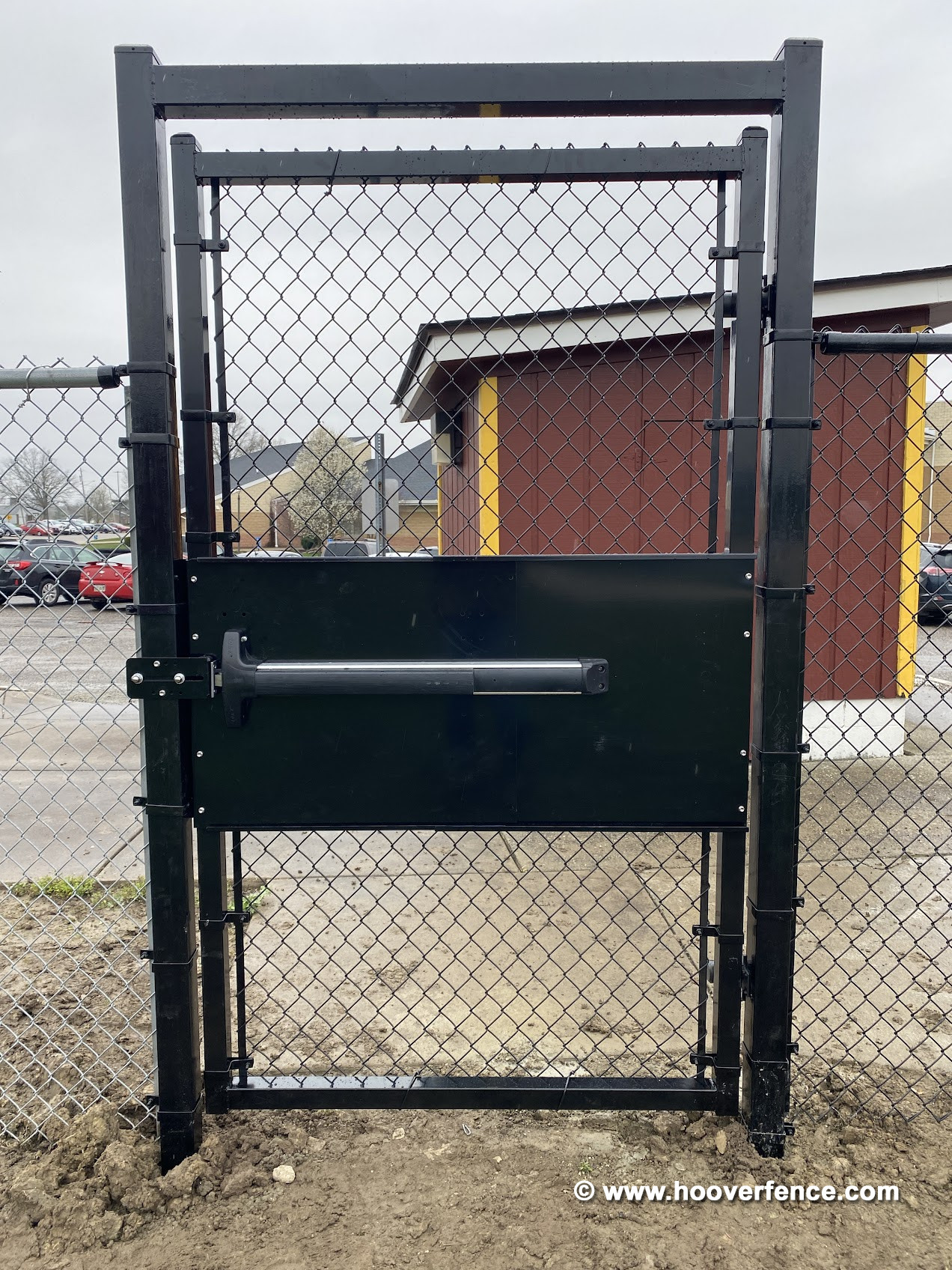

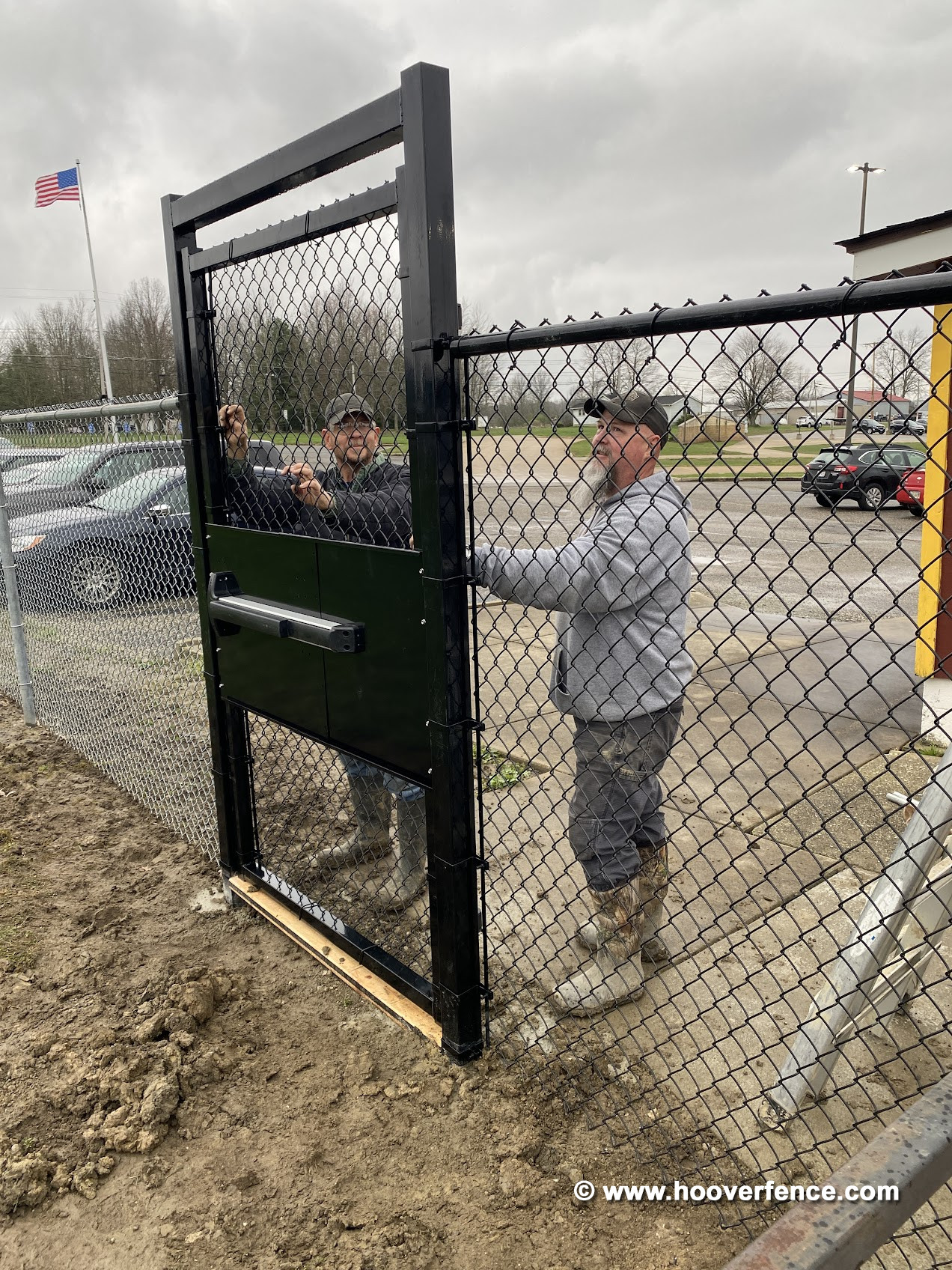

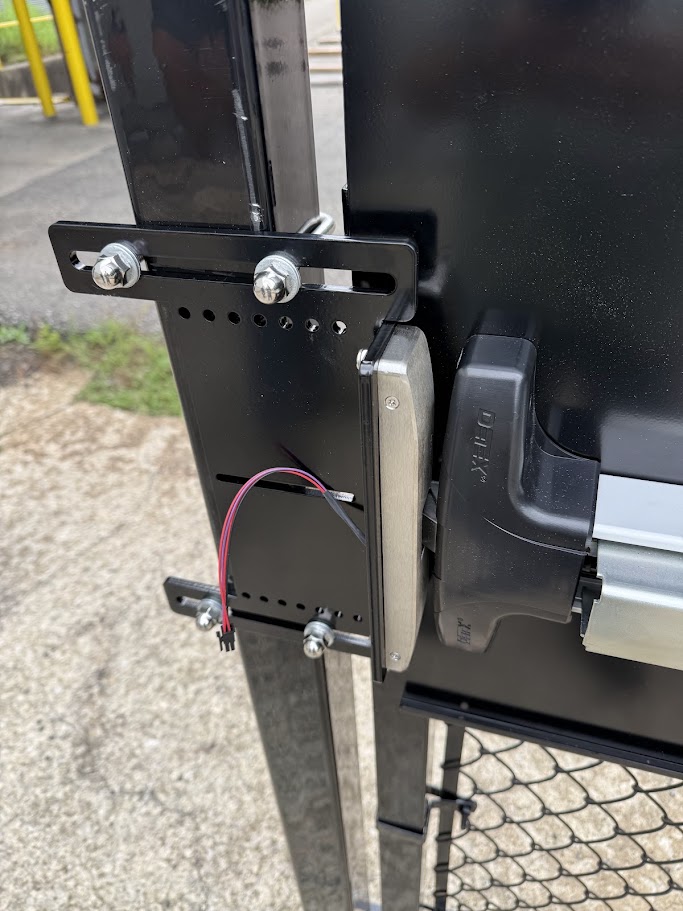

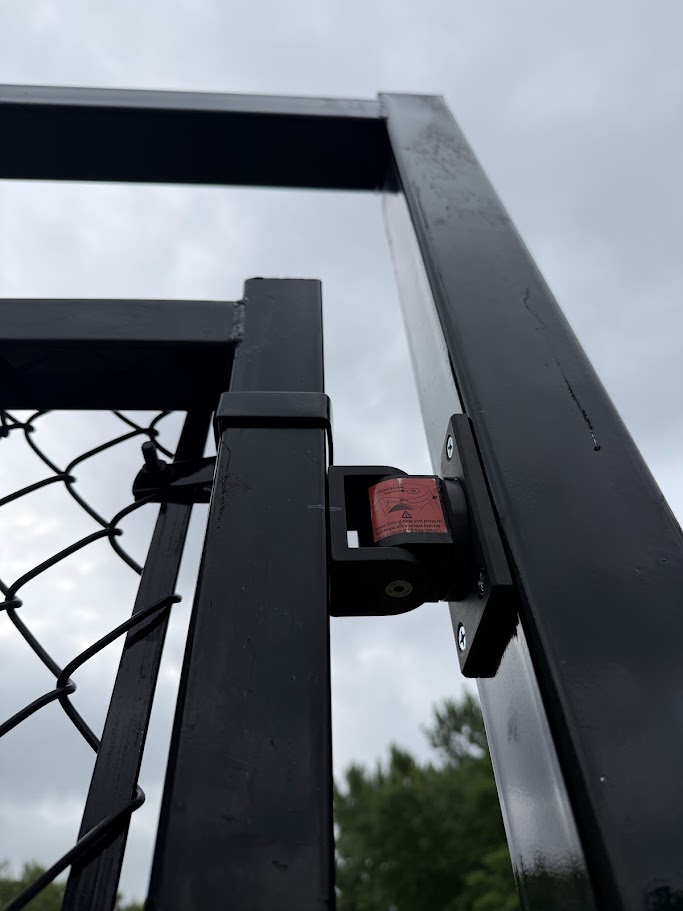

D&D Technologies USA SureClose ReadyFit Self-Closing Hydraulic Hinges are paired with Detex Free Egress Weatherized Panic Bar.

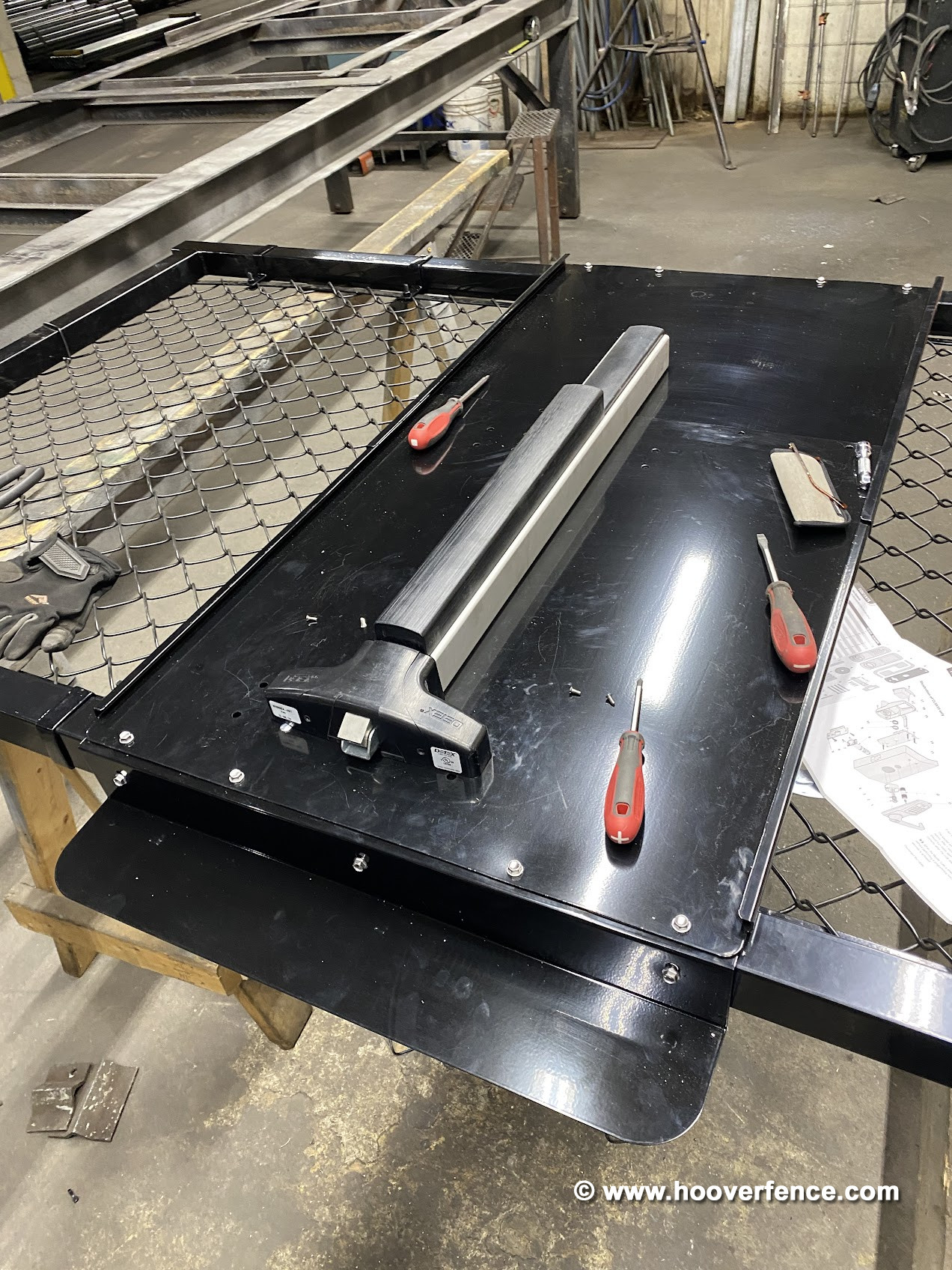

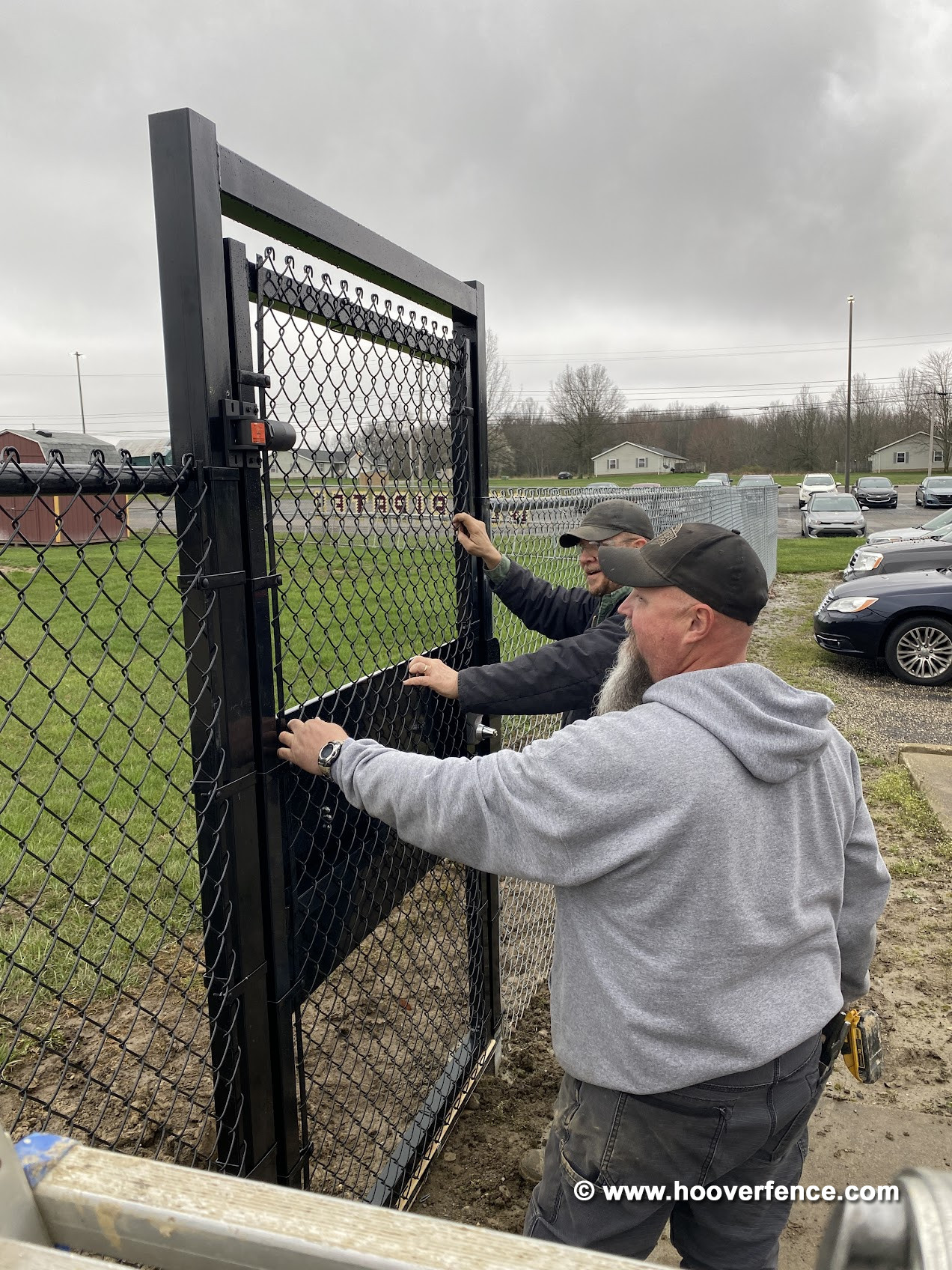

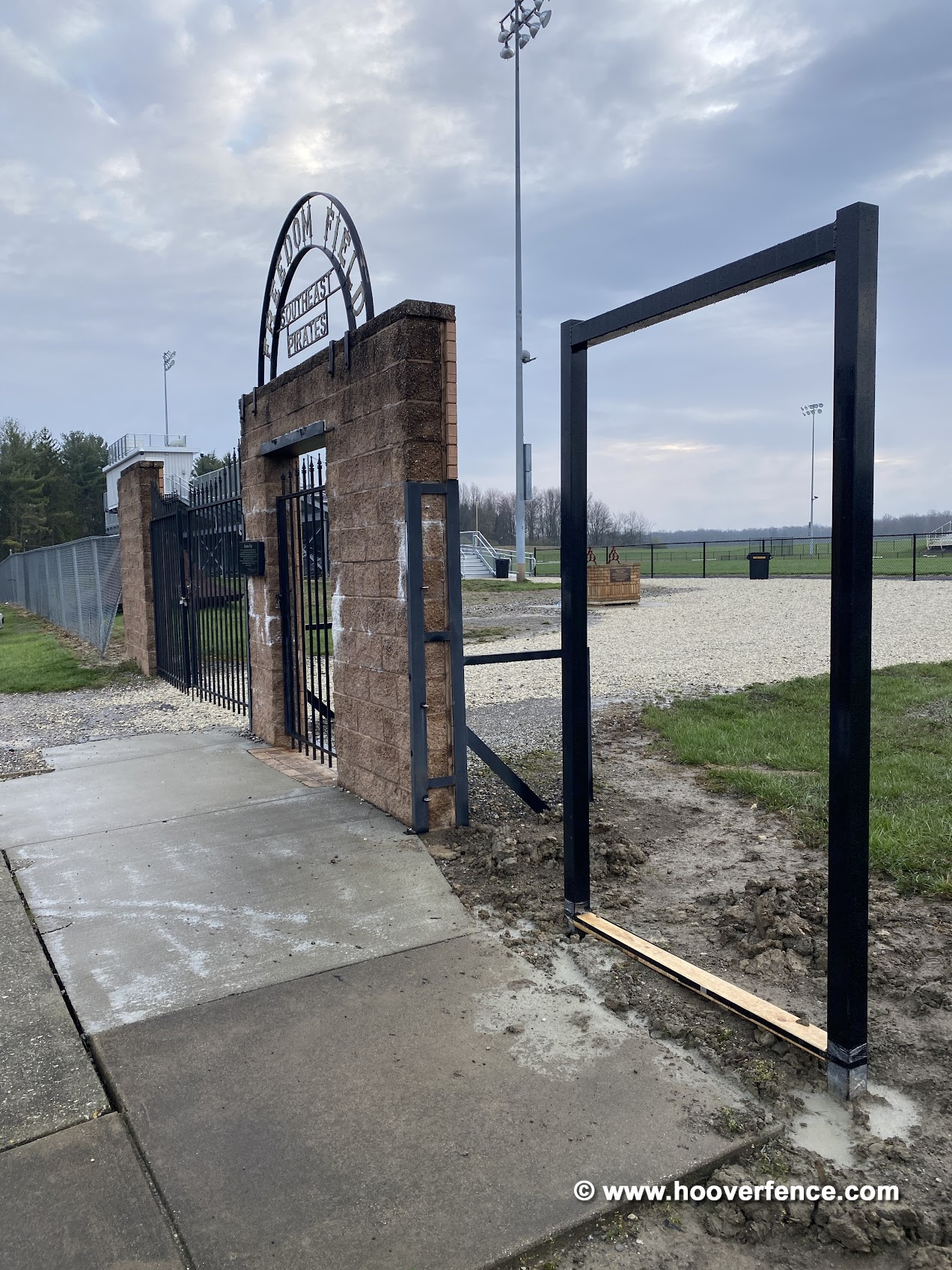

Quality fabrication and installation by our own staff, Jeremy & Forest. Terrific job guys!
Reviews
Reviews
Average Customer Rating:
(1 Review)
Write a Review (requires login)
Guys are professional and creatively
Guys are professional and creatively resourceful!
Shipping
Shipping
Shipping Expense Disclaimer: All orders are subject to confirmation. Additional shipping expenses, although rare, may apply due to weight, size, location, and/or other variables. Should your order require additional funds to cover the transportation of goods, you will be contacted prior to order processing for approval.
-

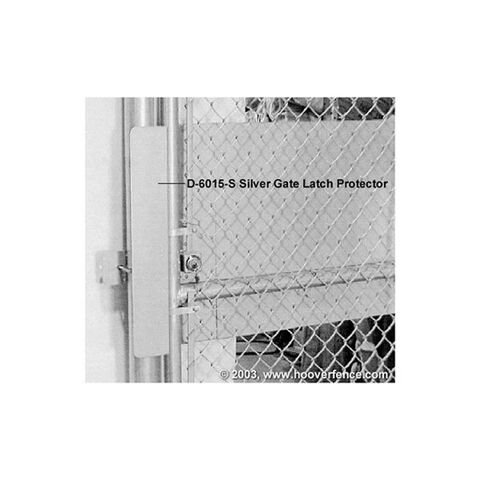

$25.00Hoover FenceInstallation Only for Latch Protector Plate (Gate & Plate Sold Separately)#FAB-PANIC-PLATEView More
