Locinox Ornamental Gate Lock - Large Profile

Ornamental Gate Lock - Large Profile (LAKQH2)

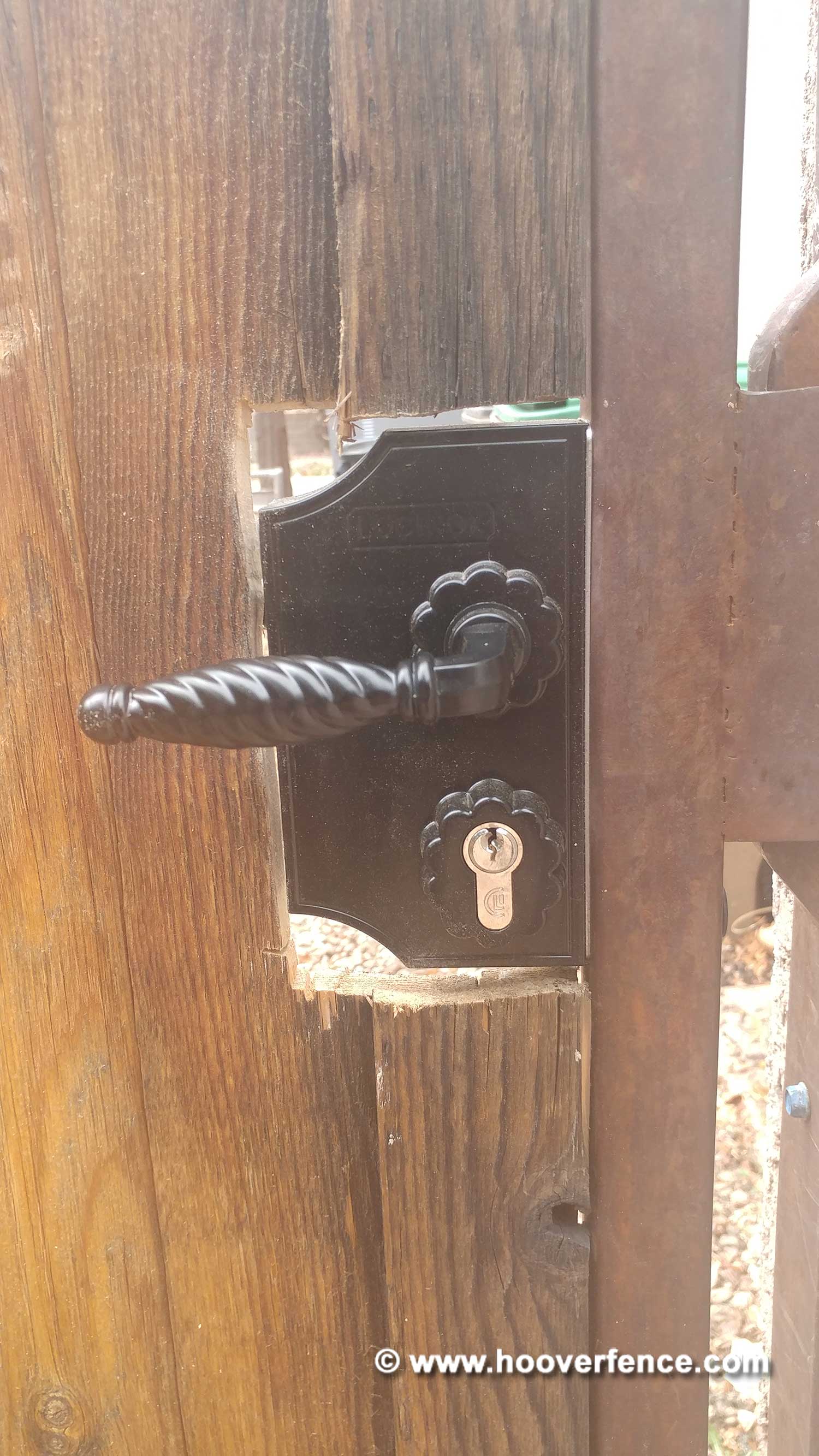

The Locinox® LAKQH2 Large Profile Ornamental Lock with aluminum housing and stainless steel mechanism is a great way to secure your ornamental metal swing gate. The latch bolt and dead bolt have 3/4" continuous adjustment to allow perfect alignment of the locking mechanism. A stainless steel throw of 7/8" guarantees secure locking. Ships standard with the decorative black Zamac ornamental handles.

The latch gap required is keeper dependent, but the standard and security keepers require a 1-1/4" latch gap.

Locinox "Ornamental" Large Profile Gate Lock - LAKQH2 Series Features:

• ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test.
• Easy left or right hand changing of the self-latching bolt.
• Throw of 7/8" in 1 turn of the key.
• Adjustment of the bolts up to 3/4" continuous without removing the lockbox.
• Key-operated self-latching bolt.
• 4-hole mounting with two hex head socket screws.
• Center distance between bolts: 2-3/8".

NOTE: Requires minimum of 3-3/4" between gate upright and 1st picket.

Ordering Notes:

When installing this latch, you also need to install a keeper/strike on the latch post. These are available for purchase separately.
