Lockey USA TB400 Medium Duty Hydraulic Gate Closers
Item # LUS-TB400-P
Details
Details
The Lockey® LUS-TB400 Gate Closers are economic and reliable automatic gate closers for use on commercial or residential gates. Unlike normal closing springs, the TB Series does not slam gates shut; rather it firmly pushes the gate closed, making it ideal for use with Lockey® security locks and other latching devices. The closing speed is pre-set to provide a controlled close of approximately 6 seconds, depending on the weight of the gate and quality of the hinges.
Lockey LUS-TB400 Hydraulic Gate Closer Features:
- Closes large and small gates up to 175 lbs.
- Hydraulic/Nitrogen Gas controlled closing speed.
- Installs on side, top, middle or bottom of right or left hand gates.
- Mounts on opening side of gate, pushing the gate closed.
- Maximum opening angle of 110 degrees (LockeyUSA® recommends use of a mechanical stop to restrict opening angle).
- Mounting brackets and fitting bar included.
Specifications
Specifications
Lockey LUS-TB400 Hydraulic Gate Closer Technical Specifications:
| Gate Weight: | 75-175 lbs. |
| Gate Width: | 40-64 Inches |
| Maximum Opening Angle: | 110° |
| Compatible Gate Materials: | Vinyl, Wood, Steel, Aluminum |
| Closing/Latch Method: | Hydraulic/Nitrogen Gas |
| Material of Construction: | Steel/Stainless Steel |
| Color: | Black or Stainless (Mill) |
| Hinge Arrangement Required: | In-Line or Offset |
| Opening Pressure: | Approximately 6-12 lbs. |
Added Opening Force Comparison Chart:
| Gate Closer Model | 36"W Gate | 48"W Gate | 60"W Gate | Constant Pressure |
|---|---|---|---|---|
| No Closer | 3/4 lb. Pressure | 1/2 lb. Pressure | 1/4 lb. Pressure | 0 lbs. Pressure |
| LUS-TB200 | 6 lbs. Pressure | 4 lbs. Pressure | 3 lbs. Pressure | 45 lbs. Pressure |
| LUS-TB400 | 10 lbs. Pressure | 8 lbs. Pressure | 6 lbs. Pressure | 90 lbs. Pressure |
| LUS-TB600 | 13 lbs. Pressure | 10 lbs. Pressure | 8 lbs. Pressure | 135 lbs. Pressure |
Added Opening Force at 45° Open Comparison Chart:
| Gate Closer Model | 36"W Gate | 48"W Gate | 60"W Gate |
|---|---|---|---|
| LUS-TB200 | 7 lbs. Pressure | 5 lbs. Pressure | 4.5 lbs. Pressure |
| LUS-TB400 | 13 lbs. Pressure | 9.5 lbs. Pressure | 8 lbs. Pressure |
| LUS-TB600 | 18.5 lbs. Pressure | 13.5 lbs. Pressure | 12 lbs. Pressure |
NOTE: All measurements are taken using the 1st mounting hole on the post bracket with a 3" distance between the center of the hinge and the center of the post mounting bracket. The opening pressure will INCREASE using the 2nd, 3rd and 4th holes. These are "ADDED" opening pressures. This chart DOES NOT take into consideration the hinge arrangements, quality of hinges, ease of operation, wind, etc.
Warranty
Warranty
Instructions
Instructions
Videos/Media
Videos/Media
Here is a customer supplied installation video showing just how smooth and secure of a closing that the Lockey TB400-BK Gate Closer provides to this industrial metal fence gate. Thanks Randall!
Customer Photos
Customer Photos

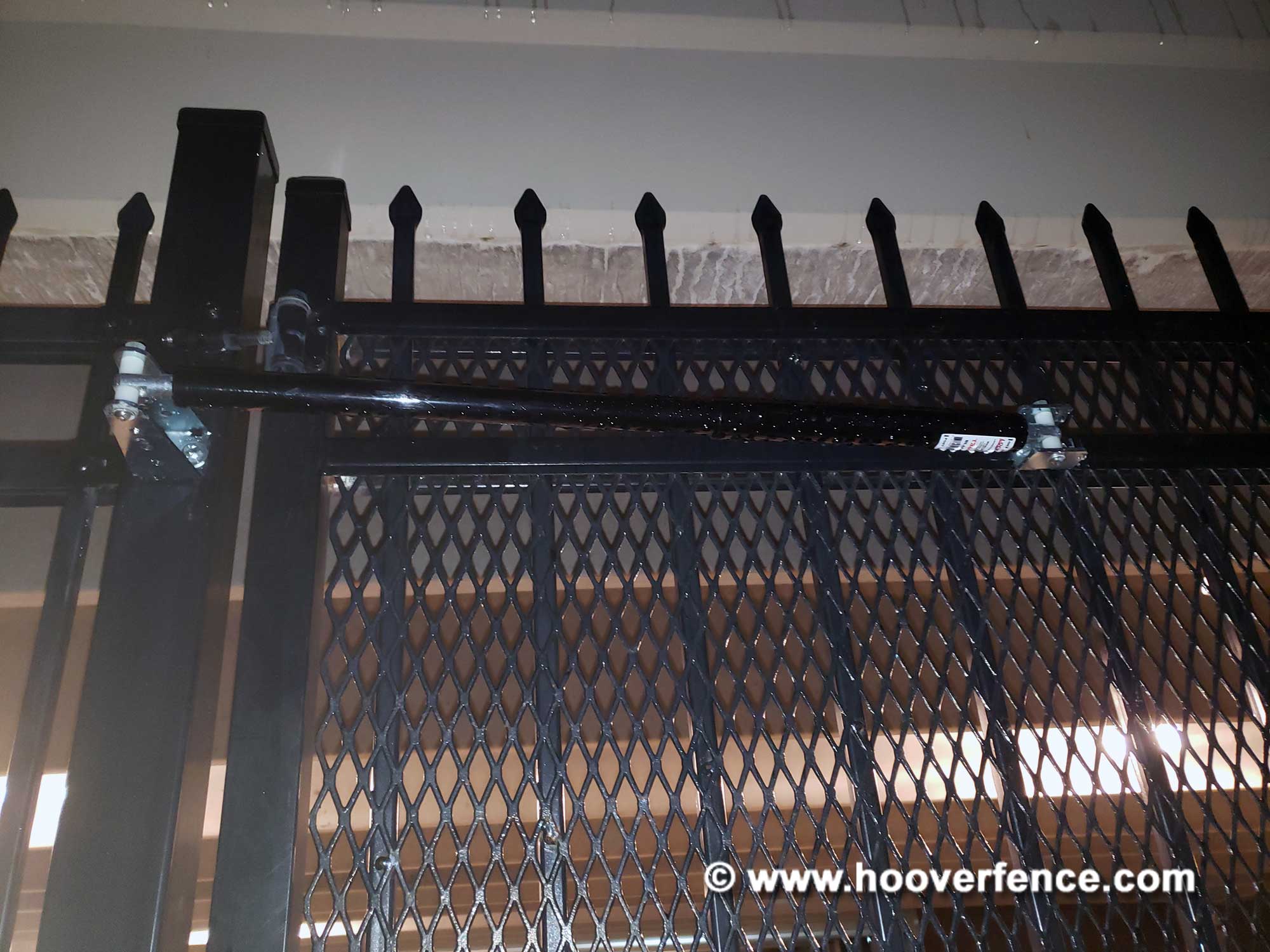

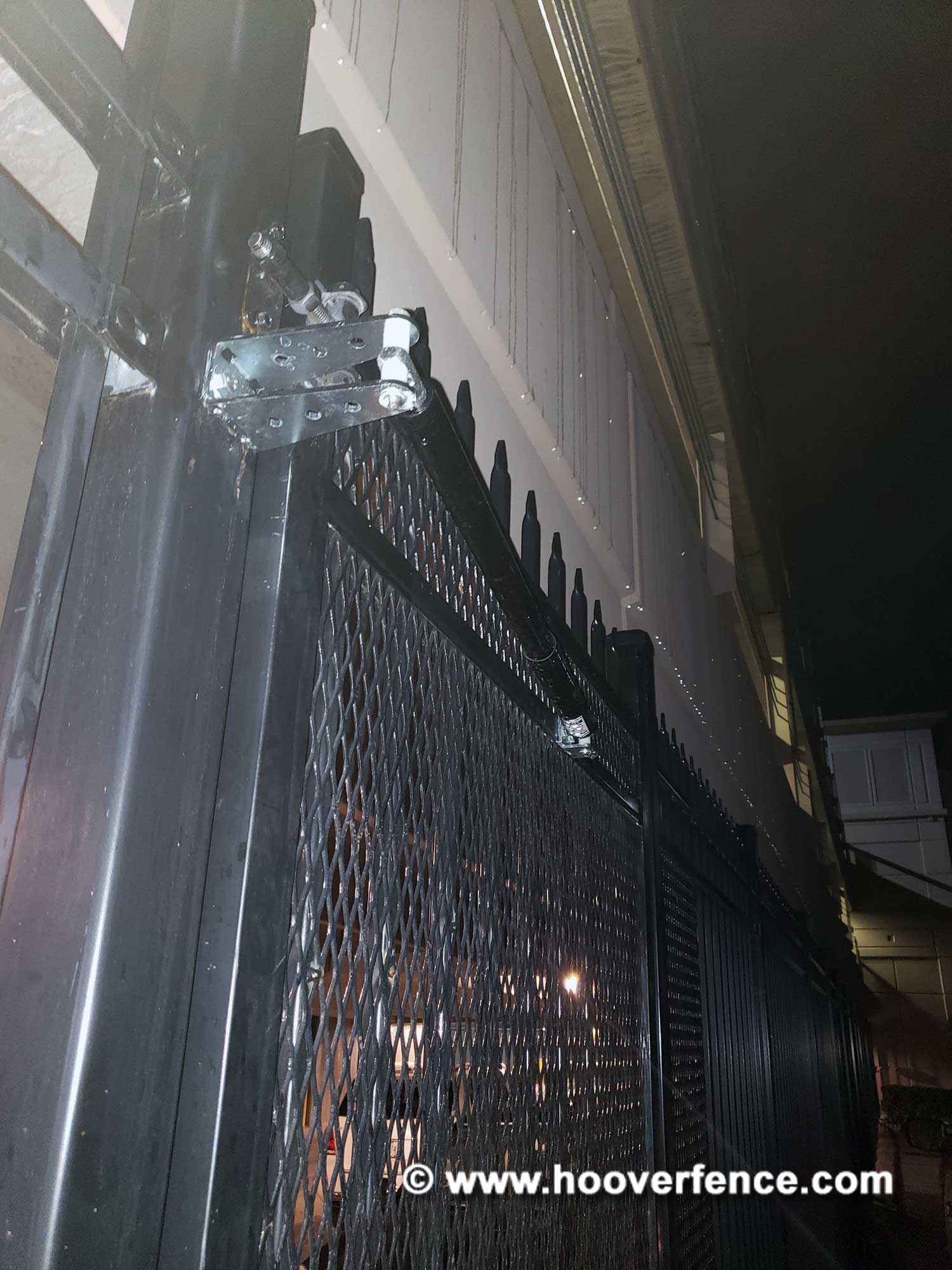

Here is a customer supplied image of a Lockey TB400-BK gate closer that he installed on a metal fence gate, using expanded metal for added security. Thanks Randy!
Reviews
Reviews
Average Customer Rating:
(5 Reviews)
Write a Review (requires login)
Great service
Great service, and products. Arrived very quickly and the product installed easily. We will be using Hoover again.
Service and delivery was very quick I'm..
Service and delivery was very quick I'm very pleased with my purchase and plan on buying more I wish I would have heard about you sooner
I got all items I ordered and on time.
I got all items I ordered and on time. Thank you for your help.
Excellent customer service
Excellent customer service, stellar communication and great follow through! Product was delivered as described and Im very pleased and will highly urge anyone looking for fencing or gate products to contact this company.
Got the equipment quickly and the..
Got the equipment quickly and the website was easy to navigate
Shipping
Shipping
Shipping Expense Disclaimer: All orders are subject to confirmation. Additional shipping expenses, although rare, may apply due to weight, size, location, and/or other variables. Should your order require additional funds to cover the transportation of goods, you will be contacted prior to order processing for approval.
-
