LiftMaster 120V AC Slide Gate Operator - 1/2-HP & 1-HP

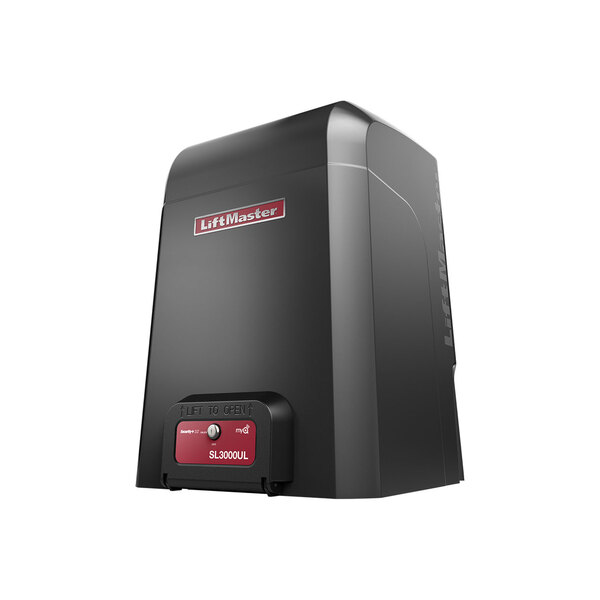

120V AC Slide Gate Operator (SL3000)

Reliably open and close your sliding cantilever gate with the LiftMaster SL3000UL Series High Traffic Commercial Slide Gate Operators. These continuous-duty operators are ideal for heavy-traffic applications such as commercial facilities and large gated housing communities. Choose between 1/2 HP and 1 HP models to match your gate's weight requirements.

Available Models:

• SL3000501UL – 1/2 HP: Rated for slide gates up to 50 feet long and 1,000 lbs.
• SL3000101UL – 1 HP: Rated for slide gates up to 50 feet long and 2,000 lbs.

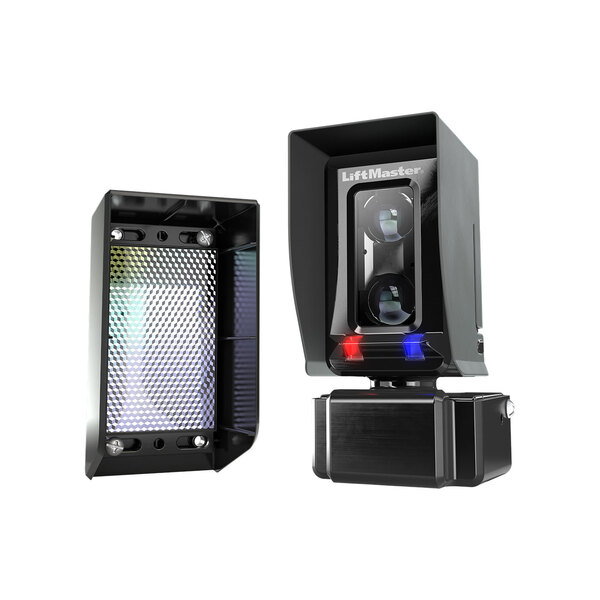

Both models include an LMRRUL monitored reflective photo eye with an updated swivel mounting bracket and an integrated heater to help keep the lens clear of moisture from rain, snow, and fog. Each operator also includes an S505AL 5-foot small-profile resistive safety edge with aluminum channel. This edge can be trimmed to length and installed to help protect an entrapment area between the moving gate and adjacent fence posts.

Note: Order 1 operator for single slide gates and 2 operators for double slide gate applications. Select the appropriate horsepower for the length and weight of each gate leaf.

SL3000UL Series Gate Safety and Security Features:

Gate Safety Sensors
The included monitored photo eye helps protect the gate opening by detecting obstructions and preventing the gate from closing when the beam is interrupted.

Obstruction Detection
Inherent reversing sensors and monitored safety accessories help detect obstructions and stop or reverse gate movement.

Security+ 2.0®
Helps safeguard property access with encrypted radio communication and extended remote-control range.

Quick Close Feature
Helps reduce tailgating by allowing the gate to close promptly after a vehicle clears the applicable detection device.

UL Listed
UL 325 listed operators support monitored external entrapment protection devices. Your installer must evaluate the installation and provide the photo eyes or safety edges required to protect all entrapment zones. Additional devices beyond the included accessories may be necessary.

SL3000UL Series Gate Connectivity Features:

Monitor and Control
Compatible myQ® technology provides remote gate monitoring and control when connected with the required additional hardware and services.

Access Control Integration
Integrates with compatible LiftMaster access control technology for commercial properties and gated communities.

Gate Activity Alerts
Compatible myQ® configurations allow users to receive gate activity alerts and check gate status remotely.

SL3000UL Series Gate Power Details:

SL3000501UL – 1/2 HP Model
120V AC slide gate operator for gates up to 50 feet long and 1,000 lbs. Ideal for installations requiring continuous-duty operation within this capacity range.

SL3000101UL – 1 HP Model
120V AC slide gate operator for gates up to 50 feet long and 2,000 lbs. Offers greater weight capacity for heavier gates while maintaining the same maximum gate length.

LiftMaster Operators Overview

LiftMaster Gate Operator Feature Chart (PDF)
