D&D Technologies SlimLine Hydraulic Vertical Gate Closer
Item # DC622G
Details
Details
Vertical Gate Closer (DC622G)
The DC622G Vertical Gate Closer offers smooth, controlled closing for pedestrian and security gates. It mounts on the interior side of the gate for better protection from vandalism and wear, and it's designed for both inward- and outward-swinging gates.
Vertical Gate Closer (DC622G) Features:- Versatile Installation: Can be mounted on pillars or walls, on both the push and pull sides of the gate
- Ideal for both retrofit and new construction applications
- Interior Mounting: Provides added protection from vandalism and environmental exposure
- Broad Compatibility: Works with face- or center-mounted hinges and most pedestrian/security gates
- Heavy-Duty Performance: Supports gates up to 4’ 3” wide and 330 lbs
- Easy Installation: No welding required; quick and simple setup

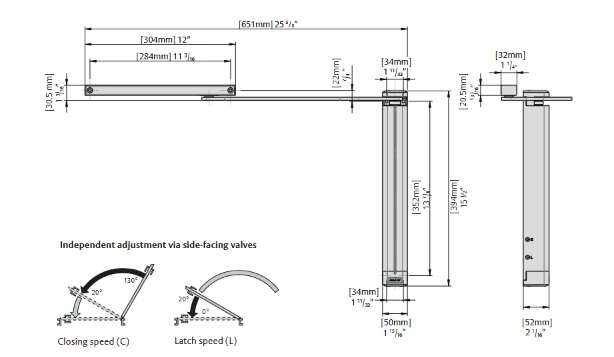

- Adjustable Speeds: Independent adjustment for closing and latching speeds
- Accessible Controls: Side-facing metal valves allow for easy tuning
- All-Weather Performance: Operates consistently across a wide temperature range
- Safety-Oriented: Features a pinch-free guide rail to reduce injury risk
- ADA Suitable: Meets ADA requirements for gates 34” wide or more
- Complete Kit: Includes guide rail, mounting screws, rivets, and all required hardware
Ordering Notes:
Designed for gate openings up to 4' 3" wide and 330 lbs. Be sure to confirm hinge style and gate dimensions before ordering.
Specifications
Specifications
| Brand | SureClose® |
|---|---|
| Product Code | DC622G-R-9004, DC622G-L-9004 |
| Gate Application | Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate |
| Gate Type | Self-Closing |
| Gate Material | Aluminum, Steel/Ornamental Iron, Brick |
| Self-Closing Gate Weight | Up to 330lb (150kg) |
| Approx Gate Size | 4.3ft W x 6ft H (1.3m x 1.8m) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 2"+ (50mm) |
| Ideal Gate Gap | ½”–1⅜” (12–35mm) |
| Fixing Method | Screw-On |
| Colour/Finish | Black Anodised |
