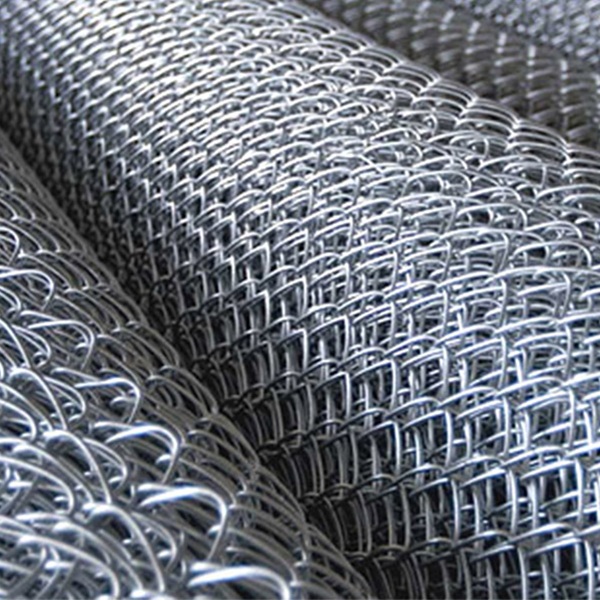

11 Gauge x 1-3/4" Chain Link Fence Fabric, Galvanized

Item # CL-FABRIC-11GA-1.75IN-G

50' Rolls

11 Gauge x 1-3/4" Chain Link Fence Fabric, Galvanized

Actual product(s) may vary from pictures shown

11 Gauge x 1-3/4" Chain Link Fence Fabric, Galvanized (CL-FABRIC-11GA-1.75IN-G)

11 gauge chain link in a 1-3/4" mesh size is typically used for tennis court applications. The use of a smaller mesh size keeps the tennis ball from getting stuck in the fabric.

Volume discounts provided on full pallet quantities (9 rolls).

Product available Galvanized After Weave (GAW) finish.

KxK Selvage = Knuckle x Knuckle (Chain link top and bottoms are bent over).

KxT Selvage = Knuckle x Twist (Chain link is twisted at one end to form two barbs, while the other is bent over).

Chain Link Fabric Selvage Diagram

Specifications

11 gauge chain link fabric is available in Galvanized After Weave (GAW) finish which comes in a 1.2 oz coating, meeting ASTM A 392-96 Class I specifications.

About mesh size: The galvanized fabric mesh for 11-1/2 gauge measures 2-1/4". The 11, 9, and 6 gauge galvanized mesh measures 2". Mesh size is the measured distance between two parallel sides (see illustration).

Note about gauges: The smaller the number, the heavier the fabric; henceforth 9ga. is heavier than 11ga.. We recommend 11ga. for residential jobs and 9ga. for commercial jobs. Heavier gauges are not only stronger, but have a better finish; The heavier the gauge the longer it may be 'hot-dip galvanized' to prevent rust and corrosion.

Fence Height	Weight per 30' Roll
10'	317 lbs.
12'	358 lbs.

Weights shown are approximate.

Instructions

Rolls are supplied with an additional link for weaving onto another roll of material if over 50' is needed. On the flip side, a full roll can easily be trimmed down by un-knuckling (un-folding) the links on the ends and spinning the link out to one side of the roll.

Chain Link Fence Installation Manual (PDF)
