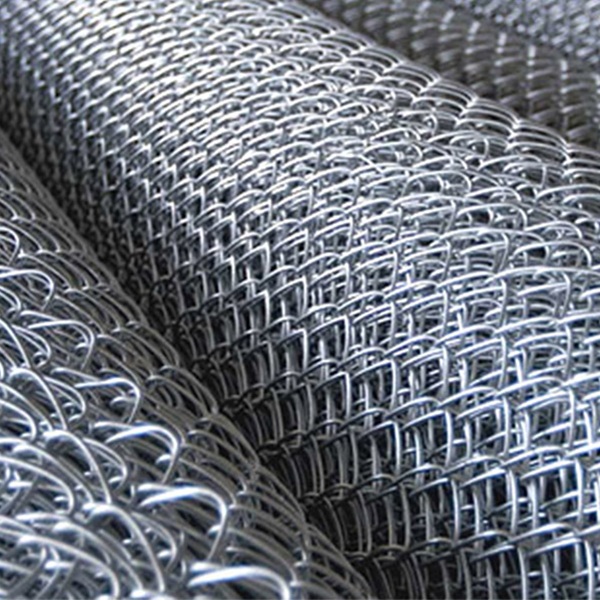

9 Gauge x 2" Chain Link Fence Fabric, Galvanized - 2 oz.
Item # CL-FABRIC-9GA-2IN-G-2
Details
Details
9 Gauge x 2" Chain Link Fence Fabric, Galvanized - 2 oz. (CL-FABRIC-9GA-2IN-G-2)
9 gauge galvanized chain link fabric stretched on a commercial or industrial frame is the best choice for a fence installation of the highest quality. The 2.0 oz Class II option is a commonly specified material for commercial, and heavy duty industrial fencing applications. Our 9 gauge chain link fence is strong, secure, and made to last!
Our heavy-duty 2.0 oz 9 gauge chain link fence is often found in the following applications:
- Dog Boarding and Breeder Kennel Facilities
- Playgrounds, Day Care Facilities, and Churches
- Schools, Universities, and Parks
- Baseball Backstops, Sideline, and Homerun Fences
- Tennis Courts
- Small and Large Businesses
- Fencing for the Oil and Gas Industry
- Federal and State Prisons, Airports, and other High Security Projects
We suggest using HF40 cut fence posts with HF40 toprail for superb results.
Product available Galvanized After Weave (GAW) finish.
Volume discounts provided on full pallet quantities (9 rolls).
KxK Selvage = Knuckle x Knuckle (Chain link top and bottoms are bent over).
KxT Selvage = Knuckle x Twist (Chain link is twisted at one end to form two barbs, while the other is bent over).
Specifications
Specifications
9 gauge chain link fabric is available in Galvanized After Weave (GAW) finish, in a 2.0 oz coating, to meet ASTM A 392 Type I (Class II) specifications.
About mesh size: The galvanized fabric mesh for 11-1/2 gauge measures 2-1/4". The 11, 9, and 6 gauge galvanized mesh measures 2". Mesh size is the measured distance between two parallel sides (see illustration).
.jpg)
Note about gauges: The smaller the number, the heavier the fabric; henceforth 9ga. is heavier than 11ga.. We recommend 11ga. for residential jobs and 9ga. for commercial jobs. Heavier gauges are not only stronger, but have a better finish; The heavier the gauge the longer it may be 'hot-dip galvanized' to prevent rust and corrosion.
| Fence Height | Weight per 50' Roll |
|---|---|
| 5' | 178 lbs. |
| 6' | 209 lbs. |
Weights shown are approximate.
Instructions
Instructions
Rolls are supplied with an additional link for weaving onto another roll of material if over 50' is needed. On the flip side, a full roll can easily be trimmed down by un-knuckling (un-folding) the links on the ends and spinning the link out to one side of the roll.
