Adjustable Bolt-on Barrel Hinges

Item # BOLT-ON-BARREL-HINGE

Sold In Pairs

Actual product(s) may vary from pictures shown

$25.69 - $43.95

Size:

Please Select

Quantity:

Add to Projects

Details

Heavy duty bolt-on barrel hinges are a great choice for gates and doors that are heavy and require tight tolerances with smooth effortless operation. The bolt-on feature allows for mounting the hinges in the field, without the need for a welder and generator on site, which saves time and money! A great use for these hinges are automated gates using gate operators. Many manufacturers require a bearing type hinge and these heavy duty options will work great. These hinges are also great for gates with panic hardware, electric locks or strikes, and countless projects where a durable pivot joint is required.

5" Adjustable Bolt-on Barrel Hinge Features:

5/8" Diameter Steel J-Bolt.
J-Bolt Measures Approx. 5" Long.
Base Measures Approx. 7"L x 15/16"W x 3/8"H .
Rated Capacity 500 lbs. Per Pair

7" Adjustable Bolt-on Barrel Hinge Features:

3/4" Diameter Steel J-Bolt.
J-Bolt Measures Approx. 7" Long.
Base Measures Approx. 7"L x 1-1/2"W x 3/8"H .
Rated Capacity 900 lbs. Per Pair

Note: Fasteners for bolting female portion of hinge are not included.

Customer Photos

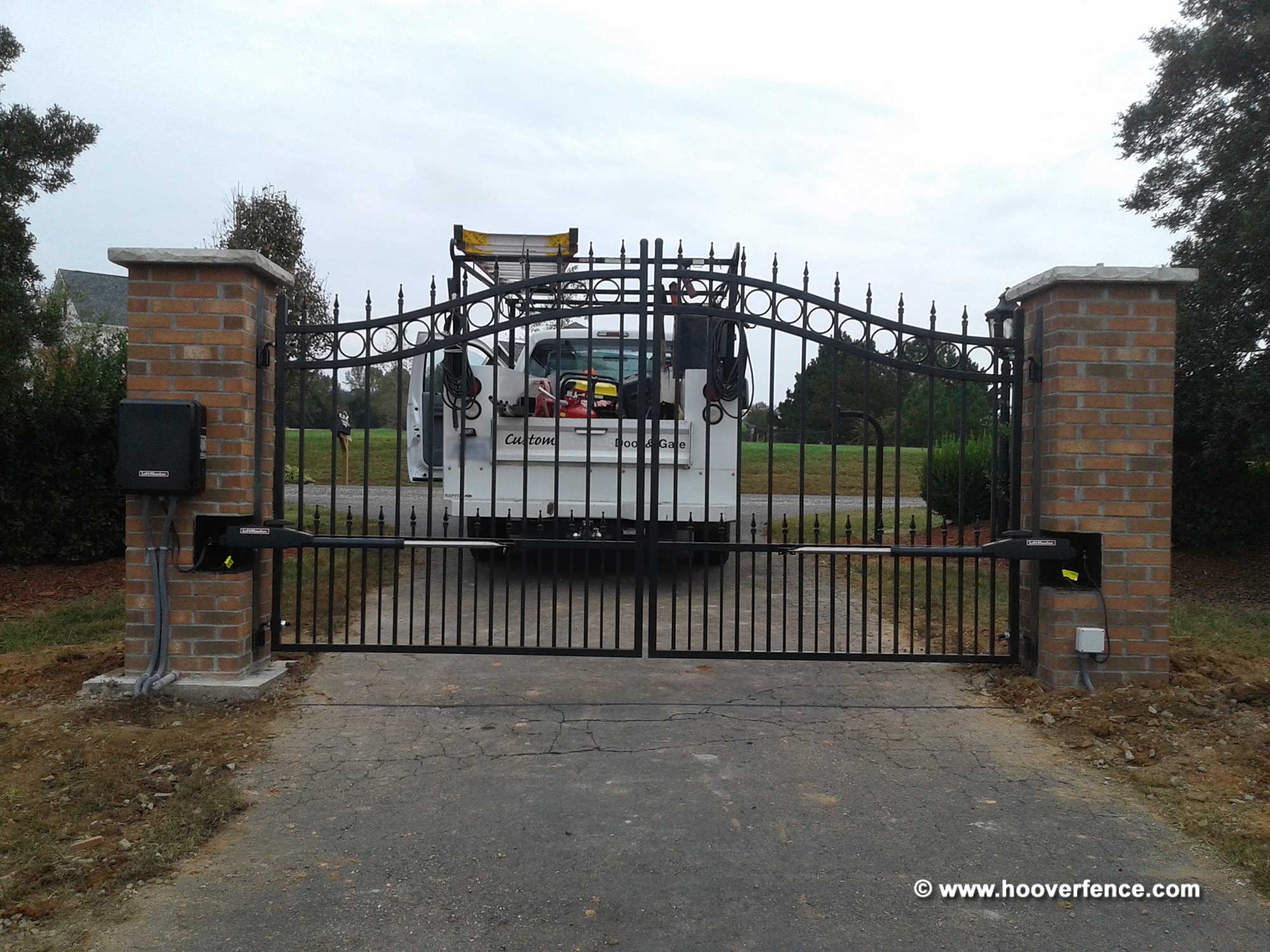

Customer Photo - Custom Driveway Gates Installed with Adjustable J-Bolt Barrel Hinges

Here are some beautiful driveway gates built by a customer of ours down in Columbus, OH. Richard builds and installs custom gates and has chose to use us on many occasions to provide the highest quality gate hardware. These particular projects used our HF-JB-07 Adjustable Bolt-On Barrel Hinges. Keep up the great work Richard and thank you for your continued business!

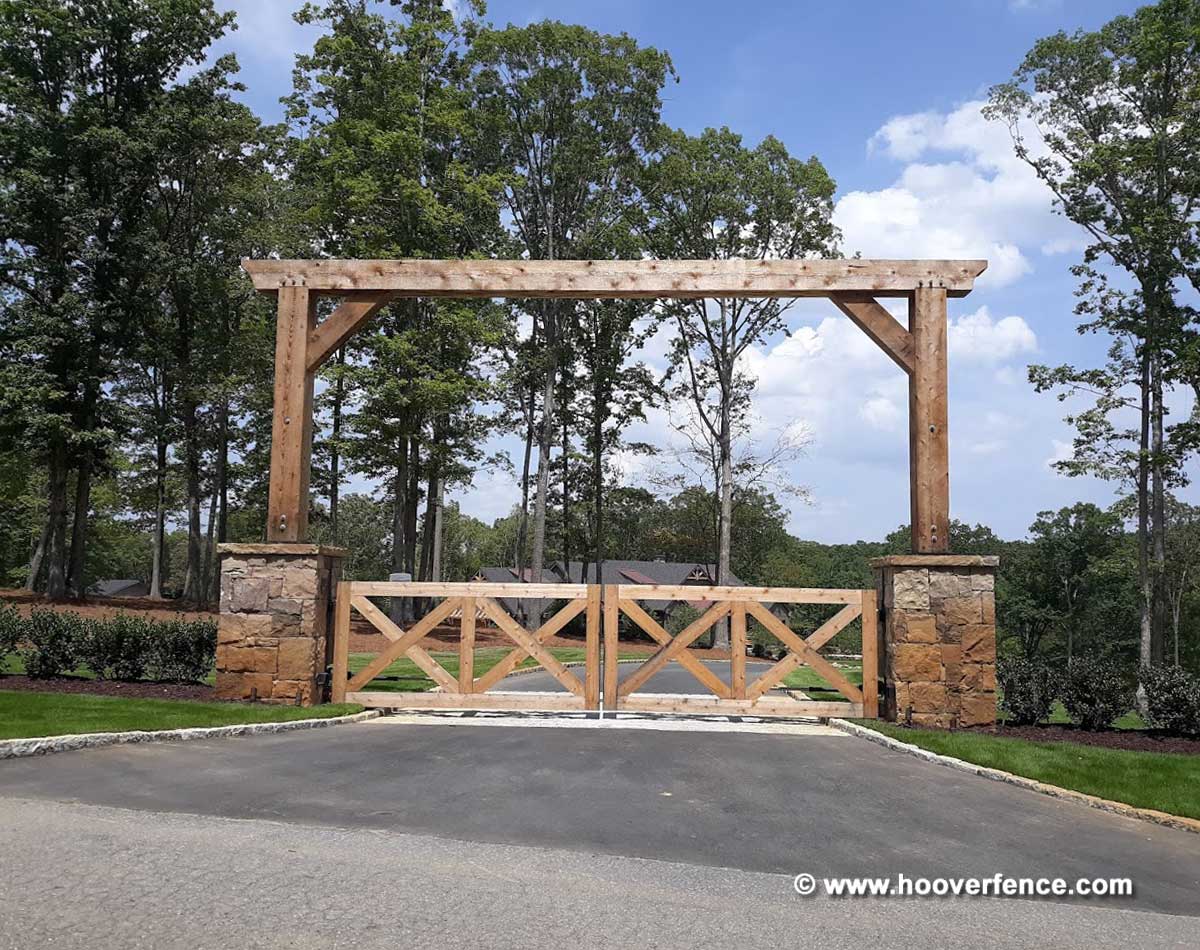

Customer Install - Custom Gate Installed with HF-JB-07 Adjustable Bolt On Barrel Hinges
