Weld-on barrel hinges are great for use on heavy steel gates. The weld tab simplifies installation by providing a flat surface to take the guess work out of indexing hinges in the proper orientation. Hinges are sold in either right-hand or left-hand configurations so make sure to select the proper option for the application. Hinges need to be painted and greased after welding and come with a grease fitting installed to keep the gates swinging smooth for years to come. Hinges help maintain tight tolerances and provide an inherent tamper resistance that is perfect for heavy steel pedestrian gates, panic bar gates, high security applications, and automated or manual driveway gates.
Heavy Duty Steel Barrel Hinge with Weld Tabs are designed for use with Steel gates.
Ordering Notes:
Order two or more per gate leaf depending on application
Right-Hand Hinges are designed for gates where the latch/handle is on the right and swinging out towards you. This keeps the weight bearing pins facing up.
Left-Hand Hinges are designed for gates where the latch/handle is on the left and swinging out towards you. This keeps the weight bearing pins facing up.
You may opt to install one pin facing up and one down to prevent the gate from being lifted off the pins.
Heavy Duty Steel Barrel Hinge with Weld Tab Dimensions
| Weight Each |
|---|
| 3.67 lbs. |
Weights shown are approximate.

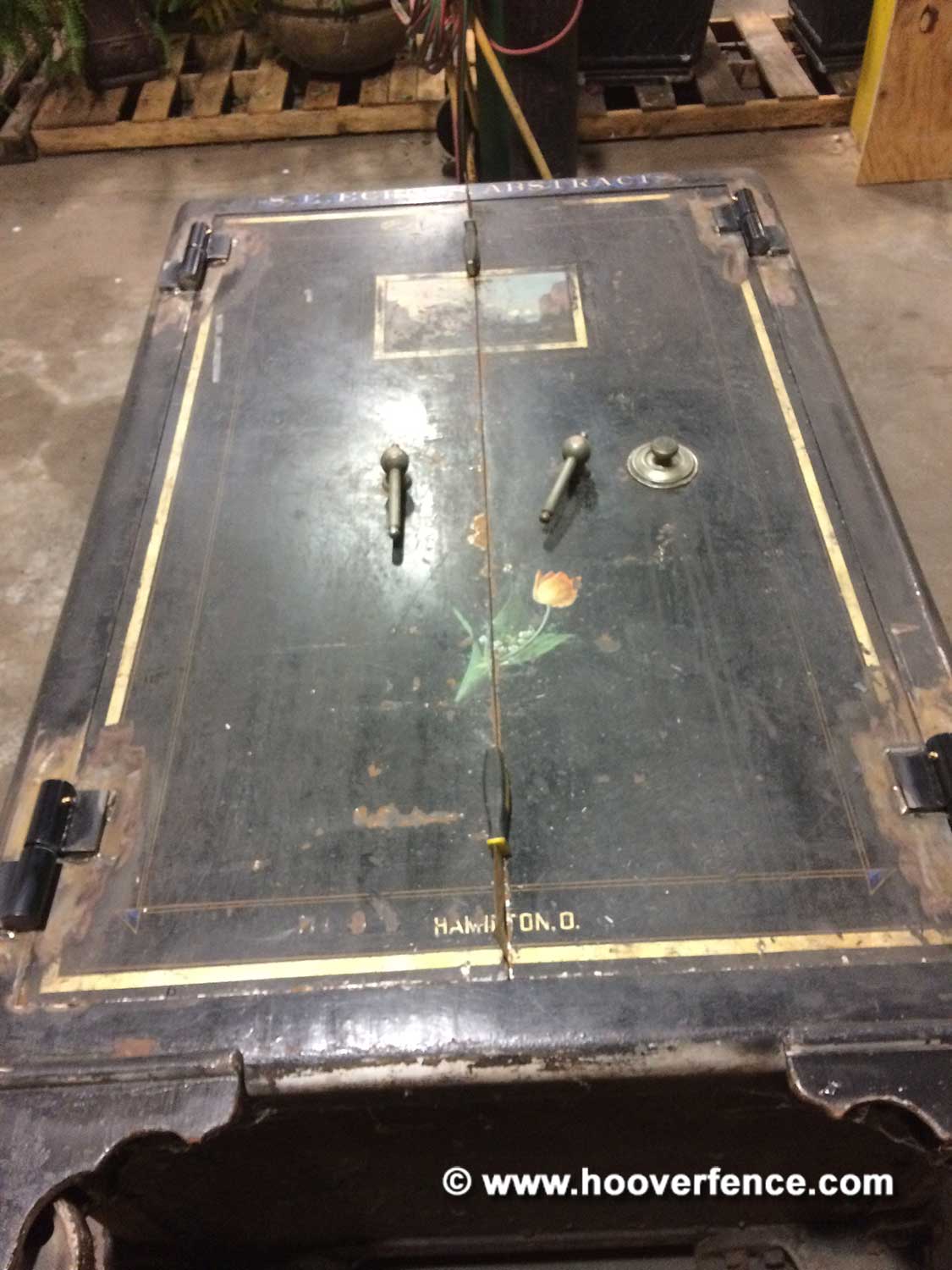

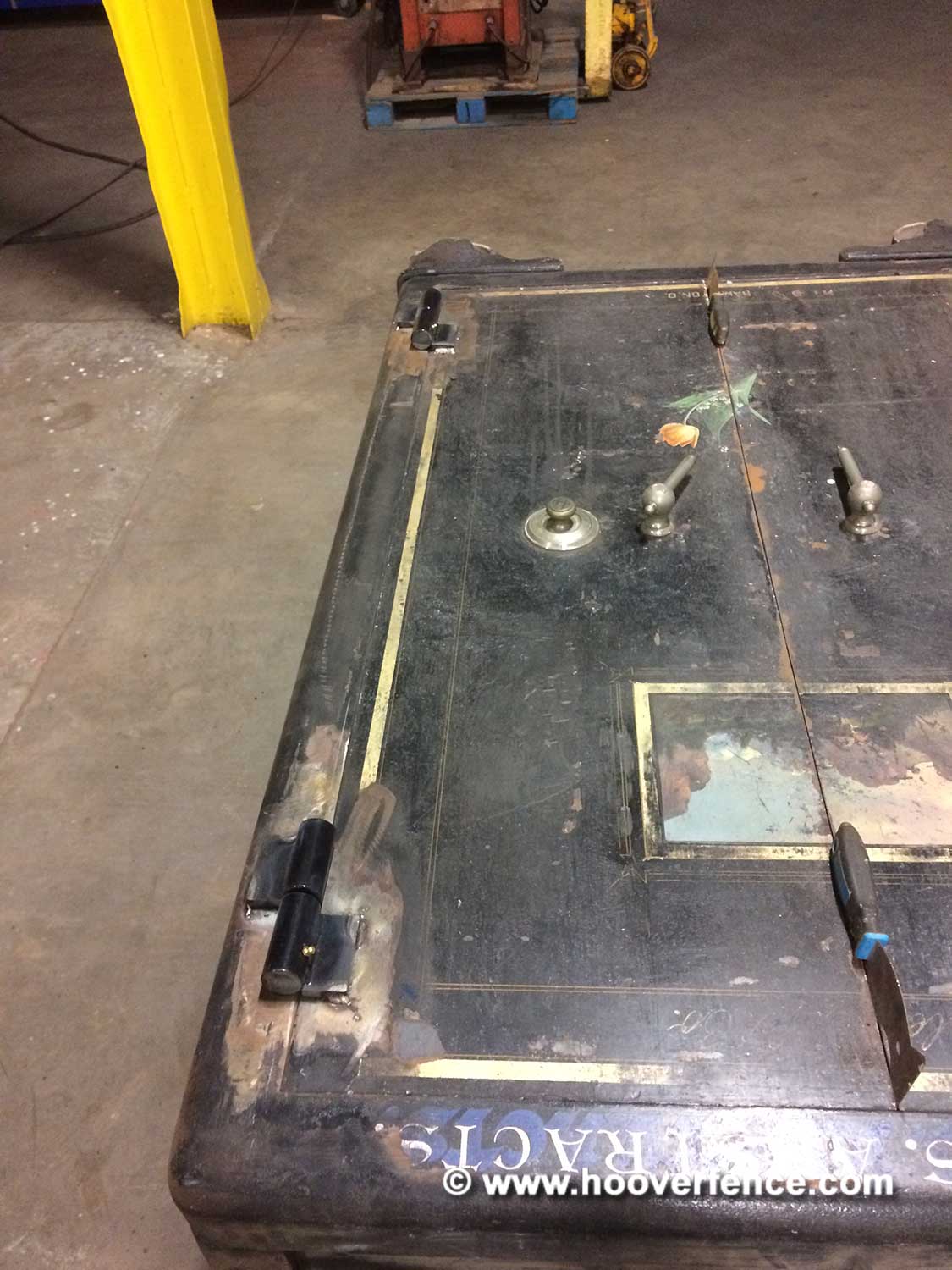

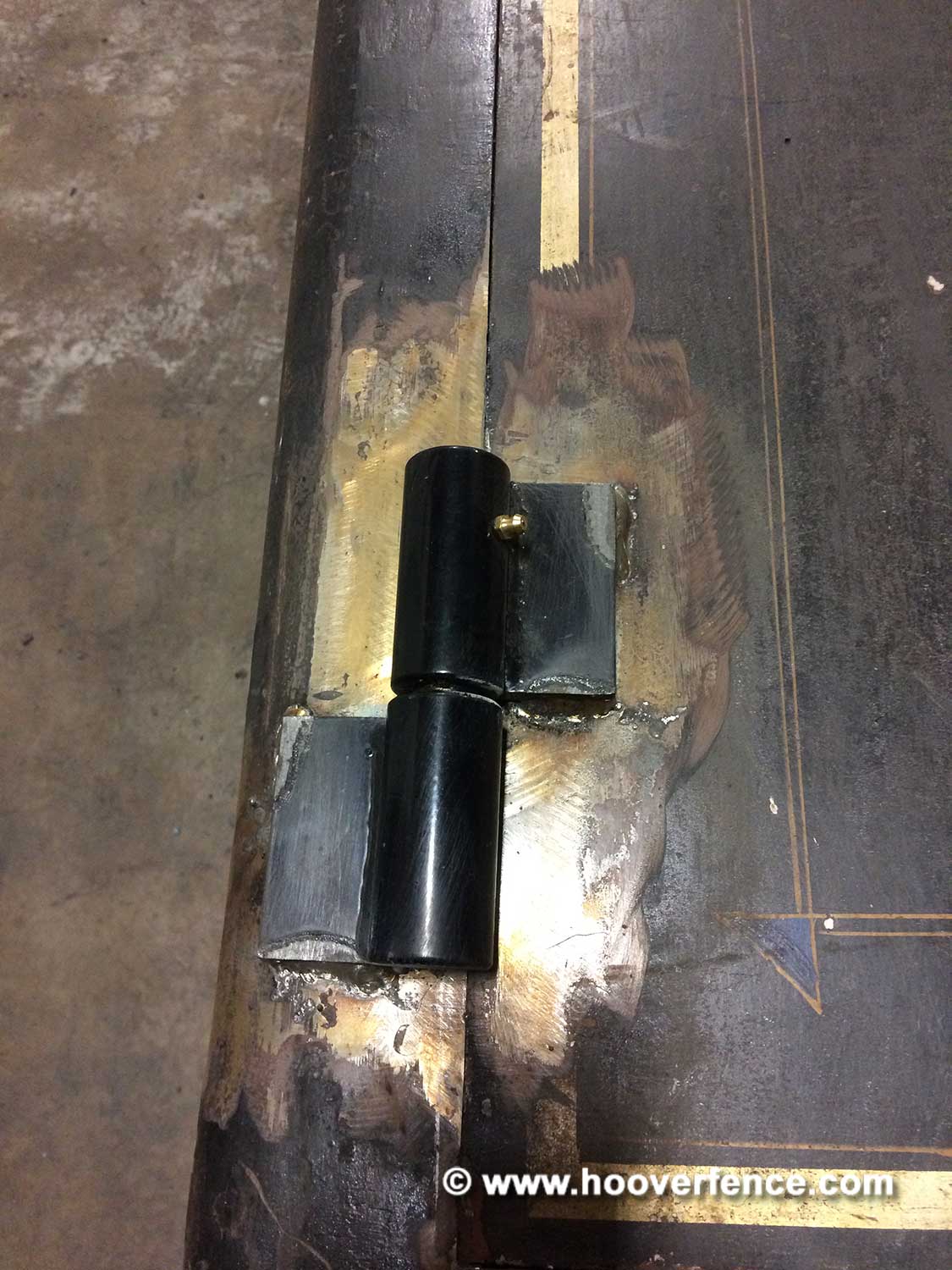

Here are some awesome pictures from a customer of ours out in Oklahoma. Dwayne decided to use our NW6215 Heavy Duty Barrel Hinges in the restoration of a large safe.
These weld-on barrel hinges are great for all sorts of projects from trailer ramps, to gates, to safe doors!
Average Customer Rating: (8 Reviews) Write a Review (requires login)
Very fast on getting order shipped and great quality
Barrel hinges were heavy duty and well made but when ordering should order one left hand and one right hand so that both grease fittings are facing up and the door cannot be lifted off the hinges.
The hinges was good, the grease fitting was broken and damaged on one of the hinges, maybe the grease fitting should be separated and installed when welding completed.
Hinges were exactly as advertised. Thanks
Good response time. There had been issues with the grease certs being damaged. I asked for them to take care in shipping these and they did a great job and they arrived with no damage at all.
