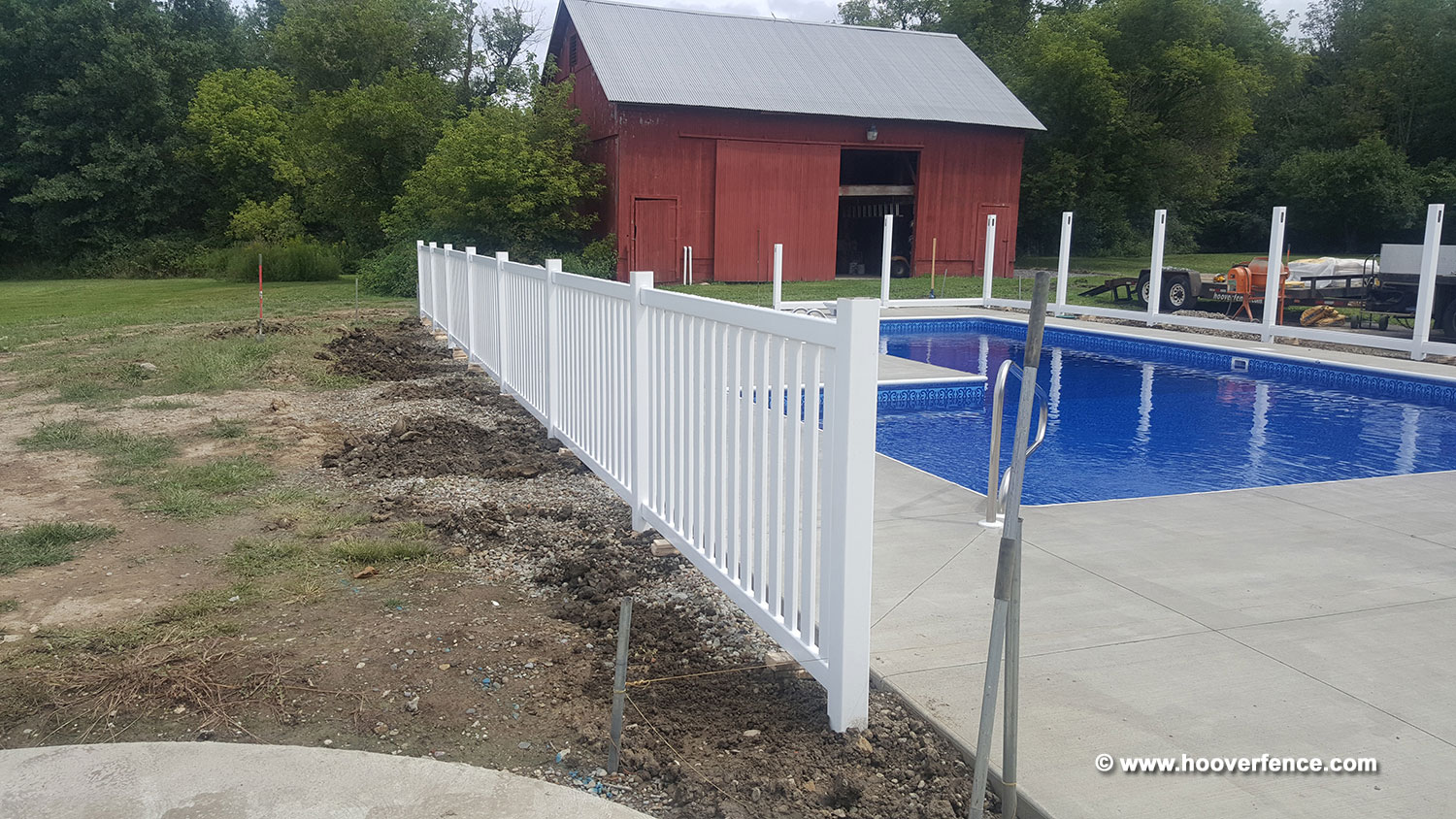

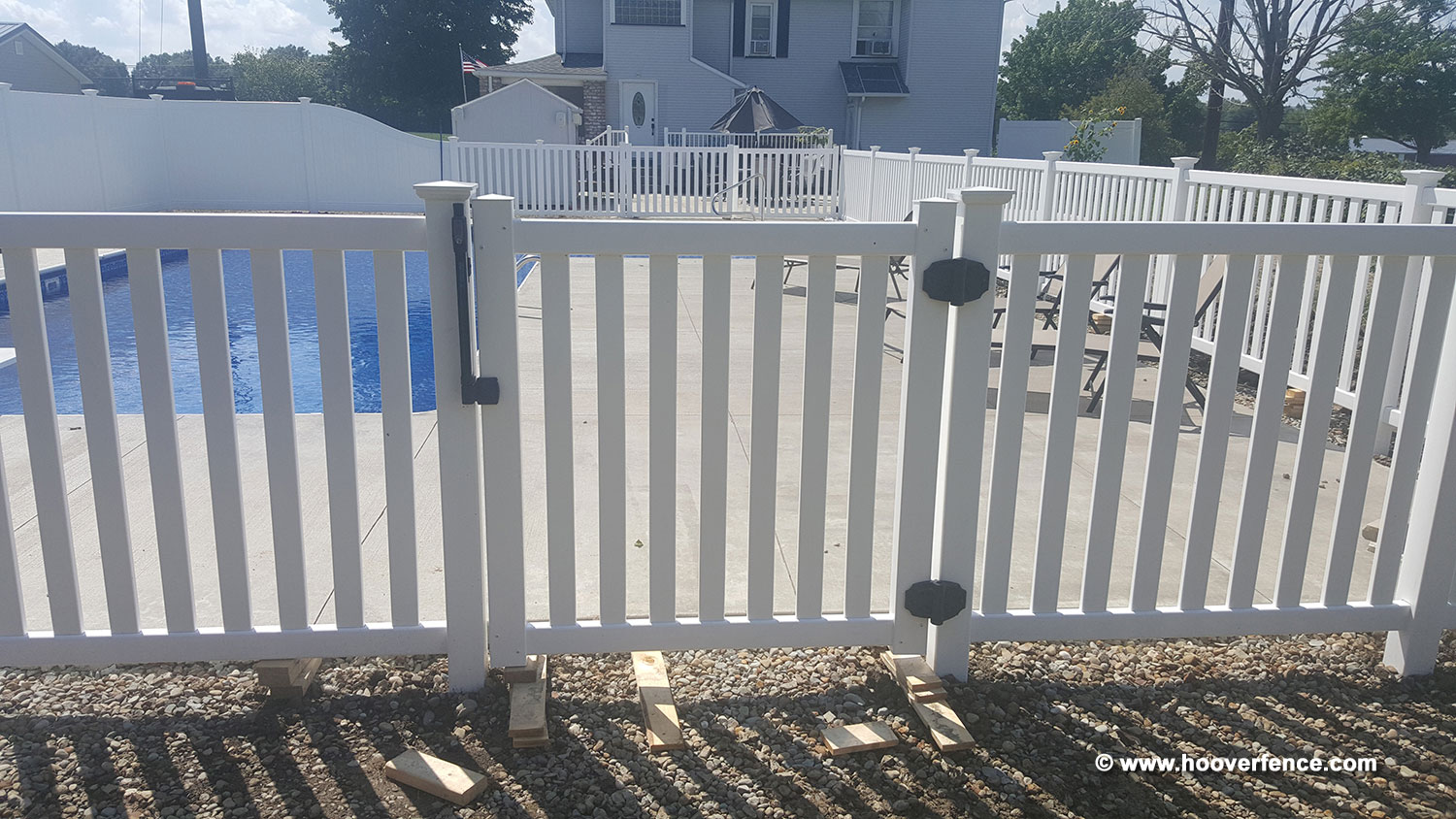

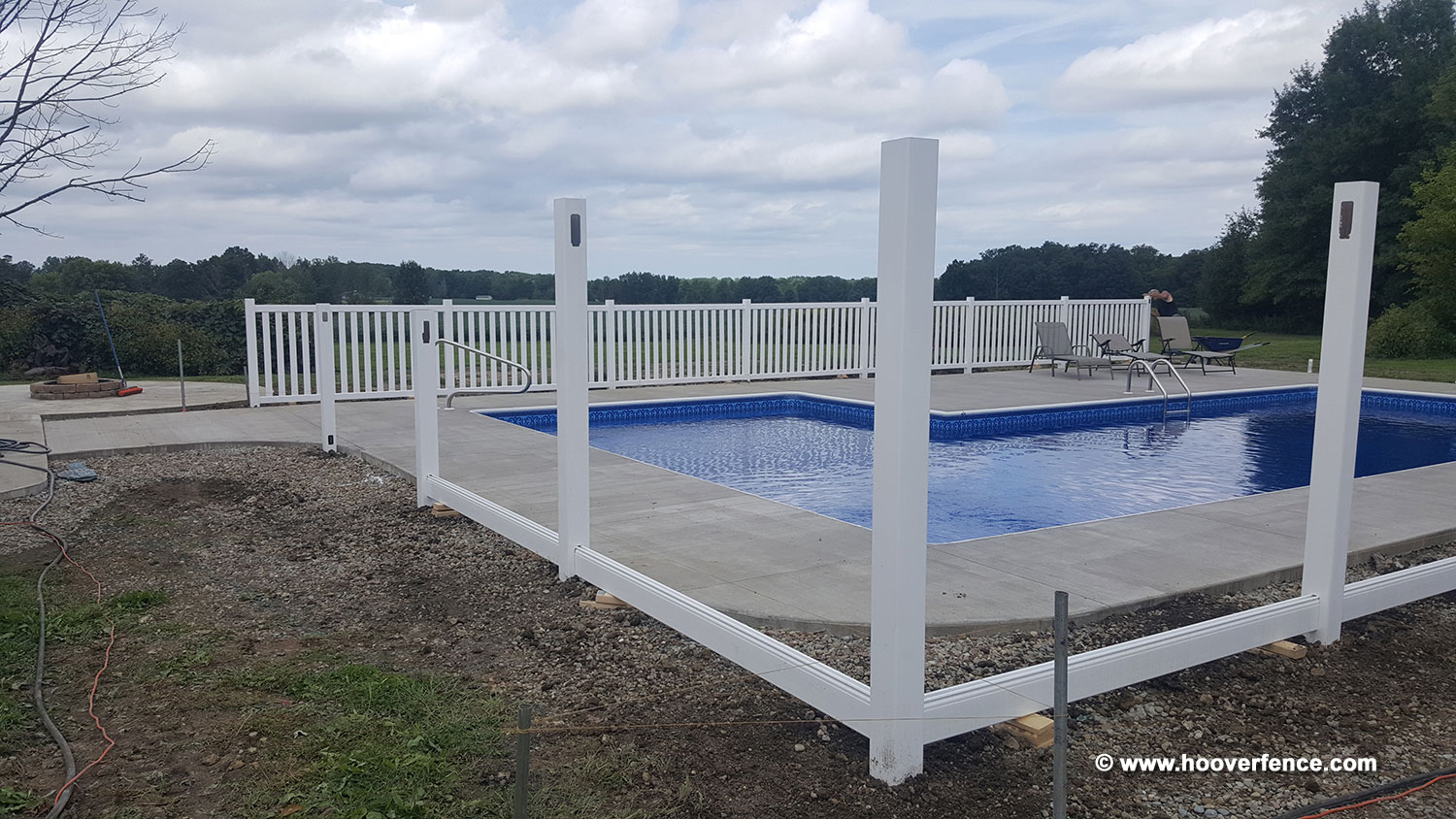

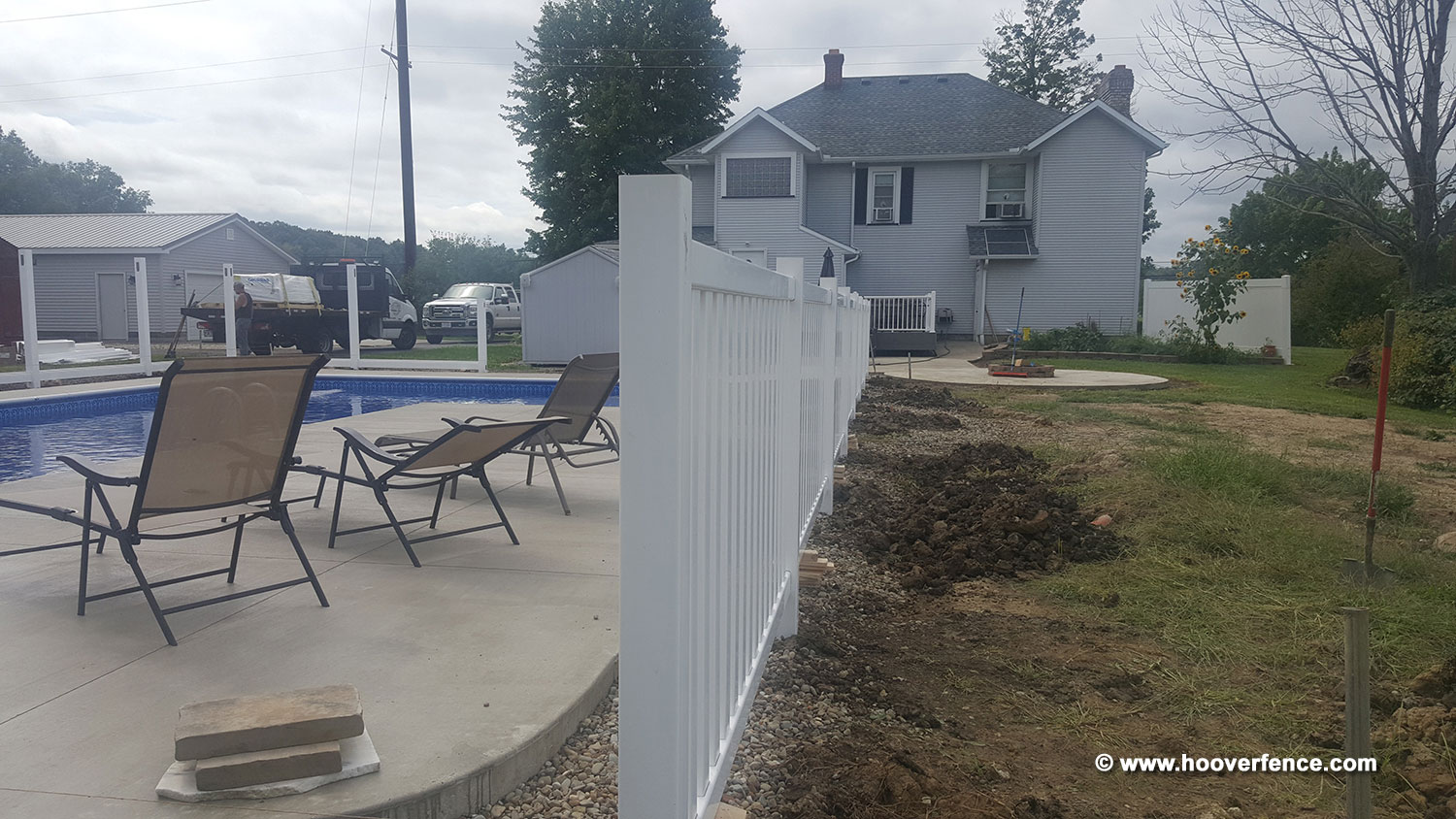

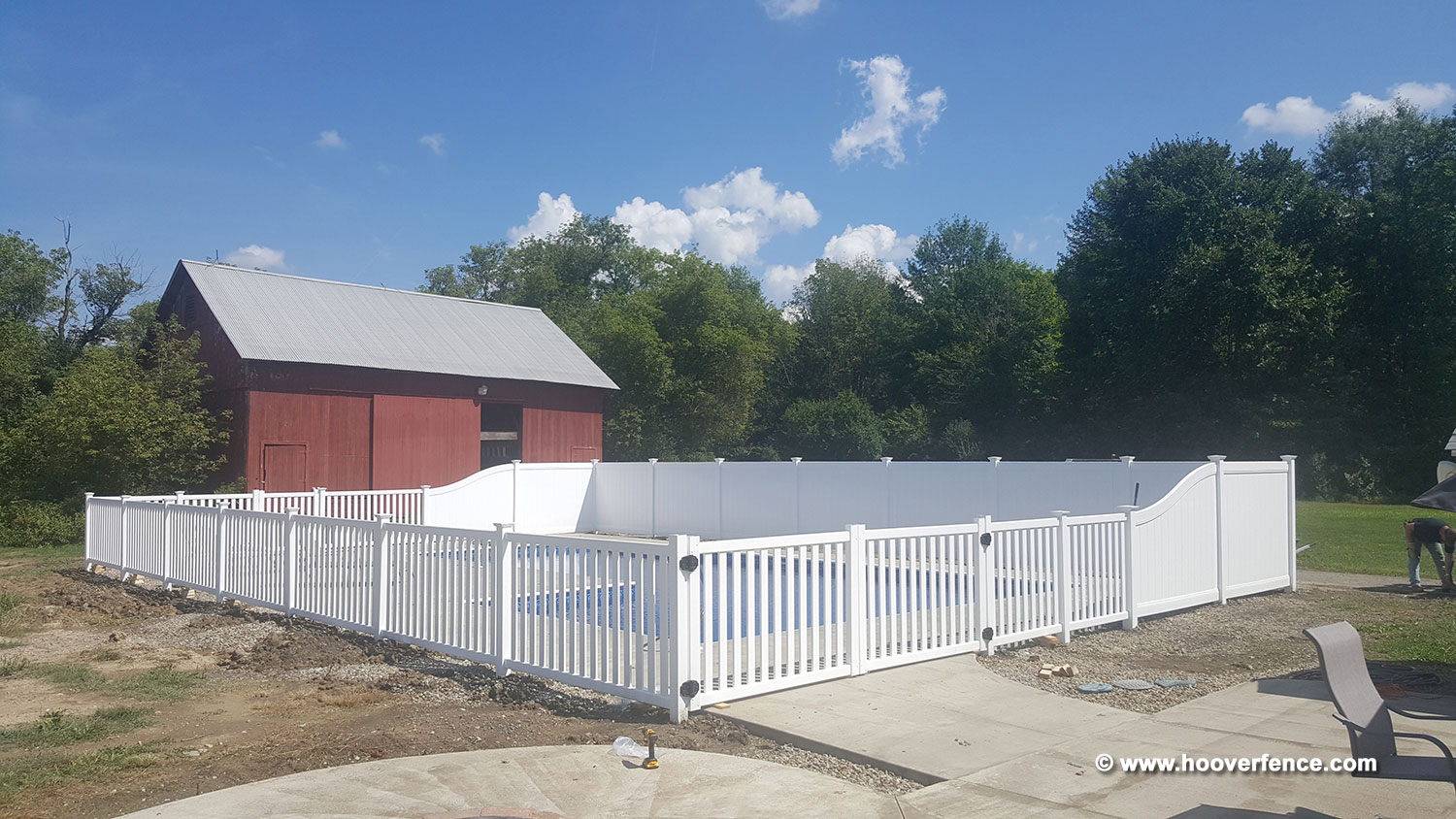

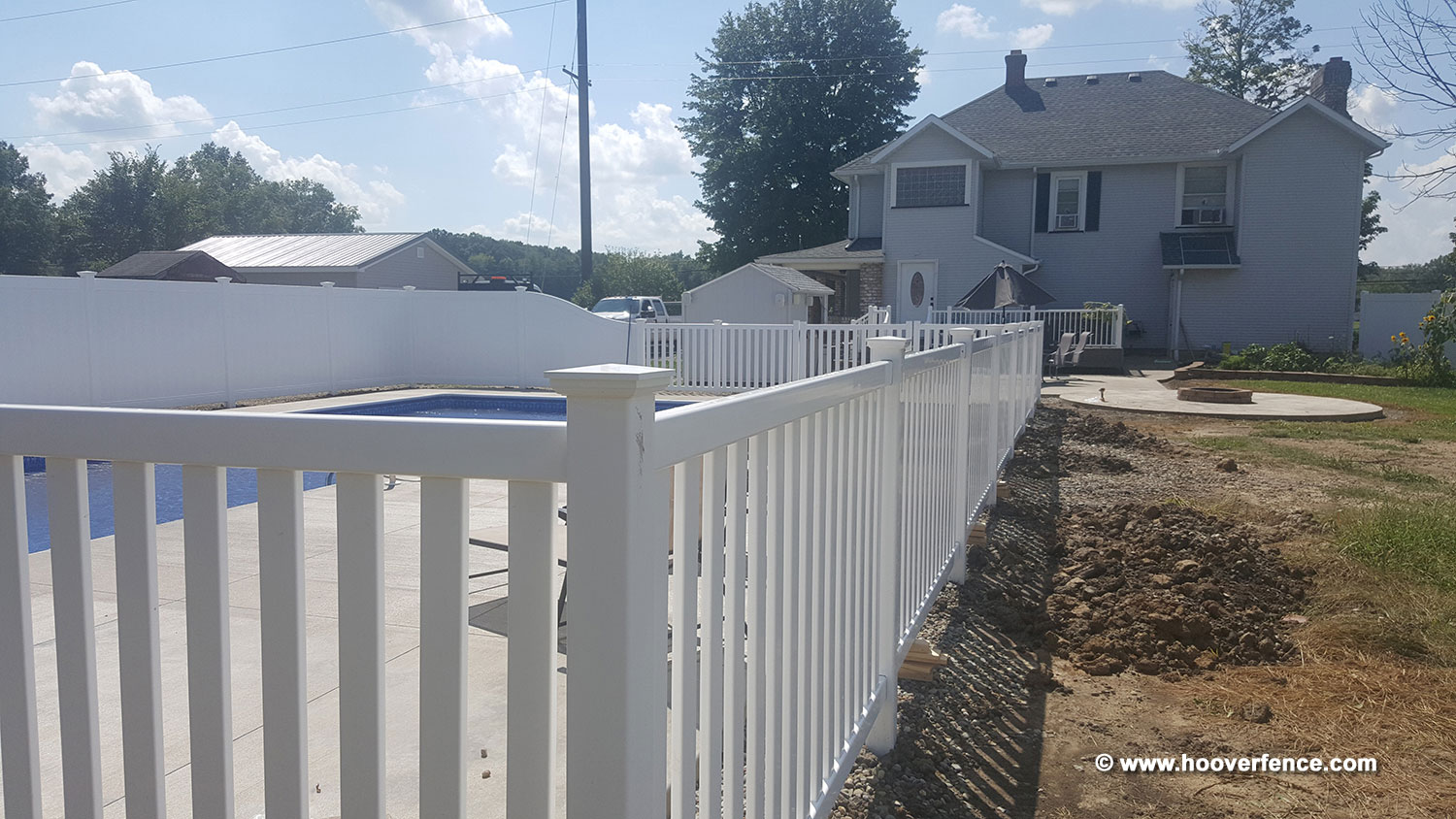

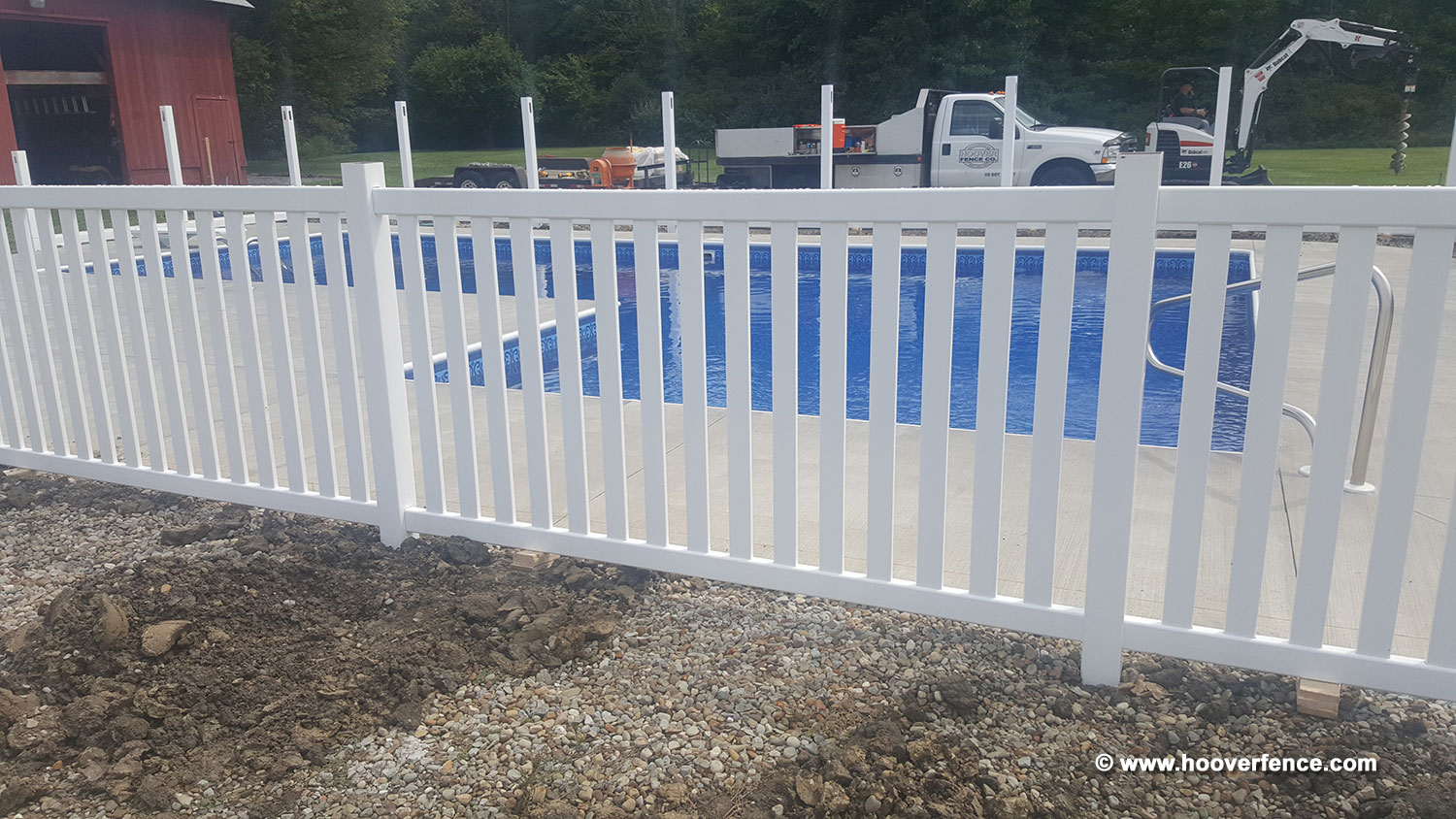

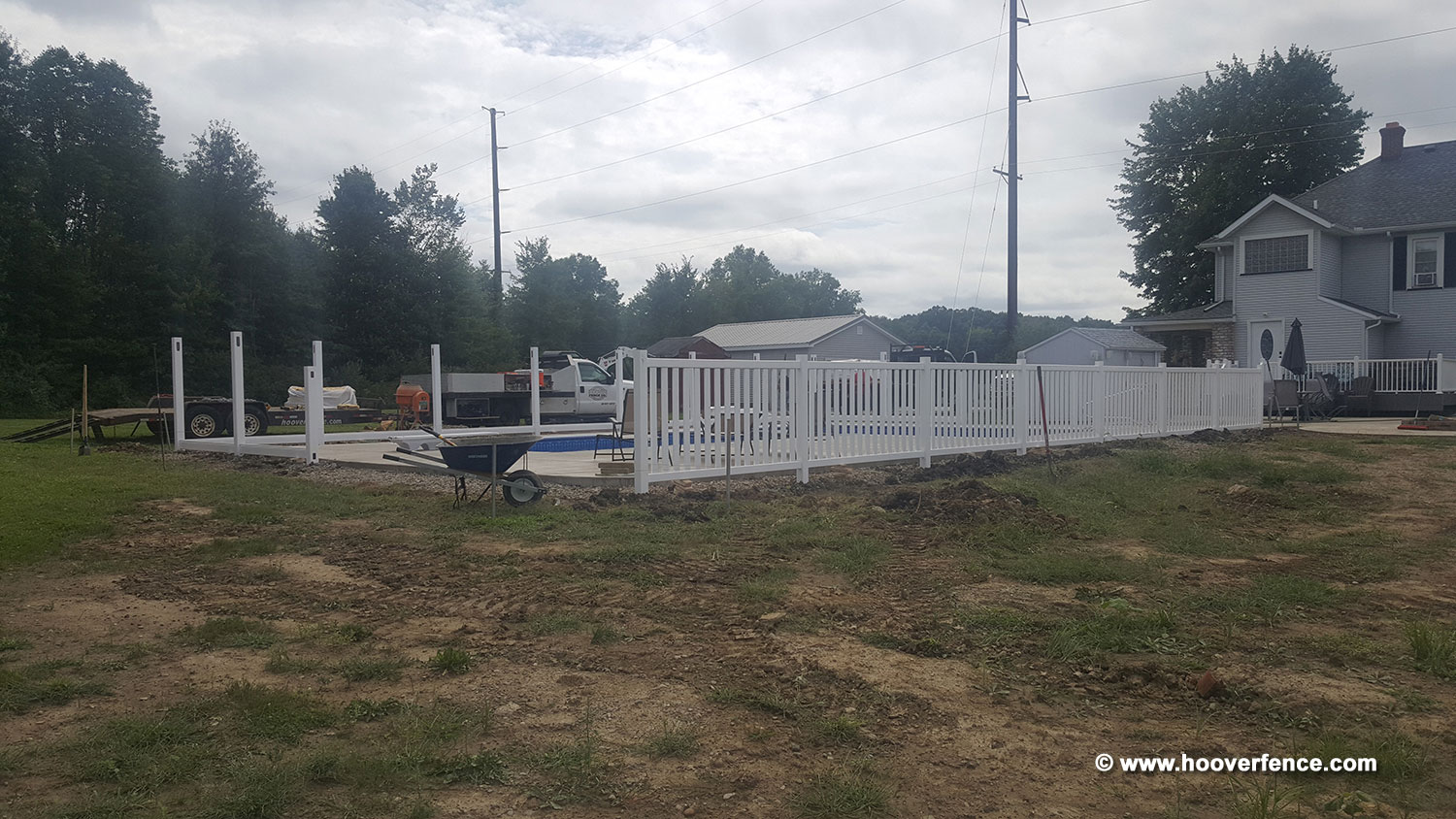

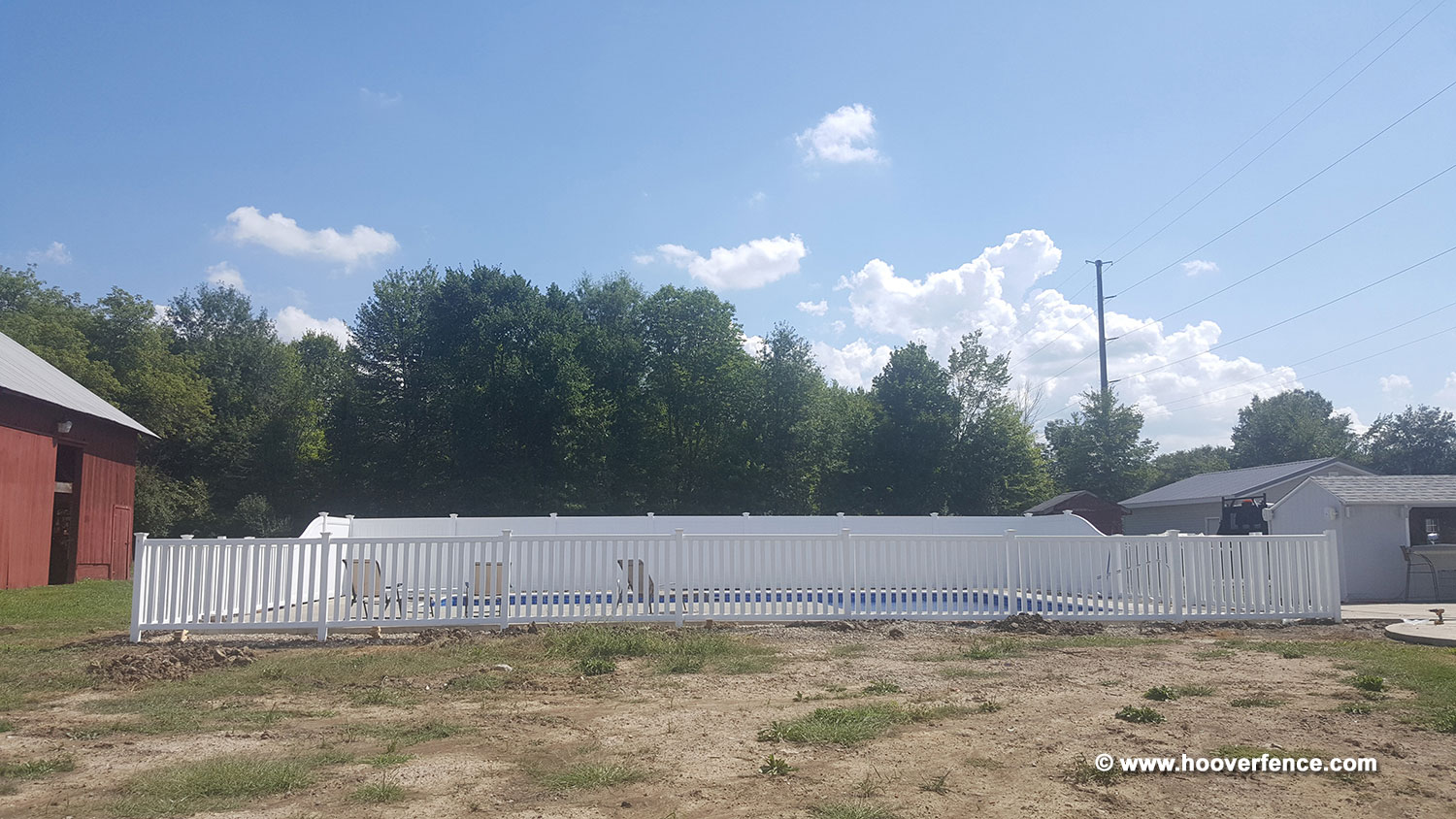

The Baron is a contemporary style vinyl fence using 7/8" thick x 3" wide vinyl vertical pickets. It also, like most other styles, has a steel reinforcing rail that fits inside the bottom vinyl rail to keep it from sagging with time. Optional aluminum reinforcement rail available for extremely corrosive environments. The rails measure 1-3/4" x 3-1/2". Sections are 8' wide. Available in 3', 4', 5' and 6' heights. The 5' and 6' heights have a middle rail. The 3' and 4' heights have a top and bottom rail only. This vinyl fence used with the Magna Latch meets BOCA pool safety codes. (3' high does not meet code) Sections are capable of raking out of square to follow grades. Posts and post caps sold separately.
Note: Some pictures on our site may show 6' sections which are no longer available. Sections measure 8' wide and have 15 pickets.

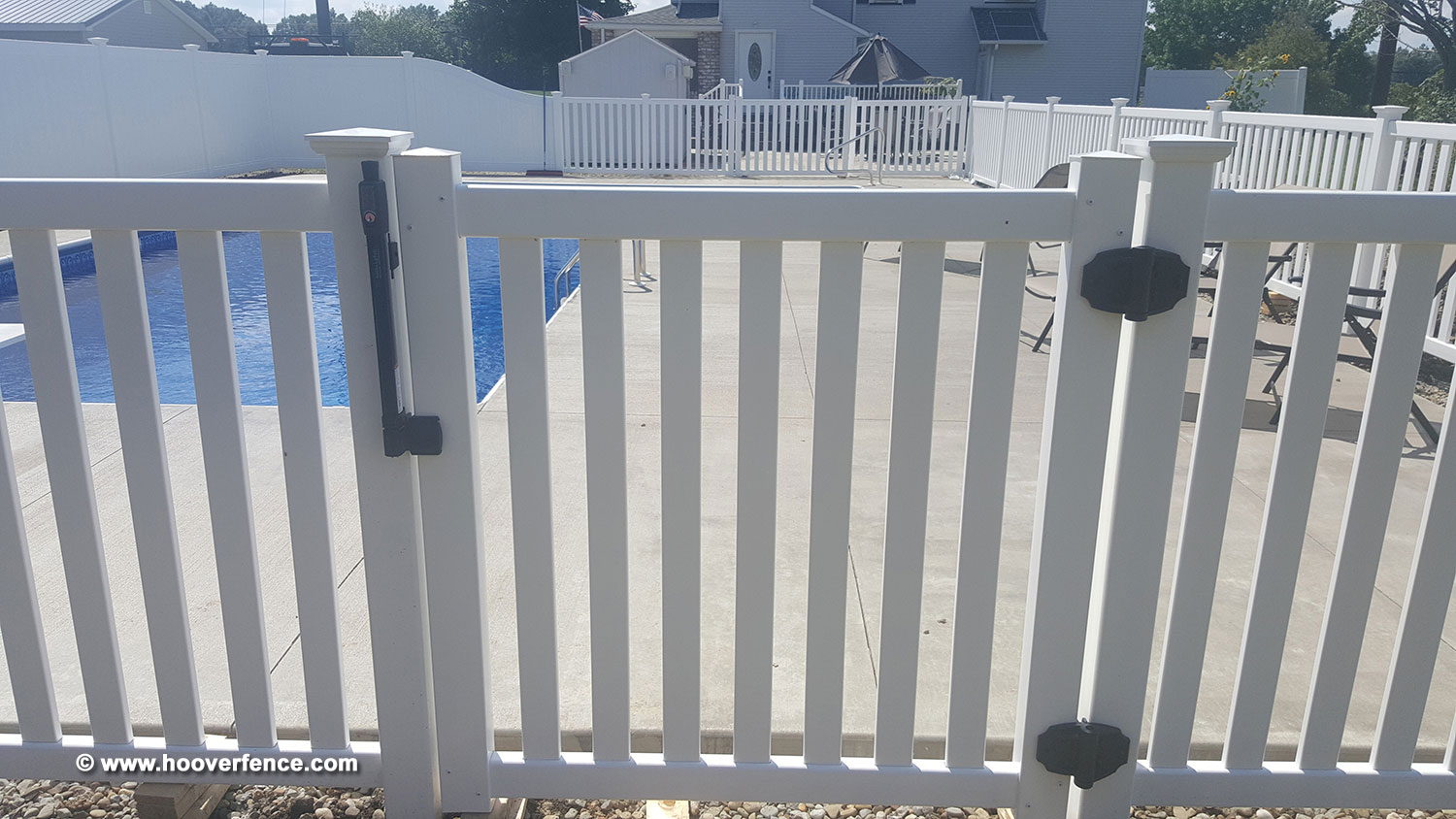

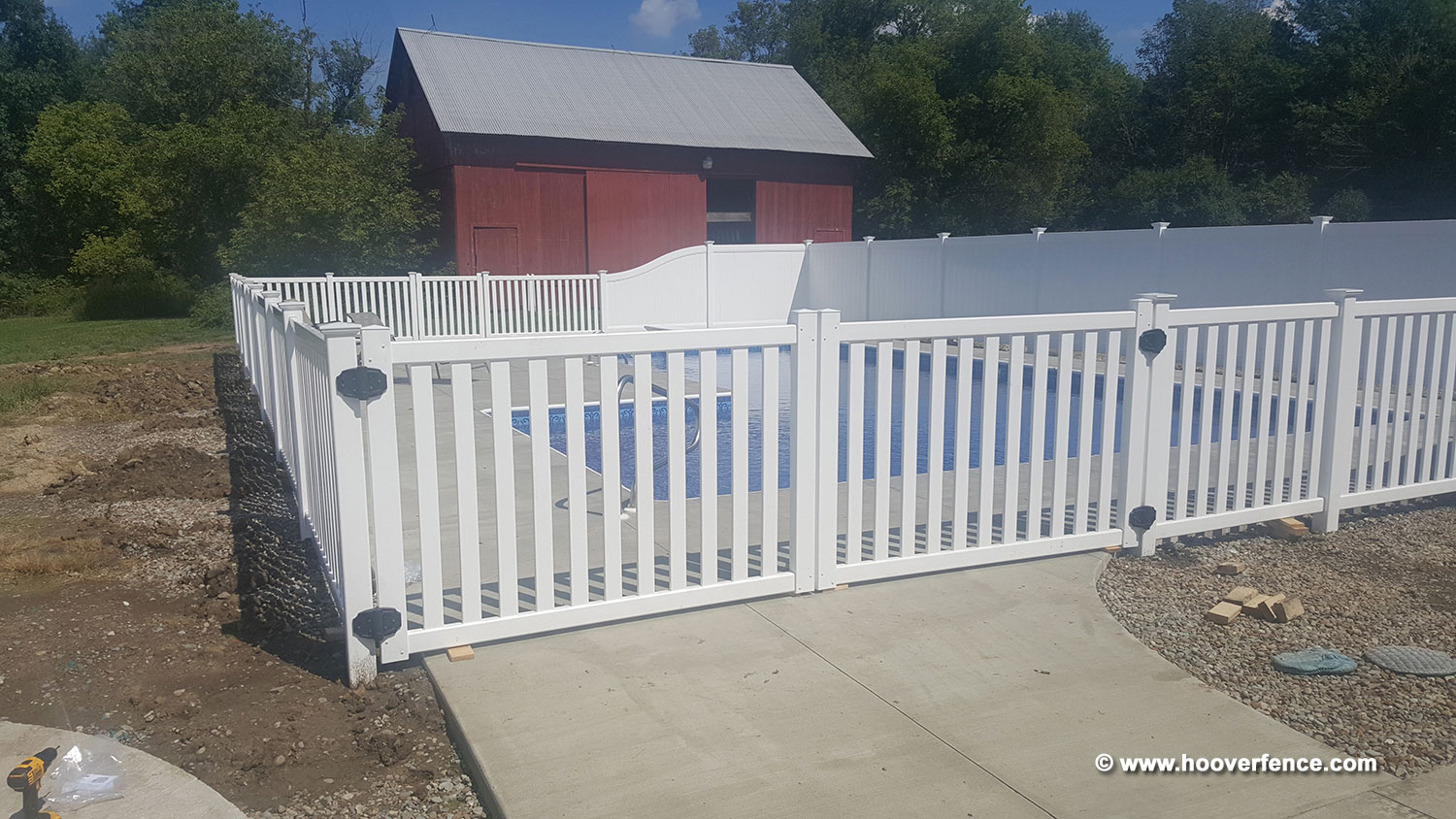

Matching Gates available.
Section Width: 8'
Heights: 3', 4', 5', and 6'
Picket Size: 7/8"x 3"
Picket Spacing: 2-15/16"
Rails: 2x4 (actual 1-3/4" x 3-1/2", 5' and 6' heights have middle rail)
Steel Rail Channel: bottom rail
Post Size: 3'H+4'H = 4"sq., 5'H+6'H = 5"sq.
Top Rail (A): 2 x 4 x 95-1/2" Routed to accept pickets (actual 1-3/4" x 3-1/2")
Picket Spacing (B): 16 spaces of 2-15/16"
Pickets (C): 15 pieces of 7/8" x 3" x 35-5/8"
Bottom Rail (D): 2 x 4 x 95-1/2" Routed to accept pickets, includes steel channel (actual 1-3/4" x 3-1/2")
Post (in-ground) (E): 4" x 4" x 75"
Post Spacing (center to center): 96"
Color(s): White, Almond, Clay
Top Rail (A): 2 x 4 x 95-1/2" Routed to accept pickets (actual 1-3/4" x 3-1/2")
Picket Spacing (B): 16 spaces of 2-15/16"
Pickets (C): 15 pieces of 7/8" x 3" x 48"
Bottom Rail (D): 2 x 4 x 95-1/2" Routed to accept pickets, includes steel channel (actual 1-3/4" x 3-1/2")
Post (in-ground) (E): 4" x 4" x 84"
Post Spacing (center to center): 96"
Color(s): White, Almond, Clay
Top Rail (A): 2 x 4 x 95-1/2" Routed to accept pickets (actual 1-3/4" x 3-1/2")
Mid Rail (B): 2" x 4" x 95-1/2" Routed through to accept pickets
Picket Spacing (C): 16 spaces of 2-15/16"
Pickets (D): 15 pieces of 7/8" x 3" x 59-5/8"
Bottom Rail (E): 2 x 4 x 95-1/2" Routed to accept pickets, includes steel channel (actual 1-3/4" x 3-1/2")
Steel reinforcement: Yes, channel located in bottom rail
Aluminum reinforcement: Optional
Post (in-ground) (F): 5" x 5" x 96"
Post Spacing (center to center): 97"
Color(s): White, Almond, Clay
Top Rail (A): 2 x 4 x 95-1/2" Routed to accept pickets (actual 1-3/4" x 3-1/2")
Mid Rail (B): 2" x 4" x 95-1/2" Routed through to accept pickets
Picket Spacing (C): 16 spaces of 2-15/16"
Pickets (D): 15 pieces of 7/8" x 3" x 71-5/8"
Bottom Rail (E): 2 x 4 x 95-1/2" Routed to accept pickets, includes steel channel (actual 1-3/4" x 3-1/2")
Steel reinforcement: Yes, channel located in bottom rail
Aluminum reinforcement: Optional
Post (in-ground) (F): 5" x 5" x 107"
Post Spacing (center to center): 97"
Color(s): White, Almond, Clay
Bufftech Complete Manual (PDF)
