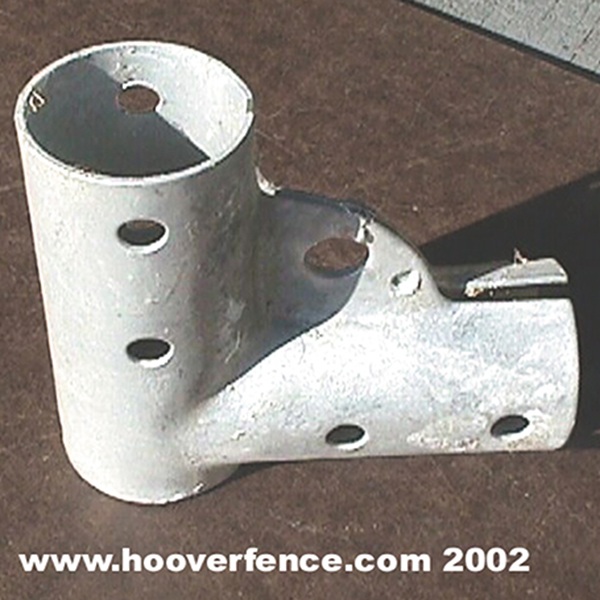

Chain Link Fence Gate Corners, Pressed Steel, Residential
Item # CL-GATE-CORNER-PS-RES
Details
Details
Our pressed steel residential chain link gate corners are available in either a Top Fit (Capped Corner) or Bottom Fit (Pass Through) configuration. The pressed steel fitting is heavy duty and are less likely to crack under stress and abuse.
To build one gate, order two tops and two bottoms. Fitting is suitable for most single walk gates and double chain link gates. For larger size gates and double drives, install a truss cable or truss rod with truss rod tightener to prevent gate from sagging. Fitting have holes in the inside of the corner to connect a truss wire/ cable. Tighten truss wire with a turnbuckle. Residential 1-3/8" pipe frames insert snugly, simply install self-tap screws to finish frame. Gates wider and or taller than 5' should also have a center brace. You may install a center brace using a gate tee, end rail clamps and/ or line rail clamps.
Specifications
Specifications
| Type | Weight |
|---|---|
| Top Fit 1-3/8" |
0.71 lbs. |
| Bottom Fit 1-3/8" |
0.81 lbs. |
Weights shown are approximate.
Reviews
Reviews
Average Customer Rating:
(6 Reviews)
Write a Review (requires login)
Chain link fence parts order andÂ…
Chain link fence parts order and delivered in 5 working days
Very efficient
Needed to make some fence repairs and Hoover Fence Co. had exactly what was required to do these repairs. I had a couple of questions about some of the supplies I needed. After speaking with the lady I was relieved to find out the info I wanted was very well explained to me. I would recommend them to anyone!
items shipped same day (was chain link
items shipped same day (was chain link, many parts). Arrived on time and complete. Great quality!!!! Super happy, got job done on time. Thank you
Good all the way from the order to the..
Good all the way from the order to the delivery
Gate Parts
Online ordering was easy and efficient.
Shipping
Shipping
Shipping Expense Disclaimer: All orders are subject to confirmation. Additional shipping expenses, although rare, may apply due to weight, size, location, and/or other variables. Should your order require additional funds to cover the transportation of goods, you will be contacted prior to order processing for approval.
