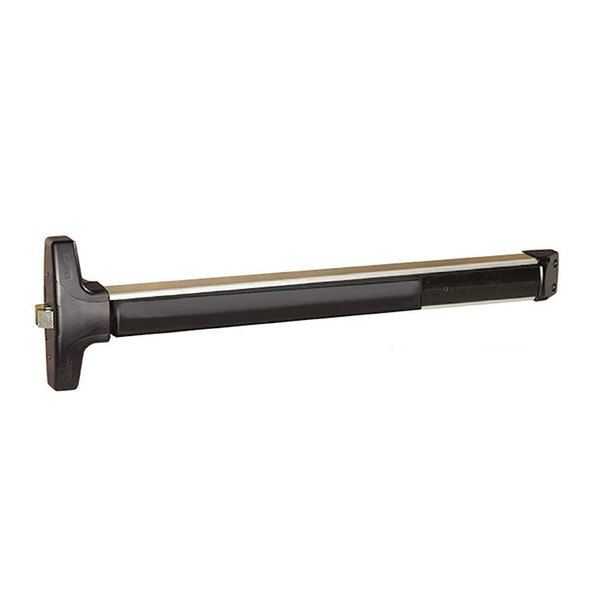

Detex Surface Mount Exit Bar w/ Switch

D-6005-36 and D-6005-48 Surface Mount Exit Bars with Switch (D-6005-P)

The D-6005-36 and D-6005-48 Detex surface mount exit bars combine mechanical exit operation with an integrated switch for security and access control applications. These weatherized Detex Value Series V40xEXxW devices feature reversible handing and a stainless steel dead latch mechanism.

The switch provides normally open and normally closed contact connections for integration with compatible external equipment. Applications include signaling an alarm, activating a remote horn or strobe, or requesting magnetic lock release through an appropriately designed control system. The switch provides a signal when the pushpad is operated; it does not electrically retract the latch.

D-6005-36 and D-6005-48 Features:

• Surface mount mechanical exit bar with integrated request-to-exit signaling switch.
• Detex Value Series V40xEXxW configuration.
• Reversible handing for left- or right-hand applications.
• Dead latch design for secure latching.
• Weatherized construction.
• Stainless steel latch mechanism.
• Anodized aluminum bar.
• Black ABS cover on the head and pushpad.
• D-6005-36: nominal 36" size.
• D-6005-48: nominal 48" size.
• Normally open and normally closed contact connections for compatible security systems.
• Can be used in compatible DAC gate kits in place of the 6003 or 6004 exit bar.
• ANSI/BHMA A156.3, Grade 1.
• UL Listed.
