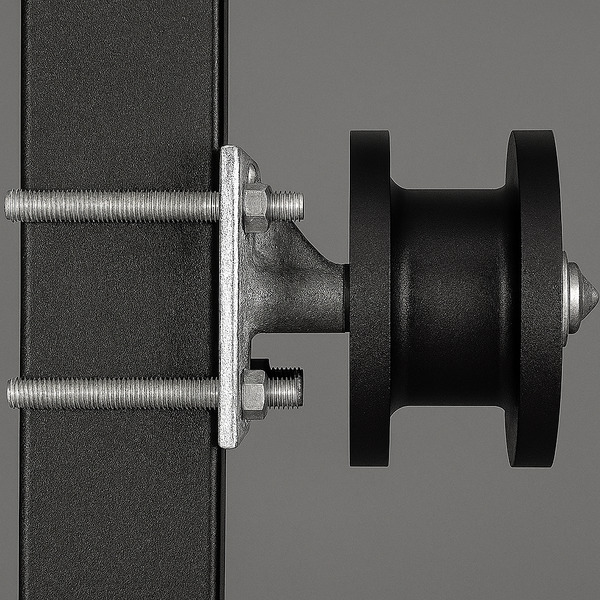

The Standard Stealth Series Cantilever Rollers for Square Posts are the new generation of cantilever rollers for sliding gates. Manufactured from virgin UHMW plastic and graphite impregnated nylon, Stealth cantilever roller assemblies are far superior to any of the old metal casting type.
Use these for any sliding or rolling gate made out of round or square stock; typically four are required per gate. Gates are 'sandwiched' in between two top rollers and two bottom rollers. These are excellent for larger gates and any automated sliding gates. The design of these high quality rollers allow even the largest of cantilever sliding gates to glide open and close effortlessly. Ease of slide will prolong the life of gate operators since it decreases stress on gate opener. Added advantages of these rollers include maintenance free, durability and strength, and smooth operation.
Standard Rollers: Single Bearings (2,200 lbs. load capacity)
Stealth Cantilever Gate Roller Assemblies
Note From the Manufacturer:
All of the DAC Industries, Inc. "Stealth" cantilever rollers are made with a hot rolled steel chassis. The chassis is formed, welded, and then hot dip galvenized after fabrication to prevent rust. We chose to make the chassis out of pressed steel rather than a casting to allow you to weld it to the post if you desire. The support gussets are strategically placed to allow easier access to the nuts for faster and easier installation and removal.
Our UHMW rollers are manufactured from virgin resins with no recycled materials to compromise the strength of the finished product. They also have UV (ultra-violet) inhibitors to protect against deterioration of the plastic by sunlight. Compression molding under 50,000 p.s.i. of pressure forces a bonding of the materials and strengthens the rollers to allow them to hold up under the constant stress caused by cantilever gates.
Our premium graphite impregnated nylon rollers (#5800 and #5668) are cast and then machined to their final shape eliminating any rough surfaces which cause friction. The graphite impregnated roller is made from a harder material than the UHMW roller and can handle larger gates. Also, the 6-5/8" roller (#5658) has double bearings to handle extremely large gates.
All our rollers use permanently lubricated sealed bearings. The bearings are not molded into the rollers, but are press fit. If a bearing should ever need replacing it can be easily removed and a new bearing installed. This maintenance feature addresses the most common cause of roller failure.
A nylon embedded steel lock nut holds the roller onto the chassis. This gives a more secure mounting than cotter pins or snap rings.
DAC Industries Stealth Cantilever Roller Specification Drawing (PDF)
Standard Grade:
Part Number | Post Size | Frame Size | Load Capacity | Weight Each |
---|---|---|---|---|
DAC-5350-3S | 3" Square | 2" Square | 2,200 lbs. | 11 lbs. |
DAC-5500-3S | 3" Square | 2" Round | 2,200 lbs. | 11 lbs. |
DAC-5800-3S | 3" Square | 2-1/2" Round | 2,200 lbs. | 11 lbs. |
DAC-5350-4S | 4" Square | 2" Square | 2,200 lbs. | 11 lbs. |
DAC-5500-4S | 4" Square | 2" Round | 2,200 lbs. | 11 lbs. |
DAC-5800-4S | 4" Square | 2-1/2" Round | 2,200 lbs. | 11 lbs. |
Weights shown are approximate.
