Linear Double Swing Gate Opener - 12 Volt (1300 lbs./32 ft.)

Item # PRO-SW3002XLS

Free Shipping

Linear Double Swing Gate Opener - 12 Volt (1300 lbs./32 ft.)

Actual product(s) may vary from pictures shown

Linear 12 Volt Double Swing Gate Operator (650 lbs./16 ft. per leaf) (PRO-SW3002XLS)

GTO 12 Volt Double Swing Gate Operator (650 lbs./16 ft. per leaf) (PRO-SW3002XLS)

Details

Linear Pro Access PRO-SW3002XLS Swing Gate Opener (Formerly GTO PRO-SW3002XLS)

The Linear PRO-SW3002XLS will go above and beyond your expectations, meeting all of your residential gate opening needs. The 3002XLS Gate Operator is intended for use with vehicular swing gates in single family residential applications. Designed for use with tubular steel, vinyl, wood, or ornamental gates. The PRO-SW3002XLS is for double swing gates, and will operate a double gate up to 32 ft. wide (16 ft. each leaf) and weighing up to 650 lbs. per leaf. Note: Ball bearing hinges should be used on all gates weighing over 250 lbs (113.4kg).

Burying the power cable directly across the driveway is fine. It can be snaked through conduit also. Cable is 1/4 inch diameter with a 1 inch plug on one end only. Can operate 30 to 83 gate cycles during peak hours of operation, depending on gate size and weight.

This 12 Volt Electric Gate Opener does not require an electrician to install, allowing for a quick and easy installation along with user friendly instructions. It is also solar compatible, combine with a Solar Panel for a Solar Powered Gate Opener that is ideal for rural areas or as protection against extended power outages.

Can be operated by remote Transmitter, digital Keypad, Push Button or a combination of accessories. Combine with an Exit Wand to create a fully Automatic Gate Opener on exit.

Key Features:

Dual Sense Technology
Cost Efficient - No need for additional entrapment protection devices
Quick Install - No electrician/welder or photo beams required
UL325 Compliant - U.L. rated for Class I. System certified to be in compliance with U.L. 325, latest revision.
Easy transmitter programming with the touch of a button
Control box has integrated receiver.
Soft Start / Soft Stop
Solar Compatible
Includes battery backup, 318 MHz RF radio receiver, entry transmitter, AC transformer and all necessary mounting hardware
Full systems capable "add on ready" heavy-duty control board includes adjustable obstruction sensing, gate sequencing and auto close settings (3-120 seconds).
Works on all types of gates: Chain Link, Tube, Panel, Ornamental, Wood, and Vinyl
2-year Warranty (residential applications only)

Electrical Features:

12 Volt DC / 7.0 amp hour, sealed, rechargeable battery (included)
Battery charge is maintained by a 120V AC/60 Hz input, 18V AC, 40 VA output transformer regulated to 14V DC through control board
Solar Panel Charger available for remote locations.
Gate will work during electrical power outage.
Powered by a reliable 12 Volt (120 Watt) DC motor, 16:1 planetary gear drive system
"Sleep draw" is 40 mA; "active draw" is 2 to 7 amps.
Can operate 60 to 165 gate cycles during peak hours of operation, depending on gate size and weight (Cycle Comparison Chart)

Engineering Features:

Larger, higher powered, lower RPM motor
Reduced gear motor noise
Increased operating speed by 10%
Extended Cycle Life - Enhanced motor design makes this opener ideal for today's single family homes or ranches
Front mount and scraper seal design
Rev-counter board with reed switch technology
Reinstated heavy duty hardware for 500lb-16ft gates
The control board can be programmed for pull-to-open or push-to-open (extra hardware required for push-to-open)
Operating temp -5°F (-21°C) to +160°F (71°C)
Opening time: From 15 to 18 seconds
Range of arm stroke: is up to 15" (33 cm)
Operator length with arm fully retracted is 40.25" (102 cm)
Operation, diagnostic and safety alarms
Inherent obstruction sensing
Soft start/soft stop — for long mechanical life expectancy
Auto close adjustable 3–120 seconds delay

Includes:

LPA PRO-SW3000XLS Master Operator arm with 6 ft. power cable.
LPA PRO-SW3200XLS Slave Operator arm with 40 ft. power cable.
AC transformer.
12 volt battery.
Control box/control board.
Receiver with 10 ft. cable.
Entry transmitter.
Mounting hardware.
Installation/safety manual.
Caution signs.
Warning beeper.
Adjustable obstacle-reversing safety feature.

NOTE: 16 gauge, dual conductor, multi-stranded, direct burial, low voltage PVC sheathed wire required for installation - Not Included.

Linear/Mighty Mule Gate Operator Overview

Specifications

Linear Pro Access Swing Gate Openers - Specifications (PDF)

Drive:

Low friction screw drive (linear actuator) rated for -5°F to +160°F (-21°C to +71°C). Use of Linear Battery Heater FM316 (Not solar compatible) is recommended in extreme cold temperatures
Powered by a 12 V motor with integral case hardened steel gear reducer. Motor speed reduced to 375 rpm.
Maximum opening arc of 110°. Approximate opening time (90°): 15-20 seconds, depending on weight of gate.

Power:

The system is powered by a 12 Vdc, 7.0 Ah, sealed, rechargeable acid battery.
Battery charge is maintained by a 120 Vac, 18 Vac output transformer. Blade-style control board fuse is rated for 25 A. NOTE: The transformer should not be directly connected to any battery. Do not replace fuses with higher ampere rated fuses; doing so will void your warranty and may damage your control board.
Optional Solar Panel Charger: For double gates, we recommend a minimum of 10 watts.

Control:

LPA microprocessor-based control board is set for pull-to-open gate installations. DIP switches can be adjusted to accommodate an optional kit for push-to-open gates (see Accessory Catalog).
A circuit on the control board regulates charging. “Sleep draw” is 25 mA; “active draw” is 3 to 7 A.
Auto-memorization of digital transmitter code.
LPA remote-mounted RF receiver tuned to 318 MHz.
Operator length with push-pull tube fully retracted is 40-1/4", mounting point to mounting point, arm stroke 16" max.
Minimum gate length is 5 ft. per leaf.
Adjustable auto-close (3 to 120 seconds), and stall force potentiometers.
Power terminal block accommodates a transformer or solar panels (not both).
DIP switches simplify setup of gate operator.
Accessory terminal block fully compatible with GTO push button controls, digital keypads, loops detectors, etc.
Control board allows connection of safety edge sensors and photoelectric sensors.
Audio entrapment alarm sounds if unit encounters an obstruction twice while opening or closing.

NOTE: Battery Heater recommended for zones where temperatures drop below freezing for extended periods of time to prevent cold weather discharge.

Instructions

PRO-SW3002XLS Installation Manual (PDF)

Customer Photos

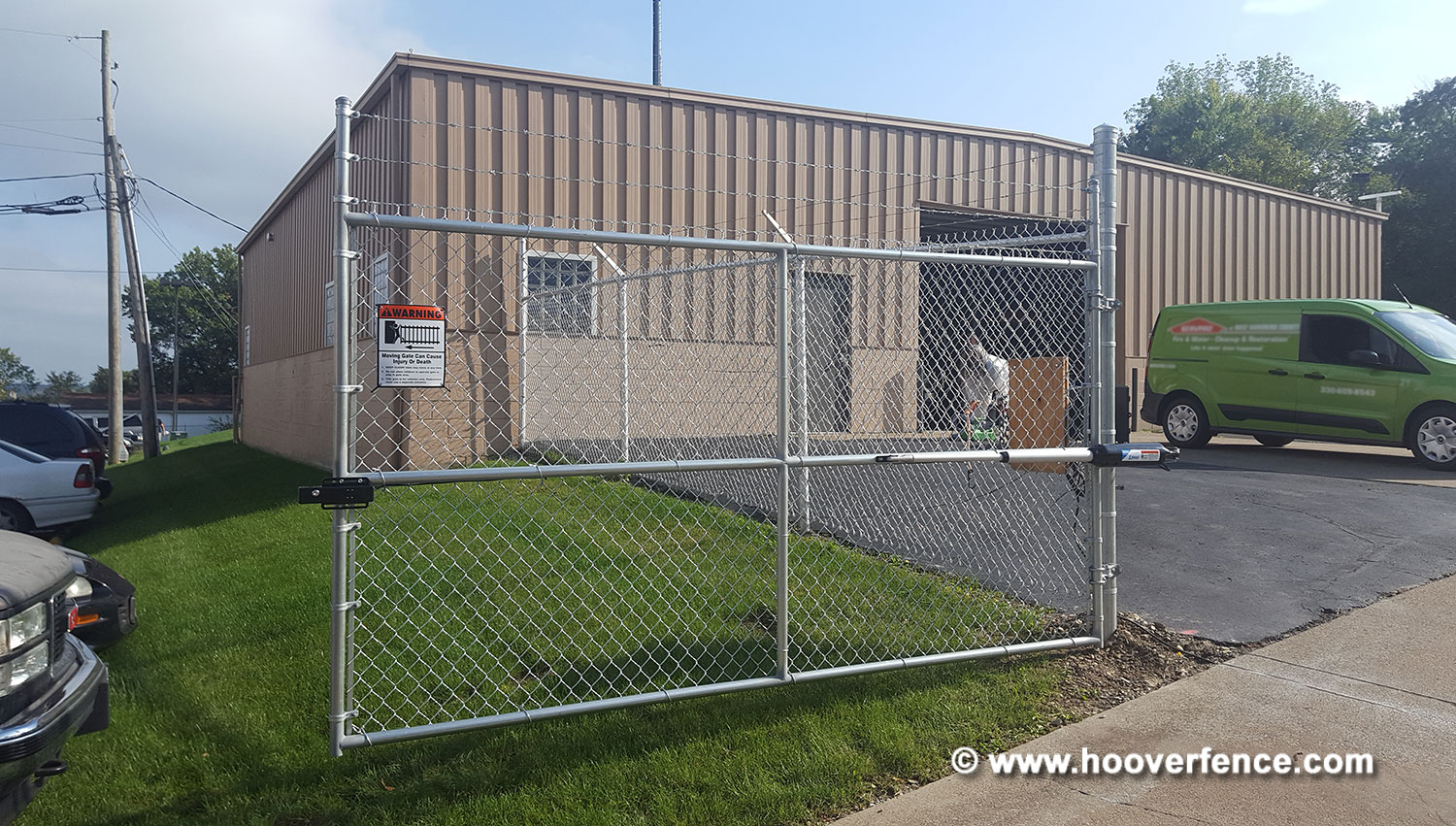

Hoover Fence Co. Installation of Commercial Double Chain Link Swing Gate with Gate Openers

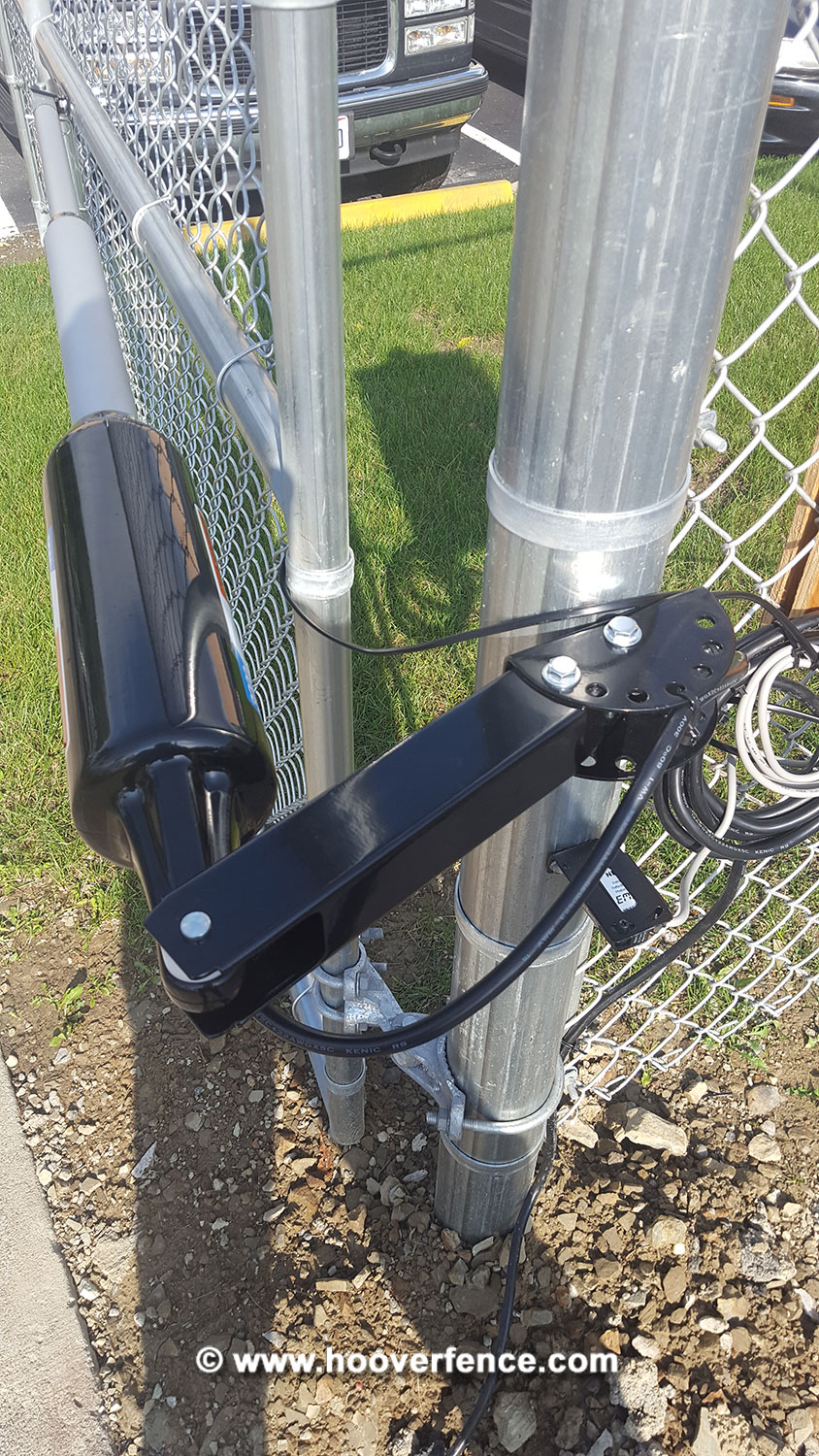

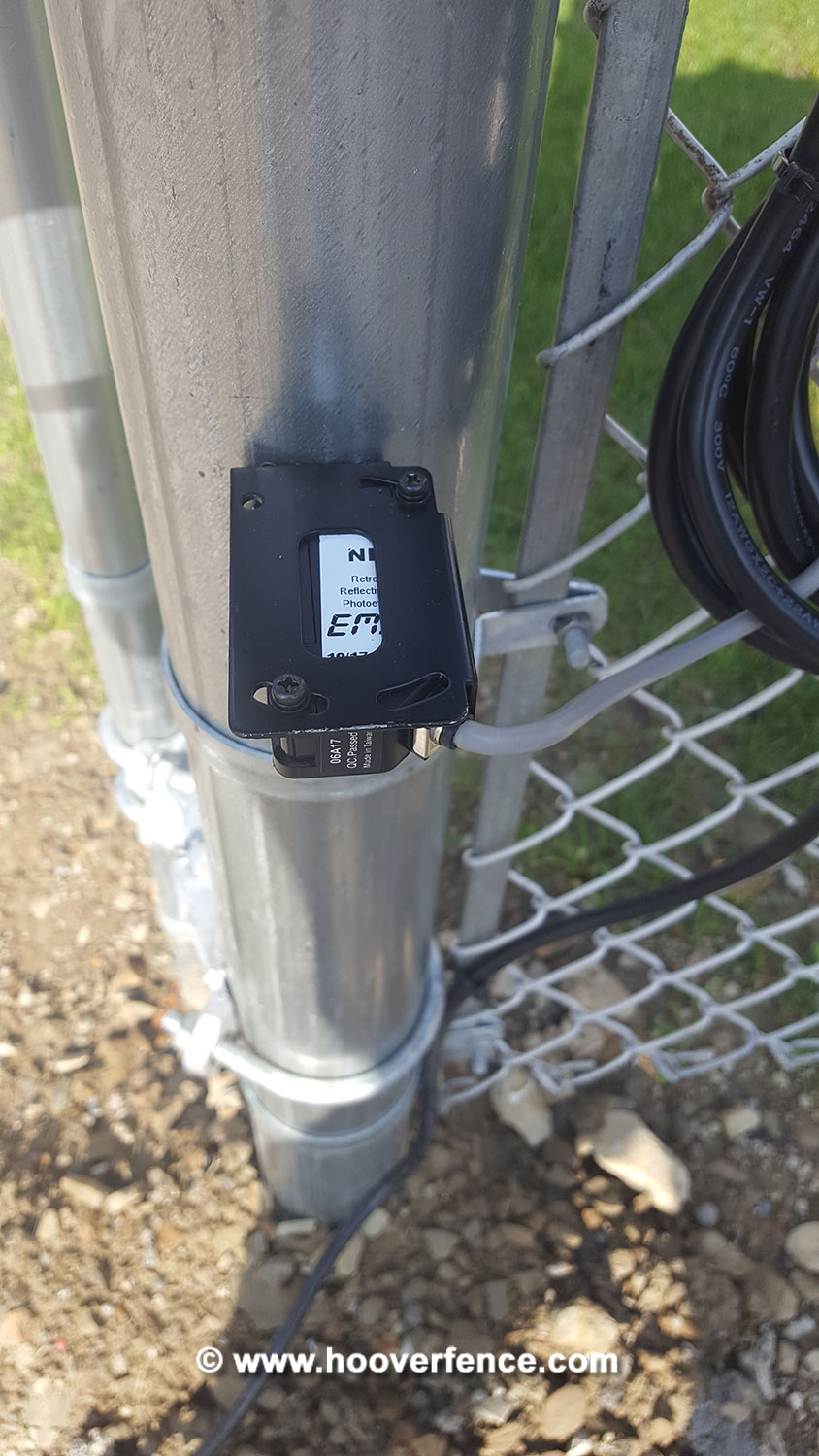

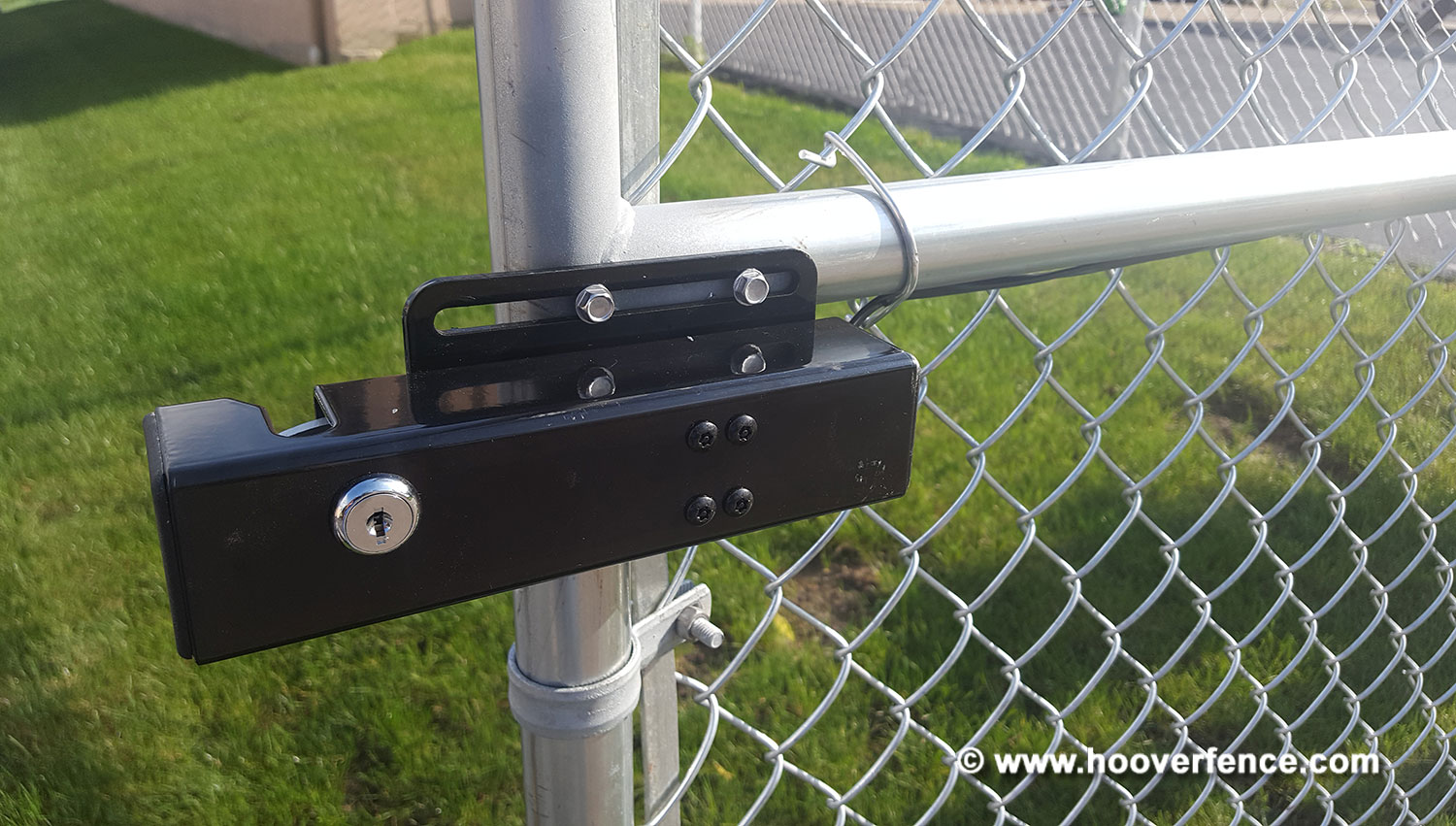

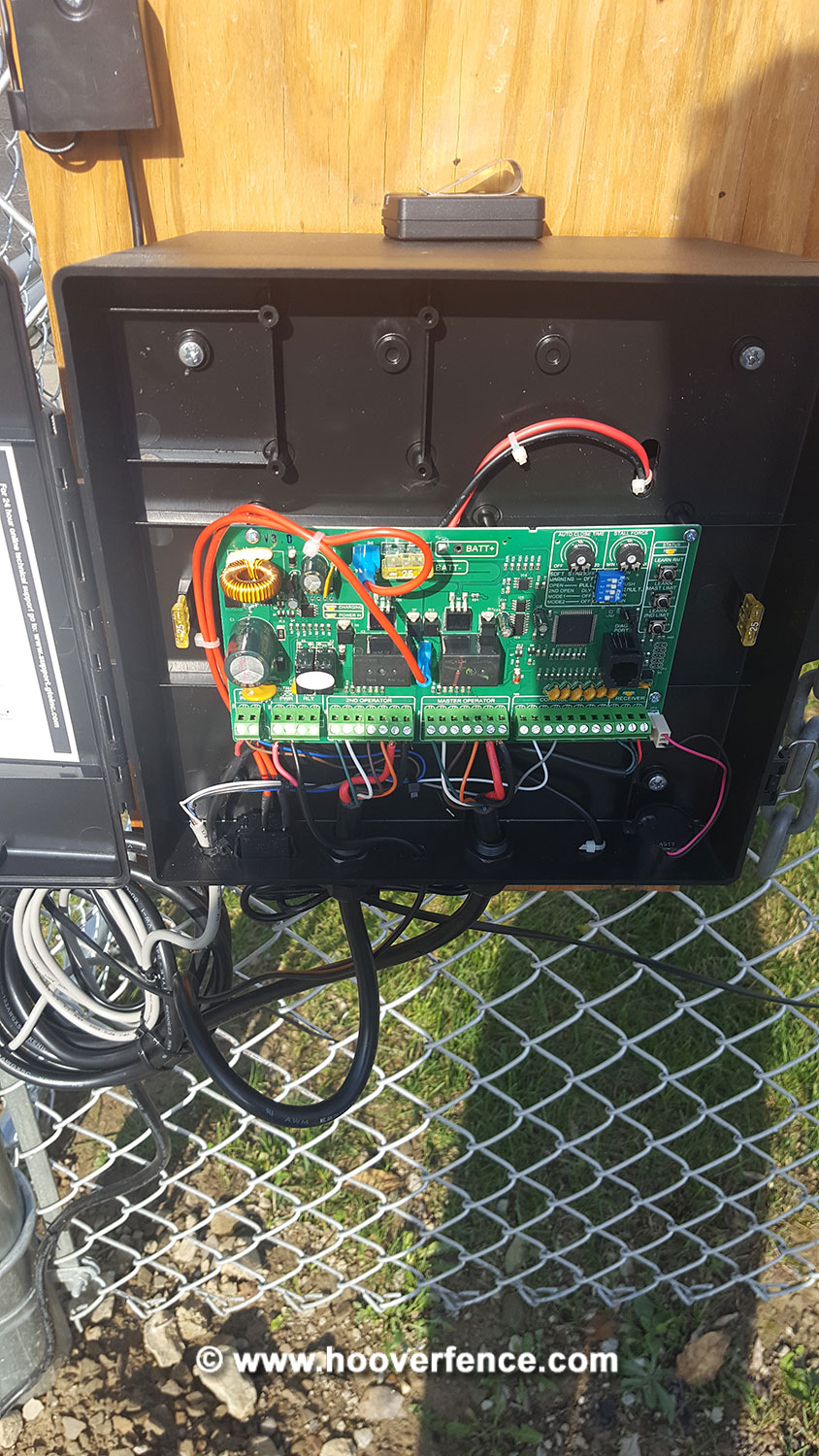

Here is a local Hoover Fence Co Installation in Warren, OH. We installed a double commercial chain link swing gate with barbed wire, automated with a Linear Pro Access PRO-SW3000XLS & PRO-SW3200XLS, EMX NIR Photo Eye, FM-144 Electric Lock, and F310. These operators are installed in a Push-to-Open configuration.

HFC Install - Commercial Chain Link Double Gate with Gate Openers

Reviews

Average Customer Rating: 5 out of 5 stars (1 Review) Write a Review (requires login)

Sort by:

Great service for a good item at a good..

Reviewer: A viewer from Florida

Great service for a good item at a good price!

1-1 of 1
