Our chain link post extensions will allow you to extend the height of your post by one or two feet or allow you to add barb wire to an existing chain link swing gate. These extensions are available for common 1-5/8", 2", 2-1/2", 3", and 4" posts .065, HF20, HF40, and Schedule 40 tubing. They are designed to be tack welded or through-bolted through existing posts using carriage bolts. Once extended, you can hide the joint with a tension or brace band.
Our extensions are available in both 1' and 2' lengths and utilize a HF40 outer post with an HF20 or HF40 inner sleeve. Please review the chart below to ensure you purchase the proper size.
| Fence Industry | Actual Outside Diameter | Decimal Equivalent | Will Fit Post Grades in Ranges Below | |
|---|---|---|---|---|
| 1-5/8" | 1-5/8" | 1.660" | .065" | Sch40 |
| 2" | 1-7/8" | 1.900" | .065" | HF40 (Not WT40 or SS40) |
| 2-1/2" | 2-3/8" | 2.375" | .065" | Sch40 |
| 3" | 2-7/8" | 2.875" | HF20 | Sch40 |
| 4" | 4" | 4.000" | HF40 | HF40 |
| ***It is very important to verify that the existing footers and post sizes are sufficient to support the new height*** | ||||

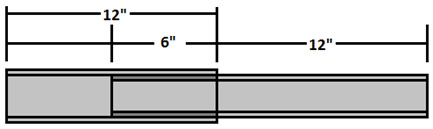

1' Extension:

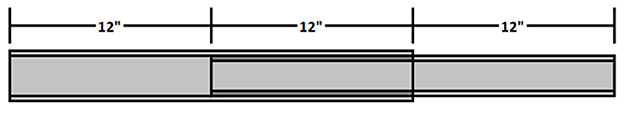

2' Extension:
