Hoover Fence S-Series Tubular Barrier Double Gate Kits - Aluminum

Details

Our S-Series Tubular Aluminum Double Barrier Gates are perfect for use in agricultural, residential, and commercial applications. Due to the inherent corrosion resistance of aluminum, these barrier gates are perfect for locations by fresh and salt water. These gates can be used to secure driveways, gas/oil well drives, construction sites, dumpster enclosures, and many others!

Gates also available in single configurations, and in aluminum and color coated options. Custom built sizes and configurations by special request. Please contact a sales representative for all custom requests.

Note on Sizing/ Design: Gates are built to fit the opening size, the space in-between the hinge posts or the hinge and latch post. We can build to 'finish size' by request. Actual designs may vary from what is pictured depending on size of gate.

S-Series Aluminum Complete Double Barrier Gate Kits Include:

Double S-Series Aluminum Tubular Barrier Gate - Available In: 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40' Widths (Two Gate Leafs)
Two Aluminum Hinge Posts
Post Caps for Posts
Two Sets of Hinges
Double Gate Latch

Note: See Specifications for component sizes.

Tubular Barrier Gate Overview | Custom Gate Quote Form

Specifications

Our S-Series Tubular Aluminum Double Barrier Gates Feature:

Rigid construction of premium 2" O.D. (1-7/8" actual) Sch40 Aluminum
Notched and or hammered joints
Custom designs available upon request; customers must prepare own drawing
Compatible with a variety of gate hinges, latches, and gate openers
Vertical bracing varies per gate width
Post sizes vary per gate width
Posts, post caps, hinges, and latch are provided

Double Gate Kit Components (Widths up to and including 34')

1 - 4' High Double S-Series Tubular Aluminum Barrier Gate (Width Ordered) - Two Gate Leafs
4 - 2" Aluminum Post Caps for Gate Uprights
2 - 4" x 8' Aluminum Sch40 Gate Posts
2 - 4" Aluminum Post Caps for Posts
4 - 4" Malleable Butt Hinges
1 - Gate Latch

Double Gate Kit Components (Widths over 34')

1 - 4' High Double S-Series Tubular Aluminum Barrier Gate (Width Ordered) - Two Gate Leafs
4 - 2" Aluminum Post Caps for Gate Uprights
2 - 6-5/8" x 8' Aluminum Sch40 Gate Posts
2 - 6-5/8" Aluminum Post Caps for Posts
4 - 6-5/8" Malleable Butt Hinges
1 - Gate Latch

FAQ

What type of latch is used on a double barrier gate and can it be purchased separately?

Our kits include Fulcrum Latches, in either the single or double configuration, depending on the type of gate ordered. A FenceLoc™ in conjunction with a commercial grade drop rod is another option. Each of these latches are padlockable and may be purchased separately.

How long does it take to install one of these barrier gates?

With proper planning and without an operator, these can easily be installed in half a day, however often the posts are set in a couple hours one day. The gate is then hung in a few minutes the next day once the cement has cured.

Can I alter the standard design?

Yes, we have built these gates with diagonal bracing, additional vertical, and additional horizontal bracing. Please use our 'fax-a-quote' form and supply us with a simple sketch of your design. Please note additional fees may apply.

How is gate sizing handled?

Our standard gate kits are built to fit the opening size listed. Therefore the 10' barrier gate will not measure 10' wide finish size; it will be slightly less to account for the hinge and latch space allowance. In general, if you order all the components from us, e.g. posts, hinges and a latch, we will build the gate for that opening size specified. If you want your gates built to a finish width, please specify upon ordering.

Instructions

Barrier Gate - Installation Guide

Customer Photos

Tubular Barrier Gate Photos

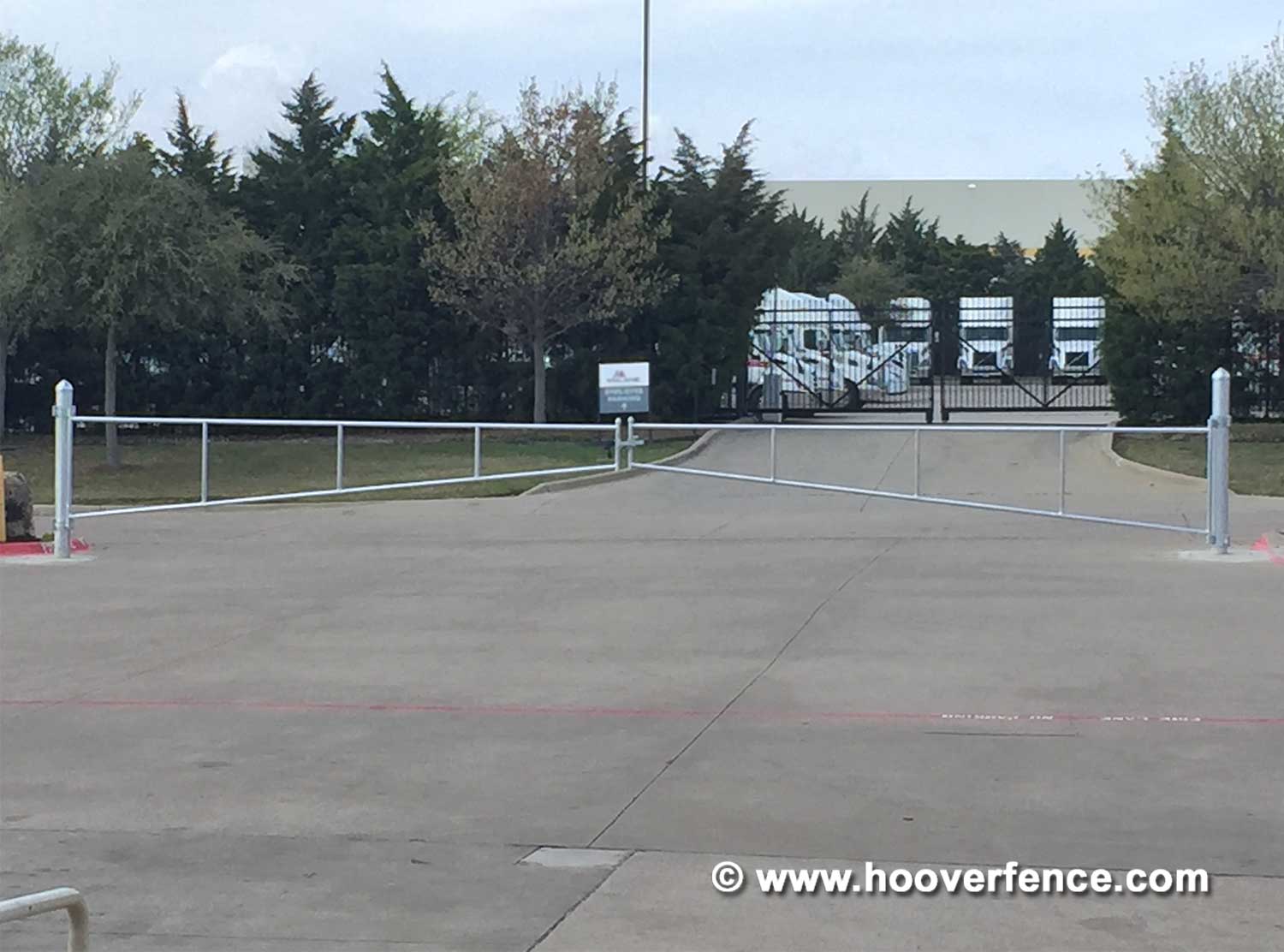

Customer Install - 4' High x 40' Wide Double S-Series Aluminum Barrier Gate - New Bremen, OH

Here is a picture of a monstrous 4' High x 40' Wide S-Series Double Barrier Gate Kit, expertly welded by HooverFence out of Aluminum Sch40, that our customer Michael installed over in Western Ohio. The install looks great Michael, thank you for purchasing these products from us and for sharing your hard work!

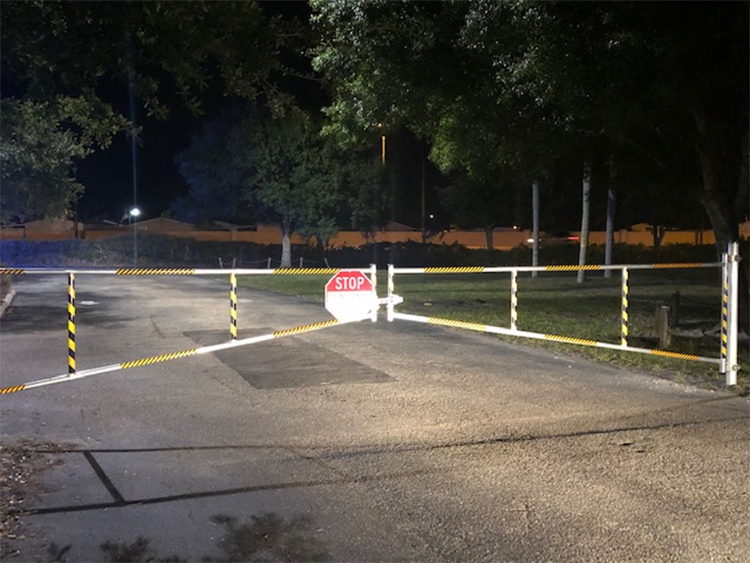

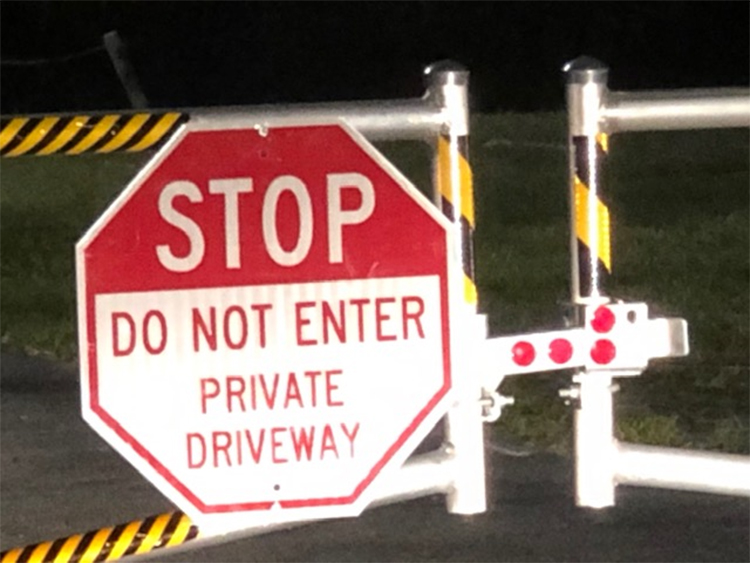

Customer Photos - S-Series Tubular Barrier Gate w/ Reflective Tape

Dear Mr Hoover: I apologize for not getting this to you right after we installed your gate in March. The install went very well. We had one man in charge and four of us carrying out his directions. I applied high reflective tape and a reflective STOP sign for visibility at night. Attached are night photos with cat headlights shining on the gate. Everyone is very pleased with the gate. Thank you again for this high quality gate! - Duane M.
