SHUT IT! The Aluminum BadAss Hinge
Item # CI3400Sold Individually
Details
Details
Shut It Sell Sheet | D&D Technologies Catalog
The Aluminum BadAss Hinge (CI3400)
Like The ORIGINAL BadAss, The Aluminum BadAss Gate Hinge by SHUT IT! is CNC machined to the tightest tolerances in the industry. Unlike The ORIGINAL, the Aluminum BadAss is made out of...Wait for it....... ALUMINUM!!! Due to SHUT IT's unique bushing design The Aluminum BADASS, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.
The Aluminum BadAss Hinges feature high-temperature sealed bearings which not only allow for the smooth operation you would expect from these hinges, but also allows the hinges to be welded, and then powder-coated with your custom swing gate.
- The Aluminum BadAss Hinge Features:
- Perfect for that high-end installation
- Two Sealed Maintenance Free Bearings (no greasing)
- High-temp Bearings, Safe to Powder-Coat
- Limited Lifetime Warranty
- Zinc Plated
- Adjustable Yoke For Perfect Installations
- Ideal For Flat Post Installations
- Load rating per gate: 1,000 lb (450kg)
- Maximum gate weight: 600 lb (270kg)
- Weld-on Installation
Specifications
Specifications
The Aluminum BadAss Hinge Specifications
| SKU | Finish | Fixing | Gap Variance | Bracket | Body | Height | Weight |
|---|---|---|---|---|---|---|---|
| CI3400 | Unfinished | Weld | 2-13/32 - 2-29/32" (61-74mm) | Alum | Alum | 3-13/16" (97mm) | 2 lb (1kg) |
| Product Code | CI3400 |
|---|---|
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Aluminum |
| Approx Gate Size | 6ft W x 8ft H (1.5m x 2m) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 1-1/2"+ (38mm) |
| Ideal Gate Gap | 2-1/2-3" (64-76mm) |
| Fixing Method | Weld-On |
| Color/Finish | Raw |
Warranty
Warranty
Lifetime component replacement guarantee (5 years for bearings).
FAQ
FAQ
Warning: Hinges will be severely damaged if electrical welding current is not properly grounded resulting in the Warranty being voided.
What type of sealed bearings does Shut-It use?
High-temp sealed radial ball bearings. They never need grease or maintenance. Unlike other hinges that require periodic greasing, sand and dirt won’t get inside your Shut-It hinges ensuring long life and superior performance. Our 304 stainless steel hinge model comes with stainless steel sealed bearings.
Does your zinc plating need to be removed before welding?
No. Zinc plating does not need to be ground off or removed in any way before welding. You will find the weld to be clean and without impurities. However, you will need to re-apply appropriate rust and corrosion protection after welding. Zinc makes an excellent undercoat for painting. We do not use a hot-dipped galvanizing process in order to avoid ‘metal fume fever’ or ‘zinc poisoning’ when welding. After 20 years and over 100,000 installations we have not had a single complaint in this regard. Be sure to follow standard welding guidelines and wear appropriate eye, face and body protection when welding.
Can I powder-coat my Shut-It® hinges?
Yes, except for the Self-Closing BadAss Hinge (CI3850). Shut-It® hinges shipped from March 1, 2019 onward use special sealed ballbearings with grease and seals that are specifically formulated to withstand the temperatures encountered in a powder-coating line. Although it is no longer necessary to remove the bearings from the hinges, it is still necessary to shield the bearings and interior surfaces of the hinge from pre-treatment sand blasting and powder-coat particles, as these may cause binding or premature wear. The self-closing hinge (CI3850) cannot be powder-coated due to additional components that will be negatively affected by the powder-coating process.
I want to use your stainless steel hinges for a stainless steel gate, but the fence post will be mild steel. Any suggestions on proper welding techniques?
For welding stainless steel hinges to mild steel gates and posts we recommend using type 309 (23 12L to BS EN 12072) welding rods or wire. This is should help avoid cracking in the weld dilution zone that can be a problem if normal rods or filler are used.
Unprotected welds subject to aggressive environments such as immersion in seawater could result in sacrificial corrosion to the less noble carbon steel part. However, post-weld surface coating repair would normally be needed for the carbon steel to ‘restore’ the corrosion protection.
If this re-coating/painting is allowed to lap over onto the weld bead then the joint should not be at risk to bimetallic corrosion in any environment so long as the coating is sound. Ideally the weld bead should be covered so that only the ‘parent’ stainless steel is exposed. This ensures that galvanic corrosion cells cannot be set up across the joint, where there is a composition ‘gradient.’
What color zinc are your products finished with?
All zinc coatings have an additive called chromate that helps the zinc adhere to the metal’s surface. Chromate comes in the following colors: yellow, black and blue. Shut-It uses blue chromate which actually looks clear, but if you look close enough it has a blue tint. All colors of zinc chromate perform equally.
Does the hinge Load Rating mean it can permanently hold a gate that heavy?
No, a gate’s overall load when opening and closing will vary based on many factors including gate weight, length and height of the gate, wind, people hanging on the gate, etc. You can expect the Load Rating on your hinges to be as much as twice the actual weight of your gate. Shut-It recommends you consult an engineer to assist in calculating your load ratings and there are many internet discussions on this subject that you may find useful.
Customer Photos
Customer Photos

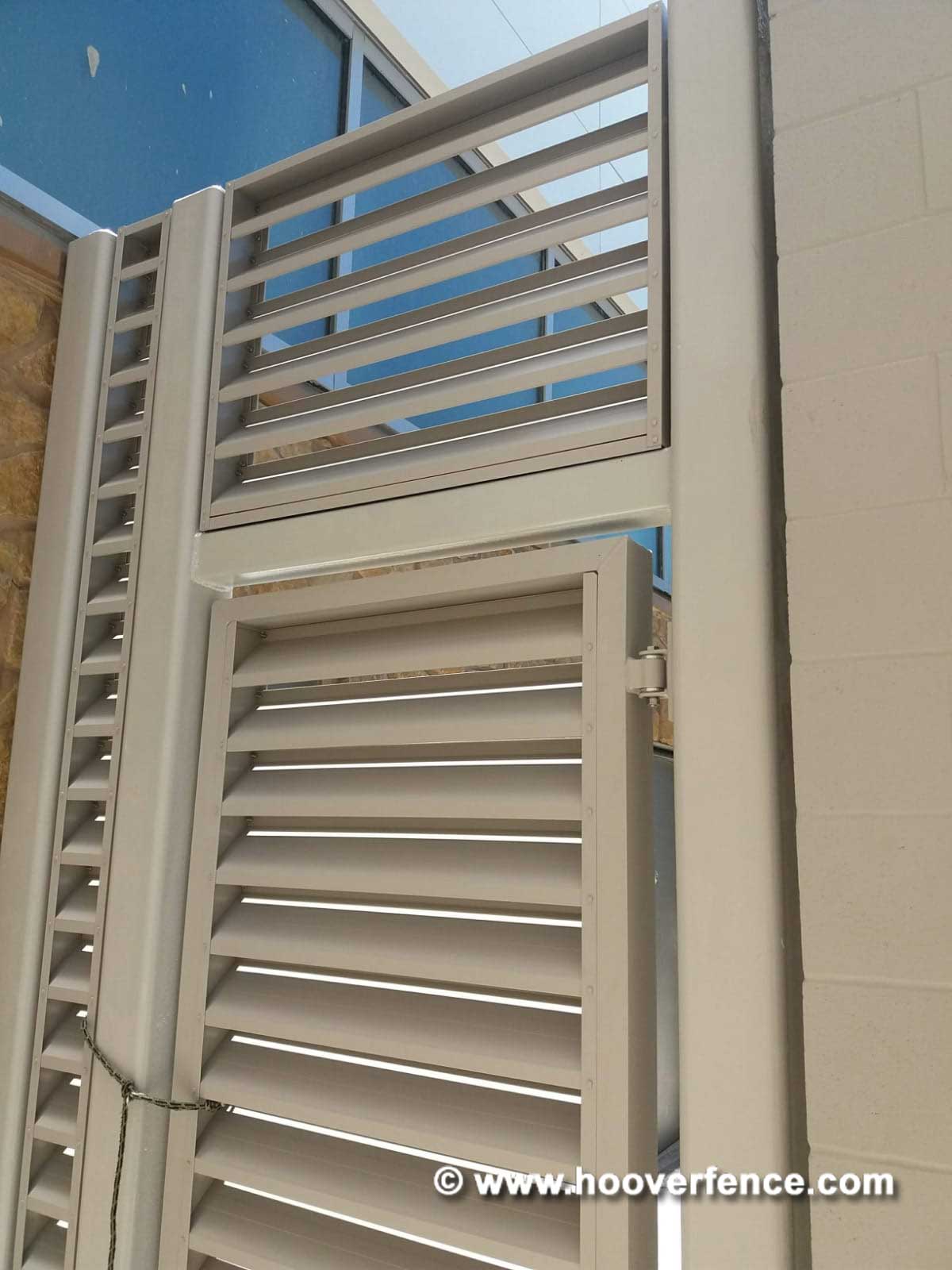

Customer Photo - Custom Louver Fence and Gates Hung with CI3400 Shut It Aluminum BadAss Hinges - San Benito, TX
Here are some great pictures of custom gates built and installed by our customer Emma down in San Benito, Texas. These custom gates were hung using our CI3400 Aluminum BadAss Hinges from ShutIt.
Customer Feedback:
"George,
Please see attached for images on how we used the Hinges we bought from Hoover. Thank you for your help and providing well stocked and well priced items for us.
Doors and fencing made from Bowman Louver Material, Hinges by Hoover. All painted SeaWolf Beige.
Again, Thank you."
Thanks again Emma! Keep up the great work!
