HySecurity SlideSmartDC Commercial Swing Gate Opener
Item # SLIDESMART-DC
Details
Details

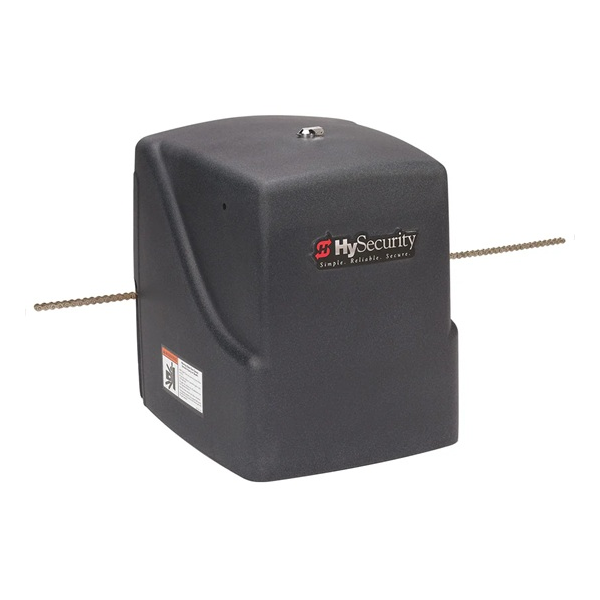

SlideSmartDC Sliding Gate Operator (SLIDESMART-DC)
The SlideSmartDC Sliding Gate Operator is a high-performance electromechanical slide gate operator engineered to provide reliable, continuous operation for residential, commercial, industrial, and high-security access control applications. Utilizing advanced DC motor technology with integrated battery backup, the operator delivers smooth gate movement, intelligent control, and dependable performance even during power interruptions. Its compact footprint, durable construction, and advanced safety features make it an ideal solution for a wide range of automated slide gate installations.
Designed to operate sliding gates weighing up to 2,000 pounds and spanning openings up to 50 feet, the operator provides efficient performance for both light-duty and demanding applications. Independent field-adjustable open and close speeds allow installers to optimize gate operation for site conditions, while adaptive obstruction sensing continuously monitors gate movement to enhance safety and reduce the risk of gate or operator damage.
The integrated battery backup system ensures continued gate operation during power outages. Standard batteries provide hundreds of gate cycles when utility power is unavailable, while the intelligent charging system continuously monitors battery condition to maximize performance and battery life. The operator is also well-suited for solar-powered installations, making it an excellent choice for remote locations where traditional electrical service may not be practical.
An advanced Smart Touch Controller provides extensive programming flexibility with more than 70 configurable settings. An onboard LCD display simplifies setup, diagnostics, and maintenance, while integrated event logging allows operators and technicians to review system activity and troubleshoot efficiently. USB, RS-232, and RS-485 communication capabilities support integration with access control systems and advanced site management requirements.
Cycle tested for long-term reliability and listed to UL 325 standards for Classes I, II, III, and IV applications, the operator is built to withstand demanding operating environments. Its rugged chassis and weather-resistant enclosure provide exceptional durability and protection against the elements, helping ensure years of dependable service.
Features:
- Electromechanical slide gate operator with advanced DC motor technology
- Designed for residential, commercial, industrial, and security applications
- Supports sliding gates up to 2,000 lbs.
- Accommodates gate openings up to 50 feet
- Integrated battery backup system for continued operation during power outages
- Intelligent battery management and charging system
- Adaptive obstruction sensing for enhanced safety
- Independent adjustable open and close speeds
- Advanced controller with more than 70 programmable settings
- Onboard LCD display for setup, diagnostics, and maintenance
- Integrated event logging capabilities
- USB, RS-232, and RS-485 communication ports
- Compatible with AC-powered and solar-powered installations
- Compact footprint for easier installation in confined locations
- Weather-resistant enclosure for long-term outdoor durability
- UL 325 listed for Classes I, II, III, and IV applications
- Engineered for continuous-duty operation and long service life
SlideSmart DC Model Comparison:
| Model | SLIDESMART-DC-10F | SLIDESMART-DCS-10F Solar | SLIDESMART-DC-15 | SLIDESMART-DCS-15 Solar |
|---|---|---|---|---|
| Duty Cycle | Continuous | Continuous | Continuous | Continuous |
| Drive | Electromechanical | |||
| Rate of Travel | 1.75, 2, or 2.25 ft/sec | 0.75, 1, or 1.25 ft/sec | ||
| Maximum Gate Length | 40 ft (12 m) | |||
| Maximum Gate Weight | 1,000 lb (453 kg) | 1,500 lb (680 kg) | ||
| Pull Force | 200 lb (90.7 kg) | 300 lb (136 kg) | ||
| Battery Backup |
Standard: Two 8Ah batteries, up to 4,000 ft of gate travel after AC power loss. Extended: Two 50Ah batteries, up to 25,000 ft of gate travel after AC power loss. |
|||
| Temperature Rating | -13°F to 158°F (-25°C to 70°C) | |||
| Operating Voltage | 24VDC | |||
| Input Voltage | 115V or 208-230V AC | 24VDC Solar (40W Min Panel) | 115V or 208-230V AC | 24VDC Solar (40W Min Panel) |
| Accessory Power | 12VDC and 24VDC, 1A each | |||
| Included Accessories | 30 ft #40 corrosion-resistant roller chain, two steel gate brackets, EMX IRB-MON photo eye, 5 ft ASO edge sensor, and pre-wired Hy2NC adapter | |||
| Communication | USB, RS-232, RS-485 | |||
| Controller | Smart DC Controller with 70+ configurable settings, 32-character LCD display, and PC connectivity. | |||
| Relays | Two configurable user relays. Optional expansion available for eight additional relay outputs. | |||
| Finish | Zinc-plated chassis with molded polyethylene cover | |||
| UL 325 Usage Class | Class III, IV | Class I, II, III, IV | ||
| Cycle Tested | 500,000 Cycles | |||
| Warranty | 5-Year Warranty (7-Year Residential with Registration) | |||
