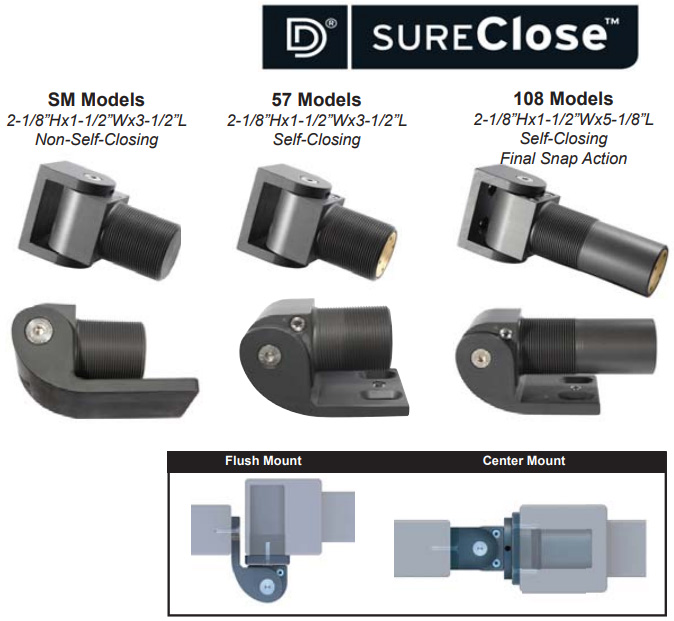

SureClose Hinge Kits
Shop: D&D Technologies Gate Hinges
SureClose Hinge & Hydraulic Closer Kits. All-in-One!
Concealed Adjustable Gate Closer & Heavy Duty Hinge Sets.
- All kits contain (2) hinges and all mounting brackets
- Self-closes gates up to 260 lbs without added cost of separate closer
- Precision engineered and superbly finished
- Visibly small footprint - Hydraulics concealed within post
- Maintenance free - Never add grease
- Heavy duty anodized aluminum hinge
- Steel or aluminum mounting brackets
- Dual Bearing Glide System™
- Adjustable self-closing speed
- 108 models have Final Snap Action to help overcome electrical
- Horizontal adjustment - Center Mount
- Child safety models available
- Tested to 1,500 lbs load capacity and 500,000 cycles
- 2-year limited warranty
Steel Weld-On Mounting Brackets
| Kit Item # | Model | Self-Closing from 90° |
Final Snap Action |
Pool/Child Safety |
Holds Open at 90° |
Horizontally Adjustable |
Fence Post Minimum |
Self-Close Max. Gate Weight |
Hinge Gap | **Center Mount or Flush Mount Latch |
Weight per Kit |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 77001114 | *SM+SM | - | - | - | - | Yes | 2-1/2"+ | *N/A | 2-1/2" - 3" | Center Mount | 7.4 lbs. |
| 77001214 | *SM+SM | - | - | - | - | - | 2"+ | *N/A | 1/2" | Flush Mount | 7.4 lbs. |
| 77057114 | 57+SM | Yes | - | - | Yes | Yes | 2-1/2"+ | 90 lbs. | 2-1/2" - 3" | Center Mount | 7.6 lbs. |
| 77057124 | 57+SM | Yes | - | Yes | - | Yes | 2-1/2"+ | 90 lbs. | 2-1/2" - 3" | Center Mount | 7.6 lbs. |
| 77057214 | 57+SM | Yes | - | - | Yes | - | 2"+ | 90 lbs. | 1/2" | Flush Mount | 7.6 lbs. |
| 77057224 | 57+SM | Yes | - | Yes | - | - | 2"+ | 90 lbs. | 1/2" | Flush Mount | 7.6 lbs. |
| 77108114 | 108+SM | Yes | Yes | - | Yes | Yes | 2-1/2"+ | 180 lbs. | 2-1/2" - 3" | Center Mount | 8.0 lbs. |
| 77108124 | 108+SM | Yes | Yes | Yes | - | Yes | 2-1/2"+ | 180 lbs. | 2-1/2" - 3" | Center Mount | 8.0 lbs. |
| 77108214 | 108+SM | Yes | Yes | - | Yes | - | 3"+ | 180 lbs. | 1/2" | Flush Mount | 8.0 lbs. |
| 77108224 | 108+SM | Yes | Yes | Yes | - | - | 3"+ | 180 lbs. | 1/2" | Flush Mount | 8.0 lbs. |
Aluminum Screw-On Mounting Brackets
| Kit Item # | Model | Self-Closing from 90° |
Final Snap Action |
Pool/Child Safety |
Holds Open at 90° |
Horizontally Adjustable |
Fence Post Minimum |
Self-Close Max. Gate Weight |
Hinge Gap | **Center Mount or Flush Mount Latch |
Weight per Kit |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 77001113 | *SM+SM | - | - | - | - | Yes | 2-1/2"+ | *N/A | 2-1/2" - 3" | Center Mount | 5.0 lbs. |
| 77001213 | *SM+SM | - | - | - | - | - | 2"+ | *N/A | 1/2" | Flush Mount | 5.0 lbs. |
| 77057113 | 57+SM | Yes | - | - | Yes | Yes | 2-1/2"+ | 90 lbs. | 2-1/2" - 3" | Center Mount | 5.2 lbs. |
| 77057123 | 57+SM | Yes | - | Yes | - | Yes | 2-1/2"+ | 90 lbs. | 2-1/2" - 3" | Center Mount | 5.2 lbs. |
| 77057213 | 57+SM | Yes | - | - | Yes | - | 2"+ | 90 lbs. | 1/2" | Flush Mount | 5.2 lbs. |
| 77057223 | 57+SM | Yes | - | Yes | - | - | 2"+ | 90 lbs. | 1/2" | Flush Mount | 5.2 lbs. |
| 77108113 | 108+SM | Yes | Yes | - | Yes | Yes | 2-1/2"+ | 180 lbs. | 2-1/2" - 3" | Center Mount | 5.6 lbs. |
| 77108123 | 108+SM | Yes | Yes | Yes | - | Yes | 2-1/2"+ | 180 lbs. | 2-1/2" - 3" | Center Mount | 5.6 lbs. |
| 77108213 | 108+SM | Yes | Yes | - | Yes | - | 3"+ | 180 lbs. | 1/2" | Flush Mount | 5.6 lbs. |
| 77108223 | 108+SM | Yes | Yes | Yes | - | - | 3"+ | 180 lbs. | 1/2" | Flush Mount | 5.6 lbs. |
NOTE: Weld-on steel mounting brackets must be finished with corrosion protection. Protect threads and moving parts when applying finish
*SM+SM kits are intended for NON self-closing gates. Ideal for double drive or Access Control gates.
**Kits require a latch/lock intended for a gate that is either center to the line of the fence OR flush with the face of the fence post - For D&D latches use Flush Mount.
