Hoover Fence Pre-Hung Chain Link Fence Gates
Item # CL-PRE-HUNG-GATE
Details
Details
Pre-Hung Chain Link Pedestrian Gates
Hoover Fence Company's ready-to-install pre-fabricated and pre-hung gates make quick work of installing pedestrian gates. This gate kit is designed to be an easy installation access gate that can be added to new installations or existing fence lines. This gate kit takes the trouble out of ordering custom sized gates to fit specific gate openings. Gate kit assemblies arrive completely fabricated. Gate comes complete with simple bolt-on hinges and a fork latch. You may specify hinges and latch at an extra cost. Simply dig two fence post holes and cement posts in place with posts plumb, or mount to concrete surface with posts plumb.
Standard Kits are designed for in-ground installations allowing for post lengths sufficient to concrete into the ground. Pad mount kits are available as an option allowing these kits to install on concrete surfaces.
Pre-Hung Chain Link Pedestrian Gate Features:
- Heavy-Duty 3" round HF40 or 3" square 12ga. galvanized perimeter frame with post caps.
- Header placed approximately 7' above grade on 7'H x 4'W models and 6' above grade on the 6'H+1'B x 4'W models.
- Fully welded commercial grade chain link gate, pre-hung in perimeter frame.
- Gate frame constructed of 2" round HF40 or 2" square 14ga galvanized framework.
- Gate comes fully stretched with 9 Gauge galvanized chain link fabric.
Ordering Notes:
Our gates are built to fit the opening size shown, the space in-between the hinge posts or the hinge and latch post. Gates are also built approximately 2" shorter than the heights shown to allow space under the gate for it to swing. We can build to 'finish size' by request. View Specifications for Actual dimensions. Custom built sizes and configurations by special request. Please contact a sales representative for all custom requests.
This Pre-Hung Gate Kit does not include panic hardware. You can add panic hardware or shop our Pre-Hung Gate Kits with Panic Hardware already installed. Panic Hardware | Pre-Hung Chain Link Fence Panic Bar Gates
Gate Add-ons are linked in "Parts for this Product" below.
Pre-Hung Gates are custom made-to-order products and once an order is placed, it may not be altered or cancelled. Gates are non-returnable.
Specifications
Specifications
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 6' High x 4' Wide (True Measurment: 68" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 6' High x 4' Wide (True Measurment: 68" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 6' High x 4' Wide (True Measurment: 68" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 6' High x 4' Wide (True Measurment: 68" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")
Customer Photos
Customer Photos

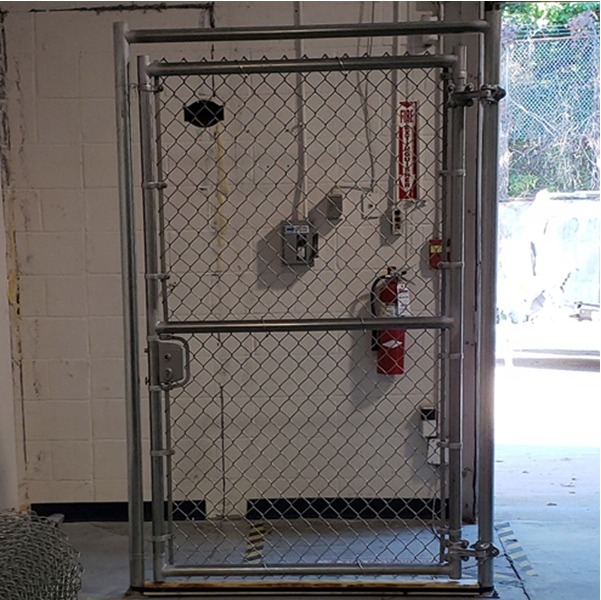

Here are some photos from a recent installation in Akron, OH featuring a pad-mounted indoor chain link security fence with a Pre-Hung Gate, Locinox Chain Link Gate Lock, and Security Gate Stop with Keeper.
Reviews
Reviews
There are no reviews yet. Be the first to Write a Review (requires login).
Shipping
Shipping
Shipping Expense Disclaimer: All orders are subject to confirmation. Additional shipping expenses, although rare, may apply due to weight, size, location, and/or other variables. Should your order require additional funds to cover the transportation of goods, you will be contacted prior to order processing for approval.
-
