Commercial Chain Link Fence Partition Panels are our custom built solution for all of your secure storage needs. Secure warehouse storage, tool cribs, generator fence enclosures, HVAC fence enclosures, portable event enclosures, and animal confinement can all be accomplished using our customizable chain link partition panels. Built superior to our temporary fence panels, chain link partition panels feature a larger diameter tube (1-5/8" O.D.), heavier wall thickness (HF20), three horizontal rails for superior strength and longevity.
All panels are constructed of commercial grade 1-5/8" galvanized HF20 framework and stretched with commercial/ industrial galvanized 9 gauge galvanized chain link fence fabric.
Chain Link Enclosure Panels are available in heights of of 6', 7', and 8' high. Widths available are 1', 2', 3', 4', 5', 6', 7', 8', 9', and 10', all to ensure that you can fill the needs of your project. Use multiple panels for longer runs. Please note we are only restricted in size by transportation. Typically, these ship palletized by common carrier; flatbed service also available.
Our chain link partition panels are a quick, portable, and cost effective means for creating Storage Cages, Security Cages, or Safety Fence for nearly any application. These panels are designed for permanent installation, but just as easily can be utilized in a temporary fashion. These are not your average light weight temporary fence panels, these are built for security and longevity to protect your investment.
Custom Options to consider: Privacy Fabric, Privacy Slats, Tops, Floor Mounts, and Wall Mounts. All aluminum construction chain link partition panels are also available for marine environments. Chain link partition panels also available fabricated from square tubing.
Ordering and Installation Tips:
Don't forget to include an entrance for your enclosure. We offer panels with a pre-hung gates which can be customized with options for free egress/exit, storeroom functionality, controlled access, and more.
Installation is quick and easy - simply stand the panels upright and bolt together using panel clamps. We recommend at least 2 panel clamps per connection between panels, one towards the top and one towards the bottom. Connections to walls can be made using a tension band or band type wood to steel adapter.
| 1' Wide | 2' Wide | 3' Wide | 4' Wide | 5' Wide | 6' Wide | 7' Wide | 8' Wide | 9' Wide | 10' Wide | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6' High | 33.7 lbs. | 42.4 lbs. | 51.1 lbs. | 59.8 lbs. | 68.5 lbs. | 77.2 lbs. | 85.9 lbs. | 94.6 lbs. | 103.3 lbs. | 112.0 lbs. |
| 7' High | 37.4 lbs. | 46.8 lbs. | 56.2 lbs. | 65.2 lbs. | 75.0 lbs. | 84.4 lbs. | 93.8 lbs. | 103.2 lbs. | 112.6 lbs. | 122.0 lbs. |
| 8' Hihg | 41.1 lbs. | 51.2 lbs. | 61.3 lbs. | 71.4 lbs. | 81.5 lbs. | 91.6 lbs. | 101.7 lbs. | n/a | n/a | n/a |
Weights shown are approximate.

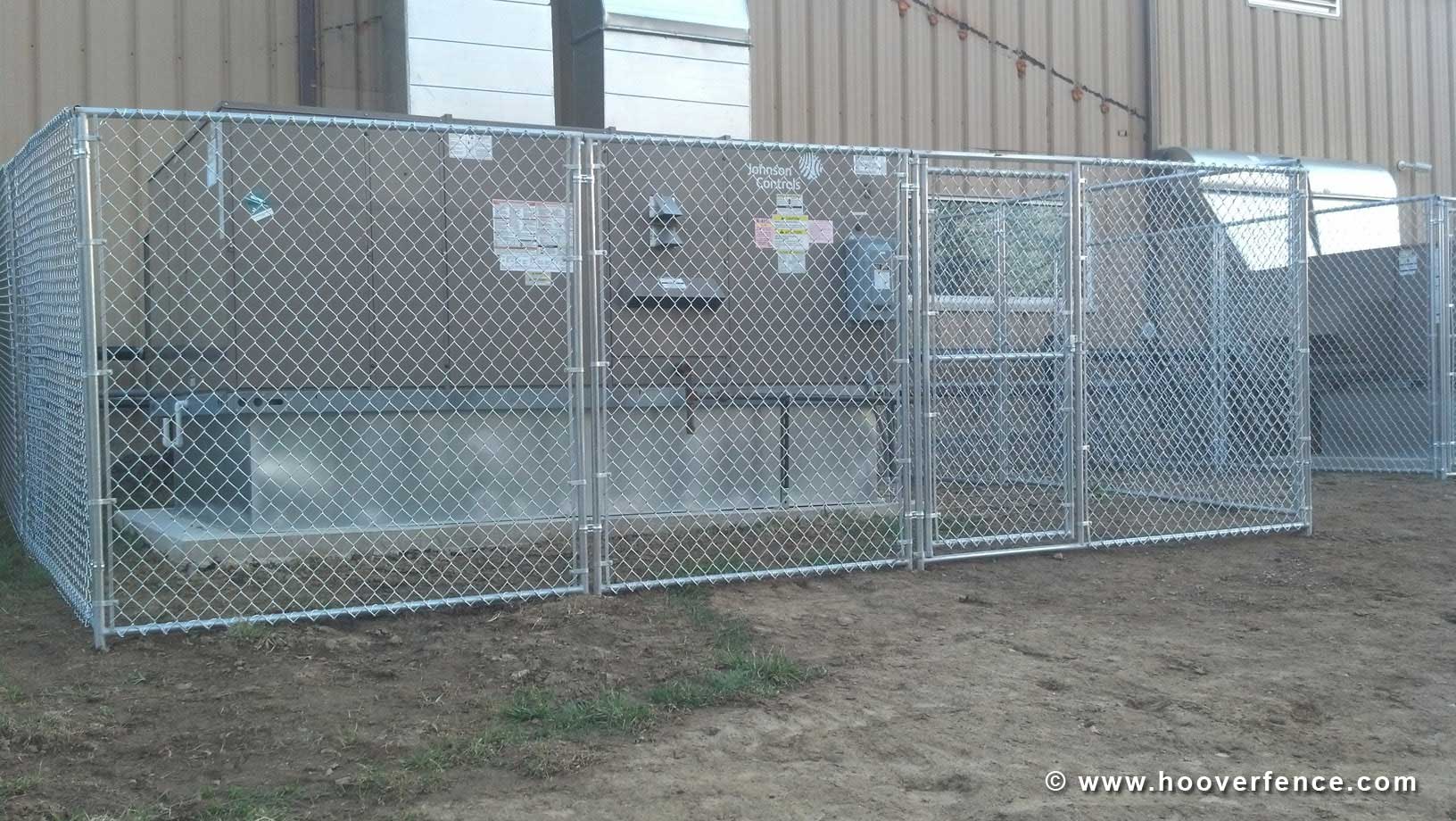

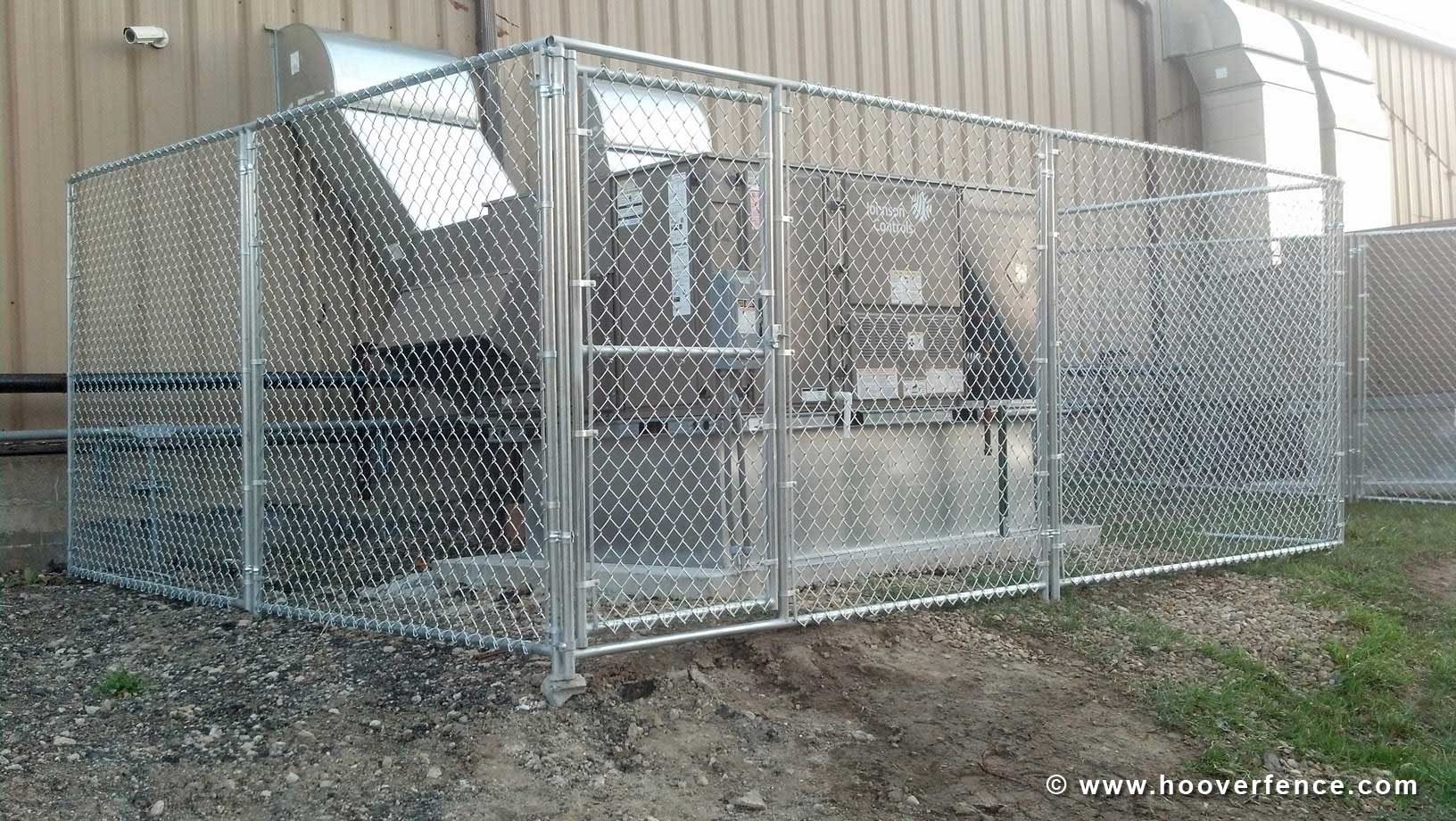

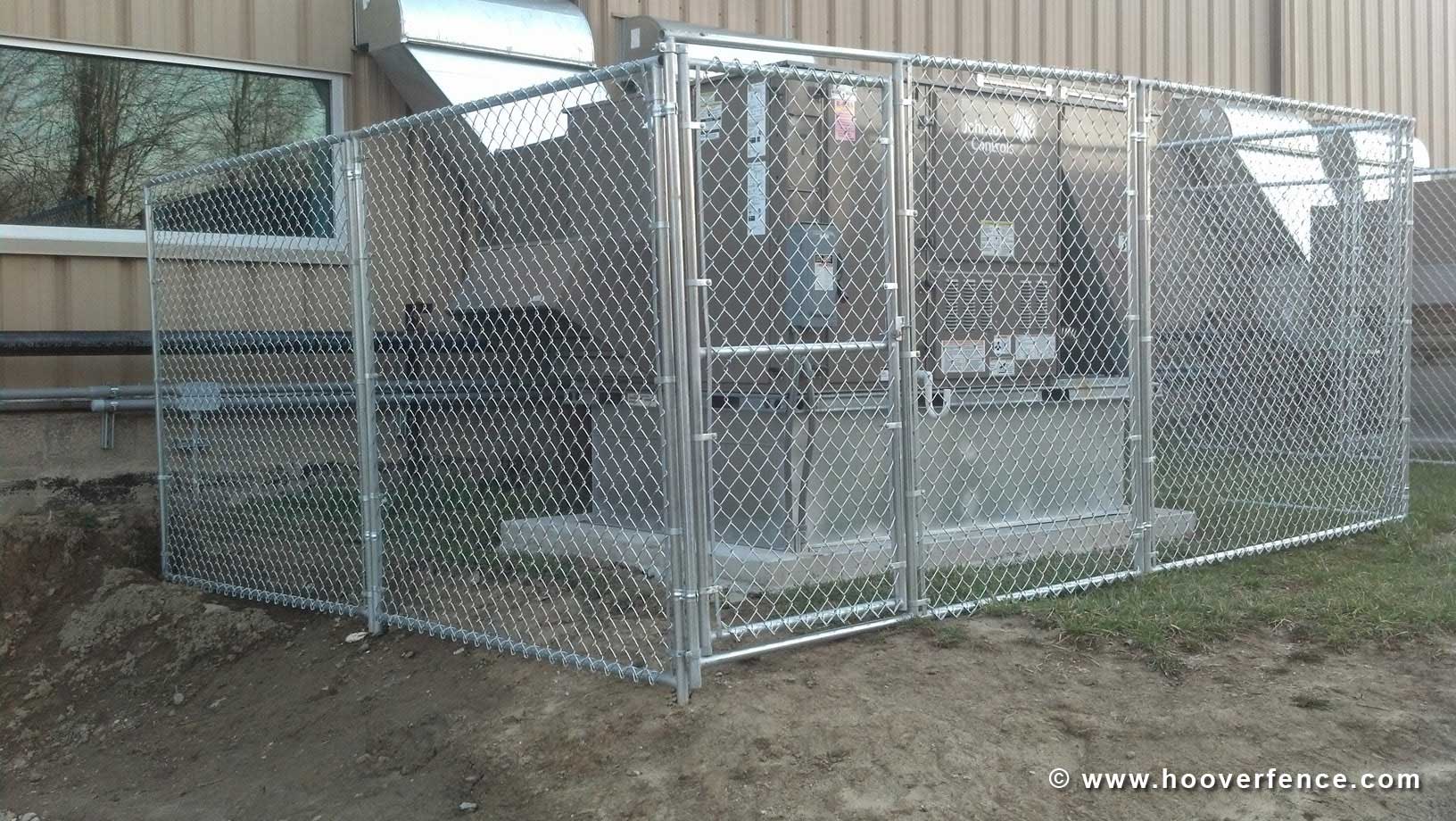

This installation is from the Animal Welfare League located in Trumbull County, Ohio. Chain Link Partition Panels were used here to secure condensing units.

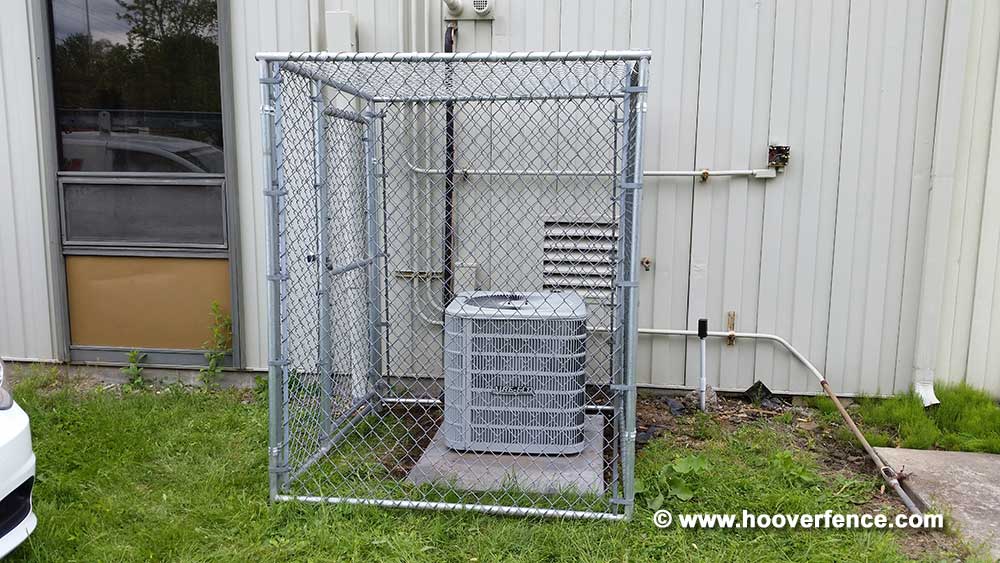

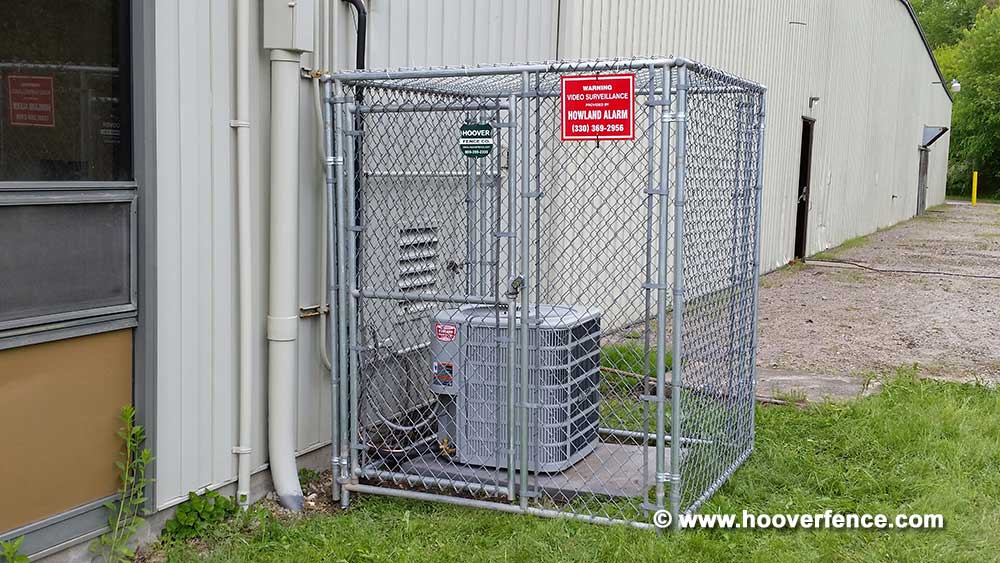

This installation is at our warehouse in Newton Falls, OH. to protect our air conditioning unit from vandalism and theft. Our chain link partition panels are a great solution for securing valuables and this is just another great example of how versatile the material is.

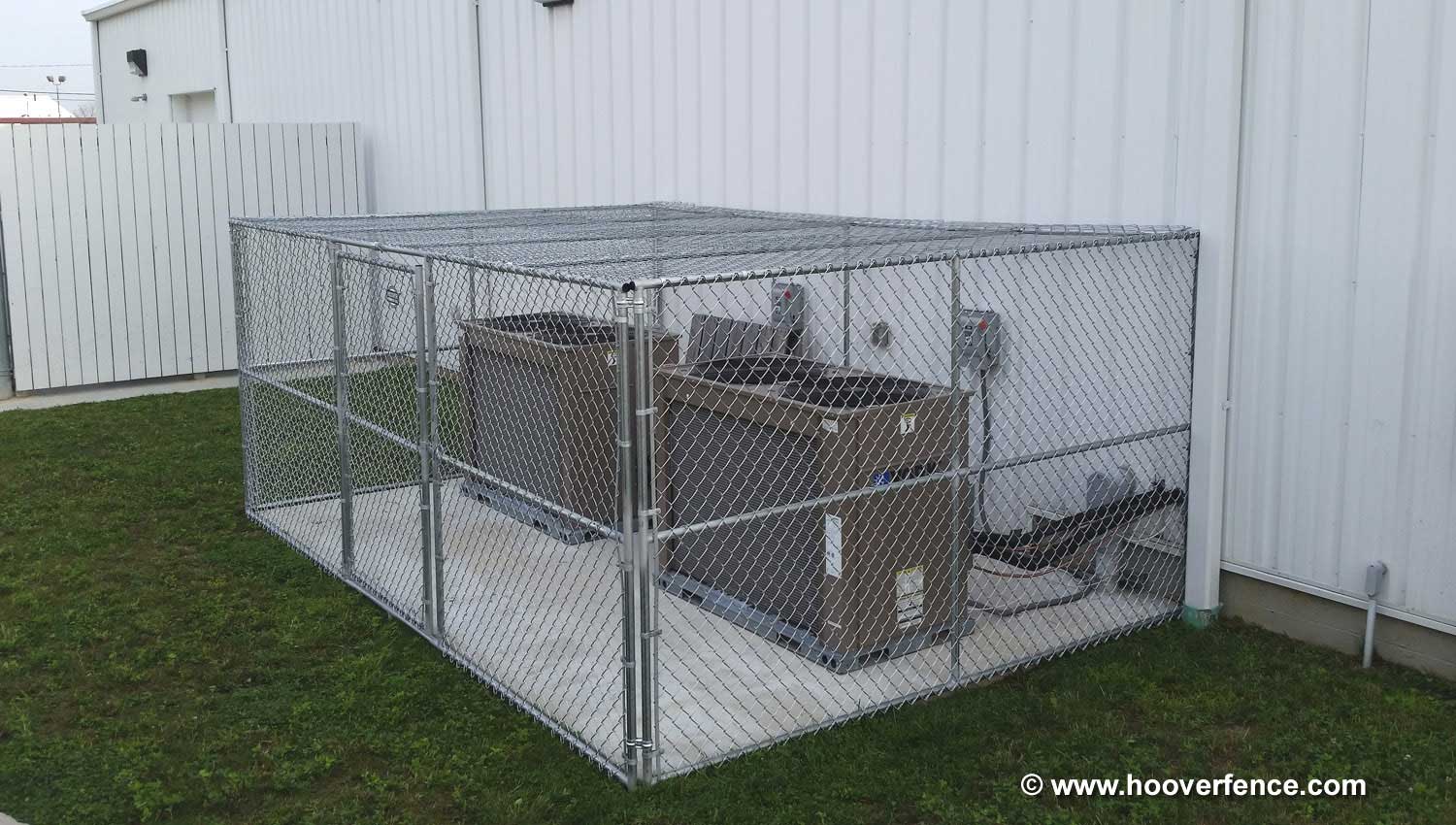

This installation was done for a customer by Hoover Fence Co. to protect the air conditioning units from vandalism and theft. With air conditioning units being stolen and scrapped, it is all the more popular to protect them from loss.
Here are some great pictures from a custom-built Bicycle Secure Storage enclosure, using our Chain Link Fence Partition Panels. Custom additions include an upper Roof Panel and a Bicycle Hanging Rack. The project looks great!
