Hoover Fence Pre-Hung Chain Link Fence Gates

Item # CL-PRE-HUNG-GATE

Actual product(s) may vary from pictures shown

Details

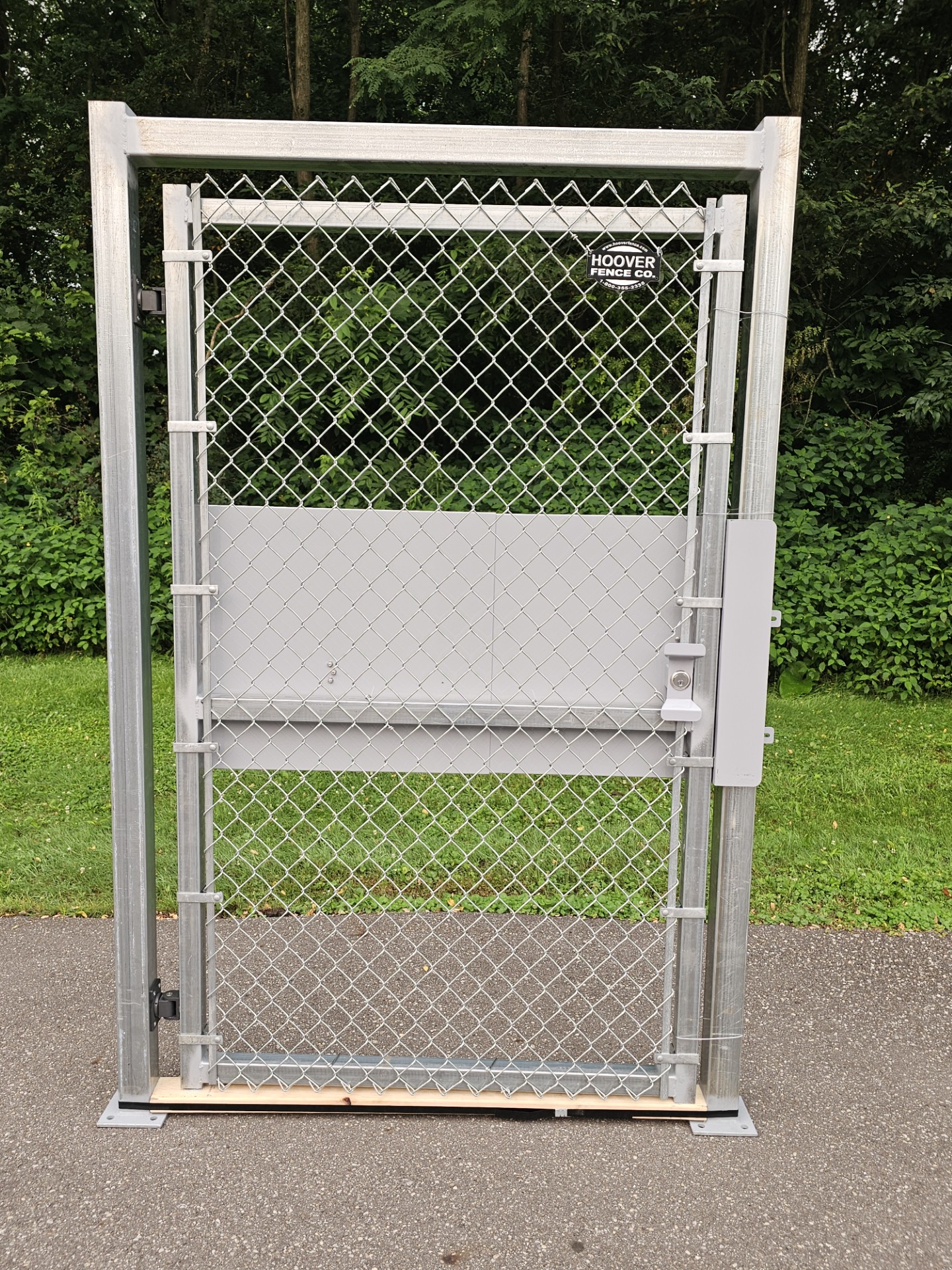

Pre-Fabricated & Pre-Hung Chain Link Pedestrian Gates

Hoover Fence Company's ready-to-install pre-fabricated and pre-hung gates make quick work of installing pedestrian gates. Gate kit assemblies arrive completely fabricated. Simply dig two fence post holes and cement posts in place with posts plumb, or mount to concrete surface with posts plumb.

Standard Kits are designed for in-ground installations allowing for post lengths sufficient to concrete into the ground. Pad mount kits are available as an option allowing these kits to install on concrete surfaces.

Advantages:

Heavy-Duty 3" round HF40 or 3" square 12ga. galvanized perimeter frame with post caps.
Header placed approximately 7' above grade on 7'H x 4'W models and 6' above grade on the 6'H+1'B x 4'W models.
Fully welded commercial grade chain link gate, pre-hung in perimeter frame.
Gate frame constructed of 2" round HF40 or 2" square 14ga galvanized framework.
Gate comes fully stretched with 9 Gauge galvanized chain link fabric.

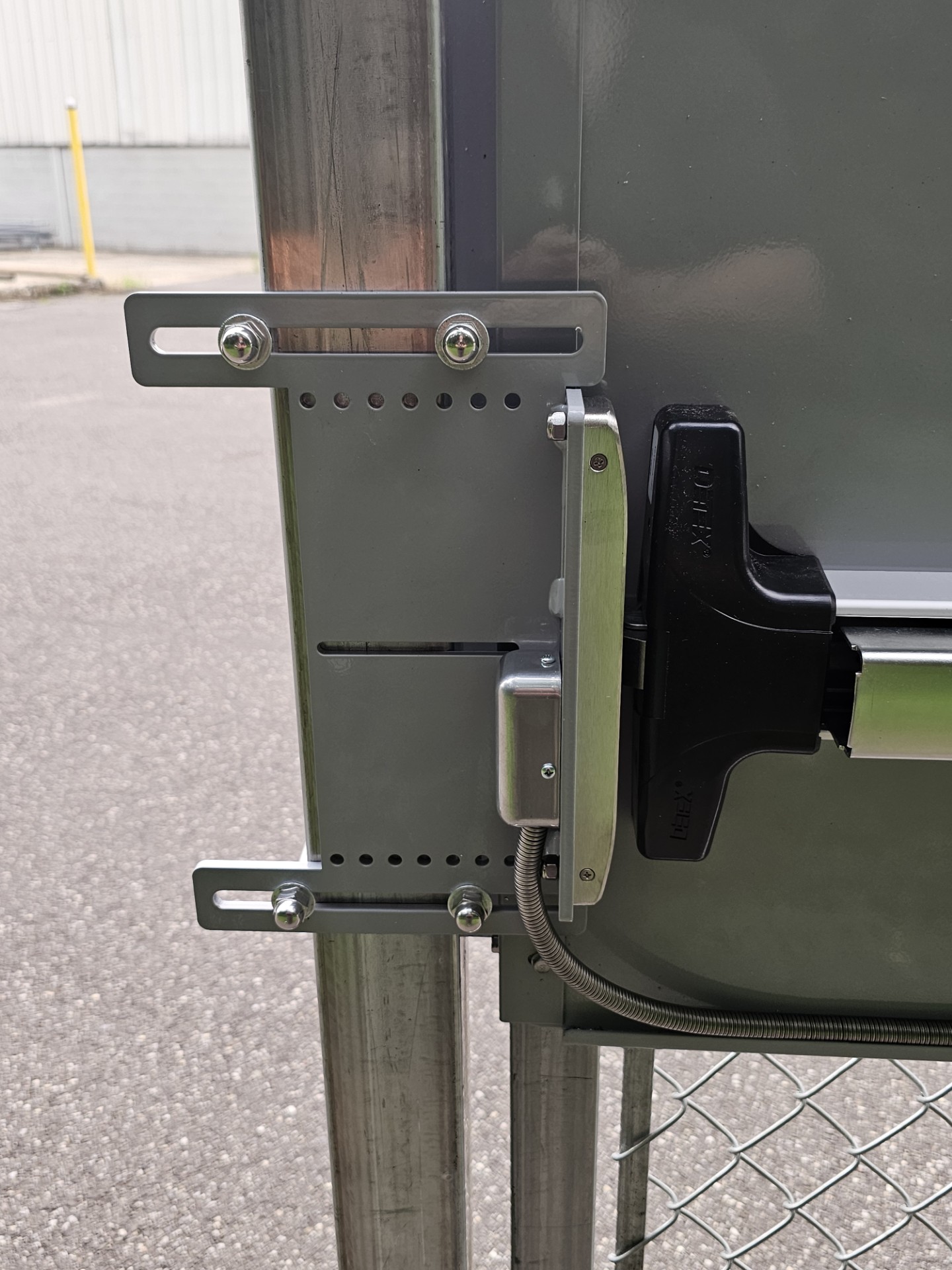

Shop: Panic Hardware

Note: Pre-hung gates include no panic gate hardware. These are designed simply as access gates. These are easy to install into existing fence lines and take the trouble out of ordering custom sized gates to fit certain gate openings. Pre-hung gates also allow for quicker and easier new installations of chain link fences with walk gates.

Note: Pre-fabricated gates are custom made-to-order products and for that reason, once order is placed, it may not be altered or cancelled. Gates are non-returnable.

Specifications

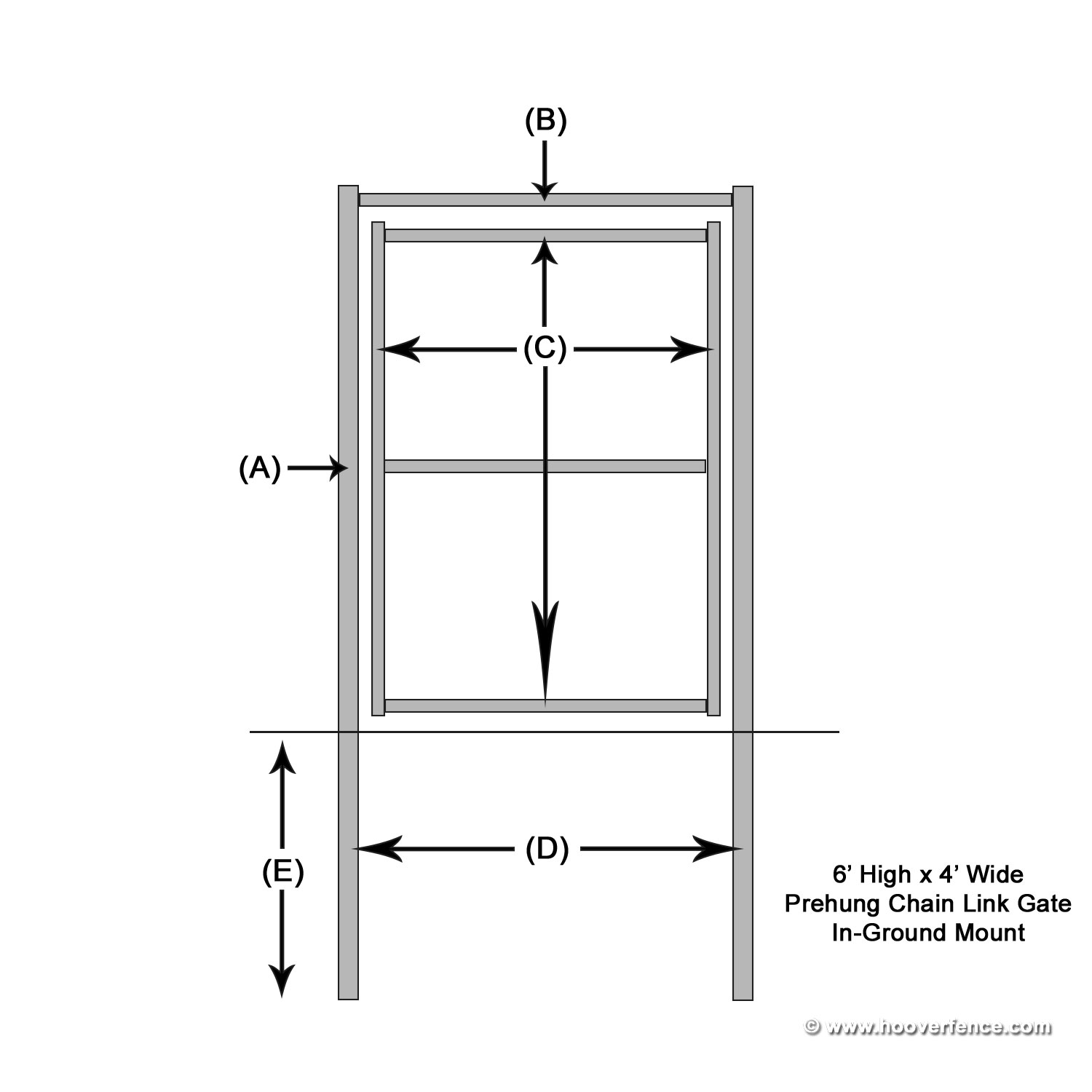

6' High x 4' Wide Pre-Hung Chain Link Swing Gate - In Ground Mount - Round Frame

6' High x 4' Wide Pre Hung Chain Link Swing Gate - Round Frame - In Ground Mount

Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 6' High x 4' Wide (True Measurment: 68" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"

6' High x 4' Wide Pre-Hung Chain Link Swing Gate - In Ground Mount - Square Frame

6' High x 4' Wide Pre Hung Chain Link Swing Gate - Square Frame - In Ground Mount

Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 6' High x 4' Wide (True Measurment: 68" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"

6' High x 4' Wide Pre-Hung Chain Link Swing Gate with Barb Wire - In Ground Mount - Round Frame

6' High x 4' Wide Pre Hung Chain Link Swing Gate with Barb Wire - Round Frame - In Ground Mount

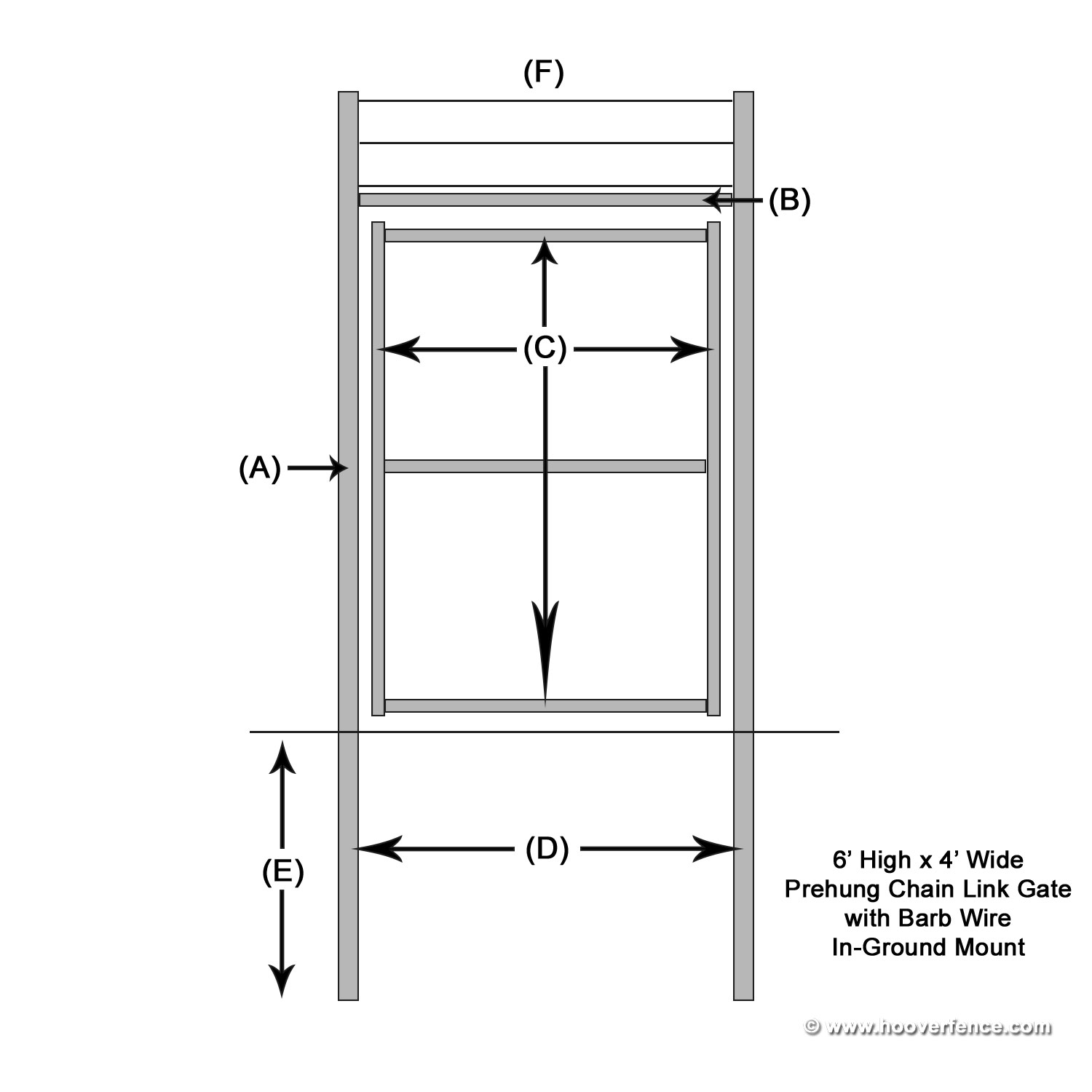

6' High x 4' Wide Pre-Hung Chain Link Swing Gate with Barb Wire - In Ground Mount - Square Frame

6' High x 4' Wide Pre Hung Chain Link Swing Gate with Barb Wire - Square Frame - In Ground Mount

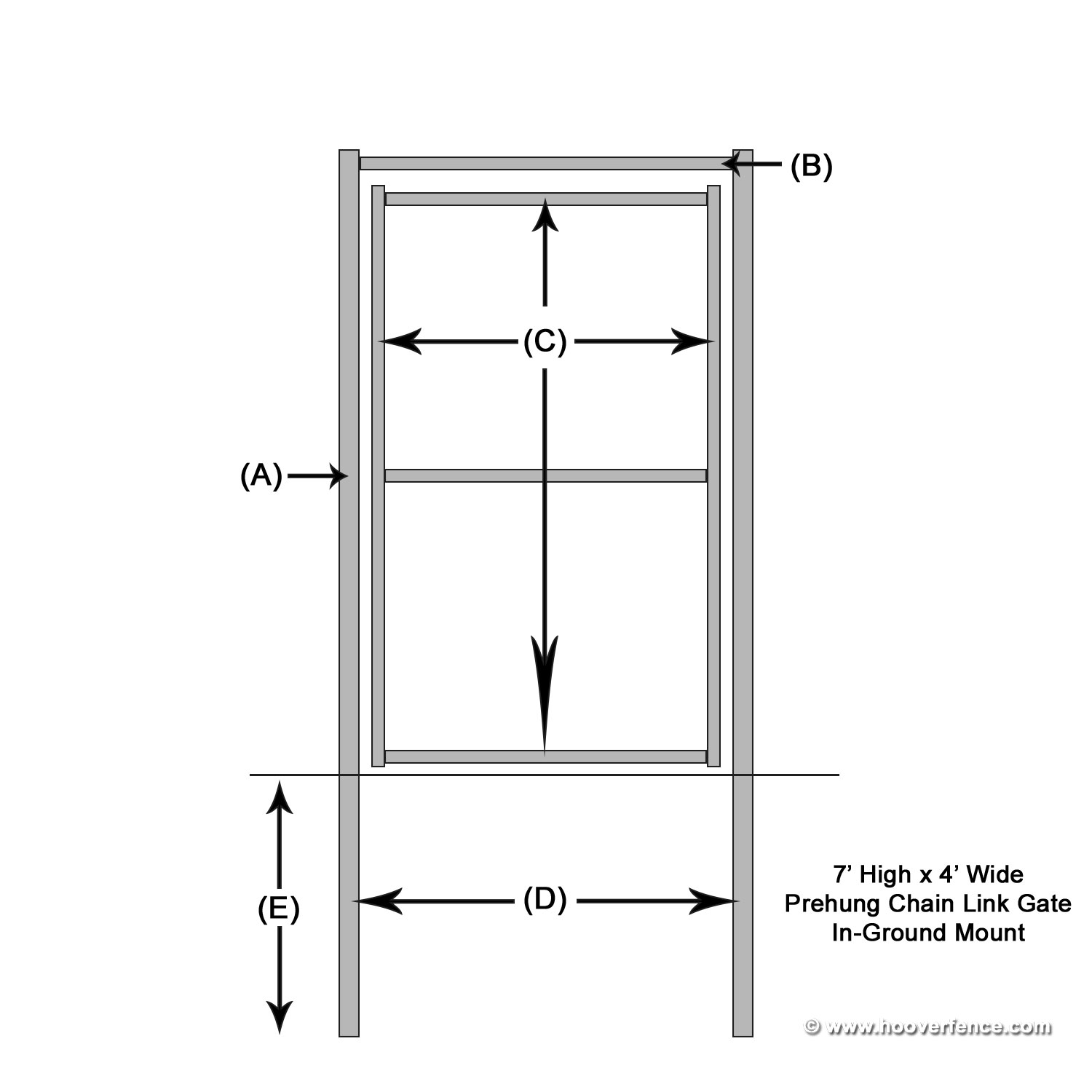

7' High x 4' Wide Pre-Hung Chain Link Swing Gate - In Ground Mount - Round Frame

7' High x 4' Wide Pre Hung Chain Link Swing Gate - Round Frame - In Ground Mount

Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"

7' High x 4' Wide Pre-Hung Chain Link Swing Gate - In Ground Mount - Square Frame

7' High x 4' Wide Pre Hung Chain Link Swing Gate - Square Frame - In Ground Mount

Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"

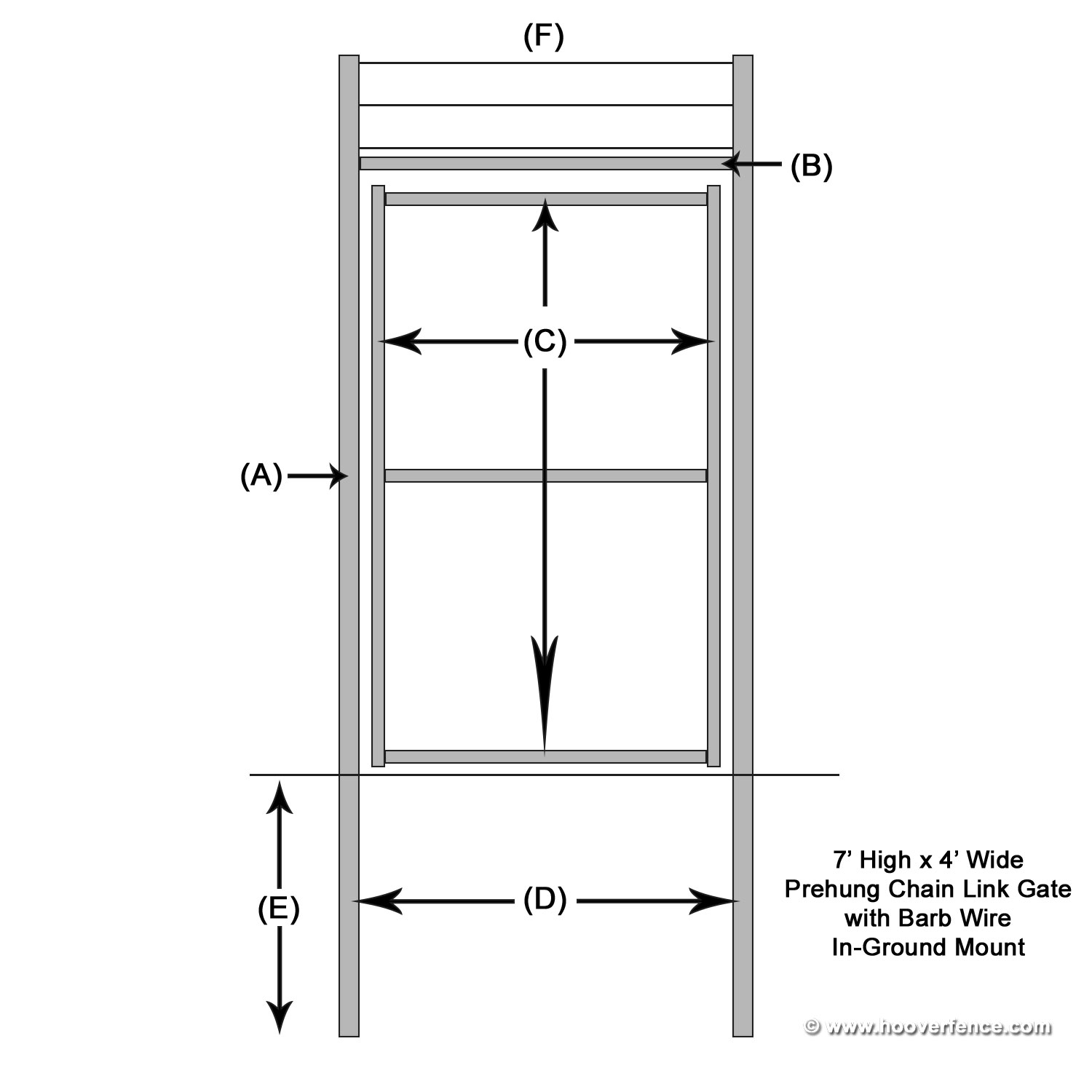

7' High x 4' Wide Pre-Hung Chain Link Swing Gate with Barb Wire - In Ground Mount - Round Frame

Outside Perimeter Frame Uprights (A): 3" (2-7/8") HF40 Industrial Grade Galvanized Round Tubing
Outside Perimenter Frame Header (B): 2" (1-7/8") HF40 Industrial Grade Galvanized Round Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")

7' High x 4' Wide Pre-Hung Chain Link Swing Gate with Barb Wire - In Ground Mount - Square Frame

Outside Perimeter Frame Uprights (A): 3" Square Industrial Grade Galvanized Tubing
Outside Perimenter Frame Header (B): 2" Square Industrial Grade Galvanized Tubing
Gate Size (C): 7' High x 4' Wide (True Measurment: 80" High x 48" Wide ±)
Gate Opening Size (D): 51-1/4" ± Inside to Inside; 57" ± Outside to Outside
Depth in Ground (E): Approximately 36"
Barb Wire (F): 3-Strands (Approximately 12")

Customer Photos

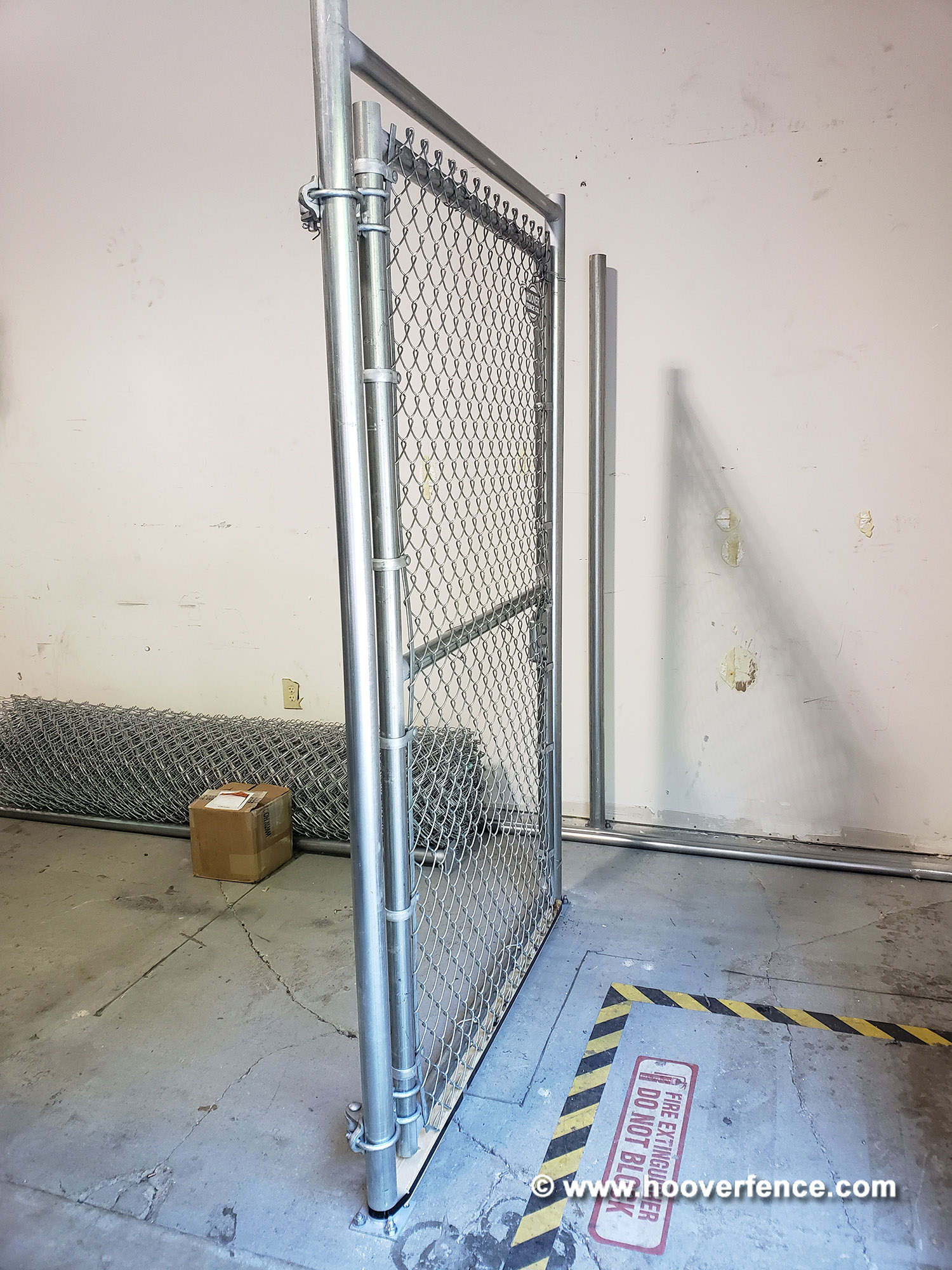

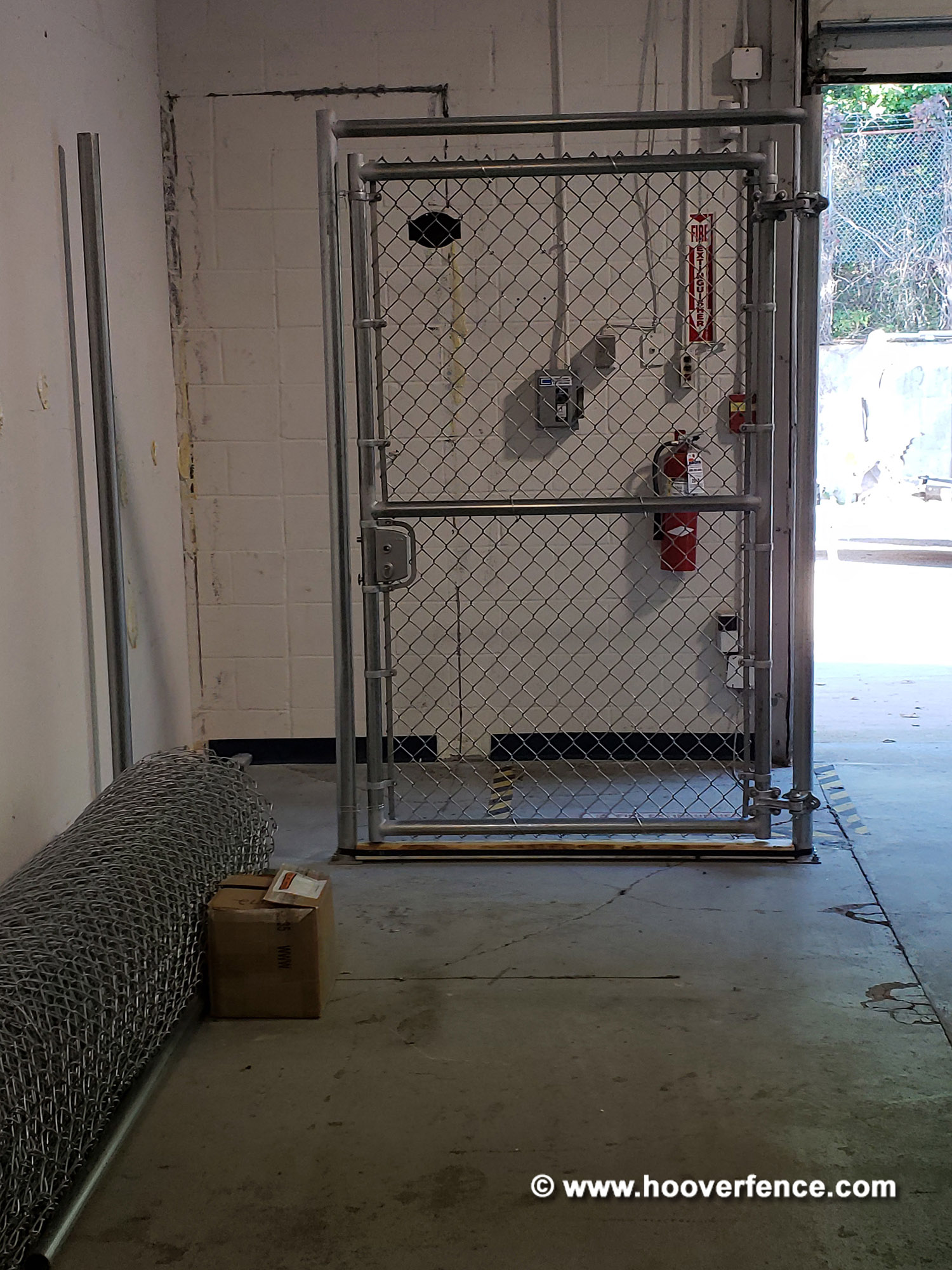

Hoover Fence Co Installation - Indoor Chain Link Storage Cage with Pad-Mounted Pre-Hung Gate

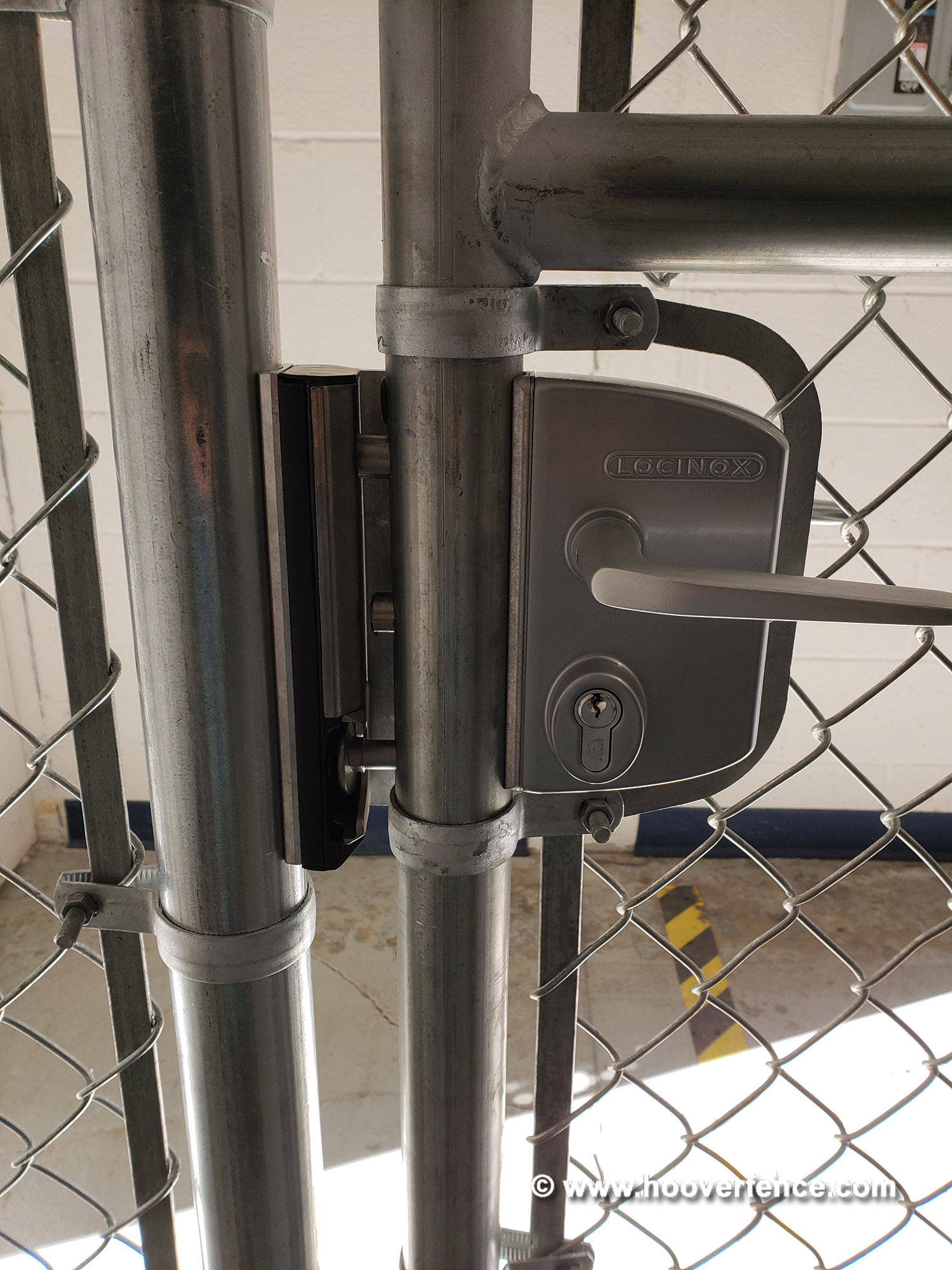

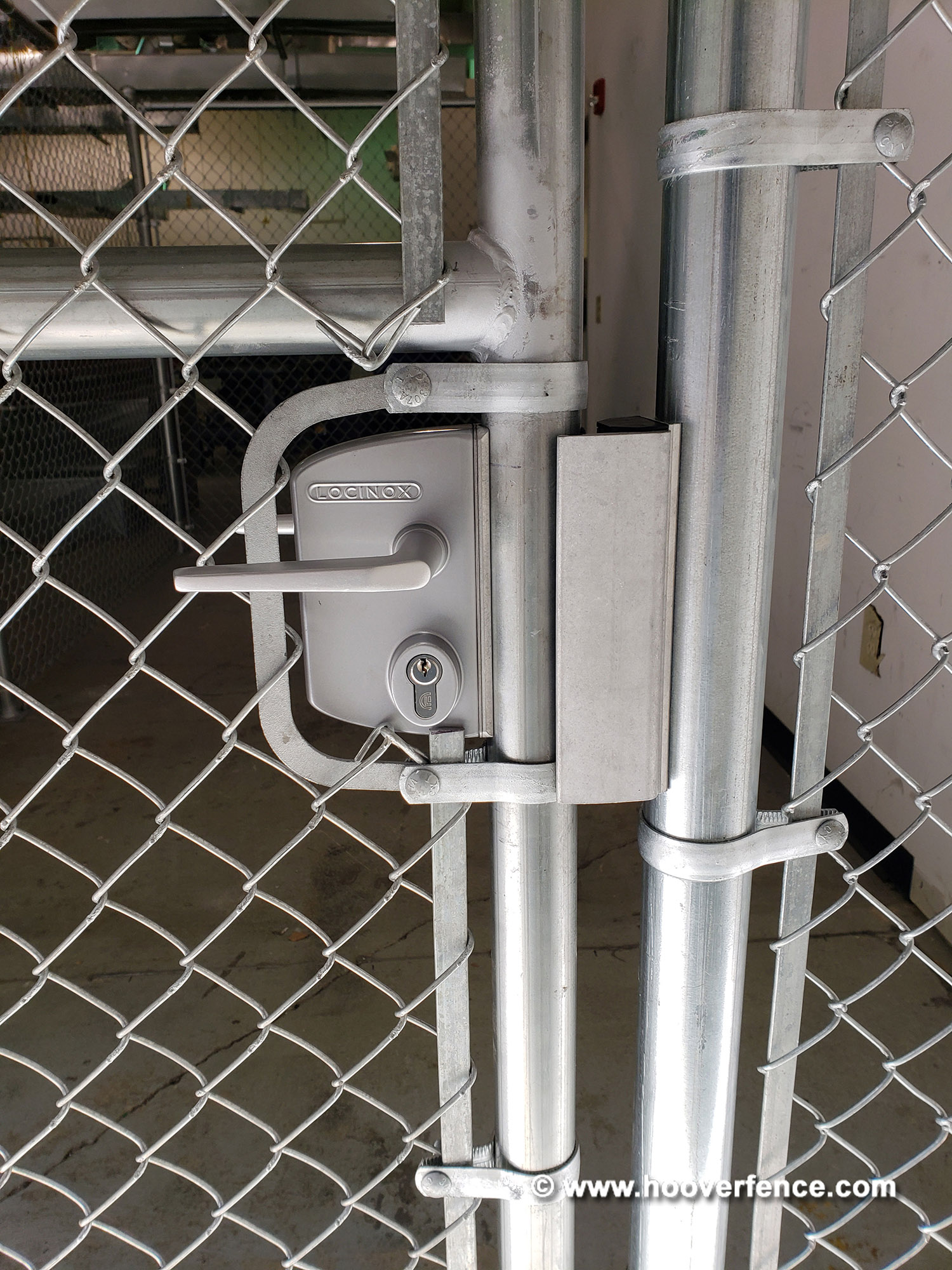

Here are some photos from a recent installation in Akron, OH featuring a pad-mounted indoor chain link security fence with a Pre-Hung Gate, Locinox Chain Link Gate Lock, and Security Gate Stop with Keeper.

Indoor Chain Link Storage Cage Installation with Pre-Hung Chain Link Gate
