Snug Cottage Hardware 3/4" Pin to Screw Male Hinges for Wood Gates, Each
Item # 8308-P
Details
Details
Pin to Screw (8308)
Our Pin to Screw is an alternative to using pins that bolt completely through a post. Its ‘lag’ type function makes it very versatile, but it is not as strong as using a through-bolt type pin.
This 3/4" Pin to Screw works with our 3/4" Eye to Screw (#8309)
This hardware is ideal for use with Wood Gates.
Male Pin to Screw Hinge (8308) Features:- Intended for use on wood applications.
- 9" overall length.
- 7" long - 3/4" dia. threaded shaft.
- 3/4" dia. pin.
- Sold individually.
- Manufactured from forged steel.
- Available in Hot Dipped Galvanized or Black (BPPCG) finishes.
- This Pin does offer an alternative to full Bolts but it is not as strong or reliable as a Pin that is bolted through the entire Post and held with a Washer and Nut
Specifications
Specifications
Male Pin to Screw Hinge Specifications
| SKU | Length | Pin Size | Finish | Weight Each |
|---|---|---|---|---|
| 8308-07P | 9" | 3/4" | Black | 2.0 lbs. |
| 8308-072 | 9" | 3/4" | Galvanized | 2.0 lbs. |
Weights shown are approximate.
Instructions
Instructions
- Ideally used for any wood post installation where a lag type pin would be beneficial.
- Used with our Central Eye Double Strap Hinges (8312), Straight Eye Double Strap Hinges (8322), Rear Eye Double Strap Hinges (8324/8325), Heavy Duty Straight Strap Hinges (8305/8307), Adjustable Gate Eyes (8251) or our Eye to Screw (8309).
Customer Photos
Customer Photos

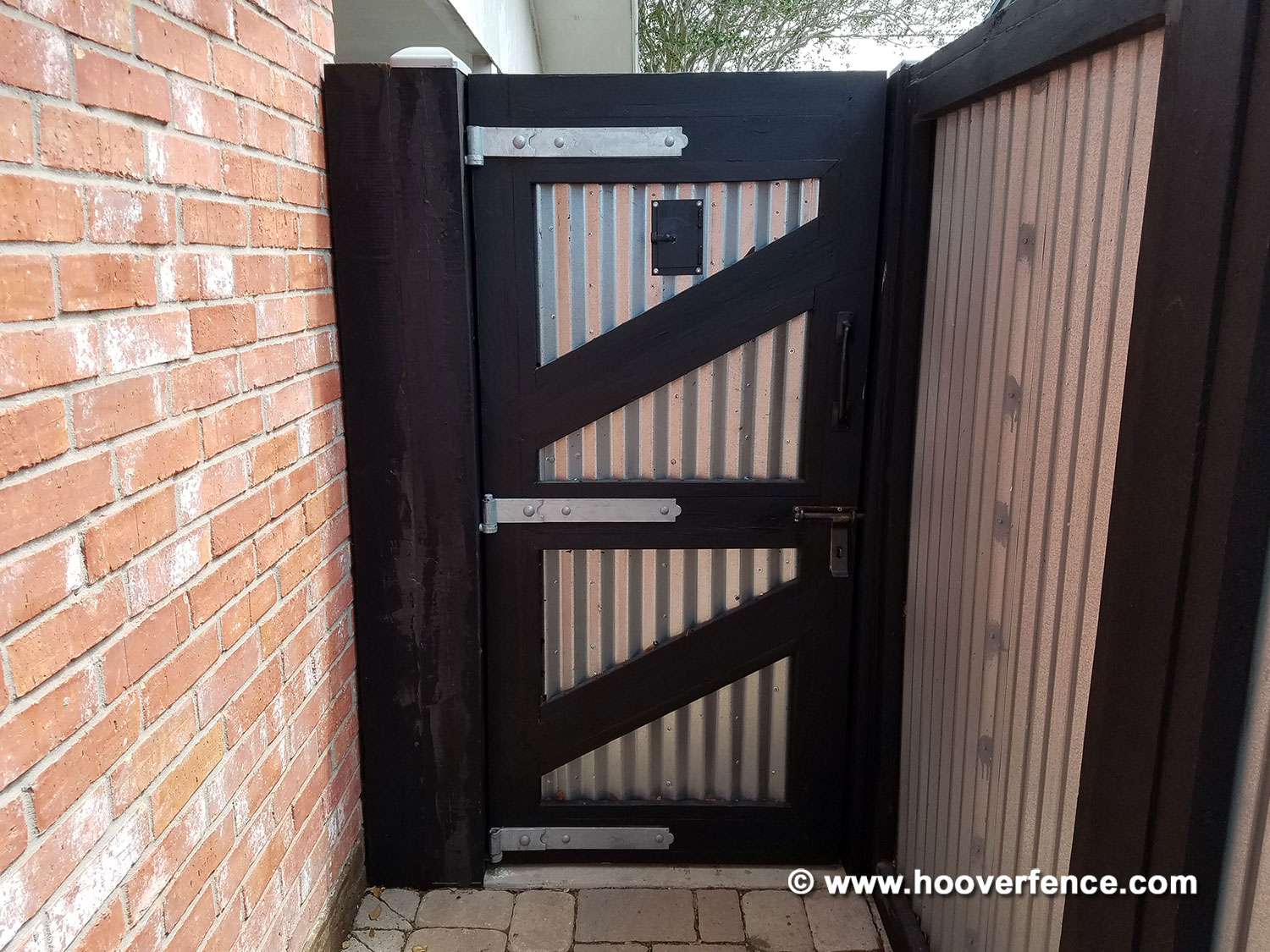

Here is a photo from our customer Randy down in Kingsville, TX, of an incredibly heavy-duty gate/door that he built using 4x6 lumber and two layers of corrugated metal. He estimates the gate weighs over 200 lbs and works perfectly! He hinged the door using Snug Cottage 8307-182 18" Heavy Duty Single Strap Hinges and 8308-072 3/4" Pins. The gate looks great and is an awesome design which even has a speak-easy style grill.
Customer Comments:
"I purchased some of your 18 inch Heavy Duty Straight Strap Hinges and 3/4" Pins that I used on my side gate. I will say that I am impressed (and I am not easily impressed). I jumped up and down on the bottom one before I installed it on the door and just one of the hinges easily supported my entire body weight (175 pounds). FYI the door weighs well over 200 pounds. The framing is 4 x 6 lumber with 10 mortise and tenon joints and the corrugated metal part of the door is 3 sheets thick of 26 gauge steel…I included a photo!
The project looks great Randy and we can't wait to see your other gate projects! Thanks again and keep up the great work!
