Snug Cottage Hardware 3/4" Threaded Adjustable Pin Male Hinges for Wood Gates, Each

Item # 8801-P

Sold Individually

Snug Cottage Hardware 3/4" Threaded Adjustable Pin Male Hinges for Wood Gates, Each

Actual product(s) may vary from pictures shown

Threaded Adjustable Pin (8801)

Our fully Threaded Adjustable Pins allow you to bolt right through most post sizes and provide easy lateral-adjustment.

This hardware is ideal for use with Wood Gates.

3/4" Threaded Adjustable Pin (8801) Features:

Fully threaded design provides for easy adjustment of gate position.
Intended for all through-bolt applications of gate posts.
Available in 8", 12", 16" or 24" lengths.
Standard 3/4-10 threads.
3/4" dia. pin.
Sold individually.
Manufactured from forged steel.
Available in Hot Dipped Galvanize or Black (BPPCG) finishes.

SKU	Length	Pin Size	Finish	Weight Each
8801-082	8"	3/4"	Galvanized	2.0 lbs.
8801-08P	8"	3/4"	Black	2.0 lbs.
8801-122	12"	3/4"	Galvanized	2.0 lbs.
8801-12P	12"	3/4"	Black	2.0 lbs.
8801-162	16"	3/4"	Galvanized	3.0 lbs.
8801-16P	16"	3/4"	Black	3.0 lbs.
8801-242	24"	3/4"	Galvanized	4.0 lbs.
8801-24P	24"	3/4"	Black	4.0 lbs.

Instructions

Ideally used for all gate posts where a through bolt application is required.
The pins are easily installed through a 3/4" hole through your gate post. The two nuts and washers position the pin tight to the post and provide for easy adjustment in and out using a standard wrench.

Customer Photos

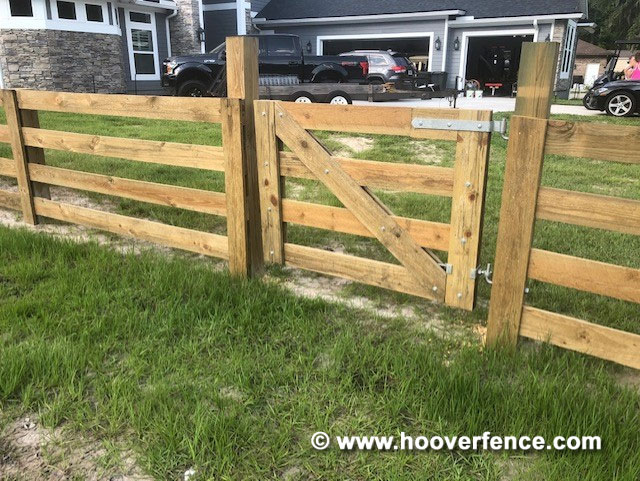

Customer Install - Maine Board Gate Hung with Snug Cottage Wood Gate Hardware - Middleburg, FL

Here are few great photos from our customer Donnie down in Middleburg, Florida, of one Maine Board gate which was built using our DIY Wood Gate Plans, and a variety of Snug Cottage Wood Gate Hardware. For the hinges, Donnie chose the 8801-082 3/4" Threaded Adjustable Pin Hinges paired with the 8312-482 Double Strap Hinges with Central Eye, and 8250-002 Adjustable Bottom Fittings. This gate is latched with the 5002-L122 12" Slide Bolt Latch.

The project looks great Donnie - Keep up the great work!

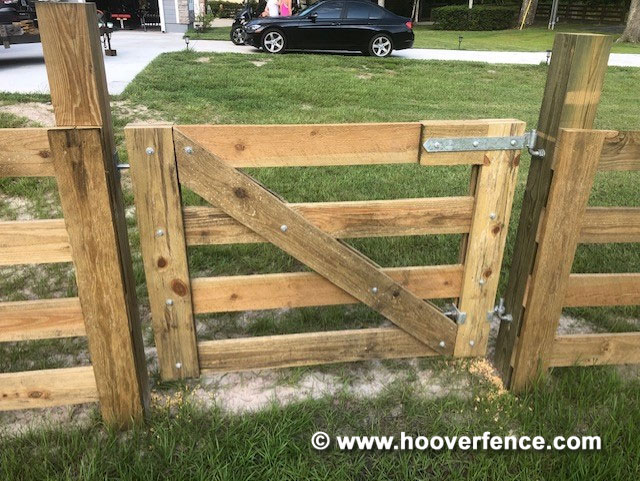

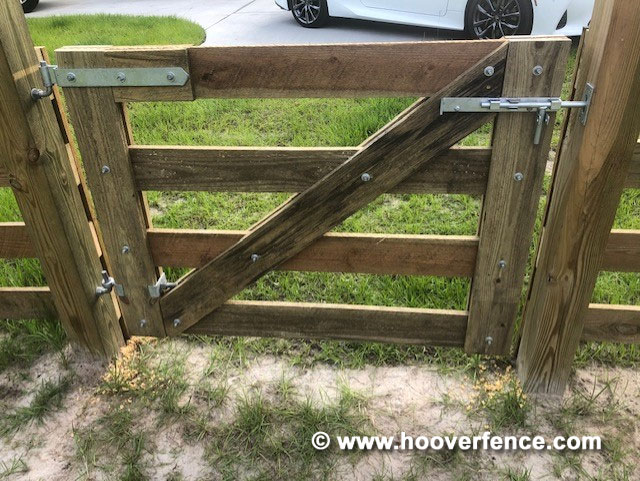

Customer Install - Maine Board Gate Hung with Snug Cottage Wood Gate Hardware - Middleburg, FL

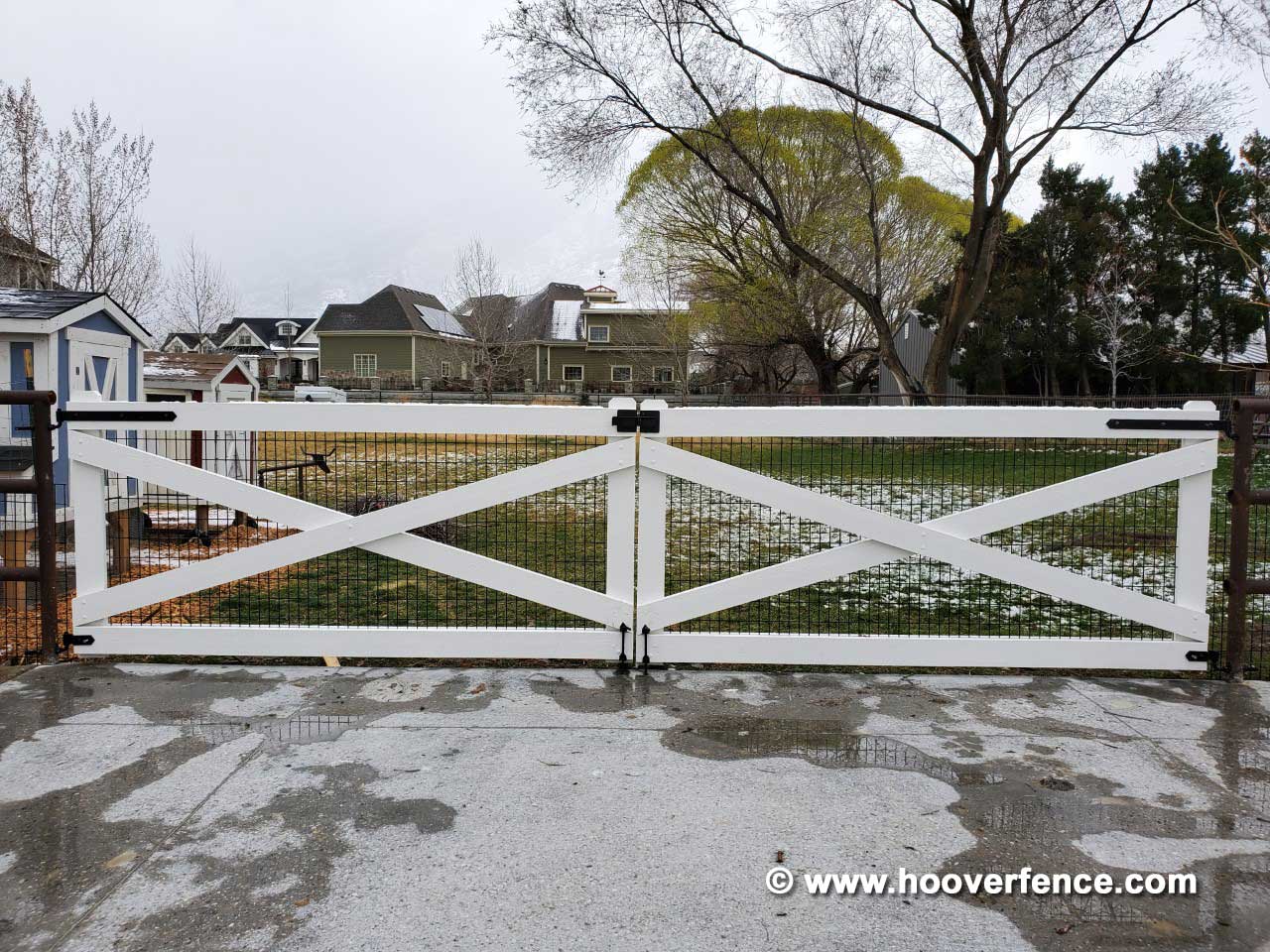

Customer Install - Wood Gate Hung Using Central Eye Double Strap Hinges and 3/4" Pins - Draper, UT

Here is a really nice gate that our customer Ben out in Utah hung using our Snug Cottage Hardware 8312 Central Eye Double Strap Hinges and 8801-08P 8" x 3/4" Pins. This wood gate is painted white and backed with wire mesh to prevent animals from passing through the larger openings. Great job Ben and thank you for your picture!

Customer Install - White Wood Gate With Wire Backing Hung Using Double Strap Snug Cottage Hinges and 3/4 Inch Pins
