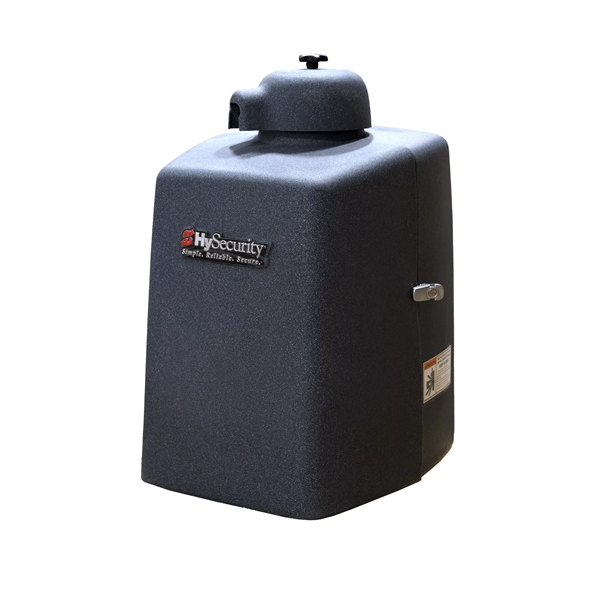

HySecurity SwingSmartDC Commercial Swing Gate Opener

SwingSmartDC Swing Gate Operator (SWINGSMART-DC)

The SwingSmartDC Swing Gate Operator is a powerful electromechanical gate operator designed to provide reliable automated access for residential, commercial, industrial, and high-security gate applications. Combining advanced DC technology with integrated battery backup, the SwingSmartDC delivers smooth, dependable operation while helping ensure your gate remains functional even during power outages. Whether you're securing a private driveway, business entrance, apartment complex, or secure facility, this operator is built to handle demanding access-control requirements with confidence.

Designed to operate single or dual swing gates up to 20 feet long per leaf, the SwingSmartDC can accommodate gate weights up to 1,300 pounds depending on gate length and installation conditions. Independent field-adjustable opening and closing speeds allow installers to fine-tune gate performance for each application, while adaptive obstruction sensing and HySecurity's patented torque-limiting taper clamp help protect both the gate and operator from damage caused by obstructions, impacts, or changing wind conditions.

One of the standout features of the SwingSmartDC is its integrated battery backup system. Standard batteries can provide up to 300 operating cycles during a power outage, while optional extended-capacity batteries can deliver up to 1,200 cycles before recharging is required. An intelligent charging system continuously monitors battery condition to maximize battery life and help ensure backup power is available when you need it most.

For dual gate installations, automatic synchronization technology helps both gate leaves operate smoothly and consistently. The advanced controller provides more than 70 configurable settings, giving installers exceptional flexibility when customizing gate operation. An onboard LCD display, event log, USB connectivity, and RS-232/RS-485 communication ports simplify programming, troubleshooting, and ongoing maintenance. The SwingSmartDC is also well-suited for solar-powered installations, making it an excellent choice for remote properties, farms, ranches, and locations where utility power may not be readily available.

Built for long-term durability, the SwingSmartDC has been cycle tested to 500,000 cycles and is listed to UL 325 standards for Class I, II, III, and IV applications. Its rugged zinc-plated chassis and durable polyethylene clamshell cover help protect internal components from the elements, providing years of dependable service in a wide variety of environments. If you're looking for a gate operator that combines commercial-grade performance, battery backup reliability, and flexible installation options, the SwingSmartDC is one of the most trusted solutions available.

Features:

• Electromechanical swing gate operator with advanced DC technology
• Suitable for residential, commercial, and security gate applications
• Supports single or dual swing gate configurations
• Handles gates up to 20 feet long per leaf
• Supports gate weights up to 1,300 pounds
• Integrated battery backup system
• Up to 300 backup cycles with standard batteries
• Up to 1,200 backup cycles with optional extended batteries
• Automatic synchronization for dual gate systems
• Adaptive obstruction detection for enhanced safety
• Patented torque-limiting taper clamp helps protect gates and operators
• Independent adjustable open and close speeds
• Controller with more than 70 programmable settings
• Onboard LCD display and event logging for simplified troubleshooting
• USB, RS-232, and RS-485 communication capabilities
• Compatible with AC-powered and solar-powered installations
• UL 325 listed for Classes I, II, III, and IV applications
• Cycle tested to 500,000 cycles

SwingSmart DC Model Comparison:
