DAC Industries D-6035 Standard Exit Bar Kit
Item # D-6035-P
Details
Details
D-6035 Standard Exit Bar Kit - No Lock Box (D-6035-P)
The D-6035 Standard Exit Bar Kit - No Lock Box - includes the parts to surface mount a Detex V40 Value Series panic bar to a chain link or ornamental gate. Electric retraction refers to a feature where an electric signal electronically pulls back the latch or locking mechanism, allowing a gate or door to open without someone manually turning a handle or pushing the bar. This kit allows for free exit/egress only, with no access/ingress from the outside of the gate.
D-6035 Standard Exit Bar Kit - No Lock Box - Contents:
- D-6003 (36"L) or D-6004 (48"L) trimmable surface mount exit bar - black only.
- D-6900-UN (12"H) or D-6500 (24"H) 16ga. mounting plate, adjusts for 29"-54" wide gate frame - not drilled for lock box or panic bar - black or silver.
- D-6020 adjustable receiver bracket for 3" O.D. (outside diameter) post (2-7/8" actual) - black or silver.
- Stainless Steel tek-screws and fasteners.
Ordering Notes:
Height - refers to mounting plate height. Width - refers to panic bar length. Finish - refers to mounting plate and adjustable receiver bracket.
If you need a lock box, outside trim, or if you plan to add an electric strike, then you will need to upgrade your kit to a D-6045 kit with the V40 panic bar.
We recommend using either self closing hinges or a gate closer in combination with a panic bar kit. Self Closing Hinges | Gate Closers
Building Notes:
Holes must be drilled in plate to mount panic bar.
Specifications
Specifications
Detex D-6003/6004 Panic Bar Manual (PDF)
| SKU | Size | Finish | Weight Each |
|---|---|---|---|
| D-6035-S36 | 24" High Plate for 36" Wide Gate | Silver | 43.0 lbs. |
| D-6035-S36-12 | 12" High Plate for 36" Wide Gate | Silver | 30.0 lbs. |
| D-6035-B36 | 24" High Plate for 36" Wide Gate | Black | 43.0 lbs. |
| D-6035-B36-12 | 12" High Plate for 36" Wide Gate | Black | 30.0 lbs. |
| D-6035-S48 | 24" High Plate for 48" Wide Gate | Silver | 45.0 lbs. |
| D-6035-S48-12 | 12" High Plate for 48" Wide Gate | Silver | 32.0 lbs. |
| D-6035-B48 | 24" High Plate for 48" Wide Gate | Black | 45.0 lbs. |
| D-6035-B48-12 | 12" High Plate for 48" Wide Gate | Black | 32.0 lbs. |
Weights shown are approximate.
Instructions
Instructions
Reviews
Reviews
Average Customer Rating:
(2 Reviews)
Write a Review (requires login)
Easy and Helpful!
Hoover Fence website is very easy to use and has alot of helpful info. We use it almost daily for bidding purposes. Shipping is fast and reliable! Keep up the good work!
Wonderful Company
I received everything I ordered quickly and in good shape. Never an issue with orders from Hoover Fence.
Shipping
Shipping
Shipping Expense Disclaimer: All orders are subject to confirmation. Additional shipping expenses, although rare, may apply due to weight, size, location, and/or other variables. Should your order require additional funds to cover the transportation of goods, you will be contacted prior to order processing for approval.
-

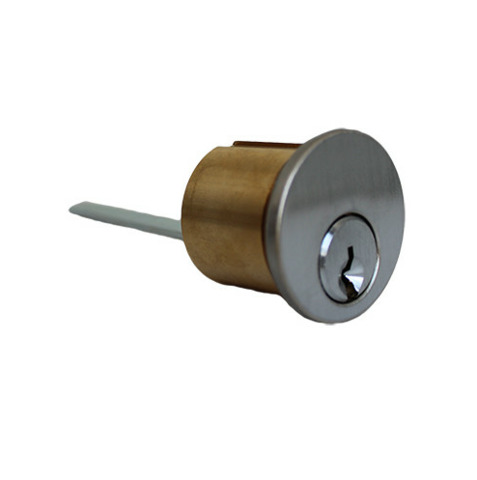

$18.36 - $20.40DAC IndustriesKeyed Alike Add-On Option for DAC Panic Bar Kits#D-KEYED-ALIKEView More
