Hoover Fence Galvanized Chain Link Fence Kit - Includes All Parts

Item # CHAIN-LINK-KIT-GALV

Actual product(s) may vary from pictures shown

Complete Chain Link Fence Package - Galvanized | Hoover Fence Co.

Hoover Fence Galvanized Chain Link Fence Kit - Includes All Parts (CHAIN-LINK-KIT-GALV)

Details

Our Complete Galvanized Chain Link Fence Kits include all posts, hardware, chain link fabric, and gates, to complete 250' or 500' chain link fence projects. Our chain link fence kits are designed with premium galvanized steel components and are available in heights of 4', 5', and 6'. Material options include 11-1/2 gauge chain link fabric with .065 tubing, 11 gauge chain link fabric with .065 tubing, and 9 gauge chain link fabric with HF20 framework.

Our Chain Link Fence Kits are the perfect solution for adding a high quality chain link fence to your backyard. The 250' is designed for fencing in a city environment, while the 500' kits are designed to fence larger properties in suburban and country neighborhoods or anywhere there is more room. Our kits feature current pricing and include all supplies except for concrete. Don't forget to check out special fence tools designed for laying out the project, digging holes, and stretching chain link, to name a few. Below are a few examples of what could be accomplished with the included supplies. Please note that these drawings are not to scale.

Chain Link Layout Example # 1:
(1) City Lot w/ Driveway Gate in Front, Swing Gate In Back - Click to Enlarge

Chain Link Layout Example # 2:
(1) City Lot w/ Driveway and Swing Gates Up Front - Click to Enlarge

Chain Link Layout Example # 3:
(3) City Lots w/ Partial Enclosure Including Garage - Click to Enlarge

500' Chain Link Kit Layout Example # 1:
Large Lot w/ Driveway and Swing Gates In Front - Click to Enlarge

500' Chain Link Kit Layout Example # 2:
Large Lot w/ Driveway & Swing Gate Up Front - 2nd in Back - Click to Enlarge

Ordering Notes:

A standard list of materials can be found under the specifications tab. In order to keep the pricing as competitive as possible, shipping will need to be quoted at the time of order. You can order this kit as is, or it can easily be modified at the time of order. If you need more or less footage, you can easily estimate the cost by dividing the cost of your option by the length of the kit you are interested in. This will give you a rough cost per foot. After you have that, simply multiply this number by your total footage for a ballpark estimate of material prices. Another option would be to use our Chain Link Fence Calculator found below.

Chain Link Fence Calculator Free calculator for Chain Link Fence Materials!

If you need to add more footage, gates, posts, or other options to the kit, please contact us and we will be more than happy to get you what you need.

Specifications

4' High x 250' Galvanized Chain Link Fence Packages Include:

250' - 4' High Galvanized Chain Link Fence Fabric
12 - 1-3/8" x 21' Galvanized Top Rails
18 - 1-5/8" x 6' Galvanized Line Posts
10 - 2-1/2" x 6'6" Galvanized Terminal Posts
18 - 1-5/8" x 1-3/8" Chain Link Loop Caps
10 - 2-1/2" Chain Link Post Caps
14 - 48" Galvanized Chain Link Tension Bars
42 - 2-1/2" Galvanized Tension Bands
14 - 2-1/2" Galvanized Brace Bands
14 - 1-3/8" Rail End Cups
56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

4' High x 500' Galvanized Chain Link Fence Packages Include:

500' - 4' High Galvanized Chain Link Fence Fabric
24 - 1-3/8" x 21' Galvanized Top Rails
43 - 1-5/8" x 6' Galvanized Line Posts
12 - 2-1/2" x 6'6" Galvanized Terminal Posts
43 - 1-5/8" x 1-3/8" Galvanized Chain Link Loop Caps
12 - 2-1/2" Chain Link Post Caps
16 - 48" Galvanized Chain Link Tension Bars
48 - 2-1/2" Galvanized Tension Bands
16 - 2-1/2" Galvanized Brace Bands
16 - 1-3/8" Rail End Cups
64 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
2 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
4 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

5' High x 250' Galvanized Chain Link Fence Packages Include:

250' - 5' High Galvanized Chain Link Fence Fabric
12 - 1-3/8" x 21' Galvanized Top Rails
18 - 1-5/8" x 7' Galvanized Line Posts
10 - 2-1/2" x 7'6" Galvanized Terminal Posts
18 - 1-5/8" x 1-3/8" Galvanized Chain Link Loop Caps
10 - 2-1/2" Chain Link Post Caps
14 - 60" Galvanized Chain Link Tension Bars
56 - 2-1/2" Galvanized Tension Bands
14 - 2-1/2" Galvanized Brace Bands
14 - 1-3/8" Rail End Cups
70 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 5' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 5' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
3 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

5' High x 500' Galvanized Chain Link Fence Packages Include:

500' - 5' High Galvanized Chain Link Fence Fabric
24 - 1-3/8" x 21' Galvanized Top Rails
43 - 1-5/8" x 7' Galvanized Line Posts
12 - 2-1/2" x 7'6" Galvanized Terminal Posts
43 - 1-5/8" x 1-3/8" Galvanized Chain Link Loop Caps
12 - 2-1/2" Chain Link Post Caps
16 - 60" Galvanized Chain Link Tension Bars
64 - 2-1/2" Galvanized Tension Bands
16 - 2-1/2" Galvanized Brace Bands
16 - 1-3/8" Rail End Cups
80 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
2 - 5' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 5' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
5 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

6' High x 250' Galvanized Chain Link Fence Packages Include:

250' - 6' High Galvanized Chain Link Fence Fabric
12 - 1-3/8" x 21' Galvanized Top Rails
18 - 2" x 8' Galvanized Line Posts
10 - 2-1/2" x 8' Galvanized Terminal Posts
18 - 2" x 1-3/8" Chain Link Loop Caps
10 - 2-1/2" Chain Link Post Caps
14 - 72" Galvanized Chain Link Tension Bars
70 - 2-1/2" Galvanized Tension Bands
14 - 2-1/2" Galvanized Brace Bands
14 - 1-3/8" Rail End Cups
84 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 6' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 6' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
3 - 2" Aluminum Pig Tail Tie Wire - Bag of 100

6' High x 500' Galvanized Chain Link Fence Packages Include:

500' - 6' High Galvanized Chain Link Fence Fabric
24 - 1-3/8" x 21' Galvanized Top Rails
43 - 2" x 8' Galvanized Line Posts
12 - 2-1/2" x 8' Galvanized Terminal Posts
43 - 2" x 1-3/8" Galvanized Chain Link Loop Caps
12 - 2-1/2" Chain Link Post Caps
16 - 72" Galvanized Chain Link Tension Bars
80 - 2-1/2" Galvanized Tension Bands
16 - 2-1/2" Galvanized Brace Bands
16 - 1-3/8" Rail End Cups
96 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
2 - 6' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 6' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
5 - 2" Aluminum Pig Tail Tie Wire - Bag of 100

Instructions

Customer Photos

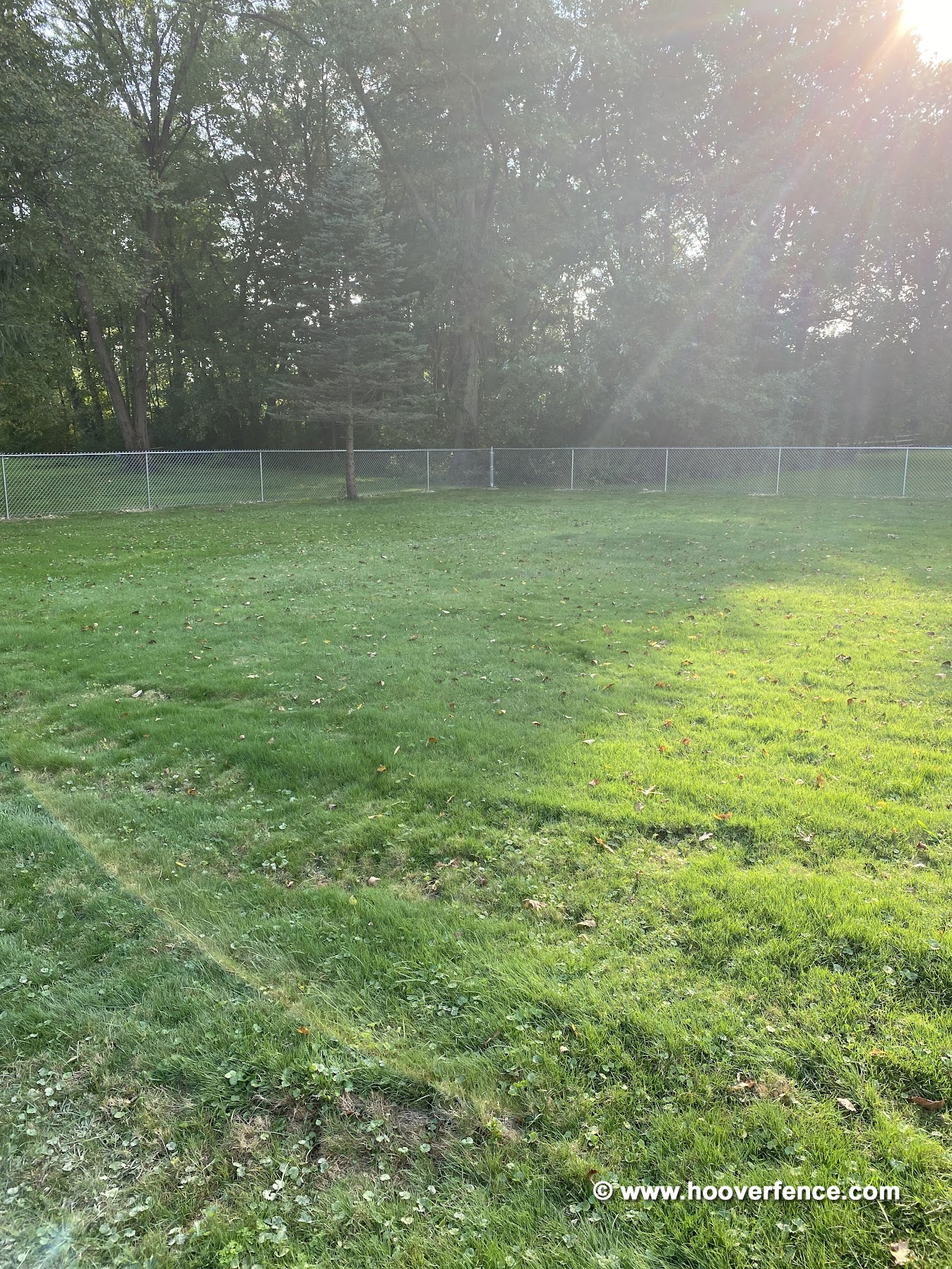

Hoover Fence Installation - Chain Link Fence Kit - Warren, OH

Here are some photos of our Chain Link Fence Kit on a typical square lot.
