Hoover Fence Colored Chain Link Fence Kit - Includes All Parts - Choice of Black, Brown, or Green

Item # CHAIN-LINK-KIT-COLORED

Actual product(s) may vary from pictures shown

Colored Chain Link Fence Kit - Includes All Parts - Choice of Black, Brown, or Green

4'H Black Chain Link Fence Kit (CHAIN-LINK-KIT-COLORED)

Hoover Fence Colored Chain Link Fence Kit - Includes All Parts - Choice of Black, Brown, or Green (CHAIN-LINK-KIT-COLORED)

Details

Our Complete Color Coated Chain Link Fence Kits include all posts, hardware, vinyl coated chain link fabric, and gates, to complete 250' or 500' chain link fence projects. Our color coated chain link fence kits are designed with premium color coated steel components. Kits are available in heights of 4', 5', and 6'. Kits include 9 gauge vinyl extruded chain link fabric with color coated .065 tubing. Color choices include Black, Brown, or Green!

Our Color Coated Chain Link Fence Kits are the perfect solution for adding a high quality chain link fence to your backyard. The 250' is designed for fencing in a city environment, while the 500' kits are designed to fence larger properties in suburban and country neighborhoods or anywhere there is more room. Our kits feature current pricing and include all supplies except for concrete. Don't forget to check out special fence tools designed for laying out the project, digging holes, and stretching chain link, to name a few. Below are a few examples of what could be accomplished with the included supplies. Please note that these drawings are based on a city lot and are not to scale.

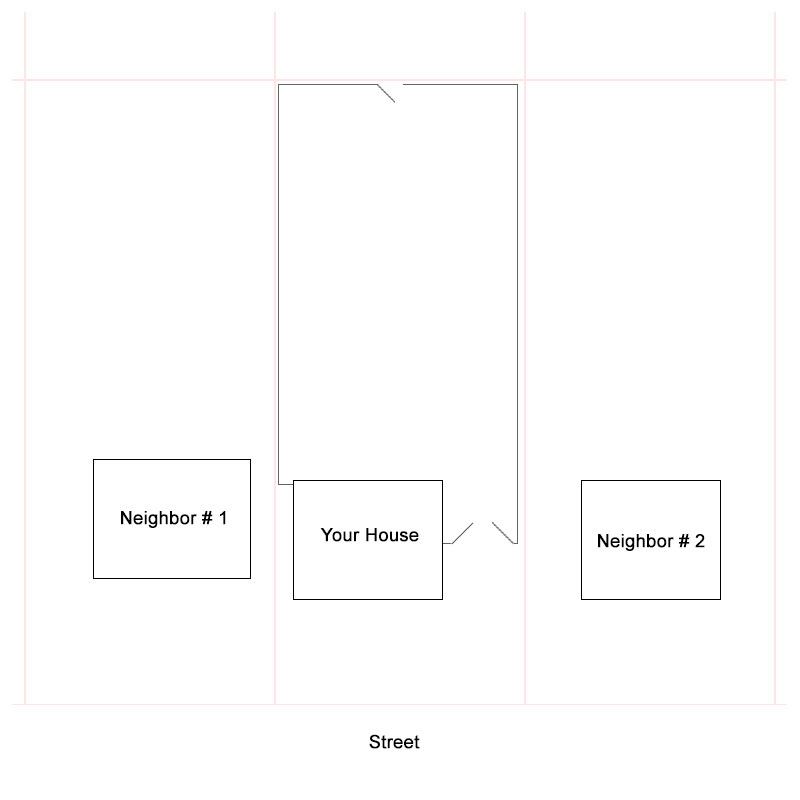

250' Chain Link Kit Layout Example # 1:
(1) City Lot w/ Driveway Gate in Front, Swing Gate In Back - Click to Enlarge

250' Chain Link Kit Layout Example # 2:
(1) City Lot w/ Driveway and Swing Gates Up Front - Click to Enlarge

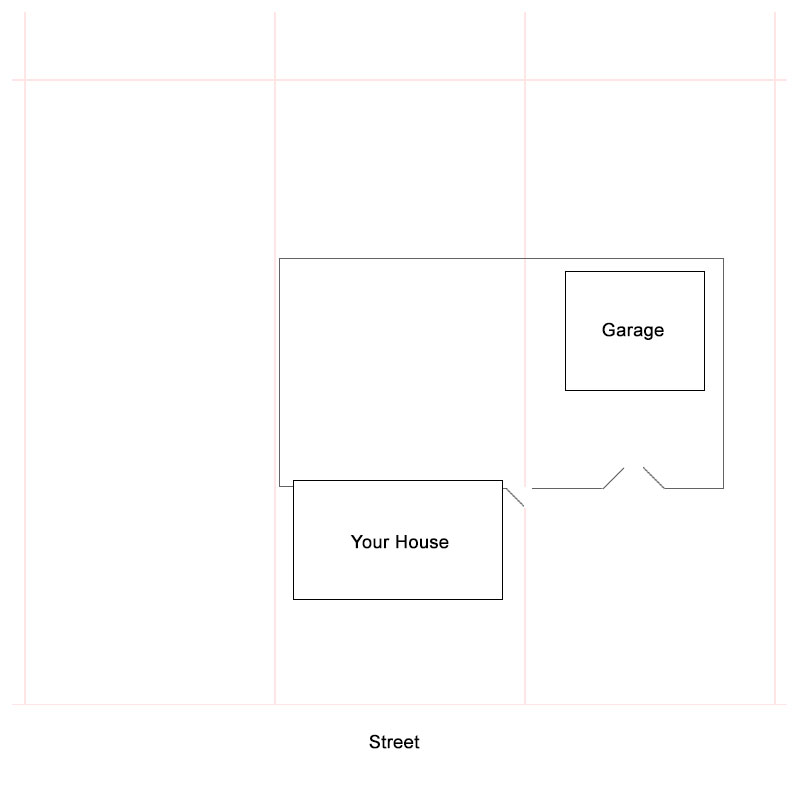

250' Chain Link Kit Layout Example # 3:
(3) City Lots w/ Partial Enclosure Including Garage - Click to Enlarge

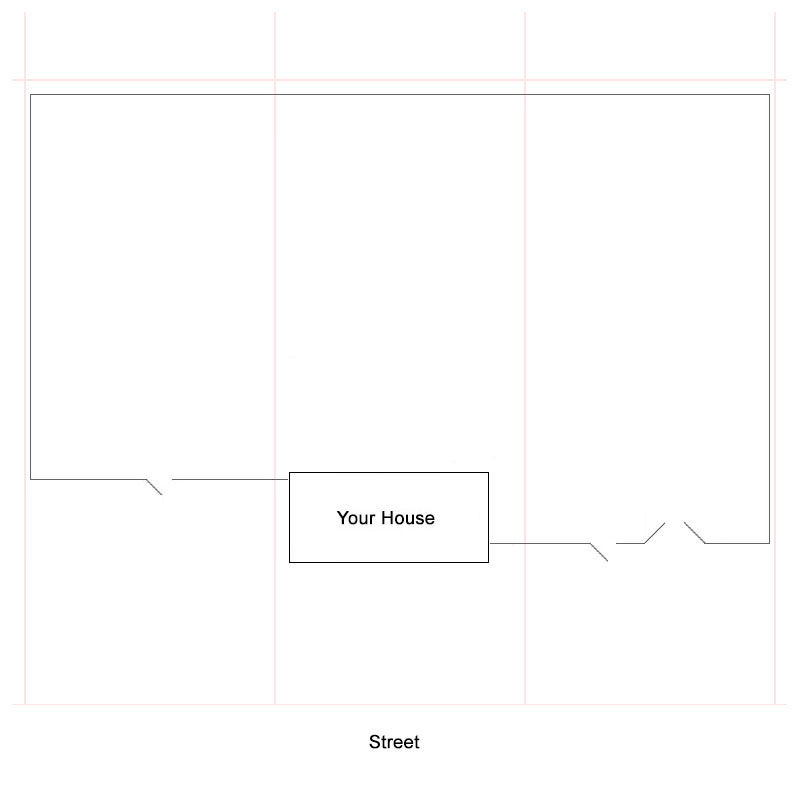

500' Chain Link Kit Layout Example # 1:
Large Lot w/ Driveway and Swing Gates In Front - Click to Enlarge

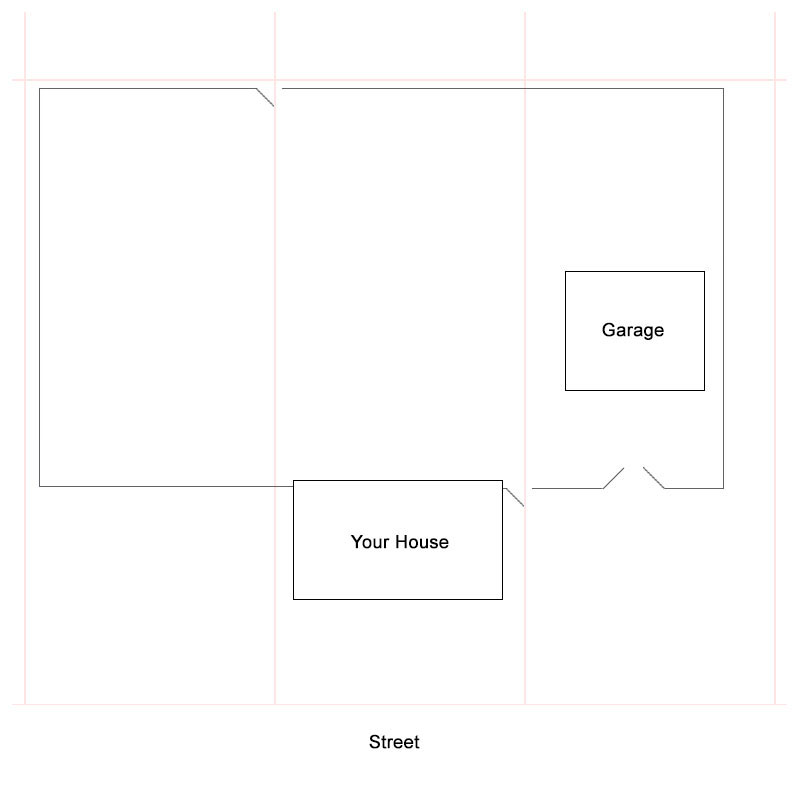

500' Chain Link Kit Layout Example # 2:
Large Lot w/ Driveway & Swing Gate Up Front - 2nd in Back - Click to Enlarge

Ordering Notes:

A standard list of materials can be found under the specifications tab. In order to keep the pricing as competitive as possible, shipping will need to be quoted at the time of order. You can order this kit as is, or it can easily be modified at the time of order. If you need more or less footage, you can easily estimate the cost by dividing the cost of your option by the length of the kit you are interested in. This will give you a rough cost per foot. After you have that, simply multiply this number by your total footage for a ballpark estimate of material prices. Another option would be to use our Chain Link Fence Calculator found below.

Chain Link Fence Calculator Free calculator for Chain Link Fence Materials!

If you need to add more footage, gates, posts, or other options to the kit, please contact us and we will be more than happy to get you what you need.

Specifications

4' High x 250' Colored Chain Link Fence Packages Include:

250' - 4' High Vinyl Coated Chain Link Fence Fabric
12 - 1-3/8" x 21' Color Coated Top Rails
18 - 1-5/8" x 6' Color Coated Line Posts
10 - 2-1/2" x 6'6" Color Coated Terminal Posts
18 - 1-5/8" x 1-3/8" Color Coated Chain Link Loop Caps
10 - 2-1/2" Color Coated Chain Link Post Caps
14 - 48" Color Coated Chain Link Tension Bars
42 - 2-1/2" Color Coated Tension Bands
14 - 2-1/2" Color Coated Brace Bands
14 - 1-3/8" Color Coated Rail End Cups
56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 4' High x 5' Wide Color Coated Single Chain Link Swing Gate w/ Hinges and Latch
1 - 4' High x 12' Wide Color Coated Double Chain Link Swing Gate w/ Hinges and Drop Rod
2 - 1-5/8" Color Coated Aluminum Pig Tail Tie Wire - Bag of 100
1 - Touch Up Spray Paint Can

4' High x 500' Colored Chain Link Fence Packages Include:

500' - 4' High Vinyl Coated Chain Link Fence Fabric
24 - 1-3/8" x 21' Color Coated Top Rails
43 - 1-5/8" x 6' Color Coated Line Posts
12 - 2-1/2" x 6'6" Color Coated Terminal Posts
43 - 1-5/8" x 1-3/8" Color Coated Chain Link Loop Caps
12 - 2-1/2" Color Coated Chain Link Post Caps
16 - 48" Color Coated Chain Link Tension Bars
48 - 2-1/2" Color Coated Tension Bands
16 - 2-1/2" Color Coated Brace Bands
16 - 1-3/8" Color Coated Rail End Cups
64 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
2 - 4' High x 5' Wide Color Coated Single Chain Link Swing Gate w/ Hinges and Latch
1 - 4' High x 12' Wide Color Coated Double Chain Link Swing Gate w/ Hinges and Drop Rod
4 - 1-5/8" Color Coated Aluminum Pig Tail Tie Wire - Bag of 100
1 - Touch Up Spray Paint Can

5' High x 250' Colored Chain Link Fence Packages Include:

250' - 5' High Vinyl Coated Chain Link Fence Fabric
12 - 1-3/8" x 21' Color Coated Top Rails
18 - 1-5/8" x 7' Color Coated Line Posts
10 - 2-1/2" x 7'6" Color Coated Terminal Posts
18 - 1-5/8" x 1-3/8" Color Coated Chain Link Loop Caps
10 - 2-1/2" Color Coated Chain Link Post Caps
14 - 60" Color Coated Chain Link Tension Bars
56 - 2-1/2" Color Coated Tension Bands
14 - 2-1/2" Color Coated Brace Bands
14 - 1-3/8" Color Coated Rail End Cups
70 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 5' High x 5' Wide Color Coated Single Chain Link Swing Gate w/ Hinges and Latch
1 - 5' High x 12' Wide Color Coated Double Chain Link Swing Gate w/ Hinges and Drop Rod
3 - 1-5/8" Color Coated Aluminum Pig Tail Tie Wire - Bag of 100
1 - Touch Up Spray Paint Can

5' High x 500' Colored Chain Link Fence Packages Include:

500' - 5' High Vinyl Coated Chain Link Fence Fabric
24 - 1-3/8" x 21' Color Coated Top Rails
43 - 1-5/8" x 7' Color Coated Line Posts
12 - 2-1/2" x 7'6" Color Coated Terminal Posts
43 - 1-5/8" x 1-3/8" Color Coated Chain Link Loop Caps
12 - 2-1/2" Color Coated Chain Link Post Caps
16 - 60" Color Coated Chain Link Tension Bars
64 - 2-1/2" Color Coated Tension Bands
16 - 2-1/2" Color Coated Brace Bands
16 - 1-3/8" Color Coated Rail End Cups
80 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
2 - 5' High x 5' Wide Color Coated Single Chain Link Swing Gate w/ Hinges and Latch
1 - 5' High x 12' Wide Color Coated Double Chain Link Swing Gate w/ Hinges and Drop Rod
5 - 1-5/8" Color Coated Aluminum Pig Tail Tie Wire - Bag of 100
1 - Touch Up Spray Paint Can

6' High x 250' Colored Chain Link Fence Packages Include:

250' - 6' High Vinyl Coated Chain Link Fence Fabric
12 - 1-3/8" x 21' Color Coated Top Rails
18 - 2" x 8' Color Coated Line Posts
10 - 2-1/2" x 8' Color Coated Terminal Posts
18 - 2" x 1-3/8" Color Coated Chain Link Loop Caps
10 - 2-1/2" Color Coated Chain Link Post Caps
14 - Color Coated 72" Chain Link Tension Bars
70 - 2-1/2" Color Coated Tension Bands
14 - 2-1/2" Color Coated Brace Bands
14 - 1-3/8" Color Coated Rail End Cups
84 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 6' High x 5' Wide Color Coated Single Chain Link Swing Gate w/ Hinges and Latch
1 - 6' High x 12' Wide Color Coated Double Chain Link Swing Gate w/ Hinges and Drop Rod
3 - 2" Aluminum Pig Tail Tie Wire - Bag of 100
1 - Touch Up Spray Paint Can

6' High x 500' Colored Chain Link Fence Packages Include:

500' - 6' High Vinyl Coated Chain Link Fence Fabric
24 - 1-3/8" x 21' Color Coated Top Rails
43 - 2" x 8' Color Coated Line Posts
12 - 2-1/2" x 8' Color Coated Terminal Posts
43 - 2" x 1-3/8" Color Coated Chain Link Loop Caps
12 - 2-1/2" Color Coated Chain Link Post Caps
16 - Color Coated 72" Chain Link Tension Bars
80 - 2-1/2" Color Coated Tension Bands
16 - 2-1/2" Color Coated Brace Bands
16 - 1-3/8" Color Coated Rail End Cups
96 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
2 - 6' High x 5' Wide Color Coated Single Chain Link Swing Gate w/ Hinges and Latch
1 - 6' High x 12' Wide Color Coated Double Chain Link Swing Gate w/ Hinges and Drop Rod
5 - 2" Aluminum Pig Tail Tie Wire - Bag of 100
1 - Touch Up Spray Paint Can

Instructions

Customer Photos

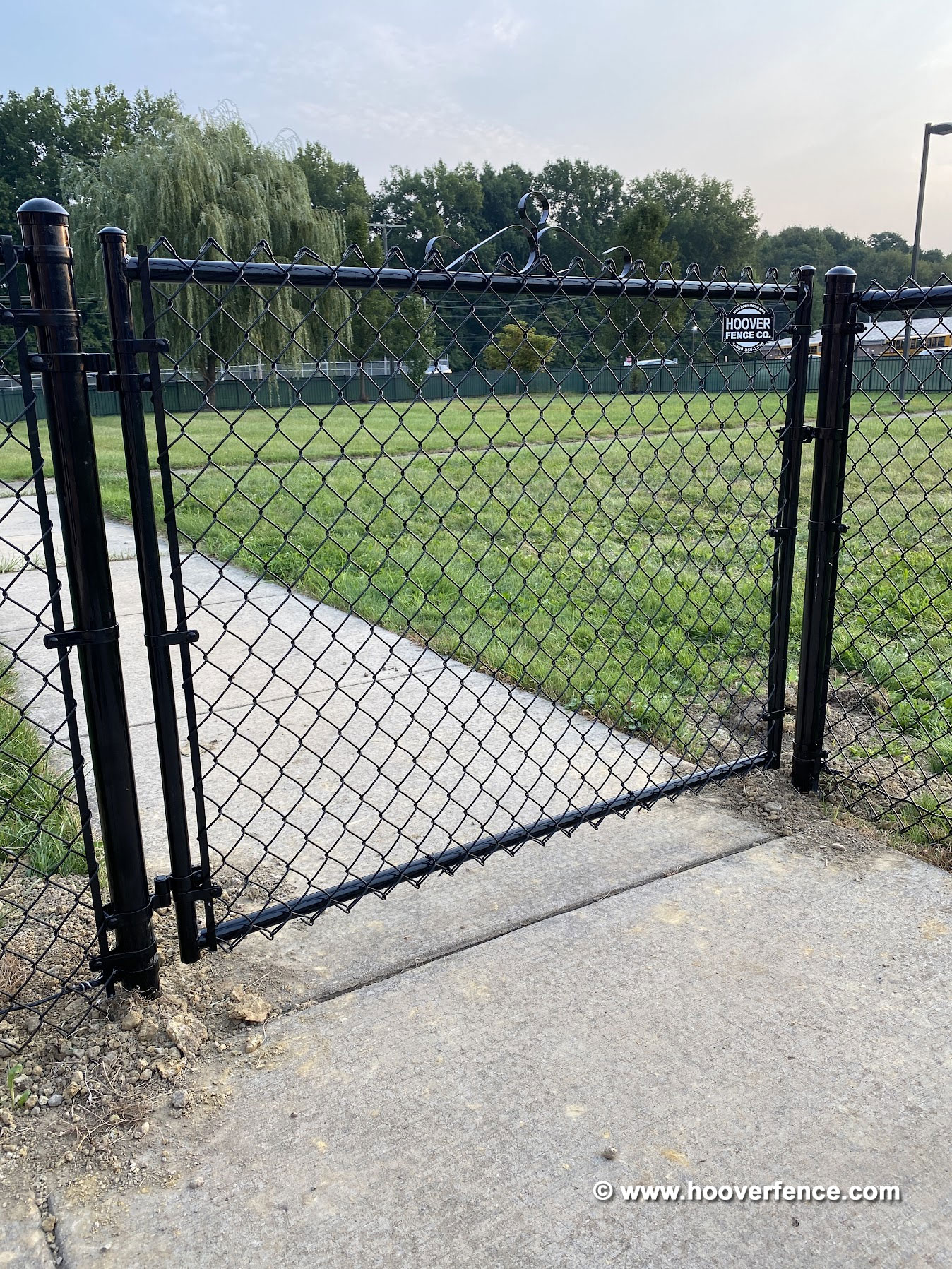

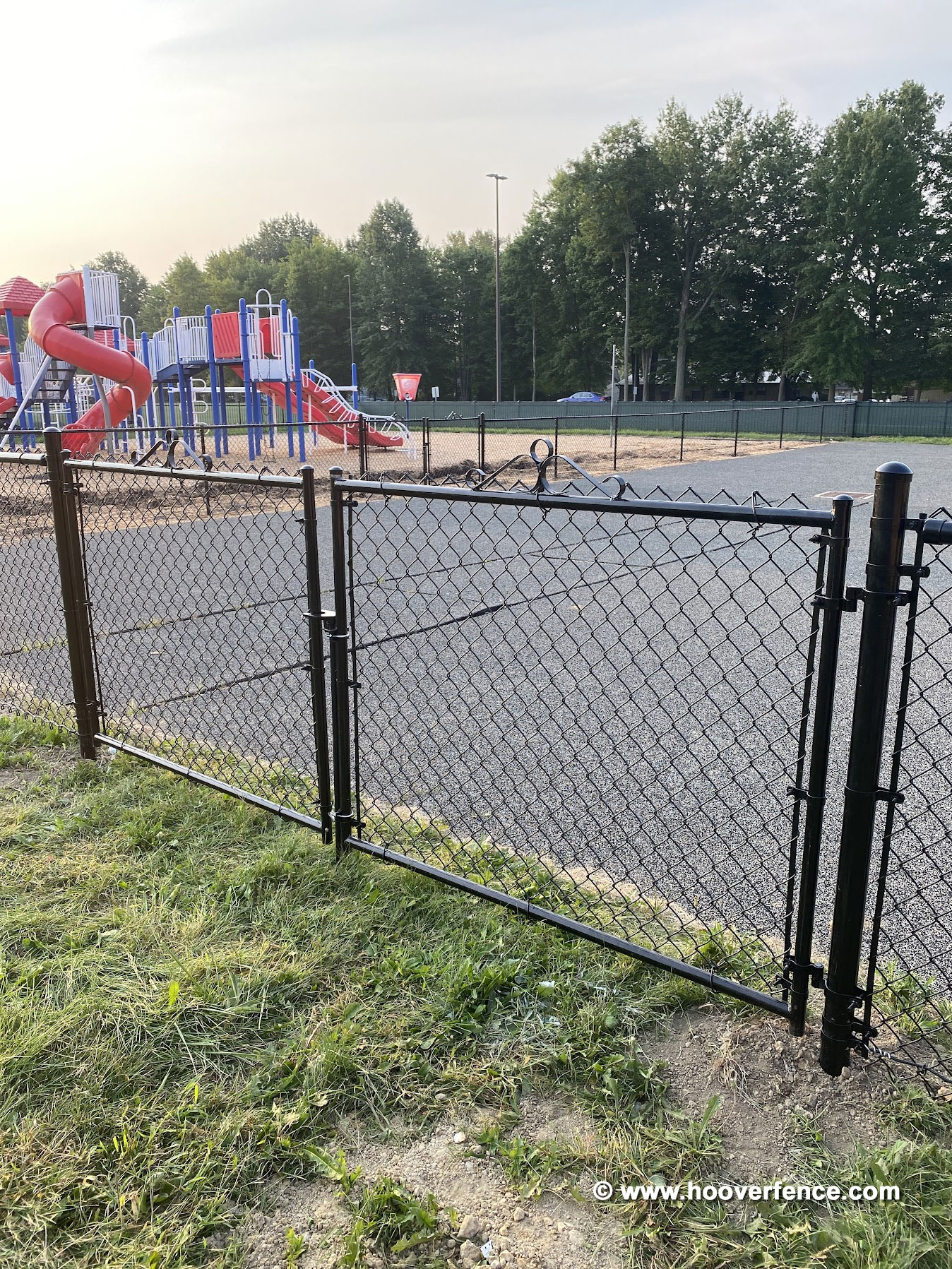

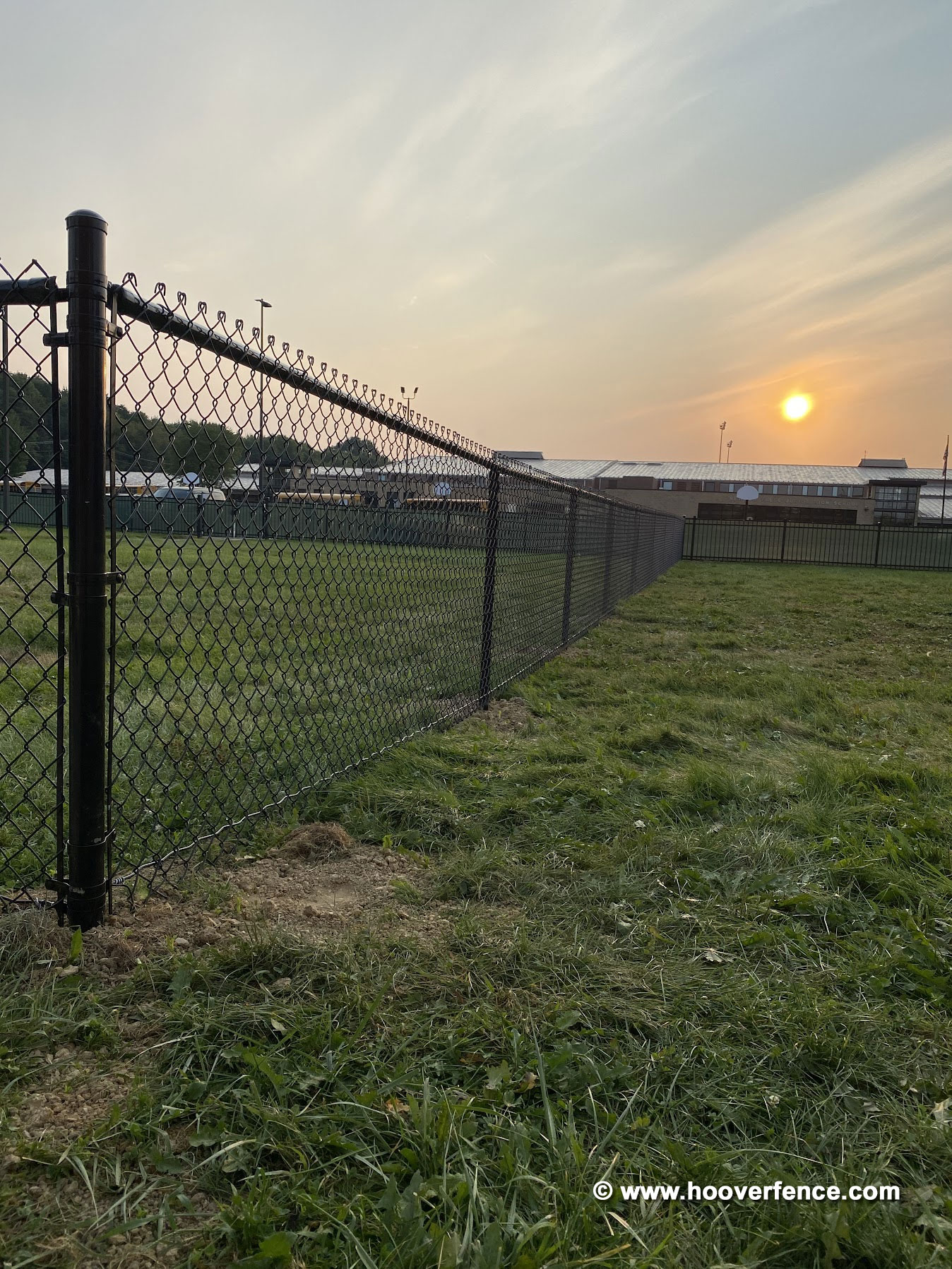

Hoover Fence Co Installation - Black Chain Link Fence - Newton Falls, OH

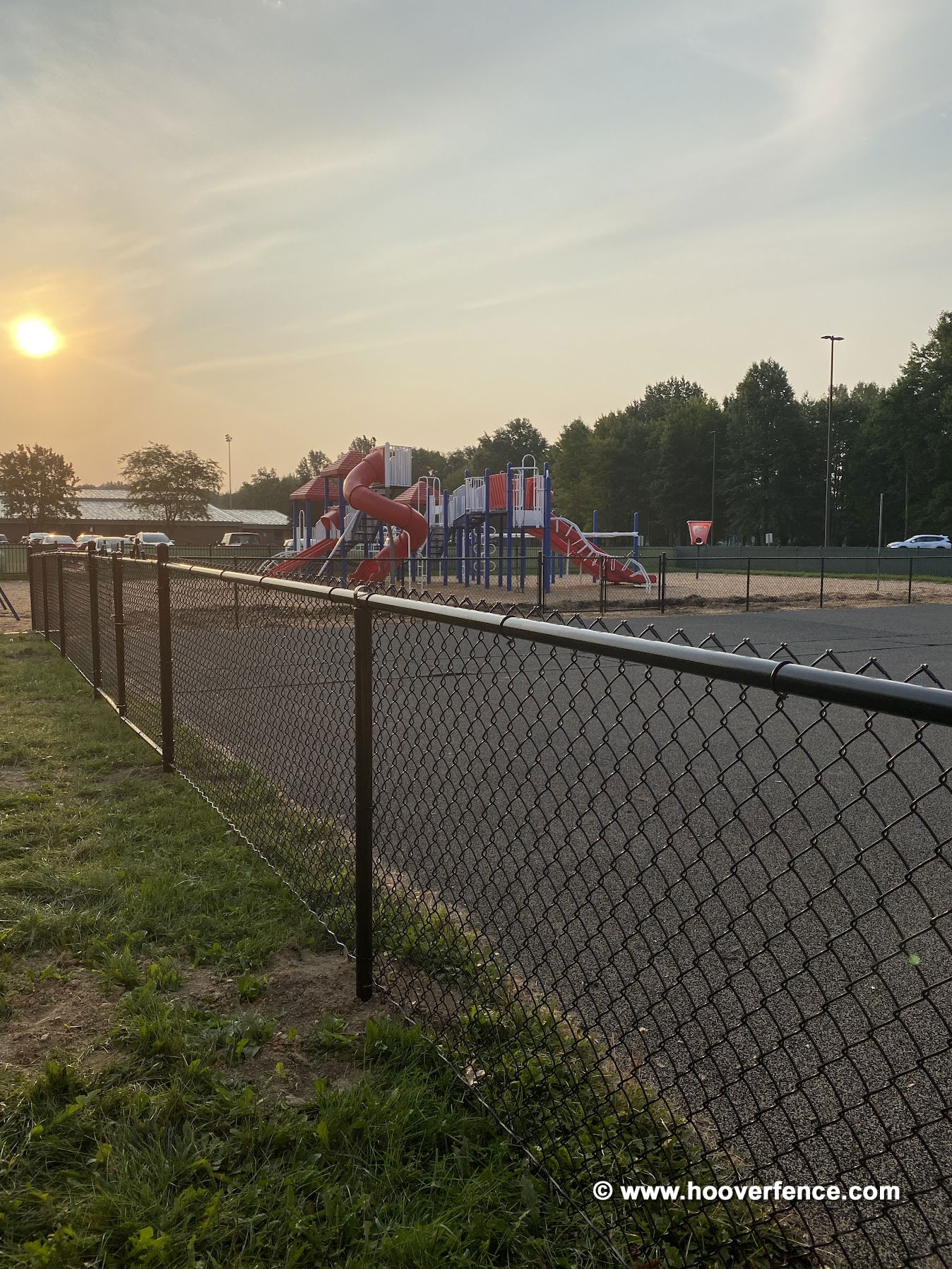

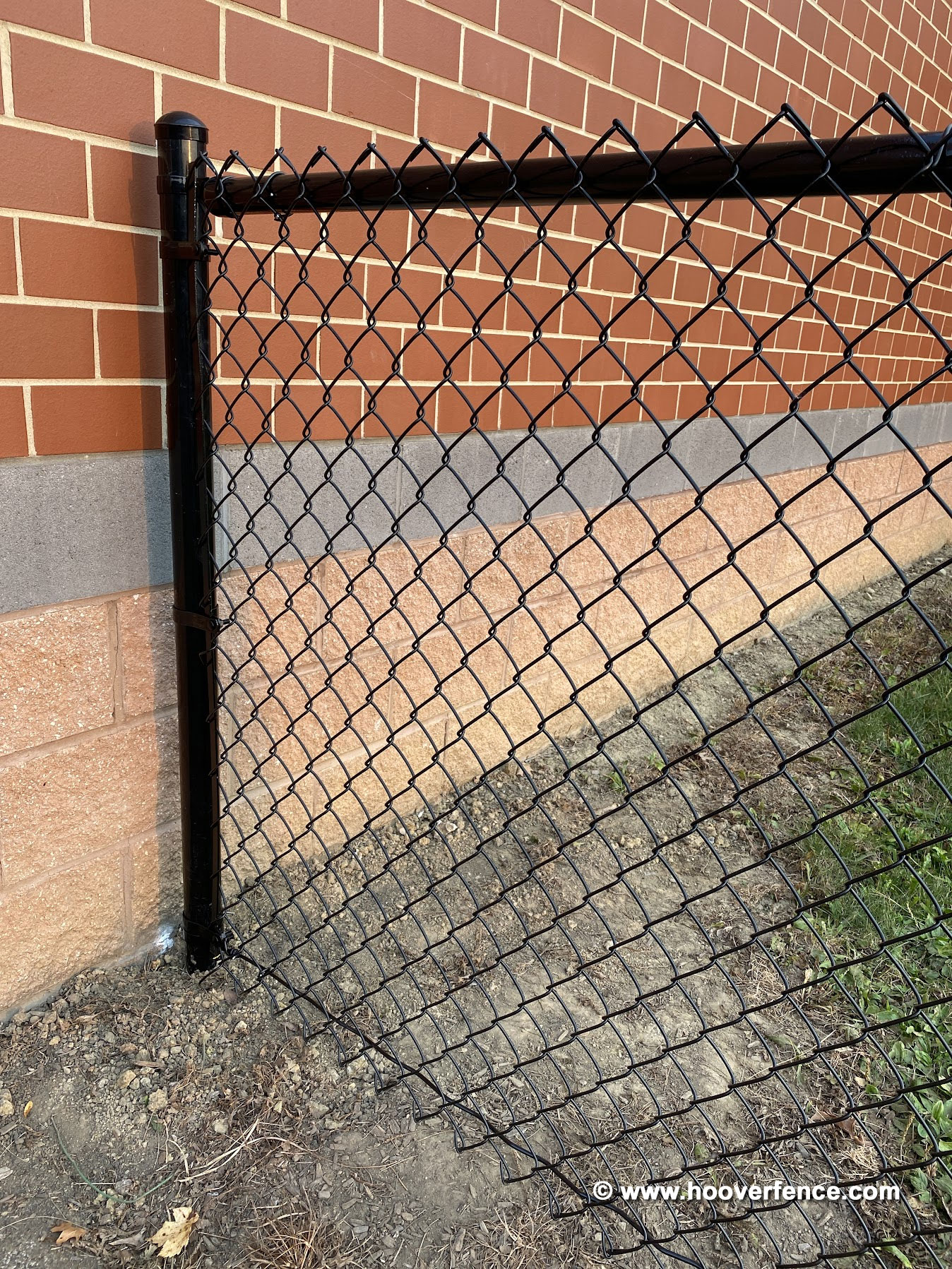

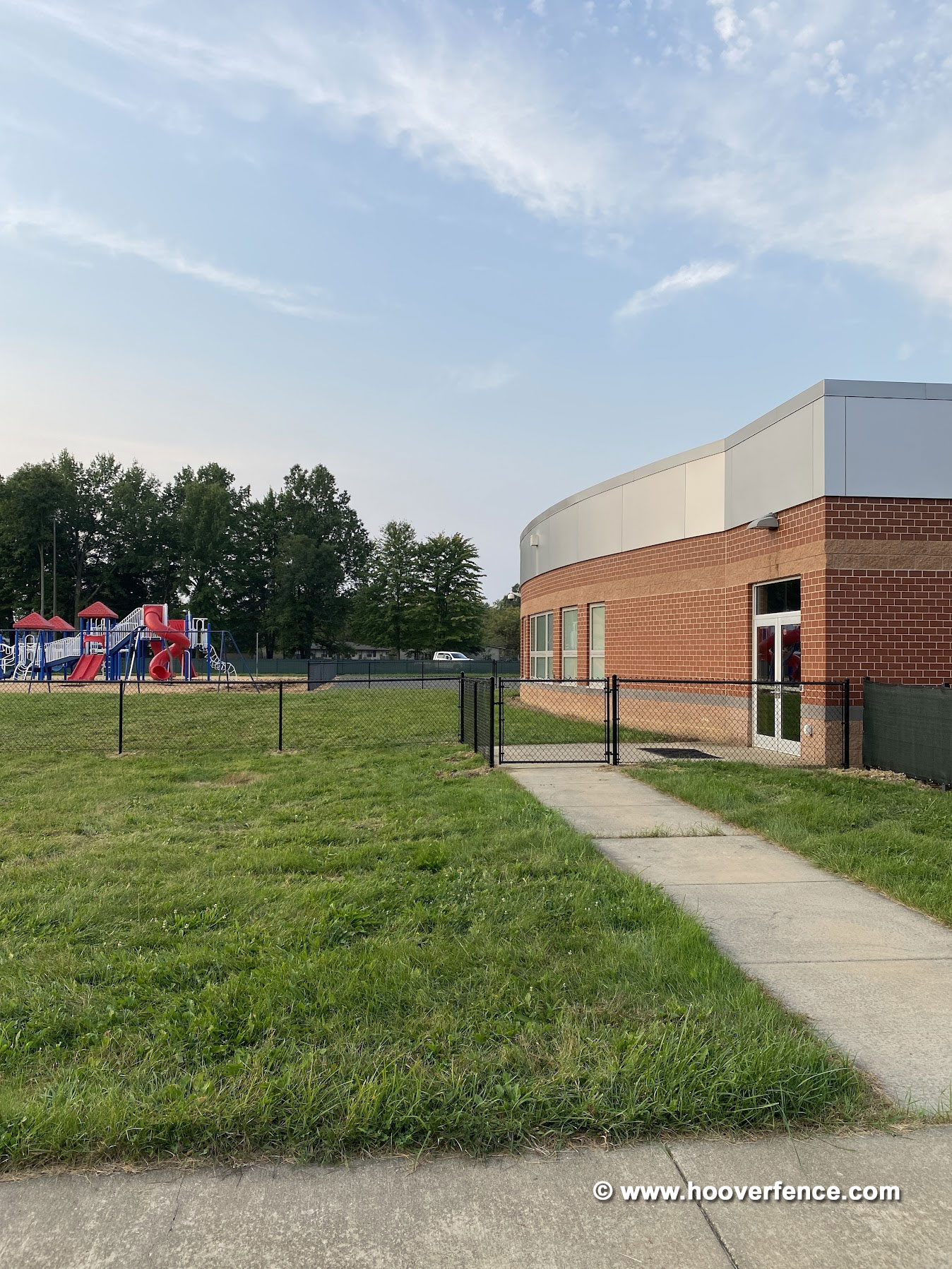

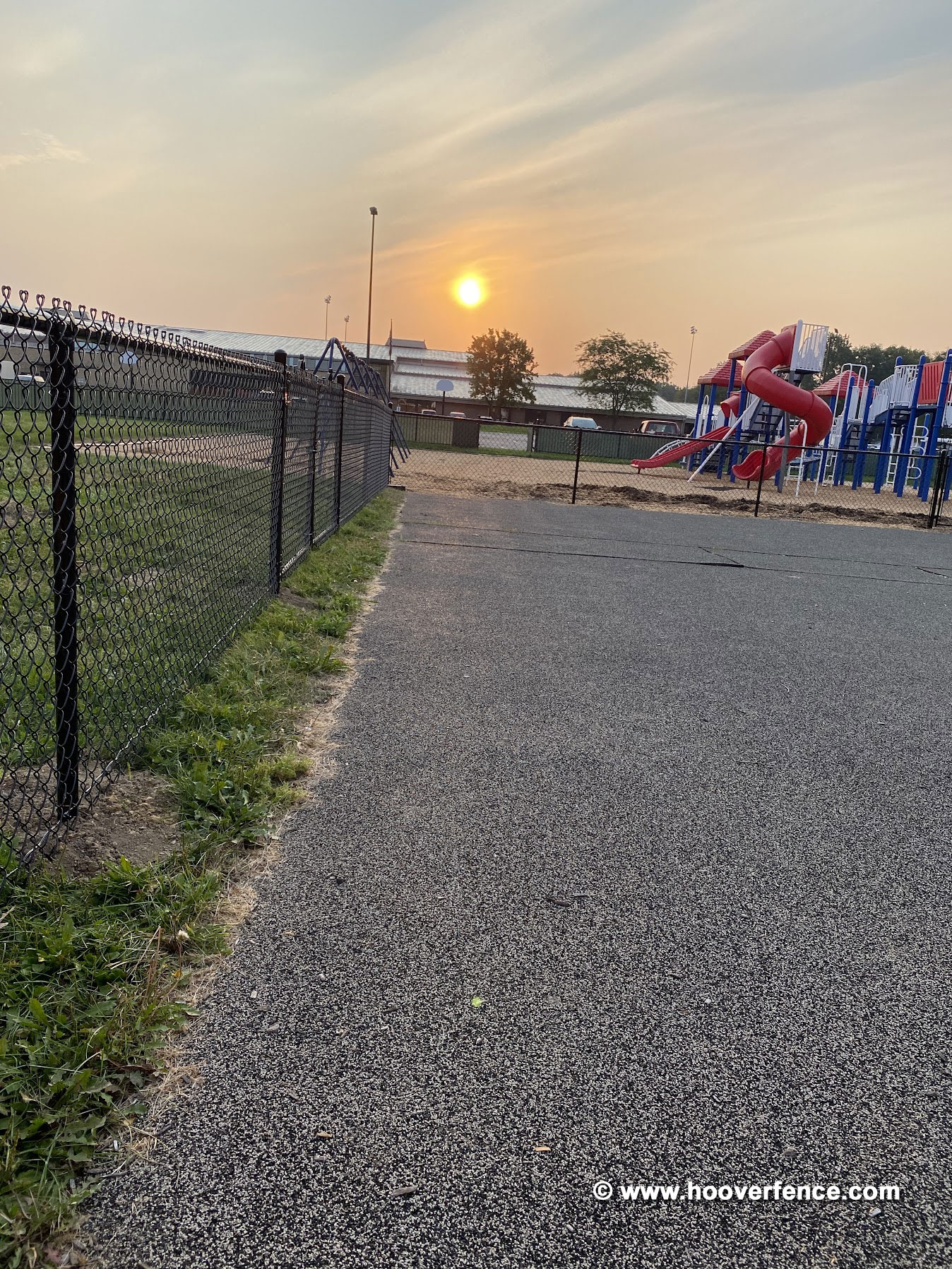

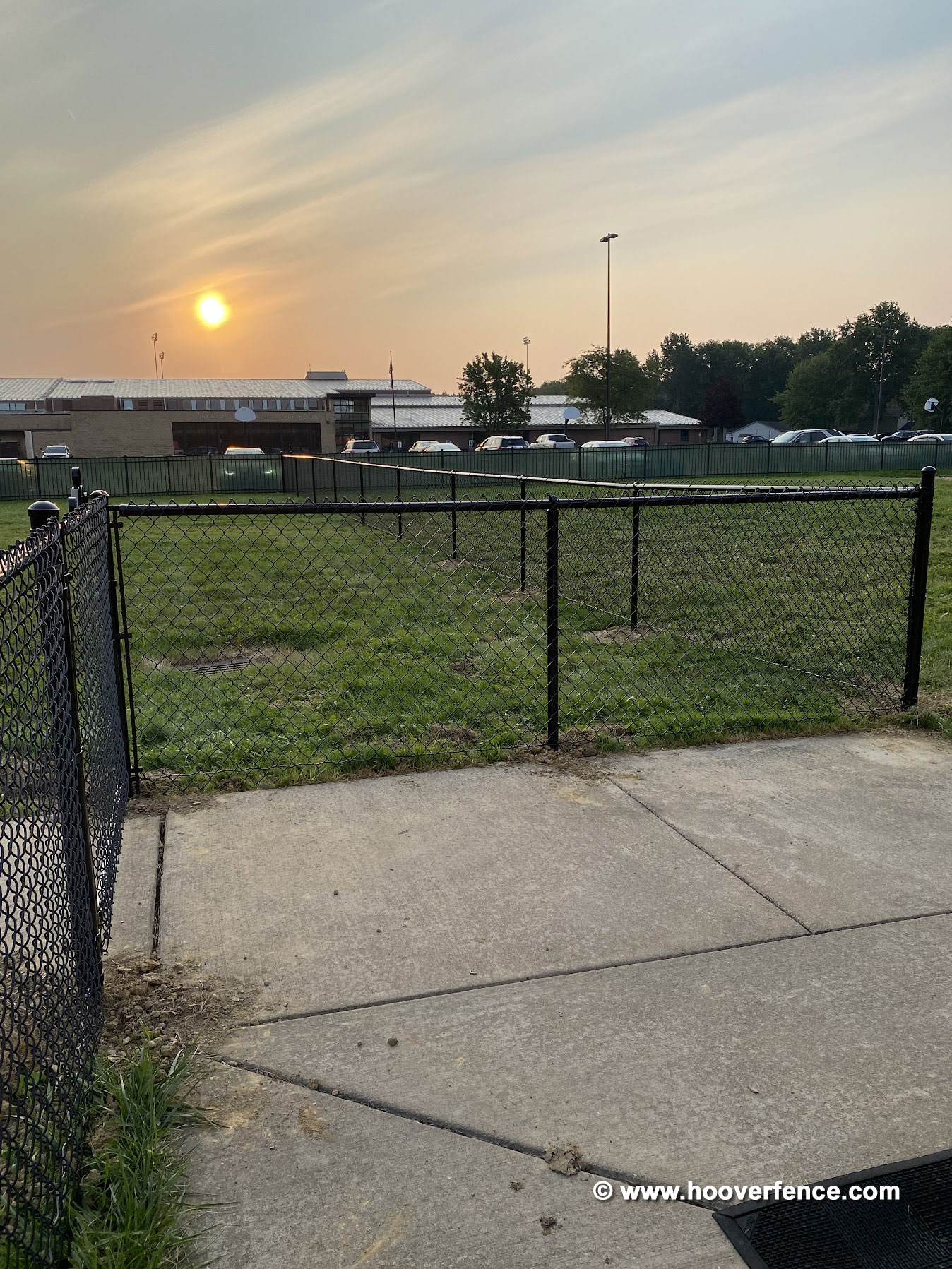

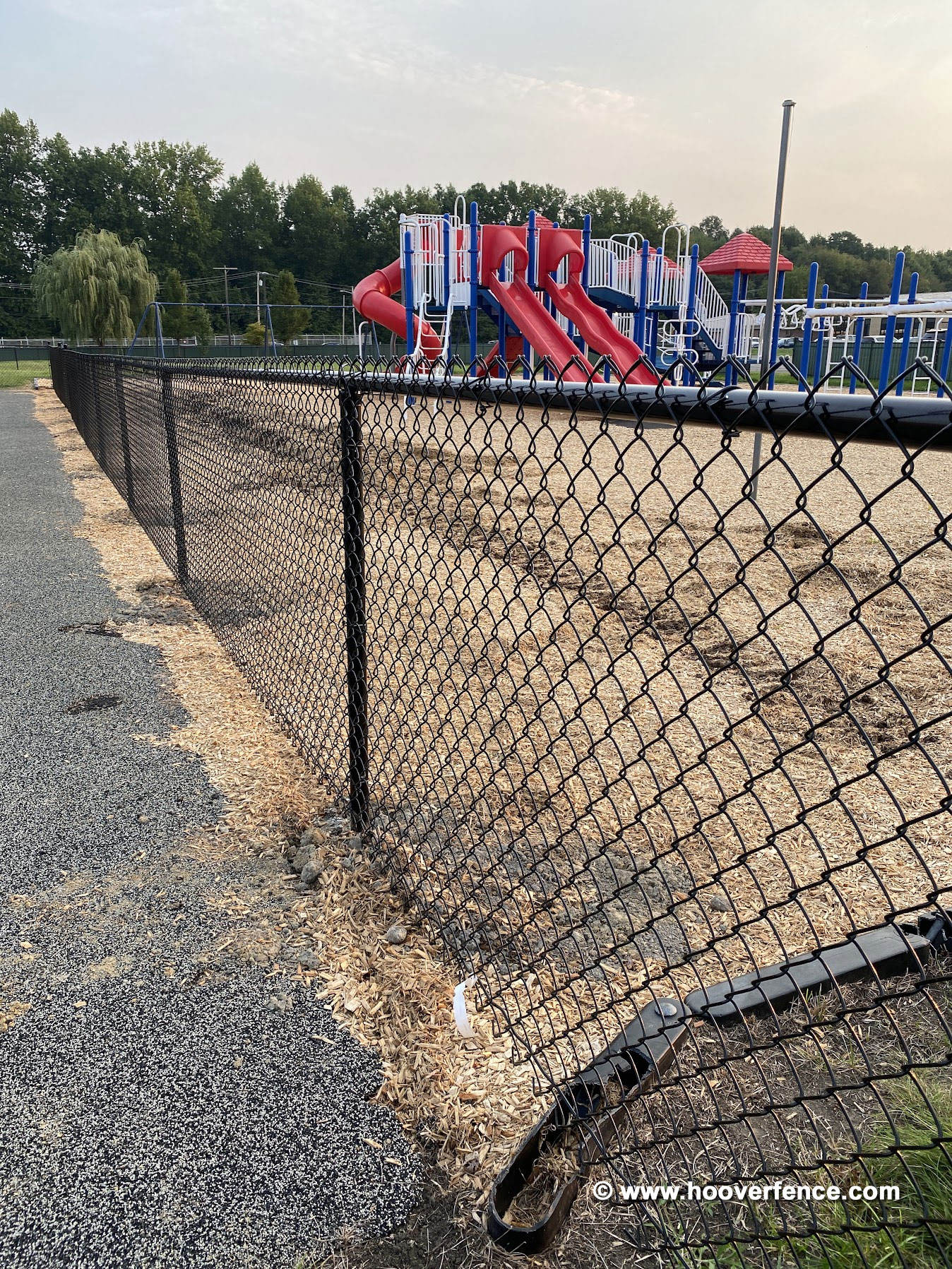

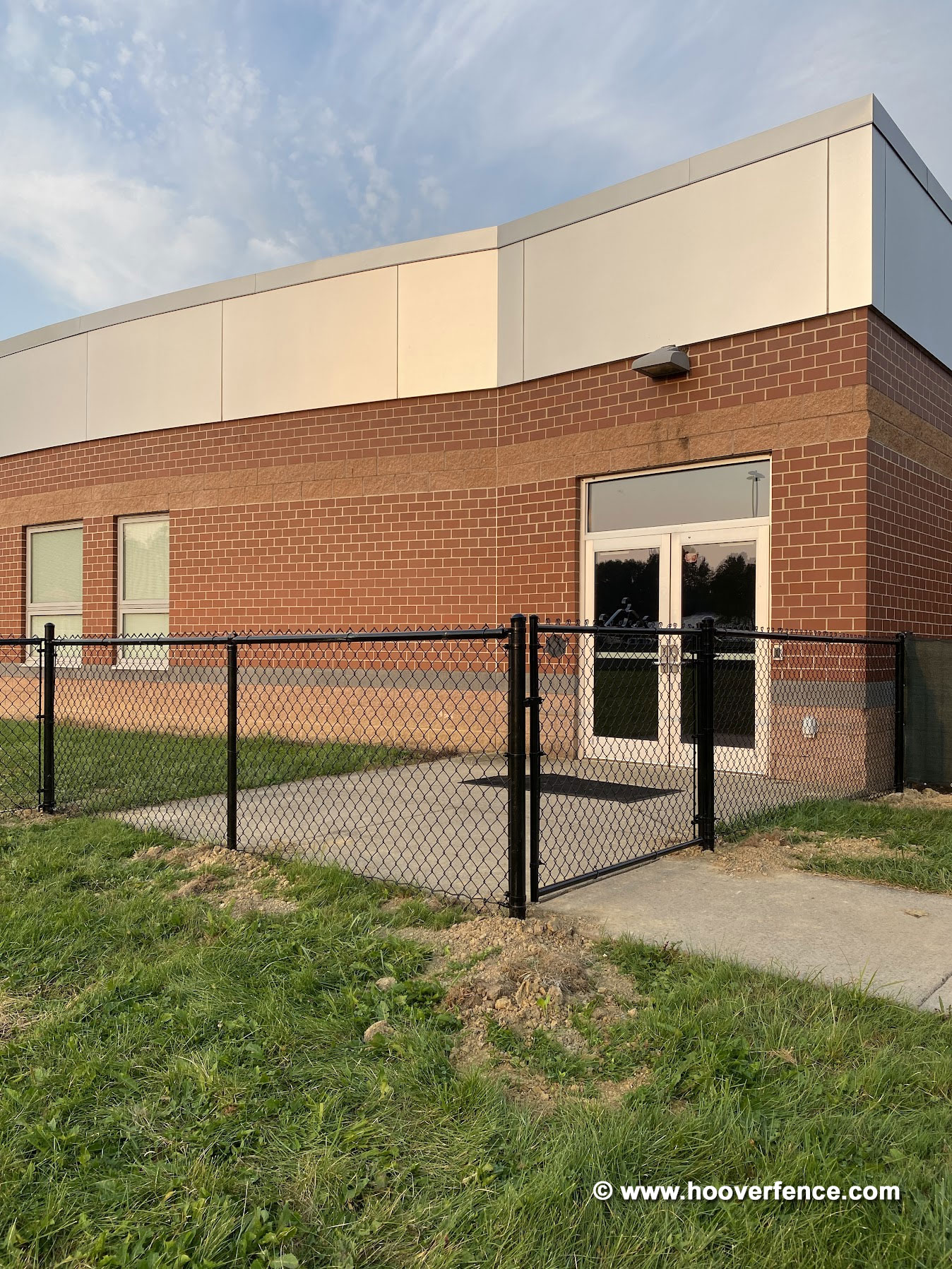

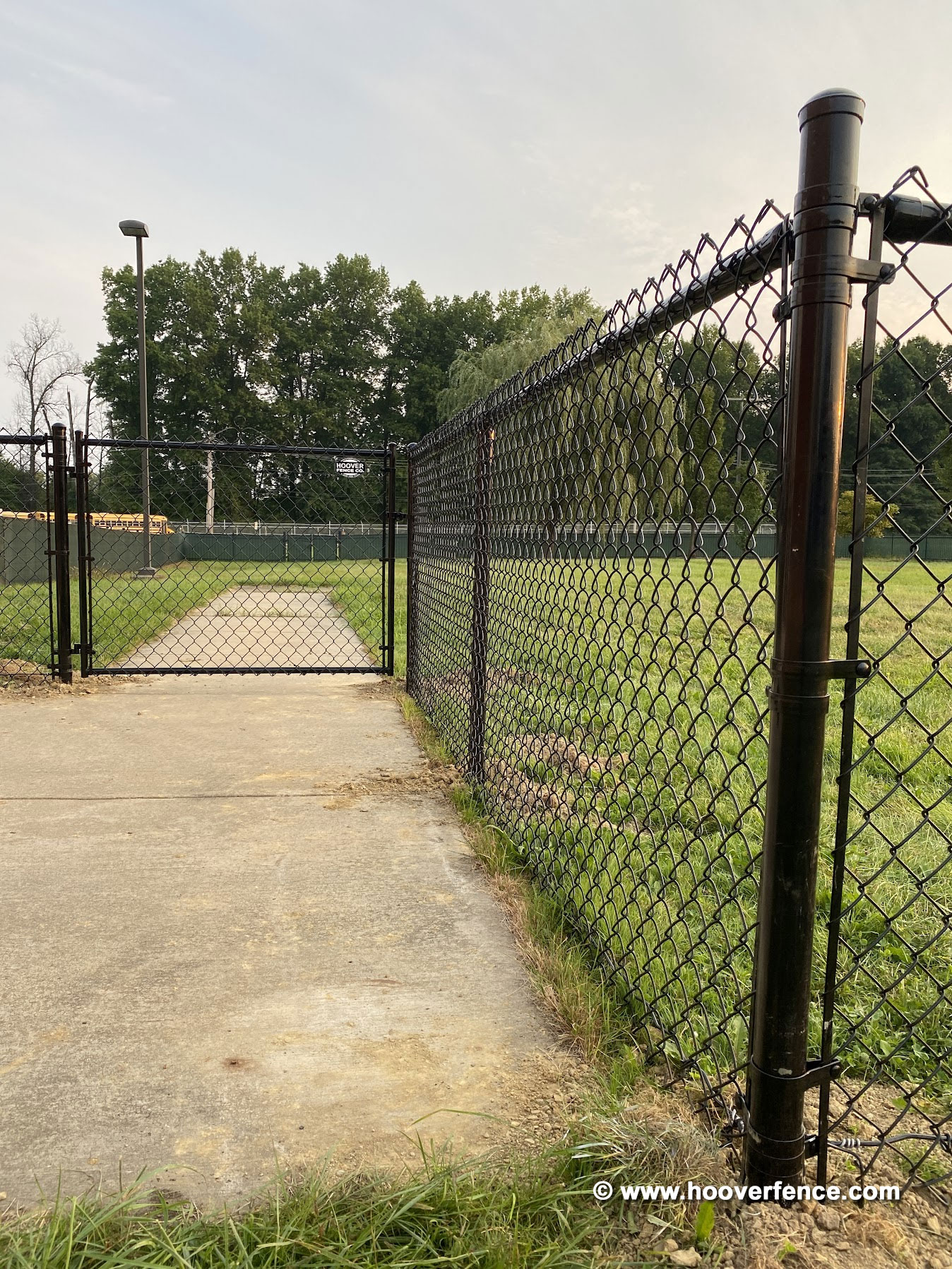

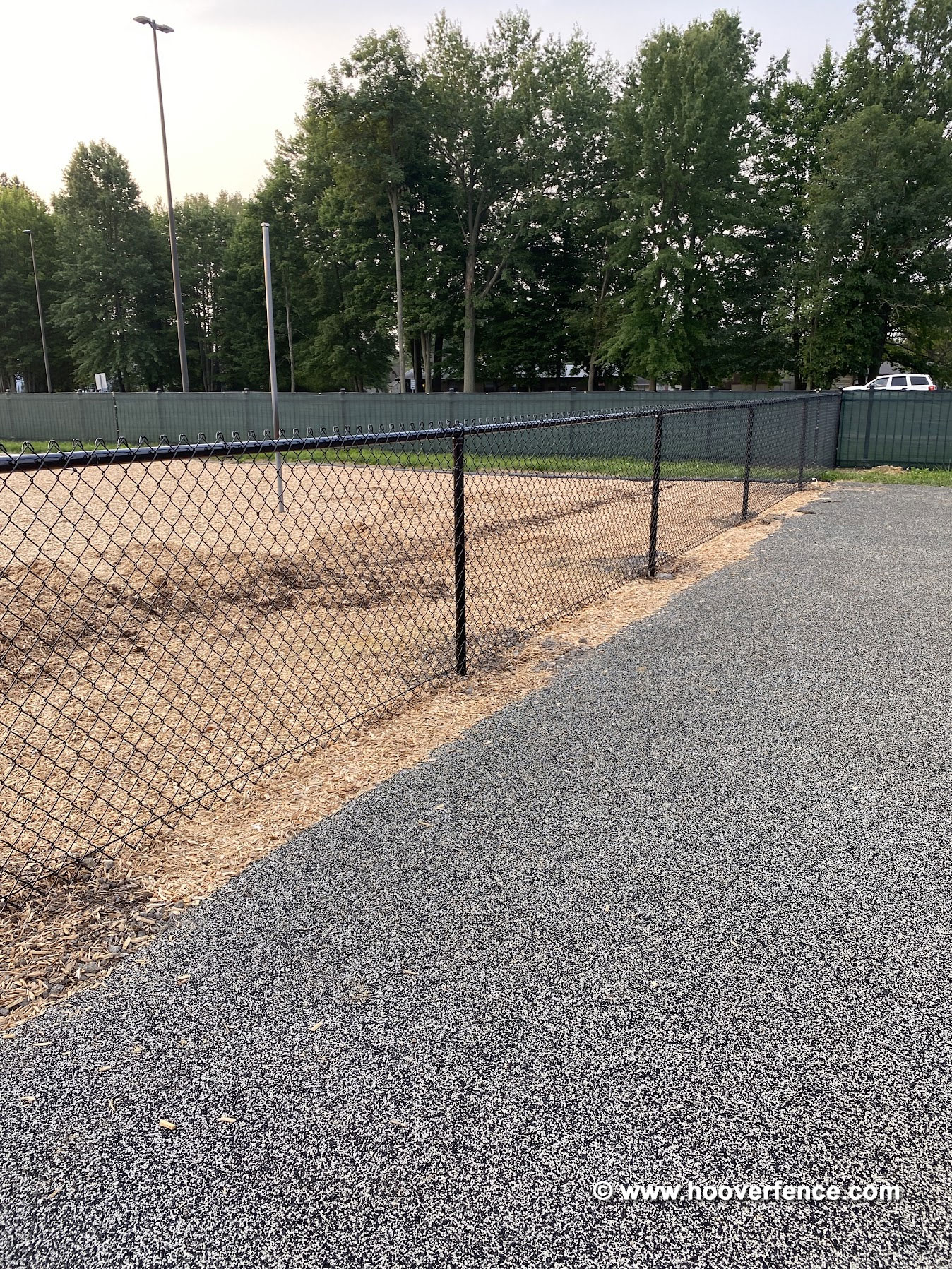

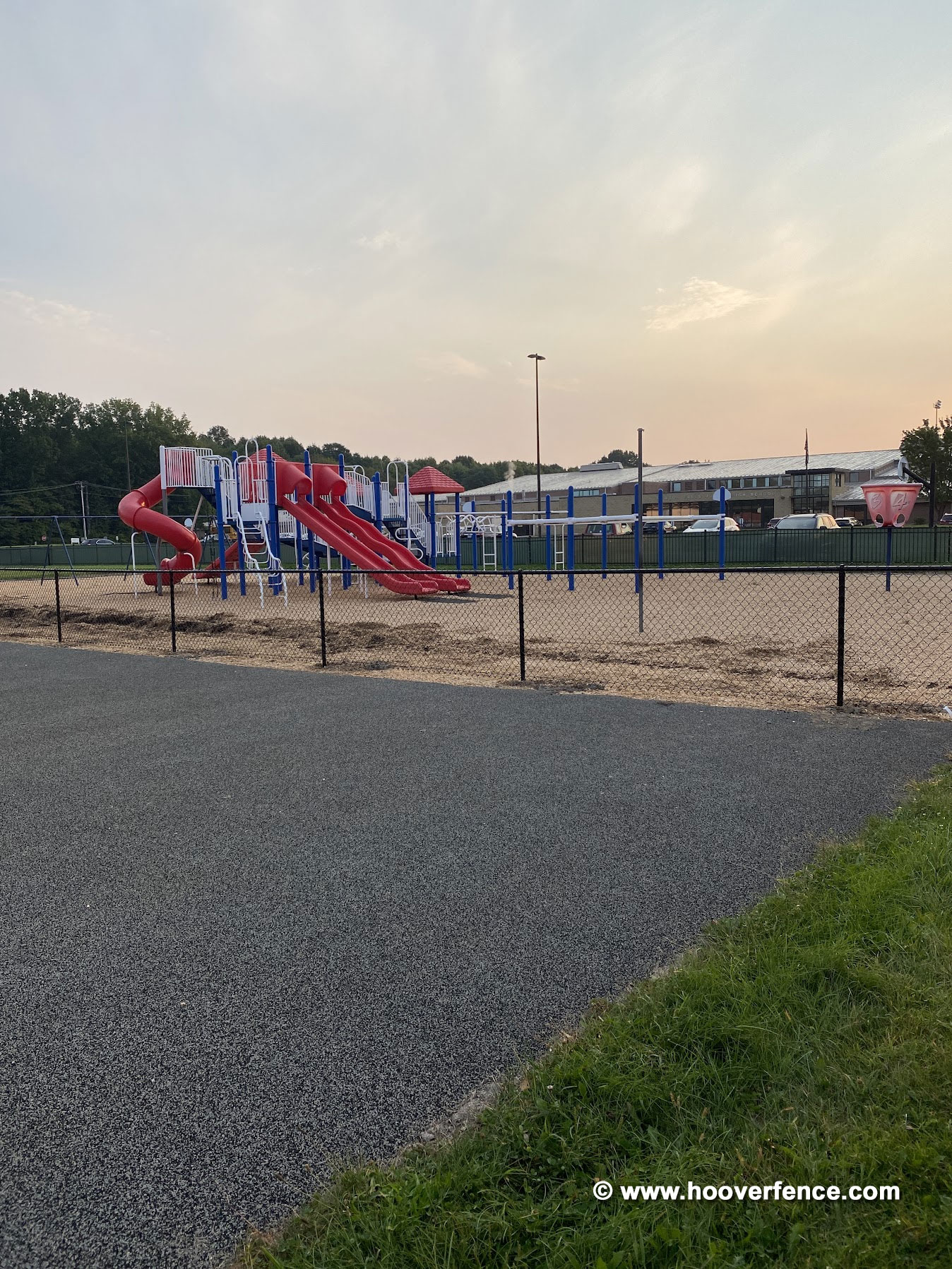

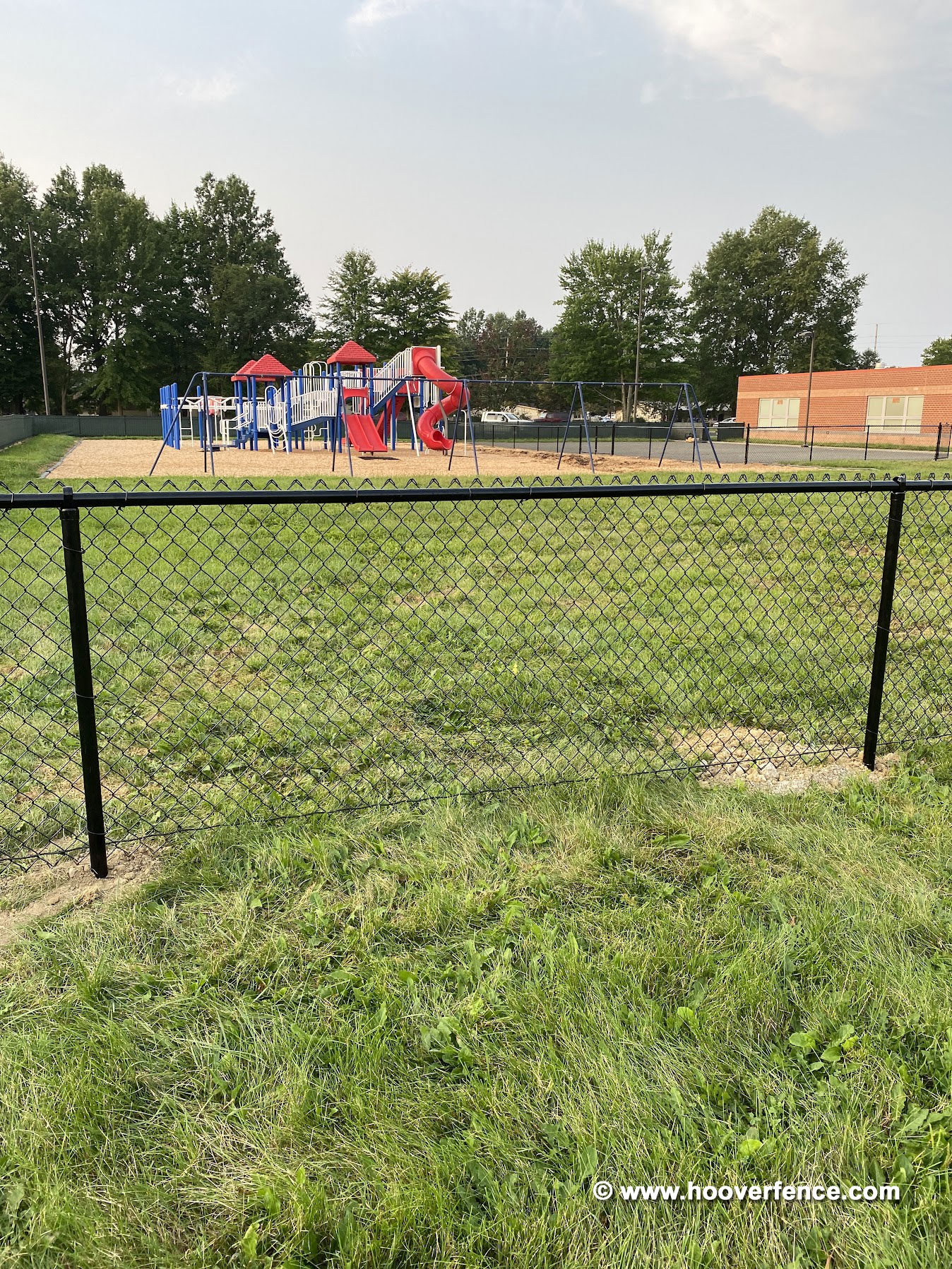

Here are some photos of a customized Black Chain Link Fence Kit installed at a local school playground. The Top Rail was upgraded to HF20 and the Posts were upgraded to HF40.

Black Chain Link Fence around Playground

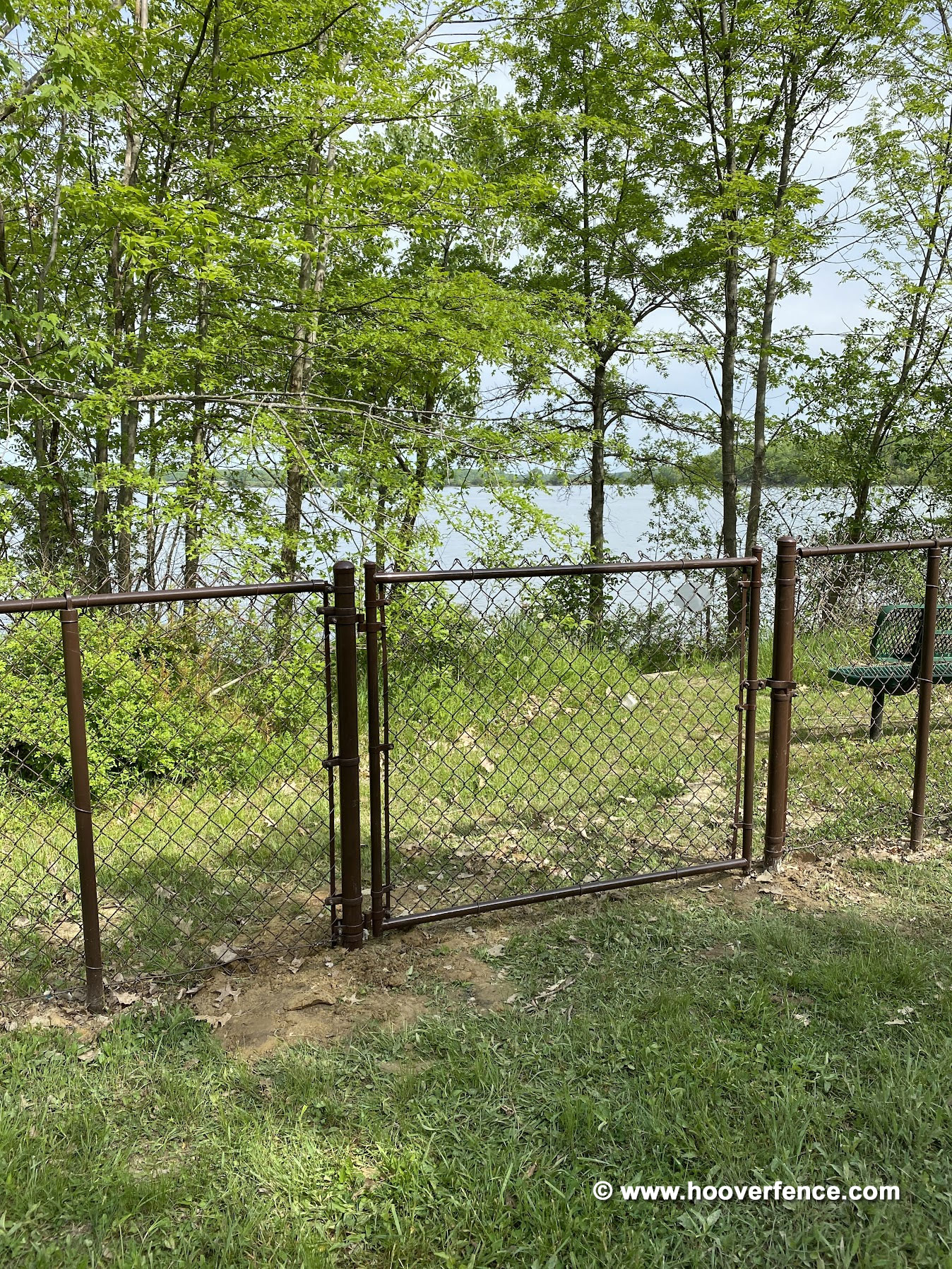

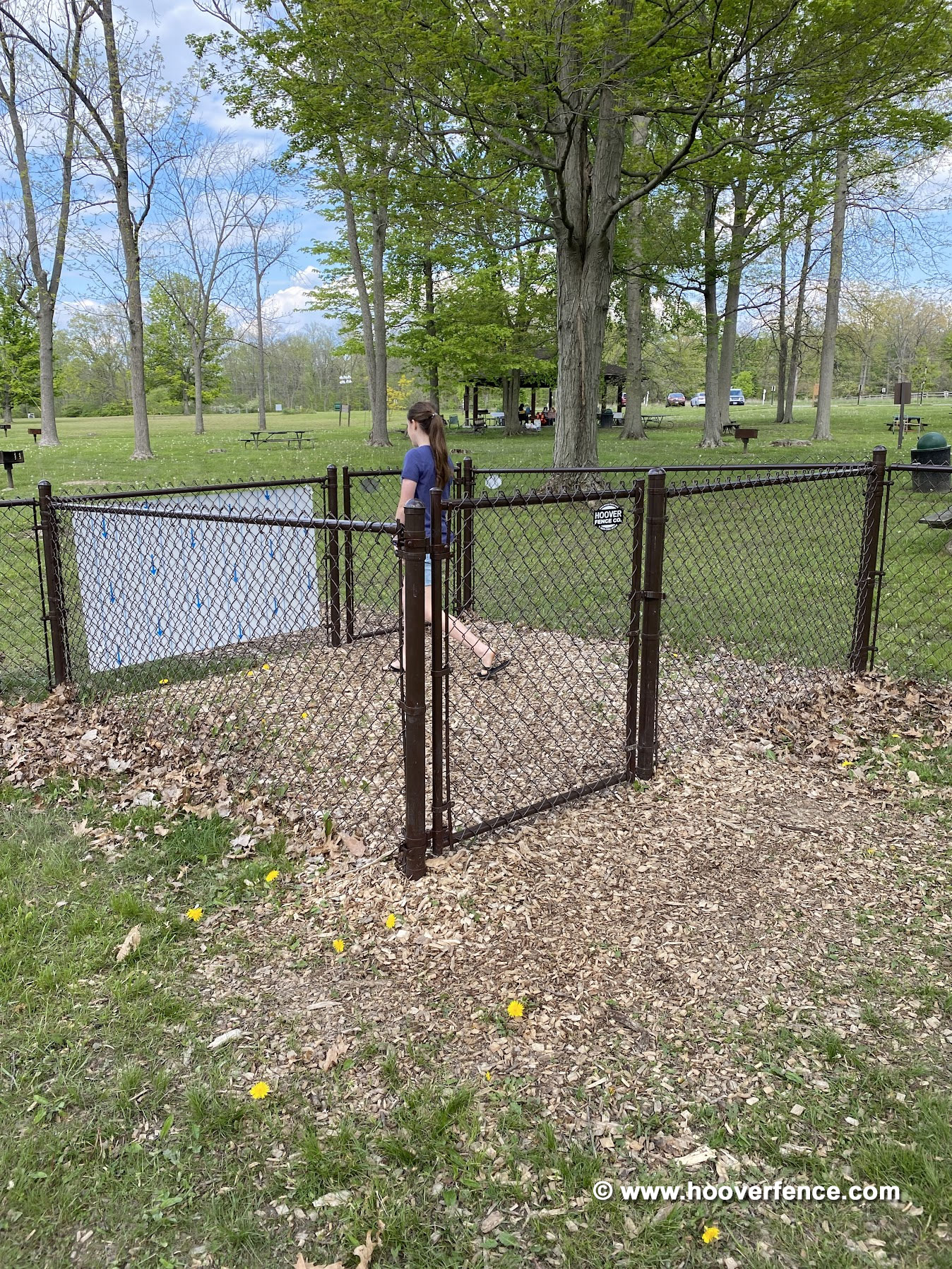

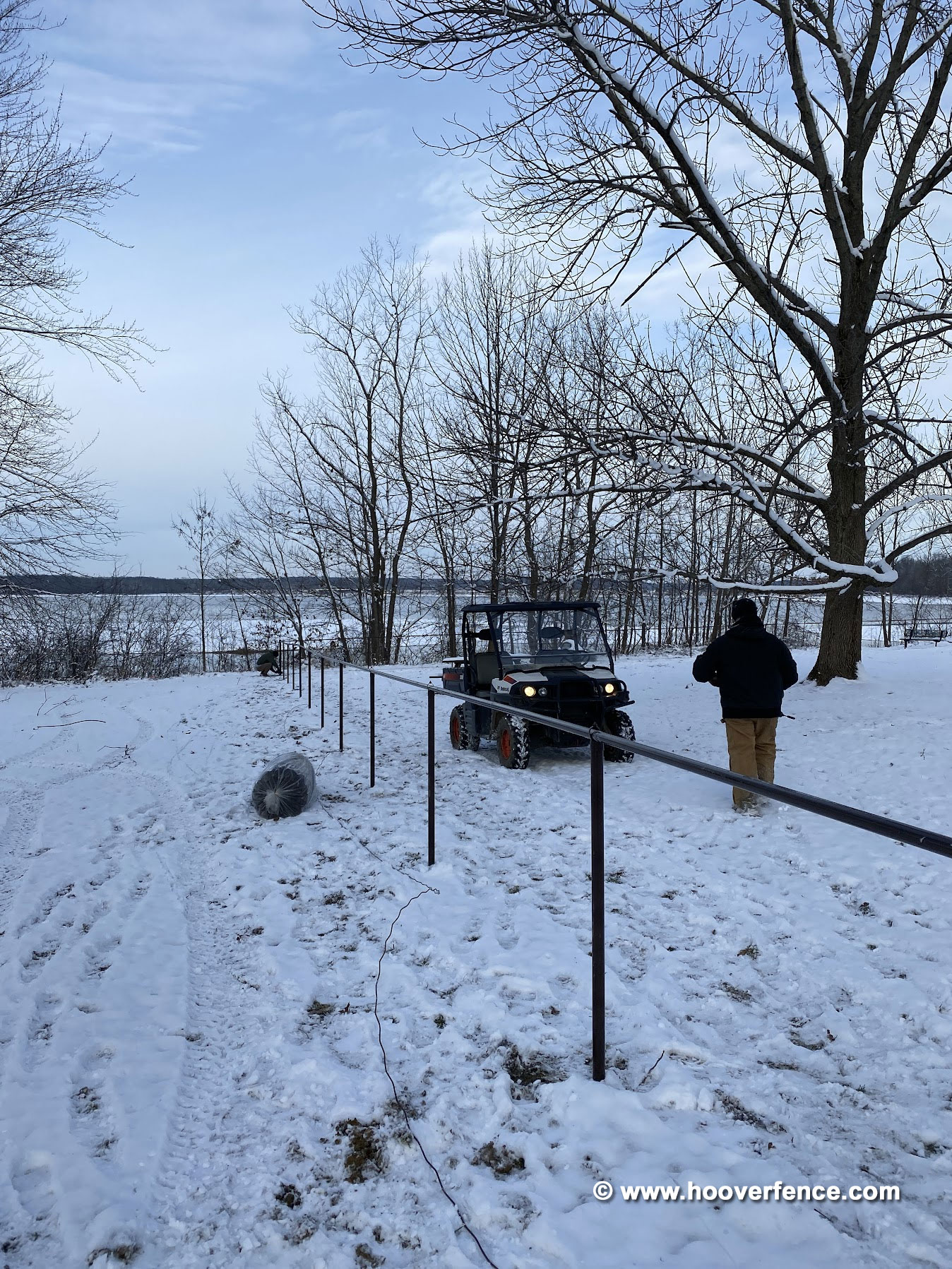

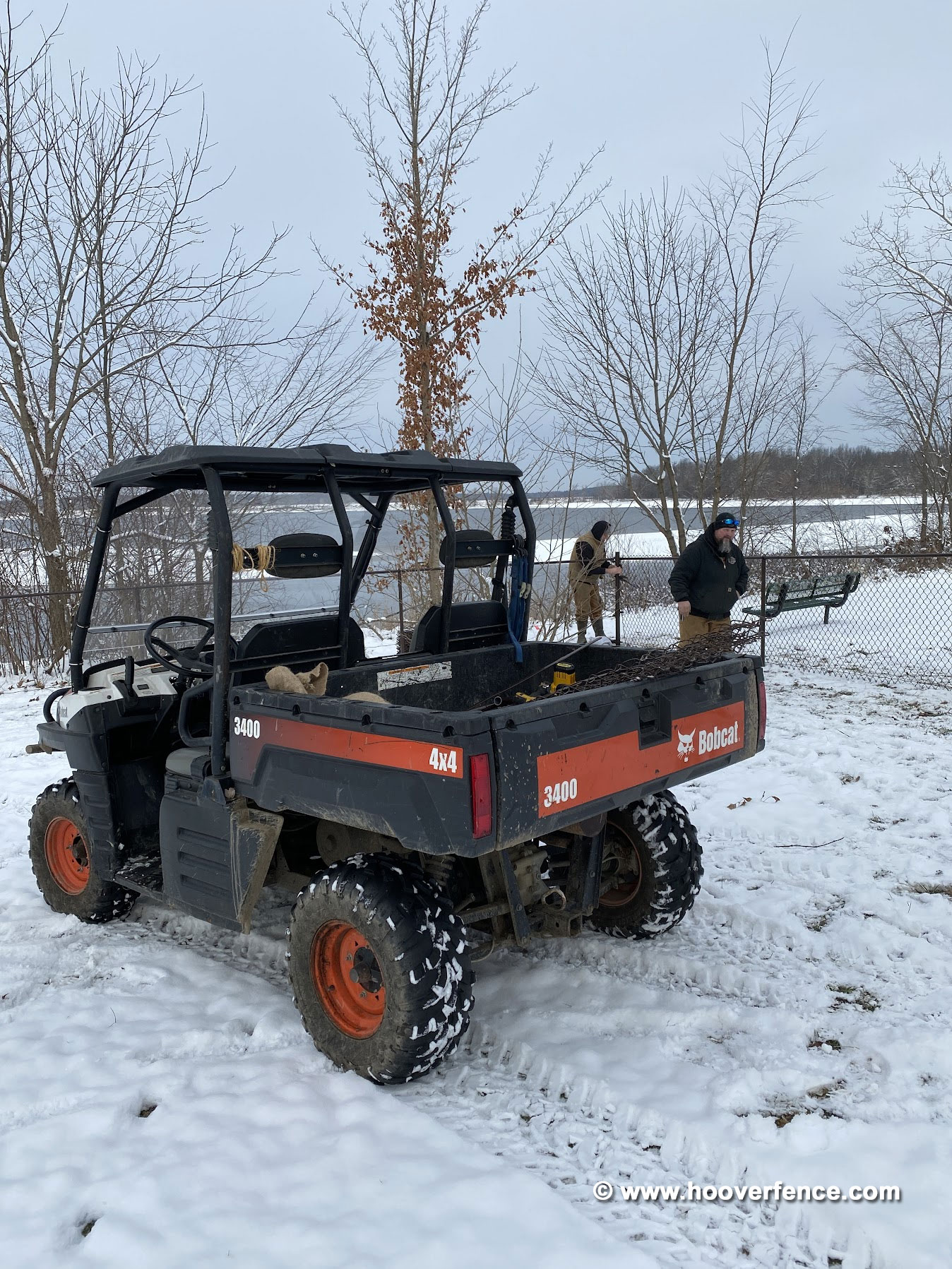

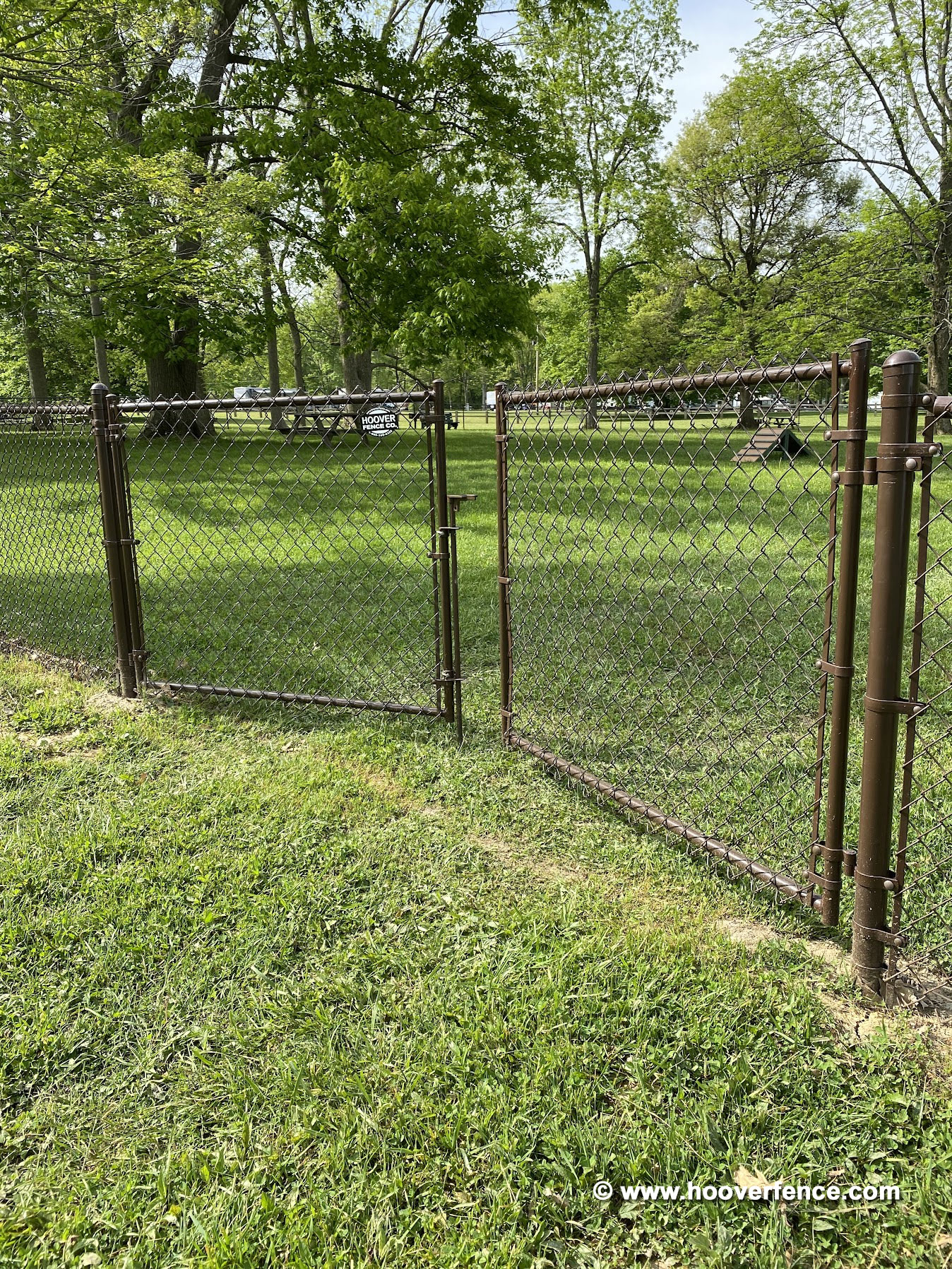

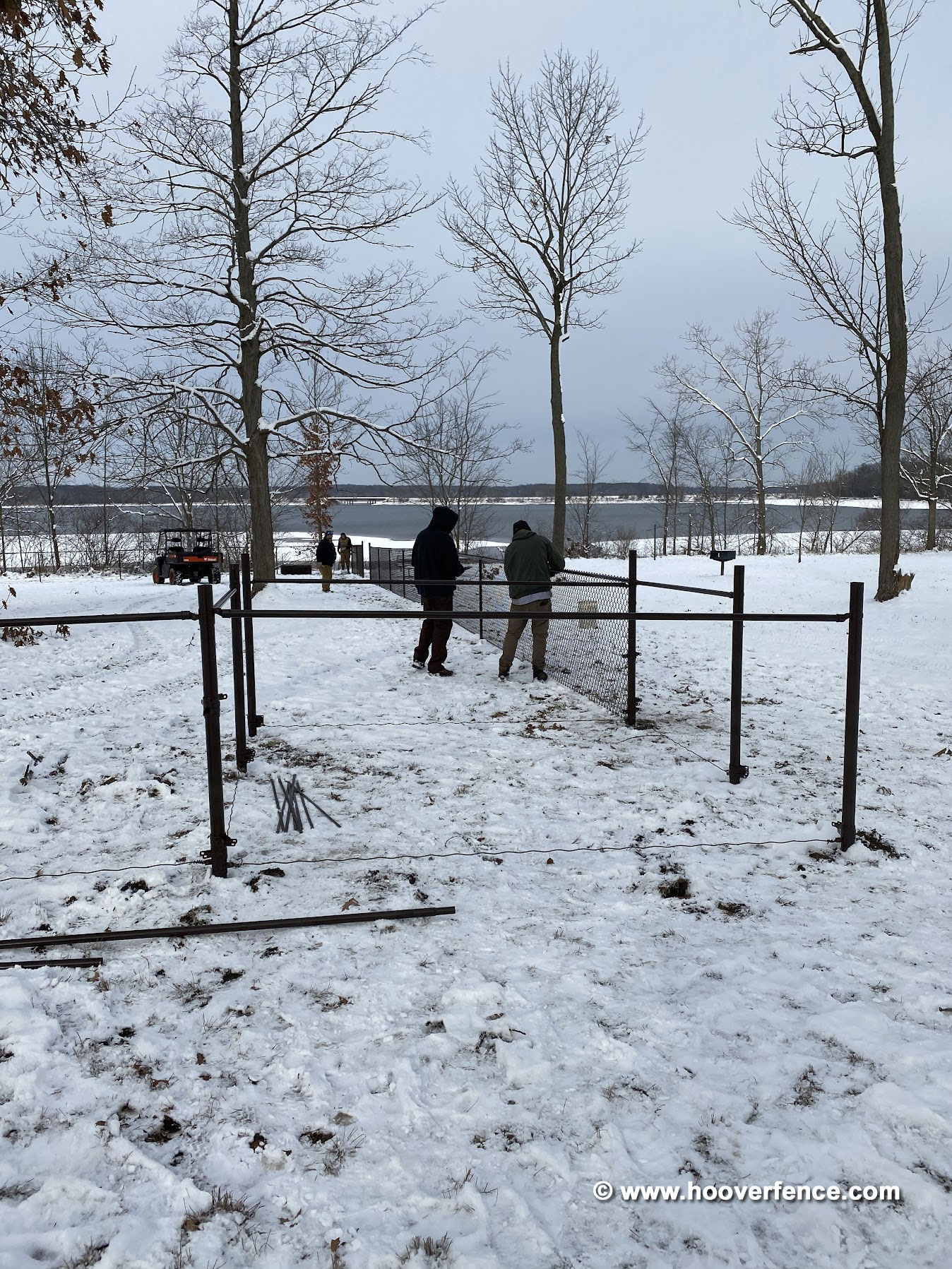

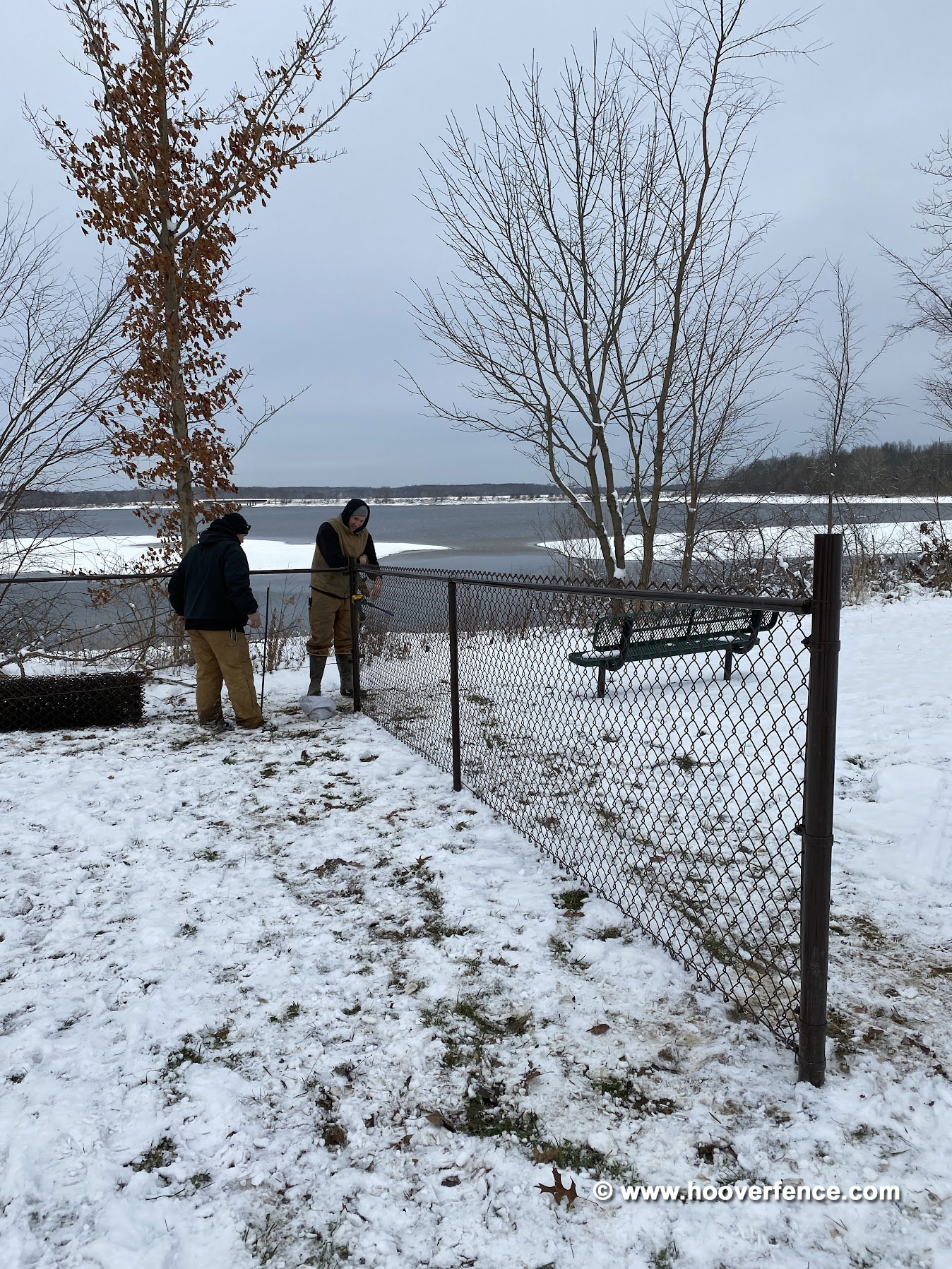

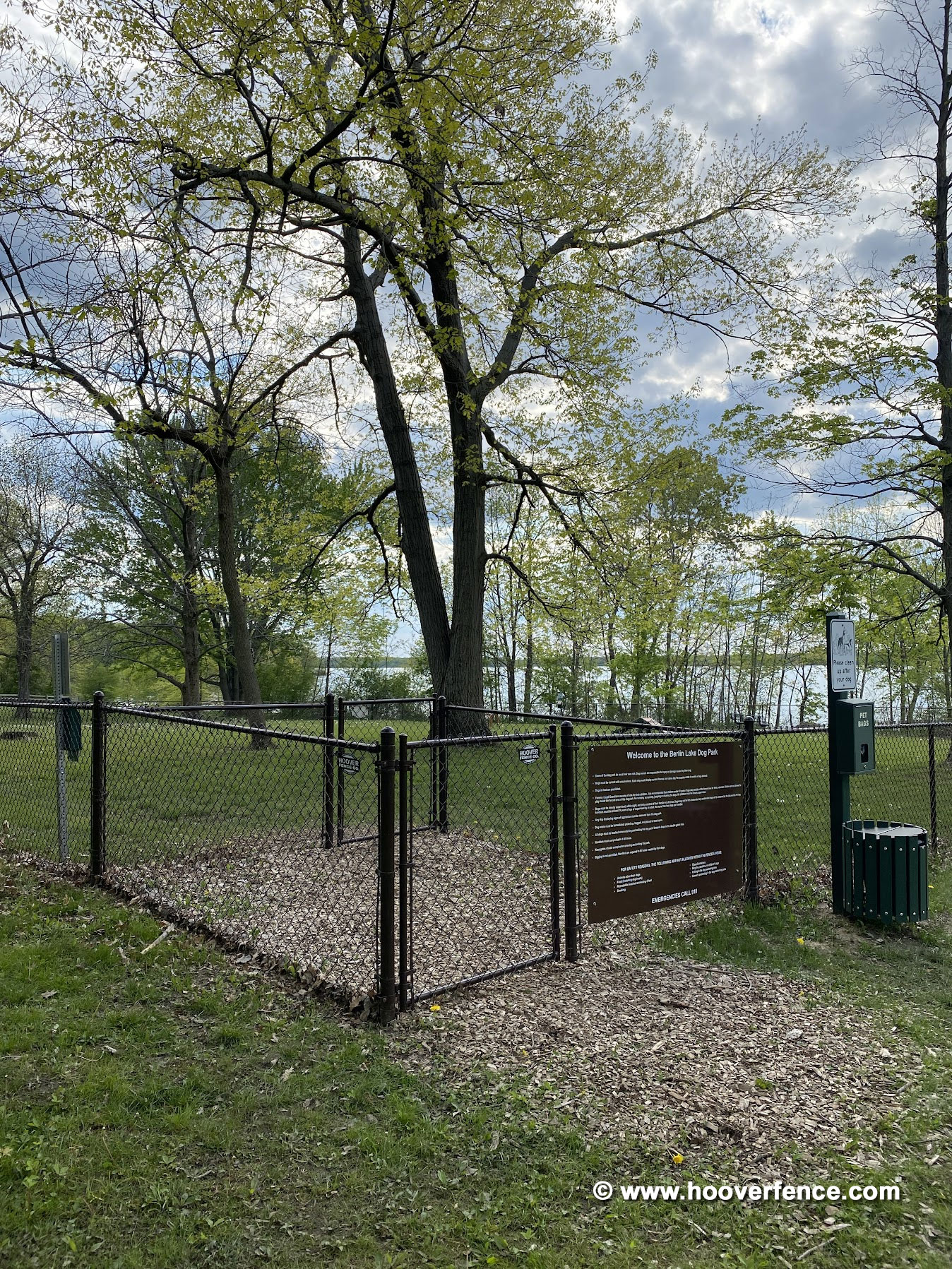

Hoover Fence Co Installation - Brown Chain Link Fence - Berlin State Park, OH

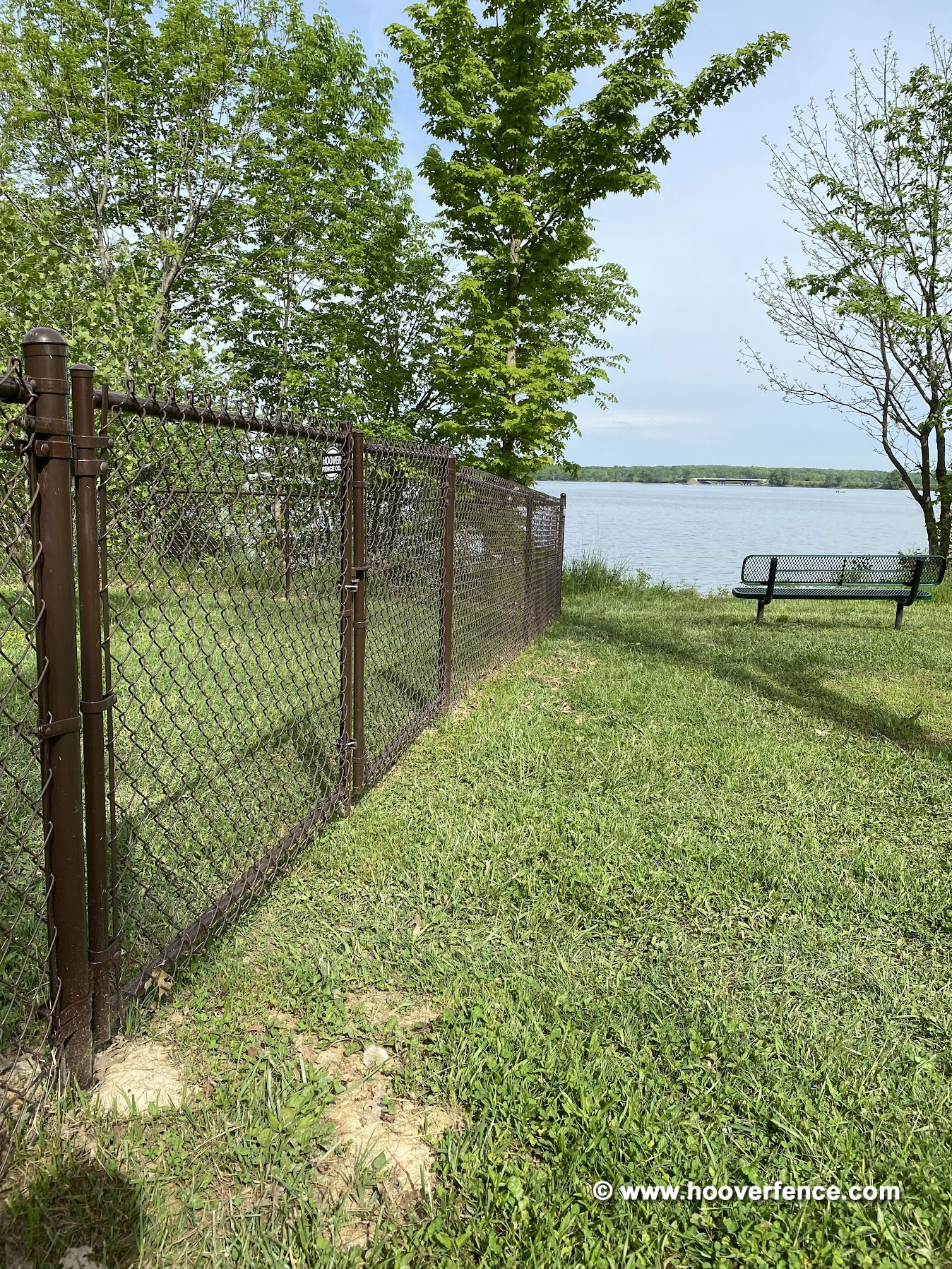

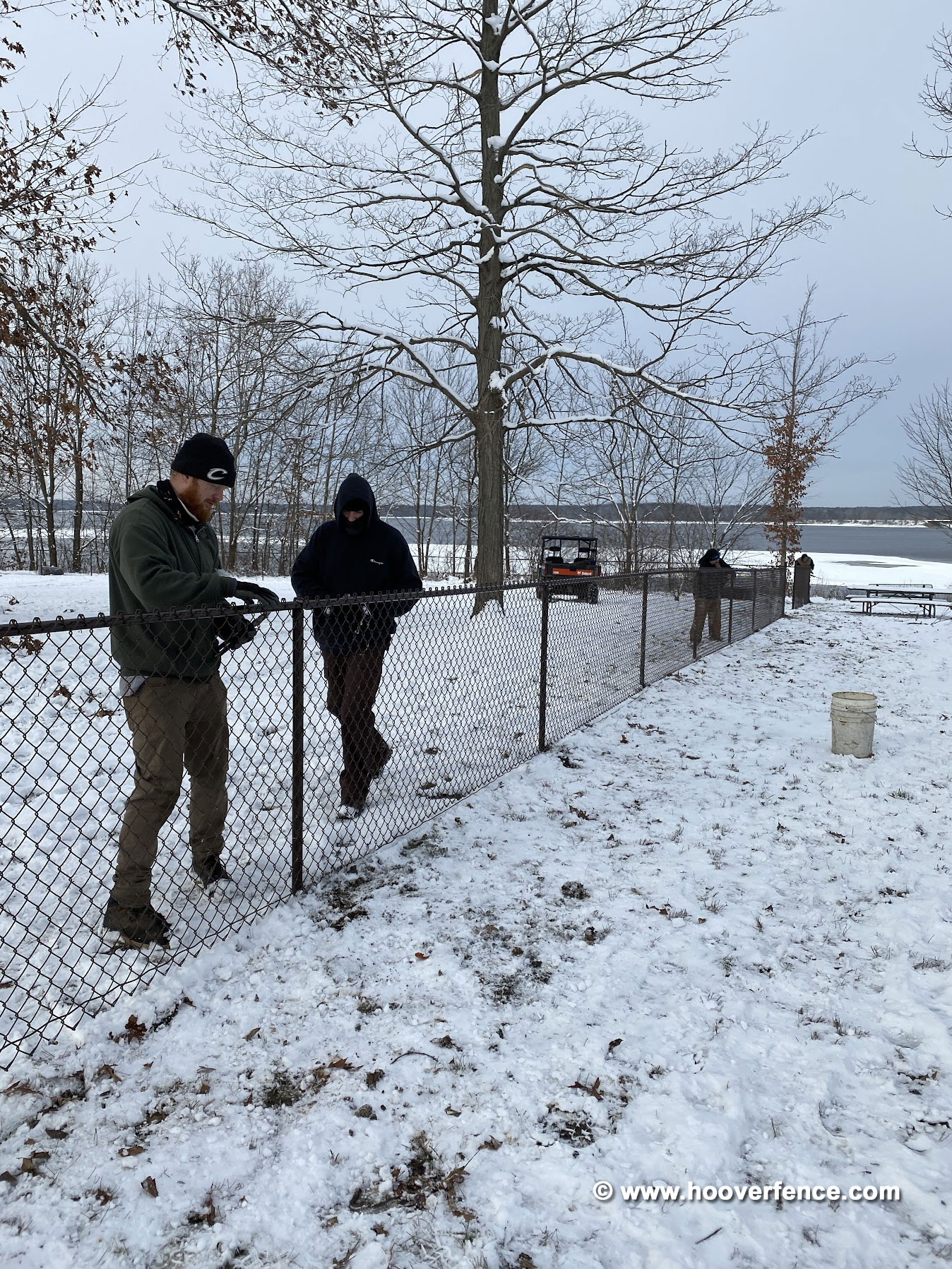

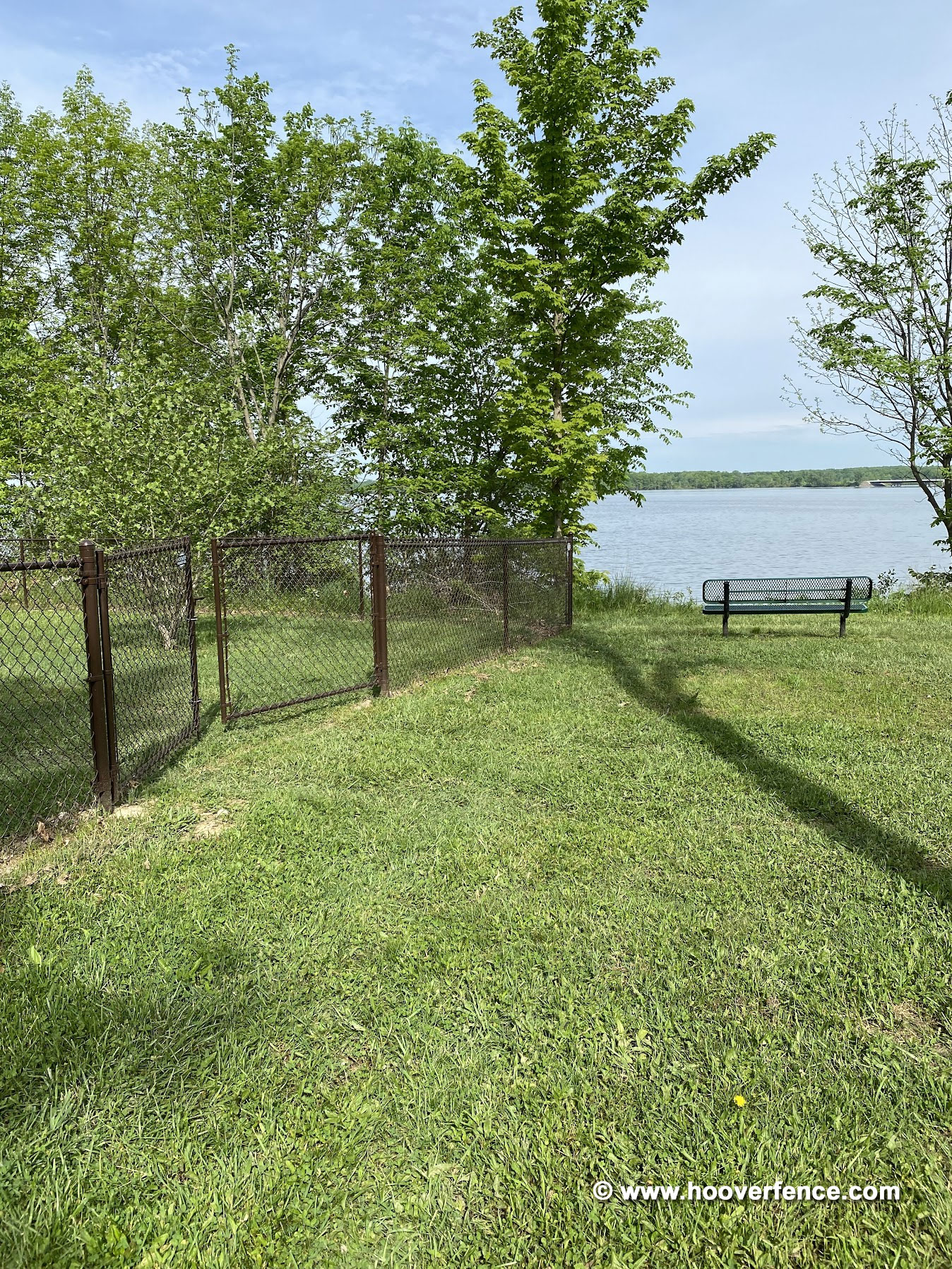

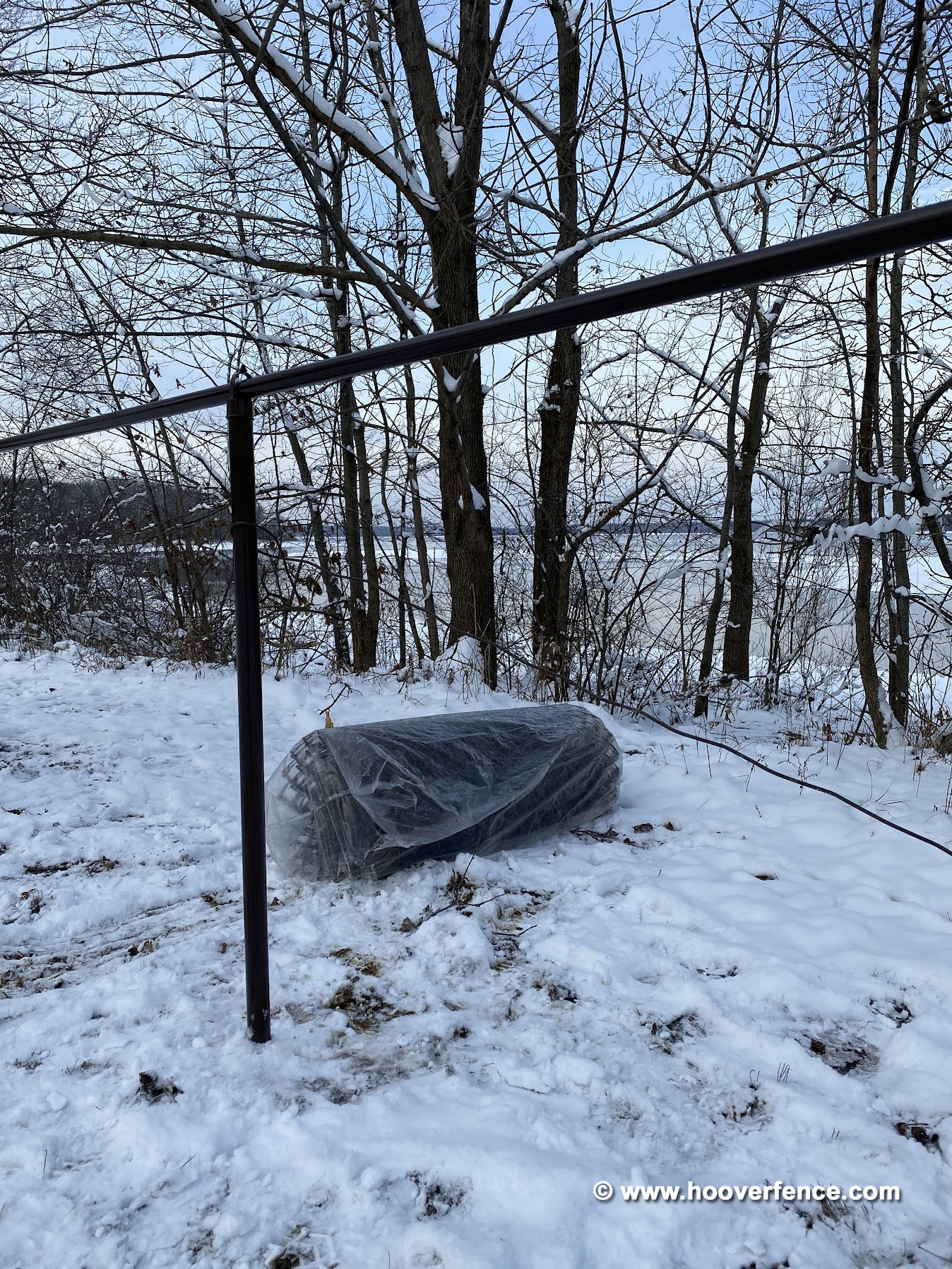

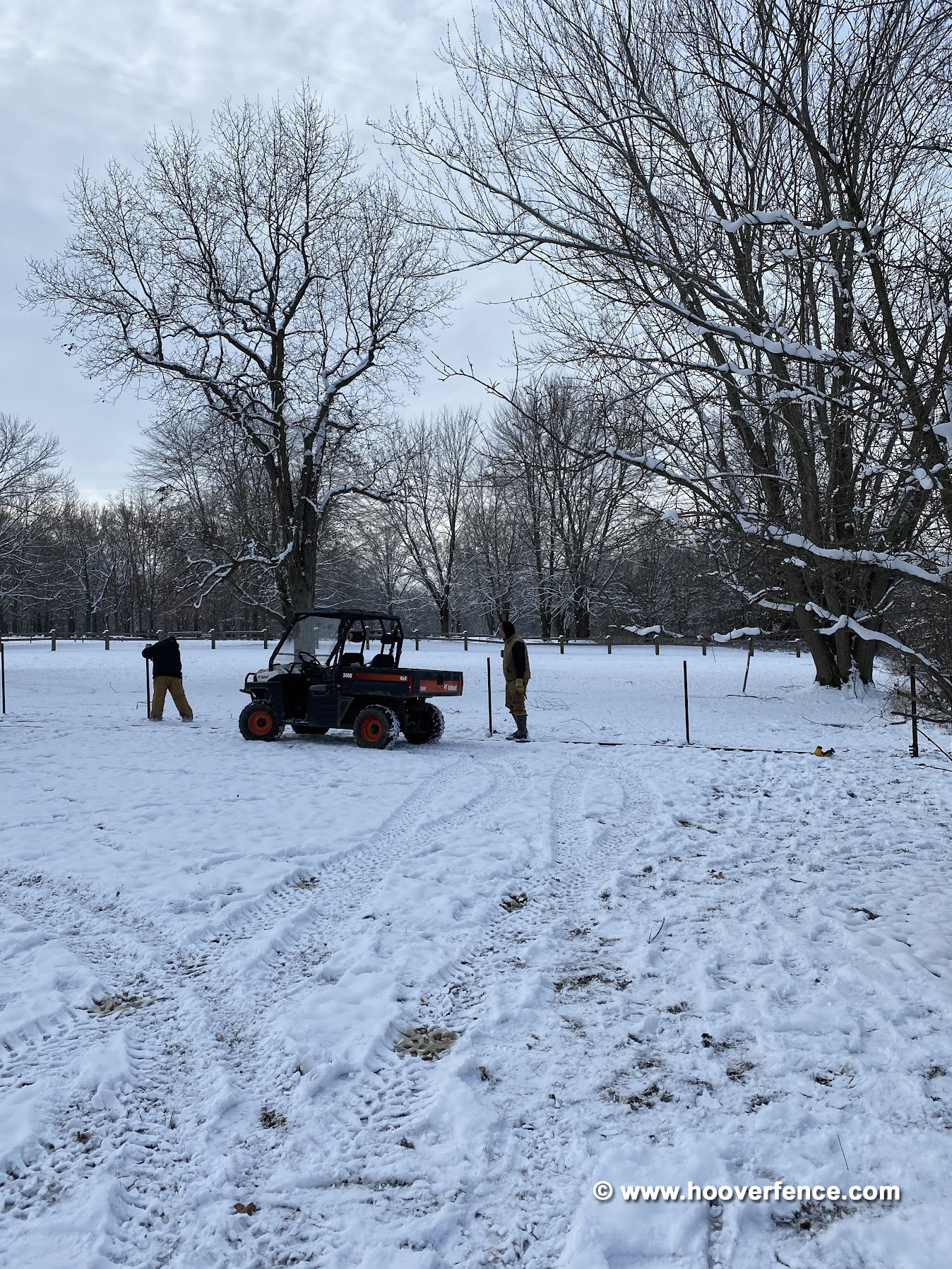

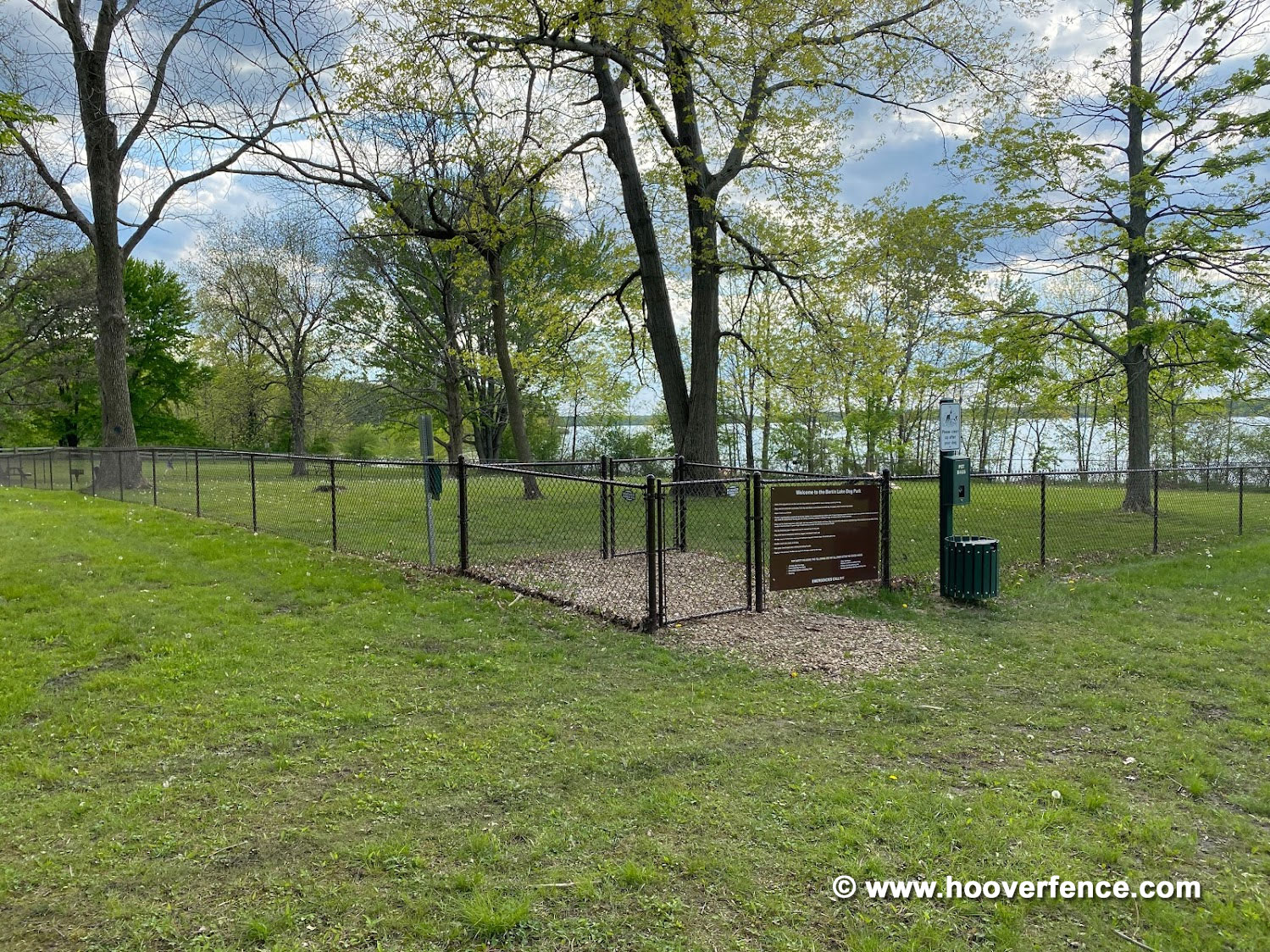

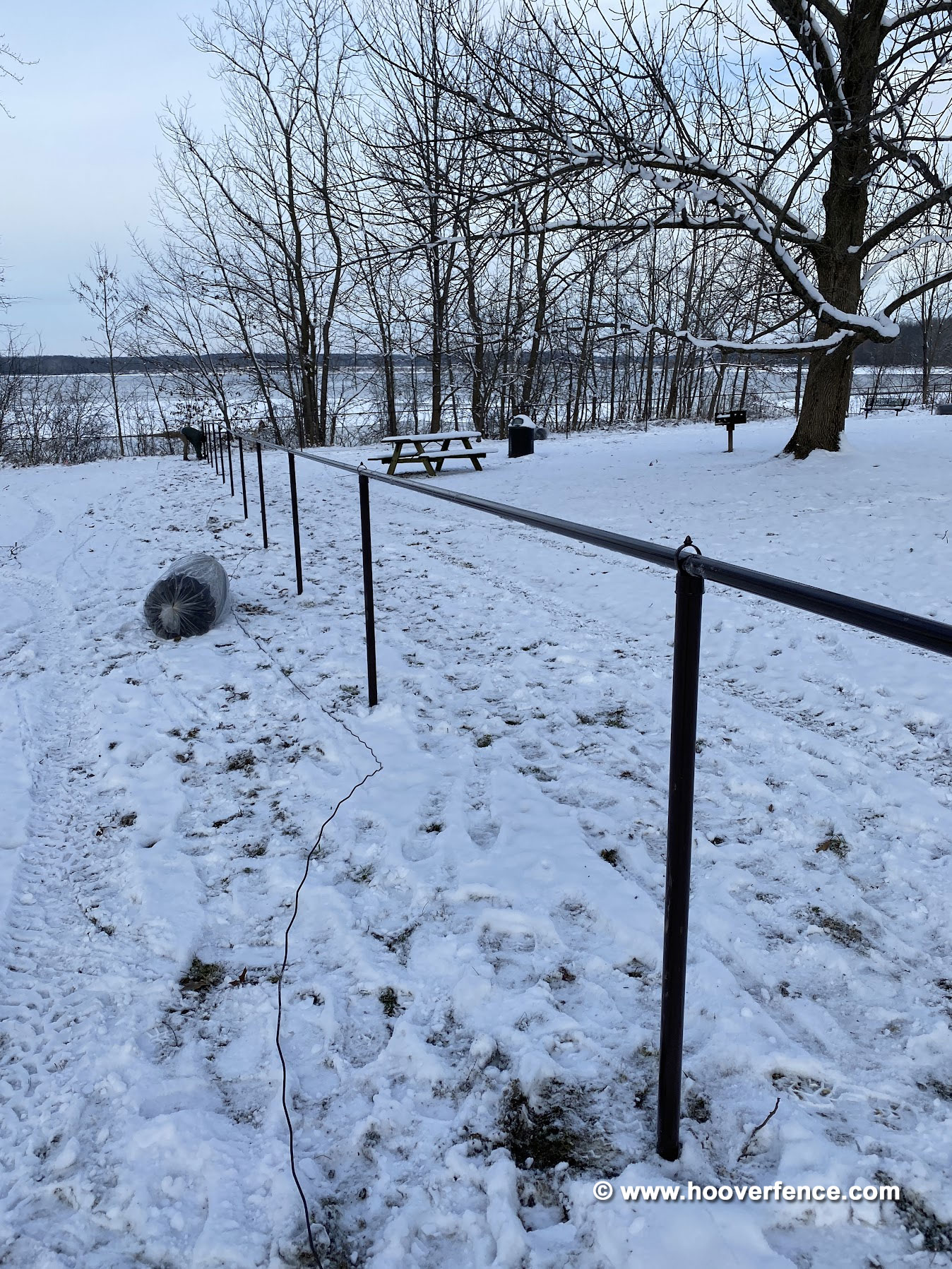

Here are some installation photos of a customized Brown Chain Link Fence Kit for a Dog Park at Berlin State Park.

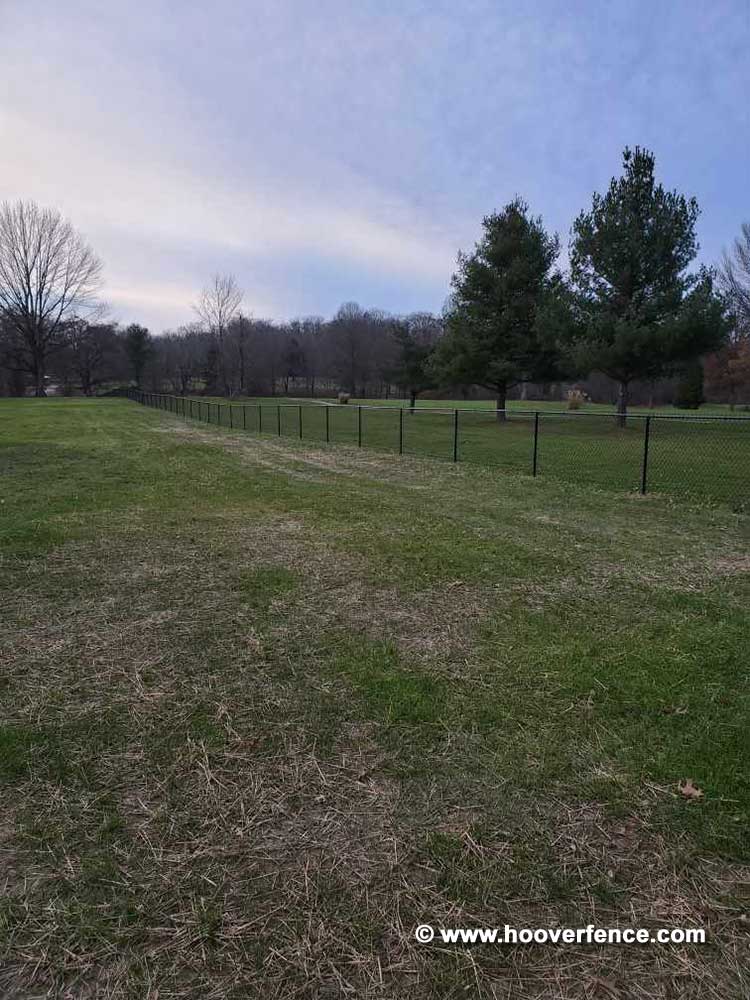

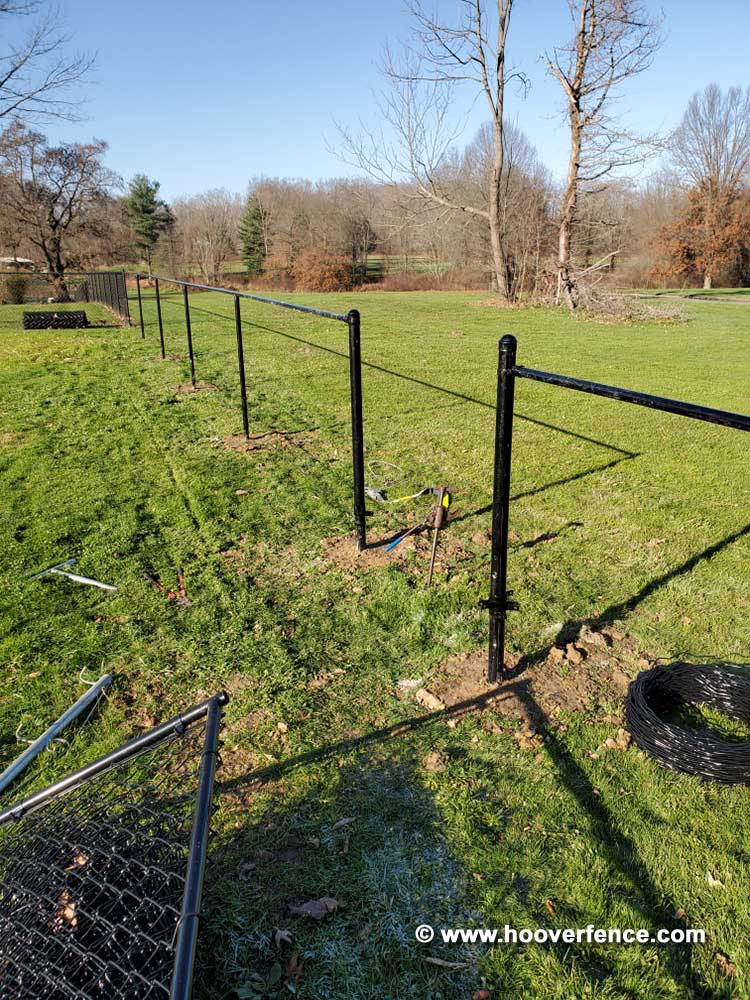

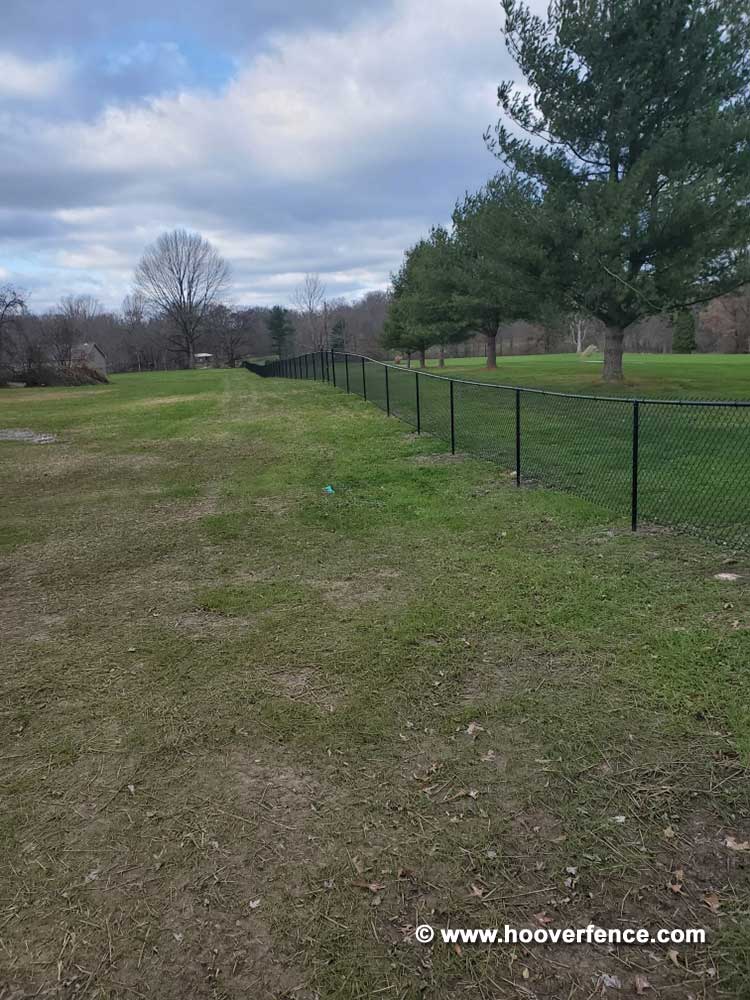

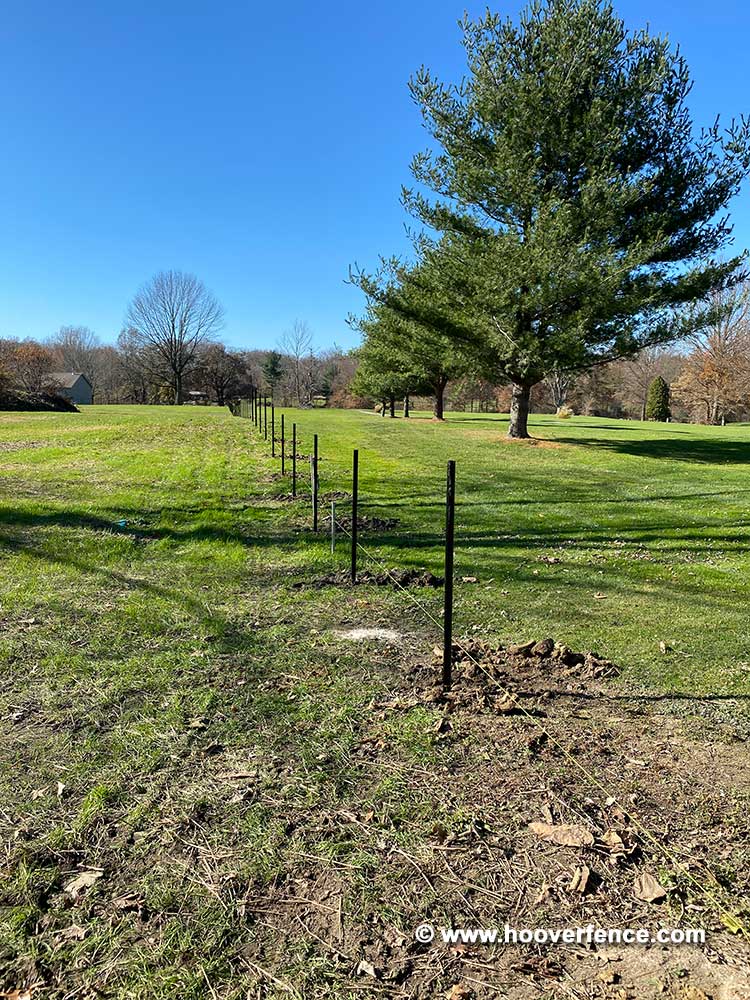

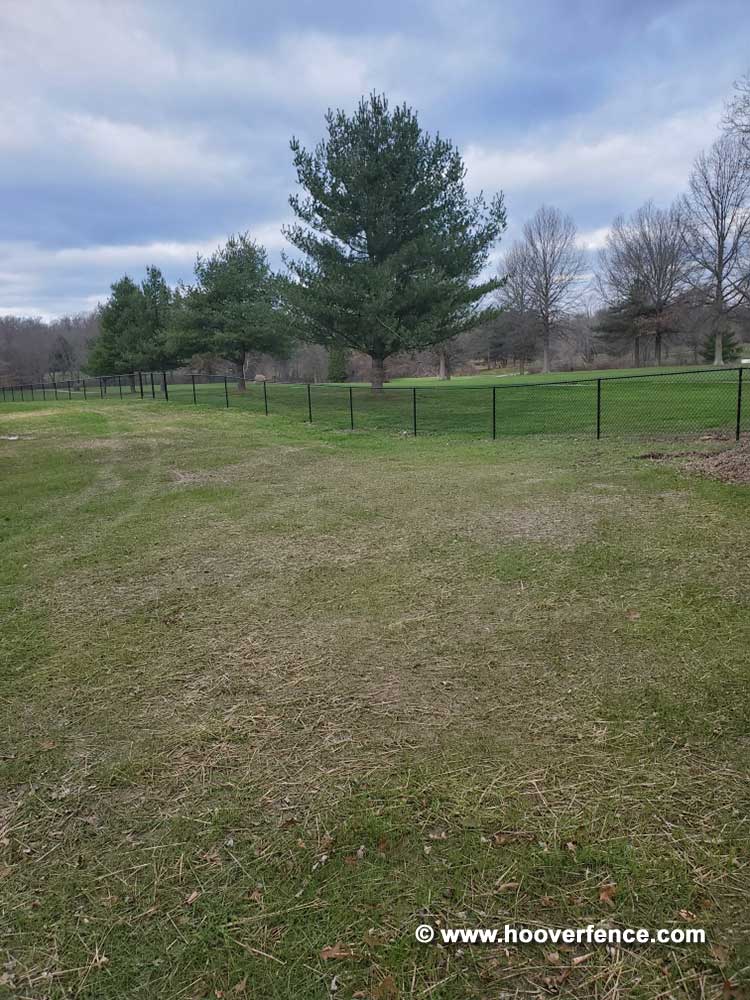

Hoover Fence Co Installation - 4' High x 500' Black Chain Link Fence Kit - Champion, Ohio

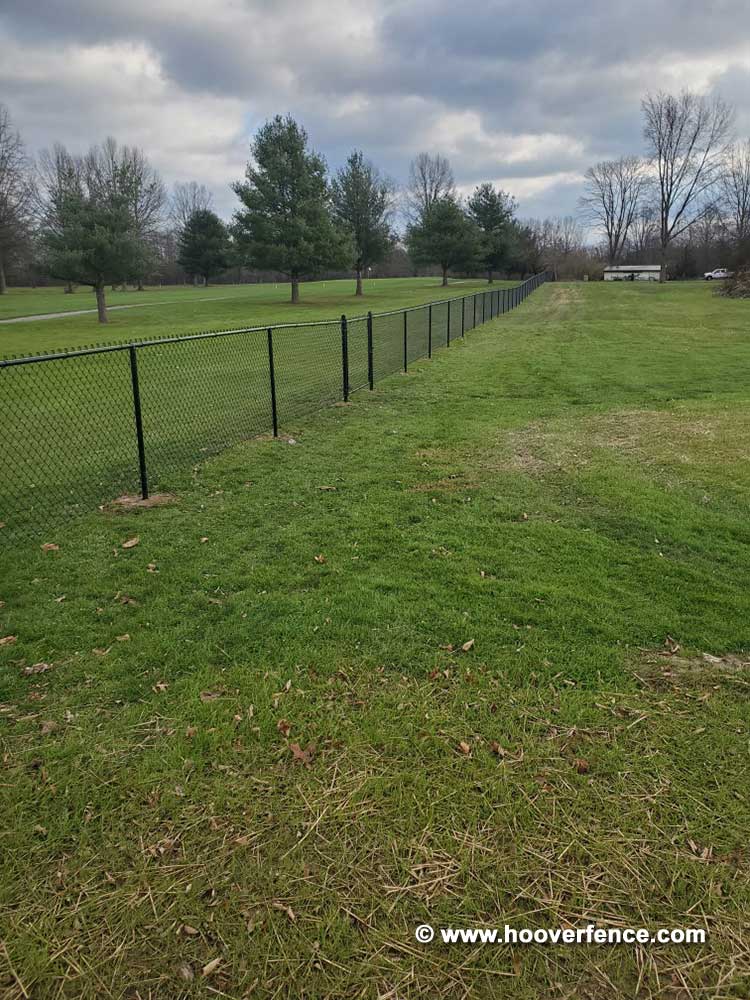

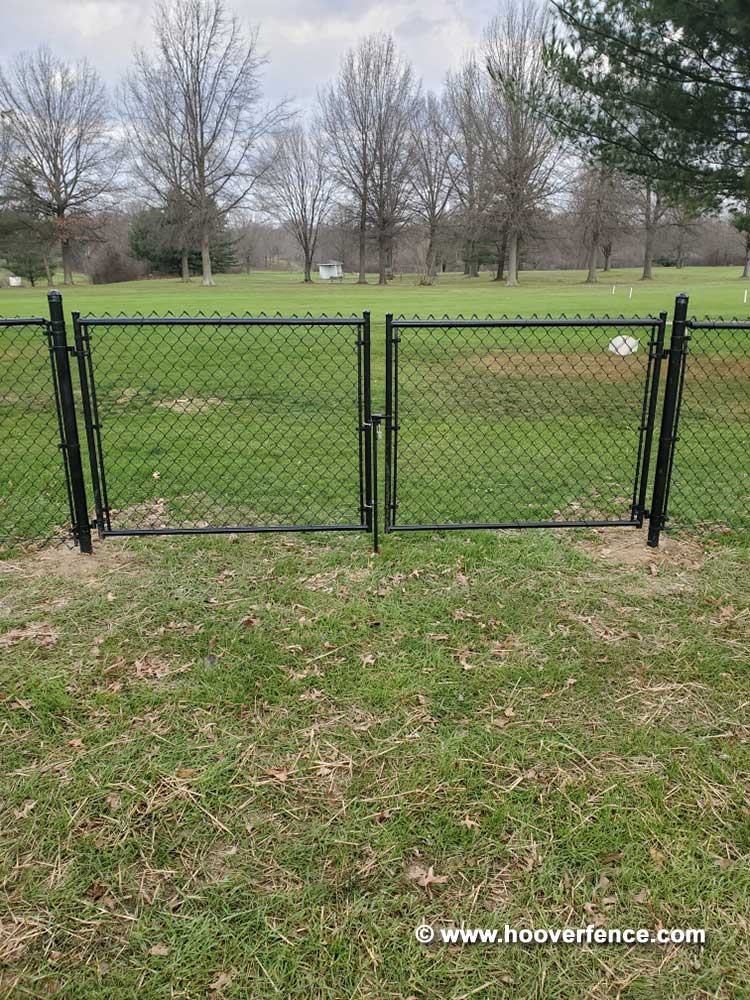

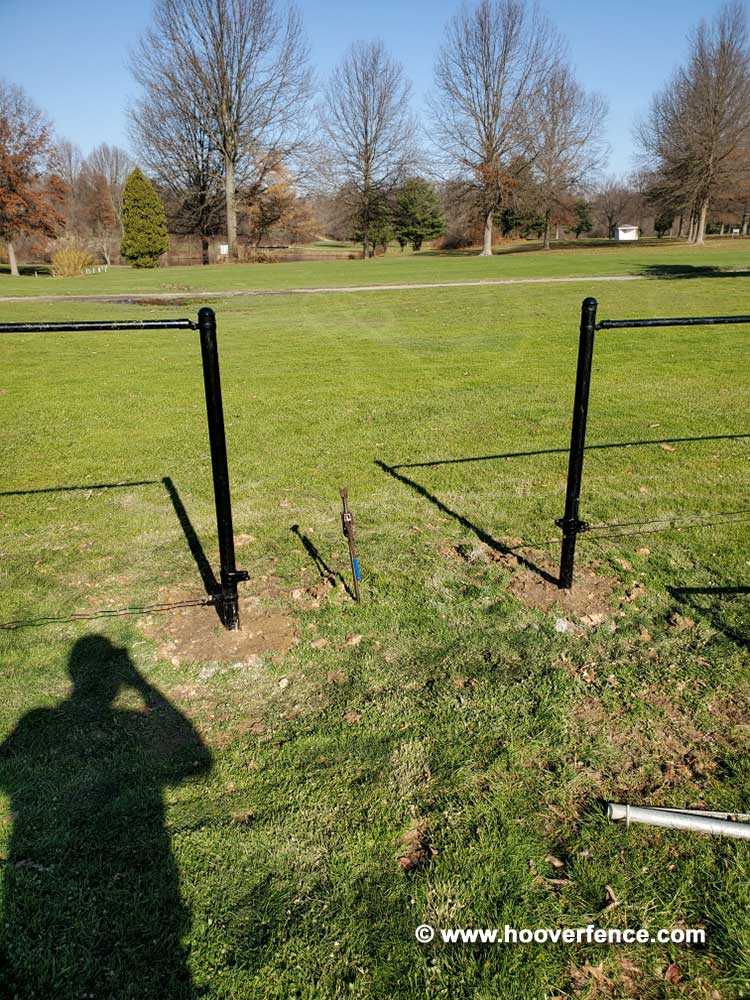

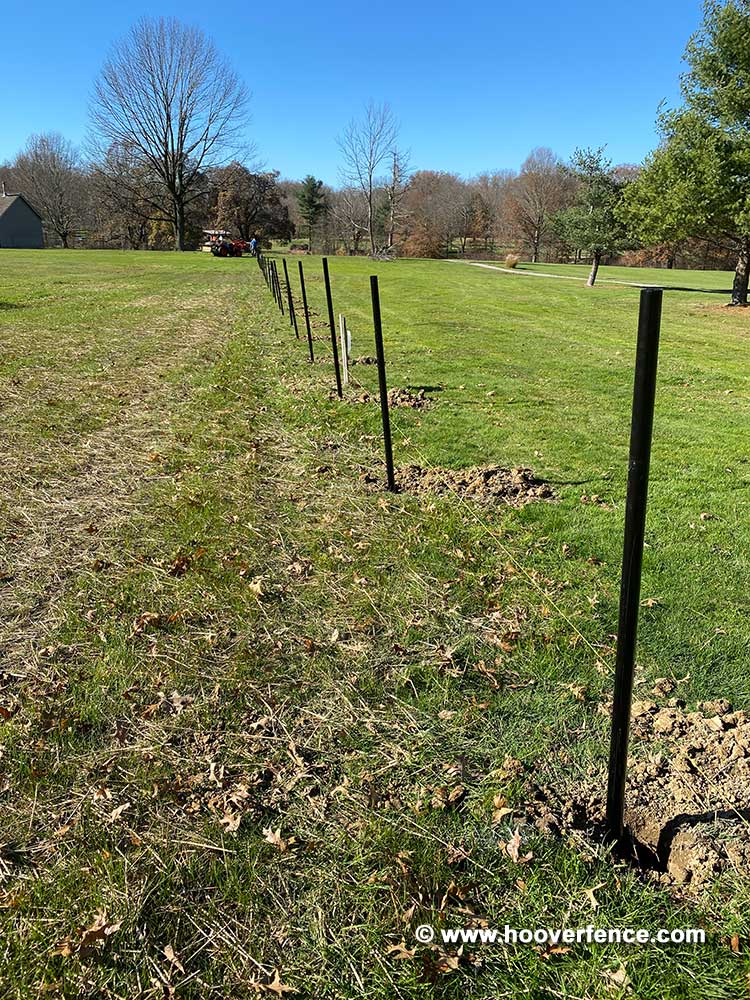

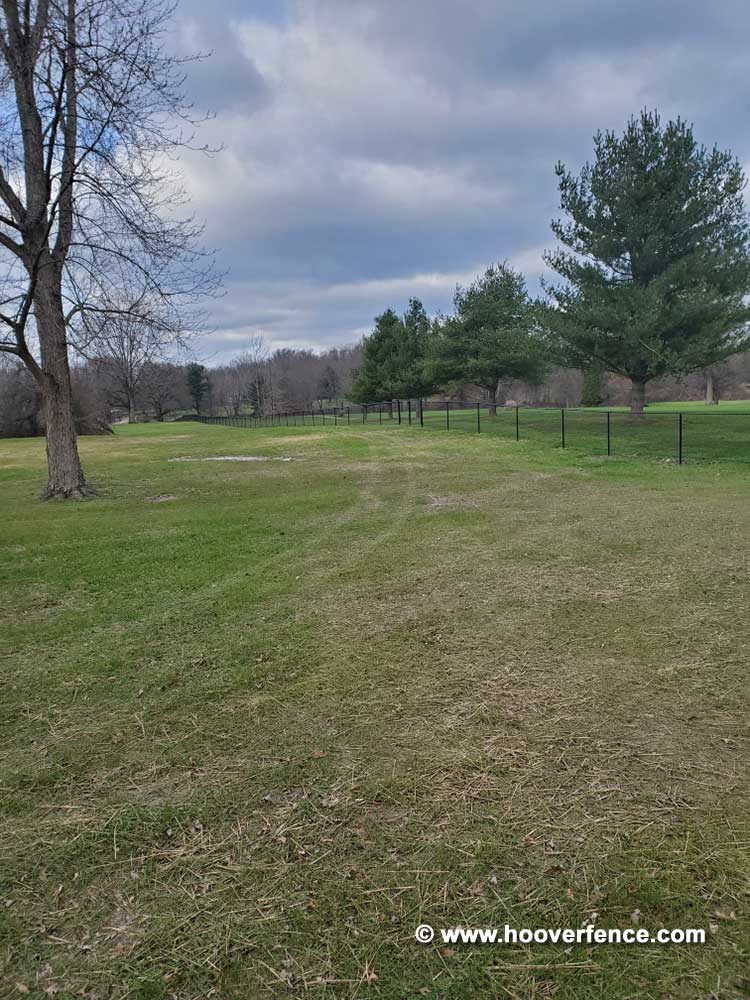

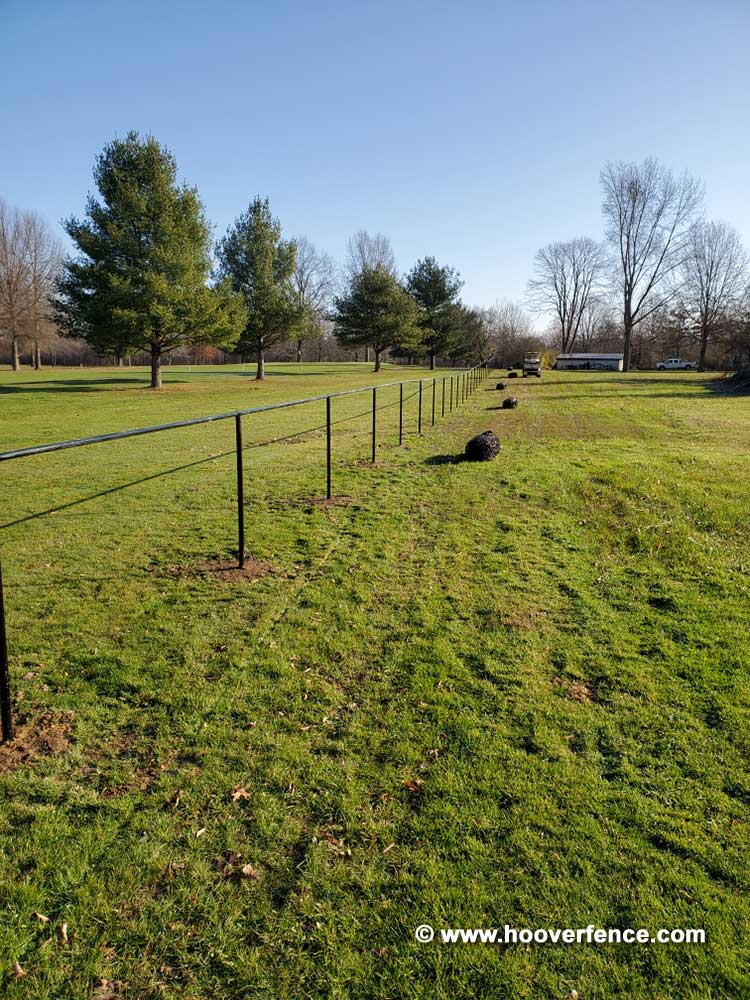

Here are some great pictures from a recent installation of one of our 4' High x 500' Complete Chain Link Fence Kits in black coated. We installed this kit out in Champion, Ohio and we are proud of how it turned out. Our color coated chain link fence kits include all the pieces and parts that you need to install your black, brown, or green chain link fence.

Hoover Fence Co Installation - 4'H x 500' Black Chain Link Fence Kit - Champion, OH

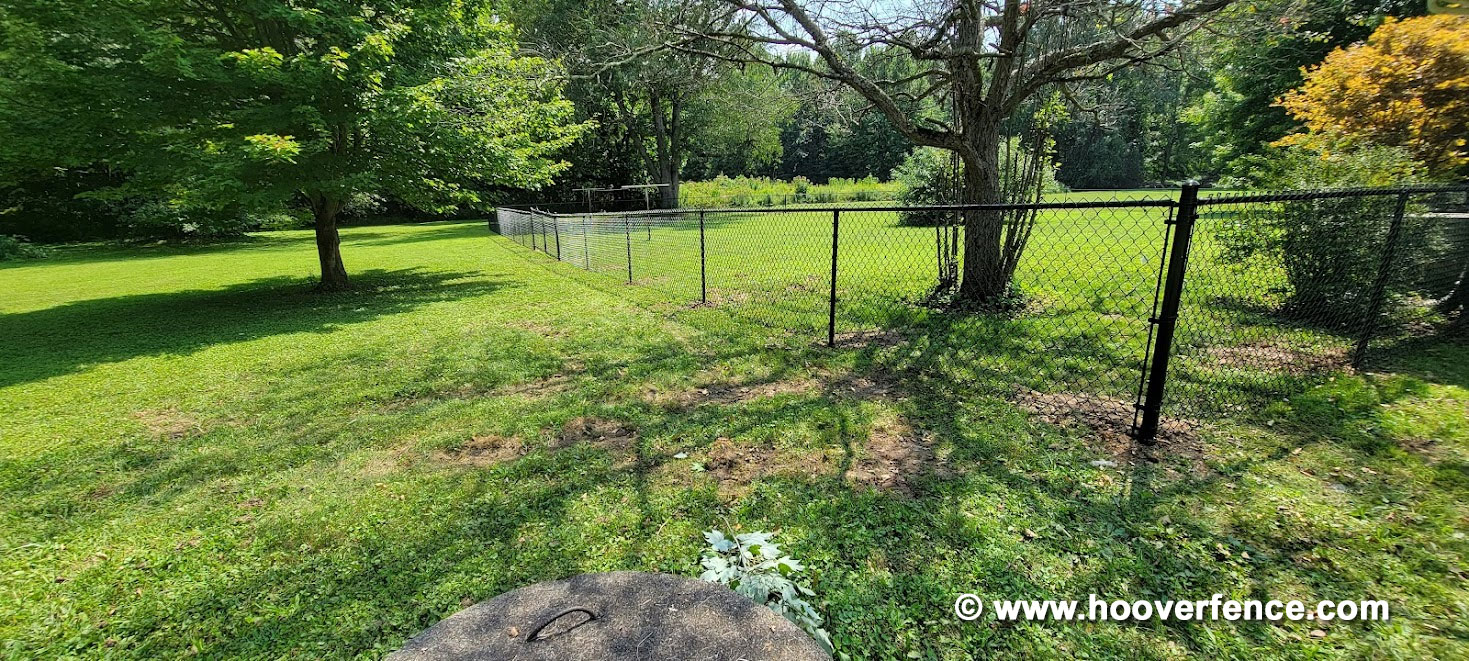

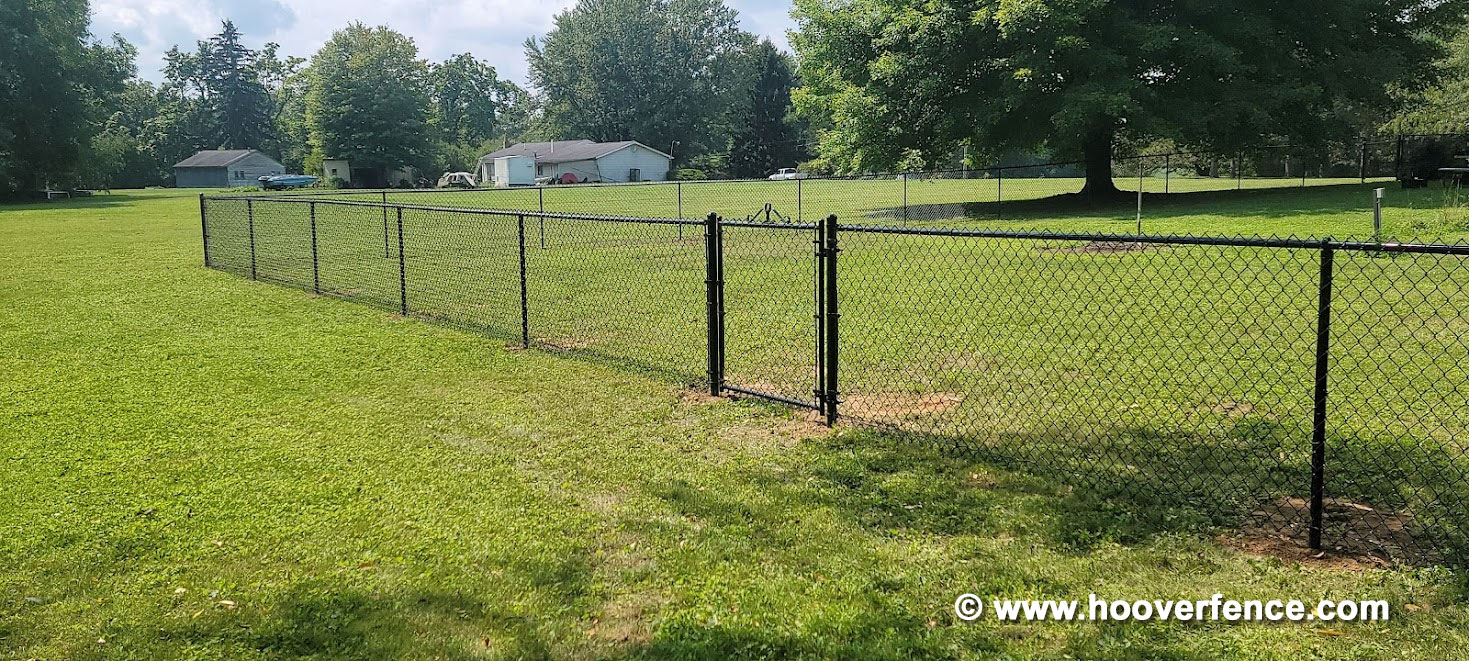

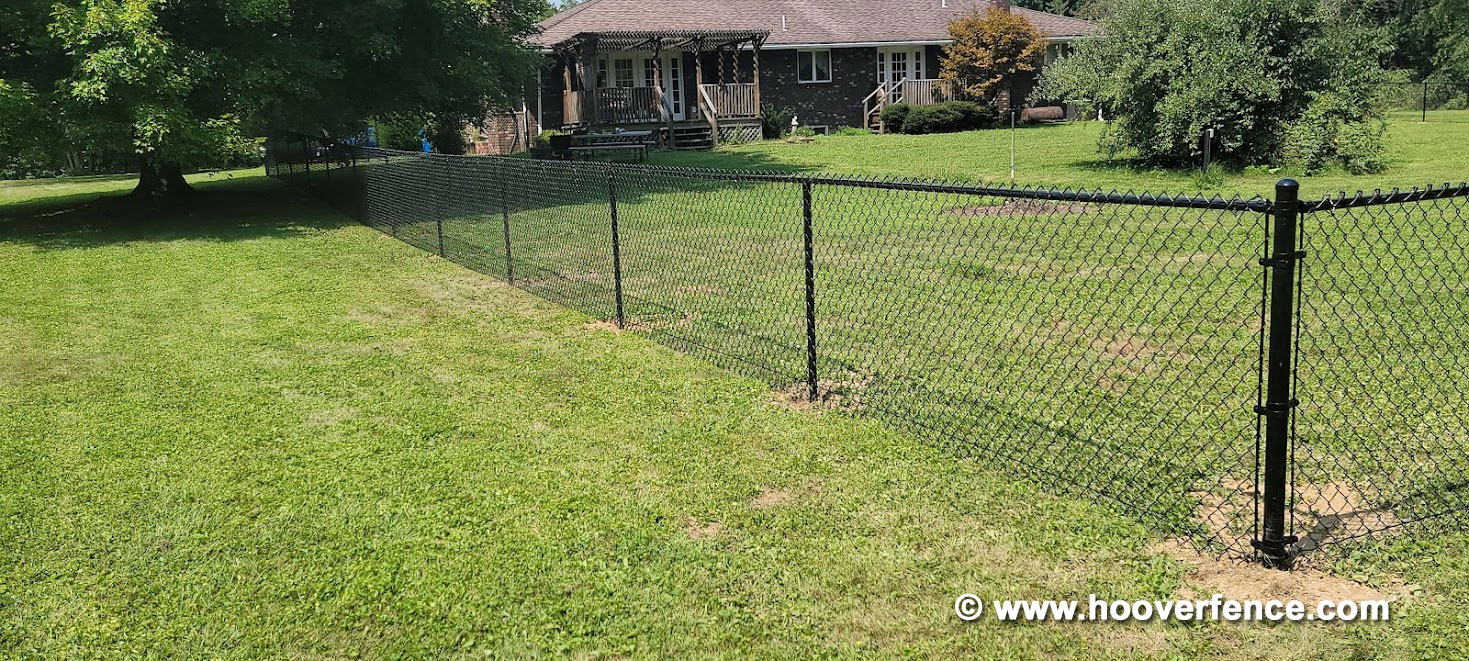

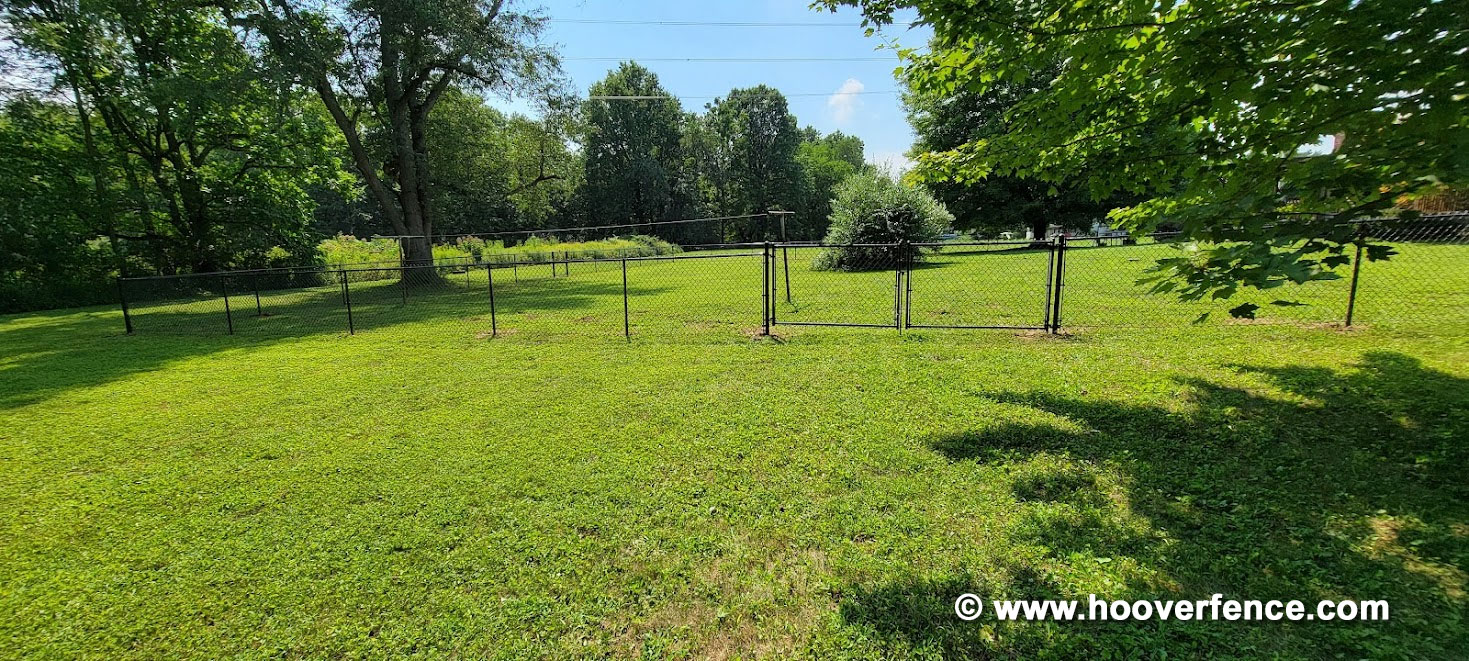

Hoover Fence Co Installation - 4'H Black Chain Link Fence Kit - Newton Falls, OH.

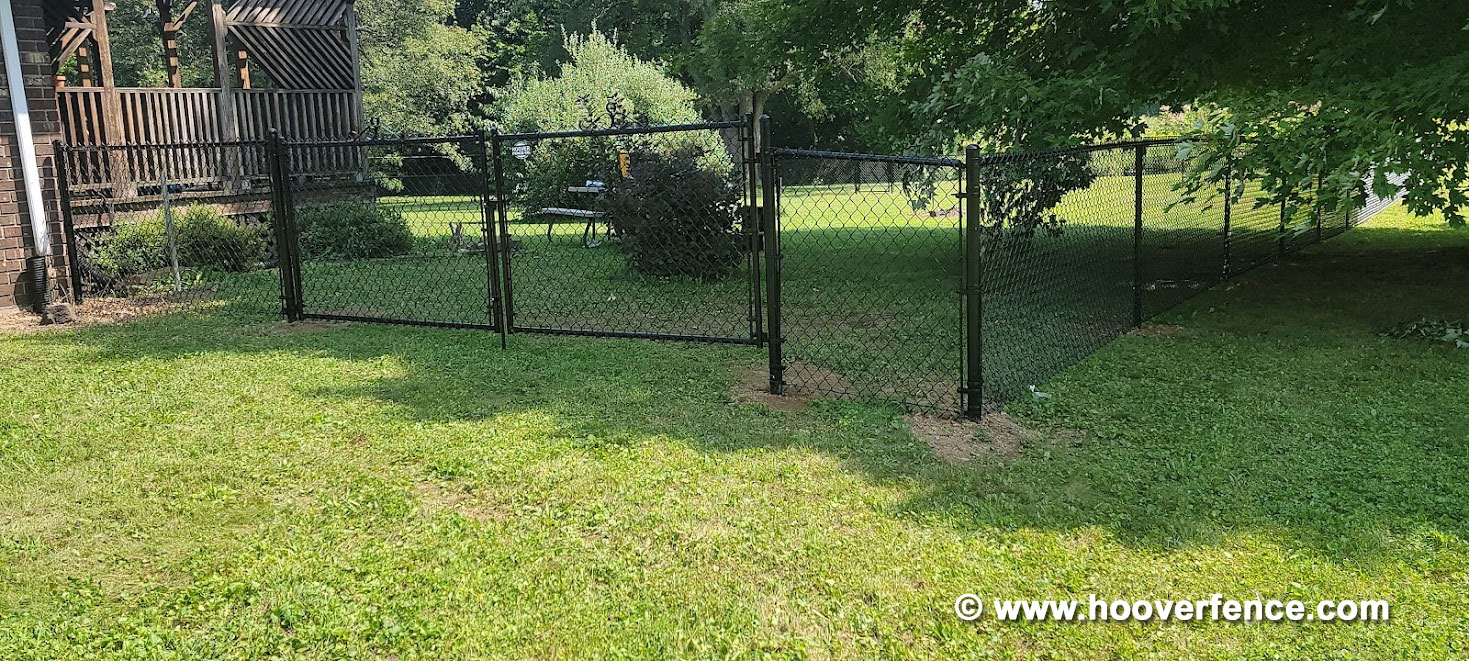

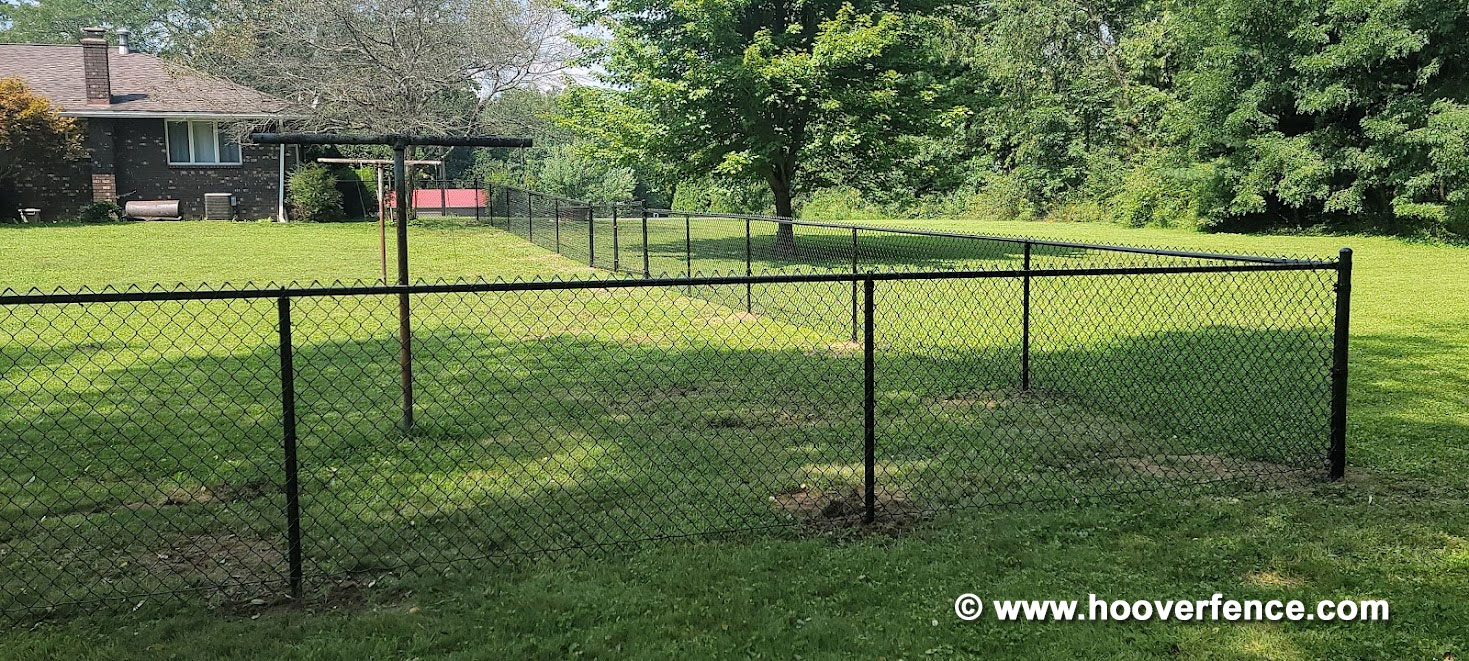

Here are some photos of a local installation of our 4'H Black Chain Link Fence Kit. This was a pretty standard lot layout, but the slope of the terrain required us to offset the double gates.
