Snug Cottage Hardware Heavy Duty Straight Strap Hinge for Wood Gates, Pair
Item # 8307-P
Details
Details
Heavy Duty Straight Flat Strap Hinge with 3/4" Eye (8307)
Our Heavy Duty Straight Flat Strap Hinges are an excellent option for your heavier wood or cellular PVC gates. They are sold in pairs and can be used with any of our 3/4" pin selections for a versatile way to hang almost any gate.
The 8307 hinge is mounted with (1) carriage bolt and (2-3) lag screws depending on the length. If you are planning on using this with the Adjustable Hinge Mount with Threaded Pin (#8256), then you will need to install a spacer block between the hinge and gate frame to keep the two parts on the same plane.
Heavy Duty Straight Flat Strap Hinge with 3/4" Eye (8307) Features:- Extremely Heavy Duty Straight Straps for Hanging Heavy Gates and Doors.
- Intended for use on wood and cellular PVC applications.
- Available in 12", 18", 24" or 36" lengths.
- Straps are 2 1/4" wide x 3/16" thick.
- 3/4" eye to fit our 3/4" pins (Sold Separately).
- Sold in pairs.
- Manufactured from forged steel.
- Available in Hot Dipped Galvanized or Black (BPPCG) finishes.
- Fasteners not included, but are available as a Fastener Pack with all the fasteners needed for mounting, see the link below in the "PARTS FOR THIS PRODUCT" section to select the correct size of fasteners needed for your application.
Specifications
Specifications
12" Heavy Duty Straight Strap Hinge - Specifications
18" Heavy Duty Straight Strap Hinge - Specifications
24" Heavy Duty Straight Strap Hinge - Specifications
36" Heavy Duty Straight Strap Hinge - Specifications
| SKU | Length | Eye Size | Finish | Weight Per Pair |
|---|---|---|---|---|
| 8307-12P | 12" | 3/4" | Black | 4.0 lbs. |
| 8307-122 | 12" | 3/4" | Galvanized | 4.0 lbs. |
| 8307-18P | 18" | 3/4" | Black | 6.0 lbs. |
| 8307-182 | 18" | 3/4" | Galvanized | 6.0 lbs. |
| 8307-24P | 24" | 3/4" | Black | 8.0 lbs. |
| 8307-242 | 24" | 3/4" | Galvanized | 8.0 lbs. |
| 8307-36P | 36" | 3/4" | Black | 12.0 lbs. |
| 8307-362 | 36" | 3/4" | Galvanized | 12.0 lbs. |
Weights shown are approximate.
Instructions
Instructions
- Ideally used with any of our 3/4" pin selections but is most commonly used with our 8801 pins.
- The single Straight Flat Strap design allow these to be used on any thickness of gate.
Customer Photos
Customer Photos
Here is a photo from our customer Randy down in Kingsville, TX, of an incredibly heavy-duty gate/door that he built using 4x6 lumber and two layers of corrugated metal. He estimates the gate weighs over 200 lbs and works perfectly! He hinged the door using Snug Cottage 8307-182 18" Heavy Duty Single Strap Hinges and 8308-072 3/4" Pins. The gate looks great and is an awesome design which even has a speak-easy style grill.
Customer Comments:
"I purchased some of your 18 inch Heavy Duty Straight Strap Hinges and 3/4" Pins that I used on my side gate. I will say that I am impressed (and I am not easily impressed). I jumped up and down on the bottom one before I installed it on the door and just one of the hinges easily supported my entire body weight (175 pounds). FYI the door weighs well over 200 pounds. The framing is 4 x 6 lumber with 10 mortise and tenon joints and the corrugated metal part of the door is 3 sheets thick of 26 gauge steel…I included a photo!
The project looks great Randy and we can't wait to see your other gate projects! Thanks again and keep up the great work!

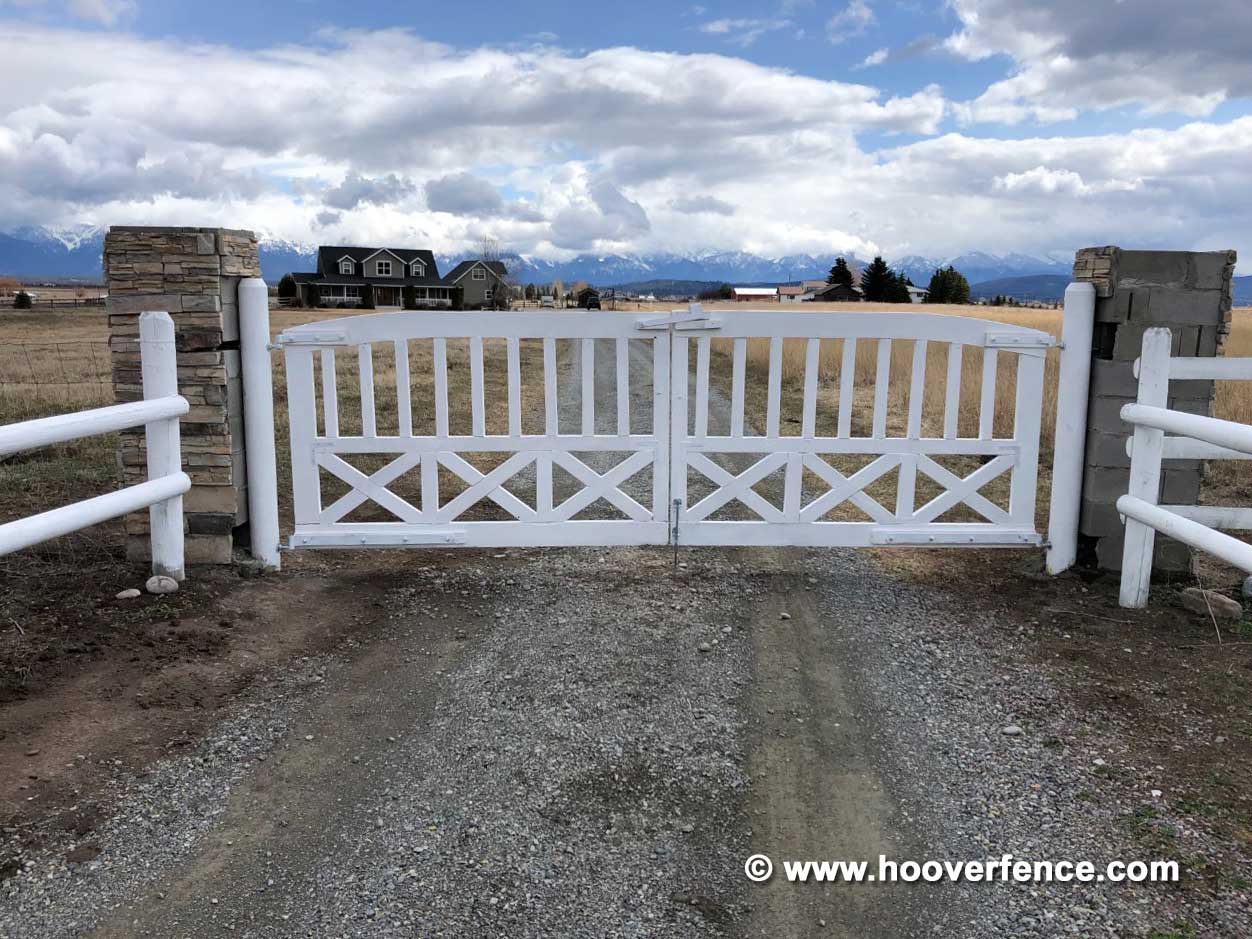

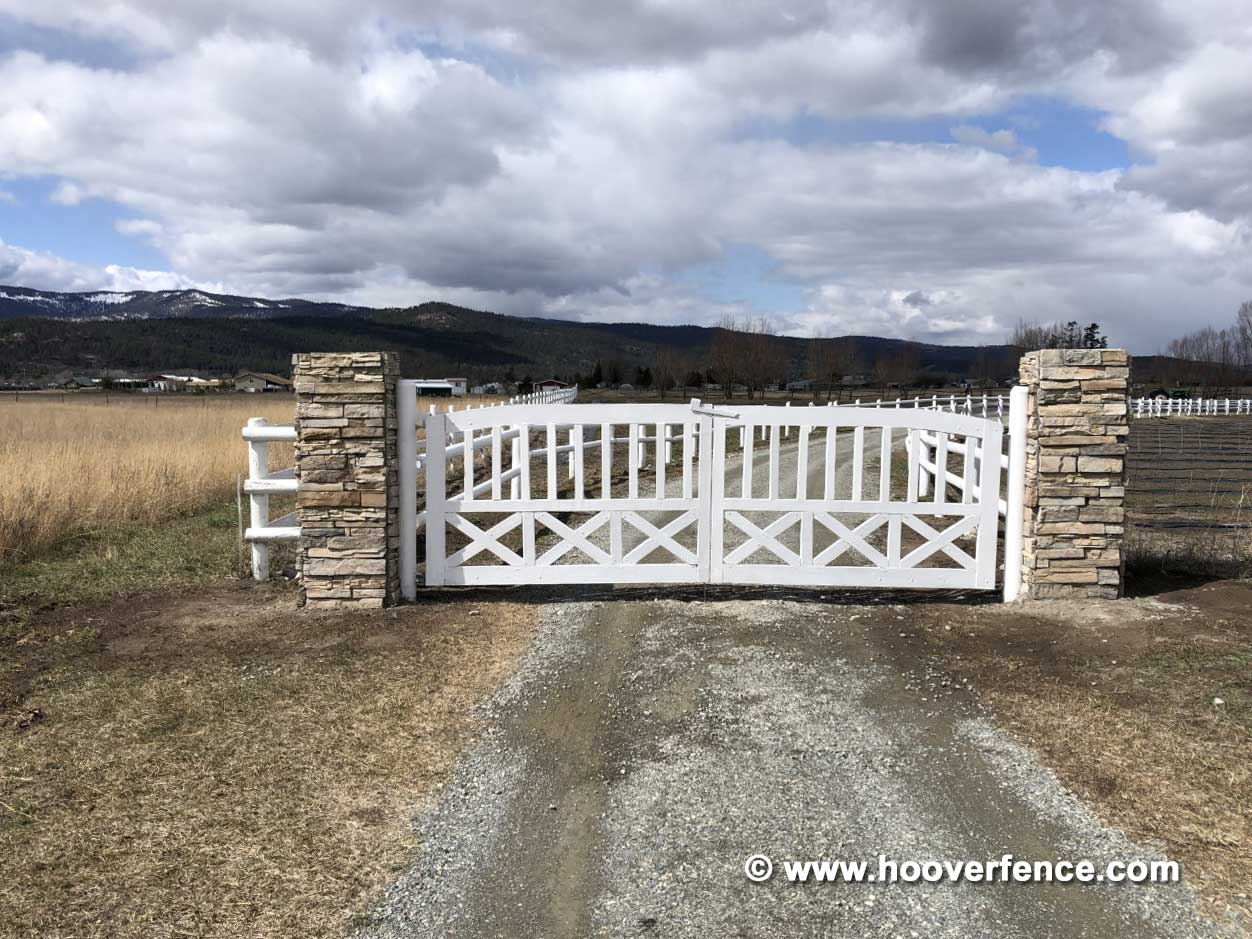

Here are a couple of pictures from our customer Jaime out in beautiful Montana of an awesome wooden driveway gate that was hung using our Snug Cottage Hardware 36" Heavy Duty Straight Strap Hinges (8307-362) and latched with the 3" Throw-Over Gate Loop (4200-032). The gates, fence, and columns look great Jaime, thank you so much for sharing!
Here are a couple of pictures of a very heavy duty door that our customer built and hung for his new bar/restaurant over in Idaho. Larry chose to use a variety of Snug Cottage Hardware to hinge the door, and he couldn't be more pleased with the results.
The Gate Hinges used are a combination of 8305 Series Heavy Duty Cranked Strap Hinges, 8307 Series Heavy Duty Straight Strap Hinges, and 8256-34P Mounting Plates with 8" Adjustable Pins. All this hardware is finished in a black powder coated polyester which is applied over hot-dip galvanized steel, creating an incredibly durable product.
The project looks great Larry! Good luck with the new restaurant!
Reviews
Reviews
Average Customer Rating:
(7 Reviews)
Write a Review (requires login)
Great job
Great job. Order and sent fast. Good selection thanks
Great service
Great service
Fast turnaround and well packaged..
Fast turnaround and well packaged items. Very Satisfied with Hoover Fence..
They had what I needed
They had what I needed, received the product in a timely fashion.
Great product
Great product. The door I installed works great now because of the nice fitting hinges. The only issue I saw was the paint drips on the hinge.
