D&D Technologies SureClose ReadyFit SM Hinge

Item # SURECLOSE-RF-SM

Sold Individually

D&D Technologies SureClose ReadyFit SM Hinge

Actual product(s) may vary from pictures shown

D&D Technologies SureClose ReadyFit SM Hinge (SURECLOSE-RF-SM)

D&D Technologies SureClose ReadyFit SM Hinge (SURECLOSE-RF-SM) - Specifications

Details

SureClose® Brochure

SureClose RF SM Hinge - RF SM S (74001313) & RF SM W (74001315)

The SureClose® ReadyFit Hinges are compact, heavy-duty, hydraulic, hinge-closers designed for commercial, industrial and estate gates. Stylishly designed and corrosion resistant, SureClose ReadyFit hinges use high strength aluminum with stainless steel components, aluminum components have a 50 micron thick anodizing finish. The external mounting brackets allow quick and easy alignment and installation. No need for drilling large holes! Designed for commercial, industrial, custom residential and estate gates, SureClose ReadyFit hinges come in three basic models, with choice of aluminum or steel mounting brackets. The standard self-closing model (RF 108) features a final snap action for overcoming electric or coded locks found in many security applications. Optional Safety Model (RF 108SF) does not hold open at 90°, making it ideal for Safety Gates. Also available is a non-self-closing model (RF SM) for access control and most heavy commercial or residential gates. Hinges can be used in different combinations for a variety of applications.

SureClose® ReadyFit SM Hinge Features:

NON Self-Closing
External Flush Mounting Brackets
Available with Aluminum Screw-On Bracket (RF SM S) or Steel Weld-On Bracket (RF SM W)
Max Gate Swing: 178°
Fence Post Minimum: 2"+
Easy install - No special tools or holes in post
Gap variance of 1/2" to 1 3/8" (12-35mm)
All mounting brackets and fasteners included
Quick alignment legs
Designed for new and existing gates
1500 lb. (680kg.) point-load capacity.

SureClose® ReadyFit Hinge Features:

For all square posts, steel or aluminum gates - Fits a broad range of applications
Dual Bearing Glide System - Withstands heavy loads
Aluminum products have 50 micron thick anodizing - High corrosion resistance
Tested to 500,000 cycles - Robust and durable
Left of right handed, inswing or outswing - Works on gate swing designs
Mounting brackets can be powder coated and/or painted - Non-invasive
Best warranty in the industry - Rigorous testing programs ensure SureClose is of the highest quality, enabling us to back each model with a 2-year warranty. If you have any problems, D&D will handle them personally.

Additional SureClose® ReadyFit Hinge Images

SureClose® ReadyFit Features

WARNING: California's Proposition 65

Specifications

SureClose Specifications (PDF)

SureClose ReadyFit Hinge Comparison Chart:

Item #	Model	Description	Fixing Method	Self-Closing From	Max Opening Angle	Final Snap/Close Action	Hinge Gap	Post Size Minimum	Weight Each
74001313	RF SM S	Hinge Only	Aluminum Weld or Screw	n/a	178°	n/a	1/2" to 1-3/8"	2"+	2.10 lbs.
74001315	RF SM W	Hinge Only	Steel Weld or Screw	n/a	178°	n/a	1/2" to 1-3/8"	2"+	2.93 lbs.
74108313	RF 108 S	Hinge/Closer	Aluminum Weld or Screw	83°	178°	YES	1/2" to 1-3/8"	2"+	2.91 lbs.
74108315	RF 108 W	Hinge/Closer	Steel Weld or Screw	83°	178°	YES	1/2" to 1-3/8"	2"+	3.74 lbs.
74108323	*RF 108SF S	Safety Hinge/Closer	Aluminum Weld or Screw	88°	88°	YES	1/2" to 1-3/8"	2"+	2.91 lbs.
74108325	*RF 108SF W	Safety Hinge/Closer	Steel Weld or Screw	88°	88°	YES	1/2" to 1-3/8"	2"+	3.74 lbs.
7403	**RF Gate Stop	Gate Stop	Steel Weld or Screw	n/a	85°	n/a	n/a	3"+	--

*Pool Safety Rated

**NOTE: Gate Stop must be used in conjunction with Safety Hinges. Gate must not be allowed to open past 90° (or 170° on 180 Model). Doing so voids warranty. (Example (PDF))

NOTE: Safety Hinges (SF) will NOT hold open at 90° . Do NOT use a hinge with a 90° hold open feature for pool/child safety gates. (Example)

Hinge Combination	*Self-Closing Gate Weight Max
108 + 108	260 lbs. (120kgs)
108 + SM	180 lbs. (80 kgs)

Access Control	Weight Capacity
SM + SM	1,500 lbs. (680kgs)

*Caution: Based on max gate size of 72"H x 40"W (1800x1000mm). For gates with greater HxW, or if conditions such as wind play a role, use hinge combinations with higher self-closing weight ratings.

Warranty

SureClose® ReadyFit Hinge Warranty (PDF)

Instructions

SureClose® ReadyFit Hinge Installation Guide (PDF)

Customer Photos

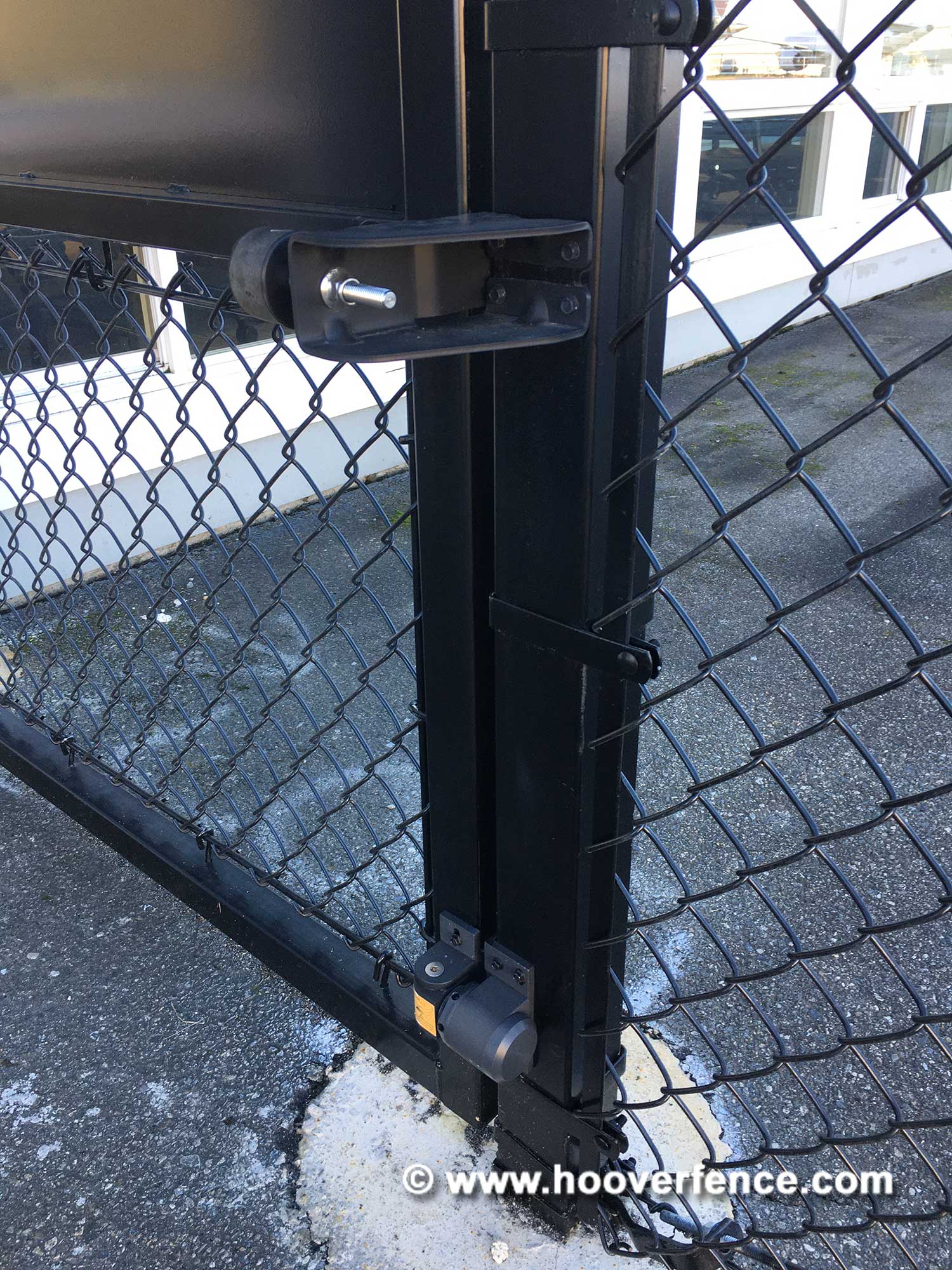

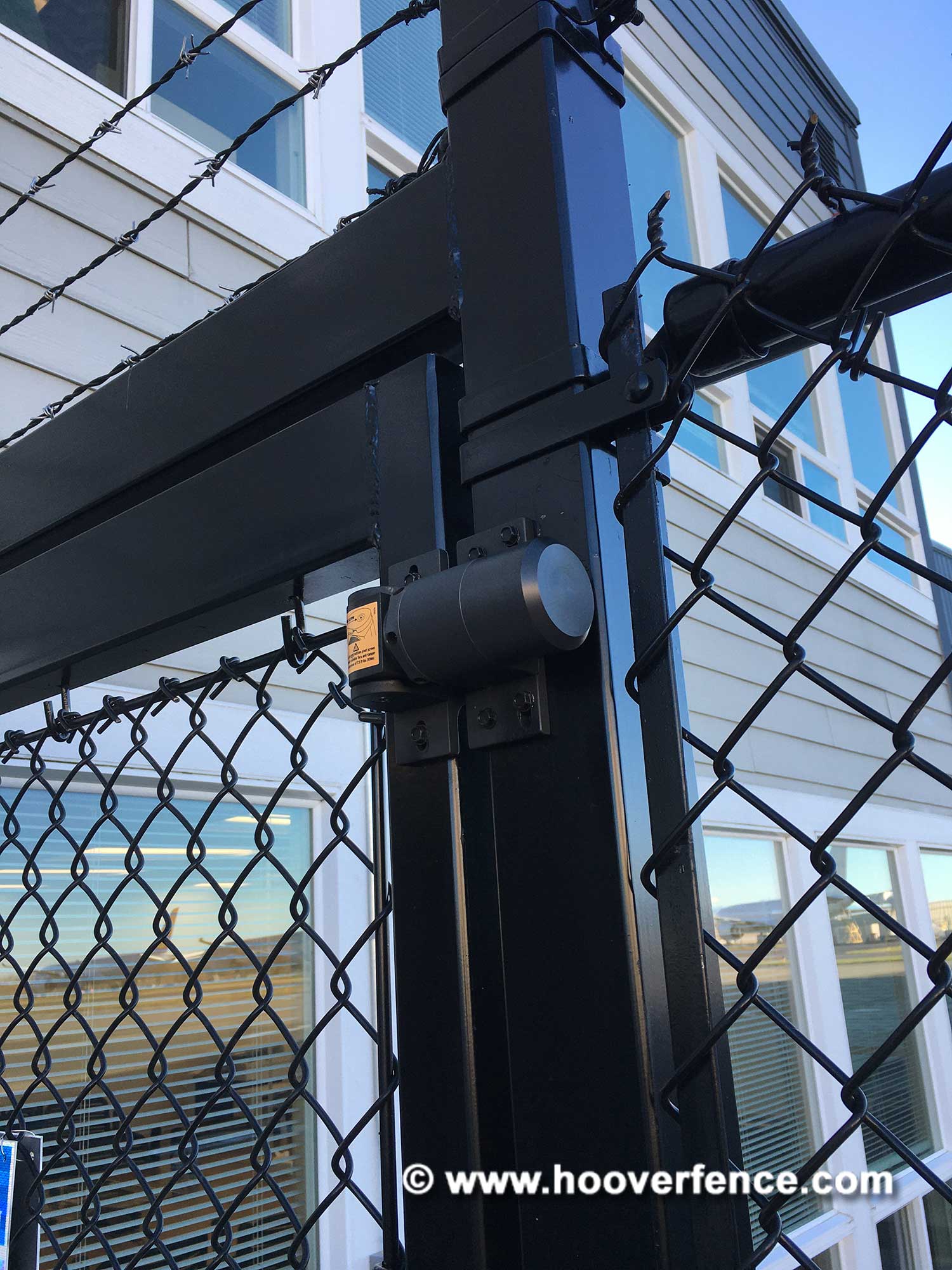

Customer Photo - SureClose ReadyFit Hinge and Hinge/Closer Installation - Black Chain Link Fence Gate - Olympia, WA

Here are a few pictures from a customer of ours out in Olympia, Washington of a very nice installation of an all black chain link swing gate which has a square frame. This particular installation required a combination of the RF-SM-S ReadyFit Hinge with Aluminum Brackets (74001313), a RF-108SF-S ReadyFit Hinge/Gate Closer (74108323), and a SureClose ReadyFit Gate Stop (7403).

The project looks great Crosby! Keep up the great work and we hope to continue to work with you on future projects!

Customer Install - SureClose ReadyFit Hinge and Closer Installed on Black Chain Link Fence Gate with 7403 Gate Stop

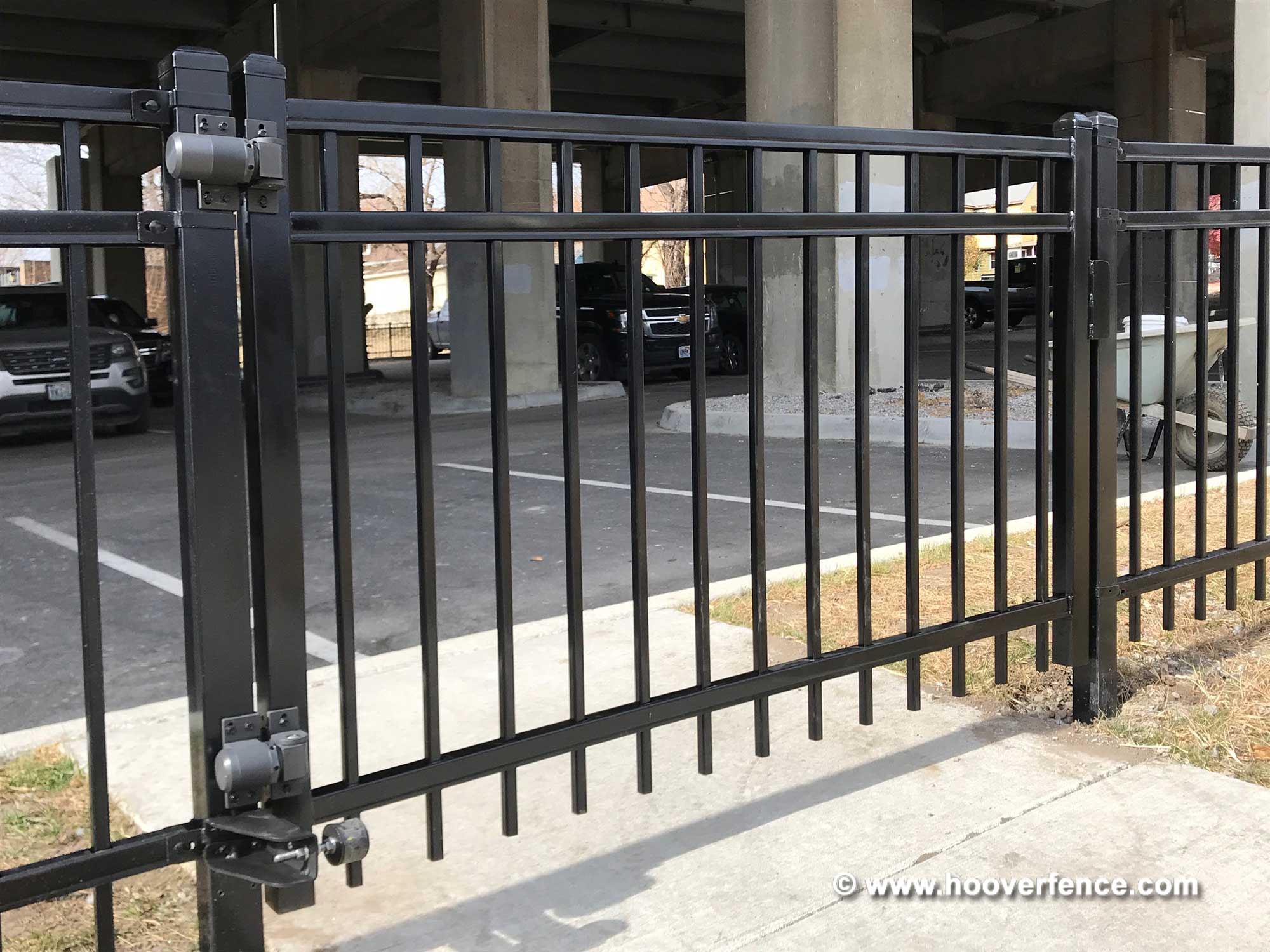

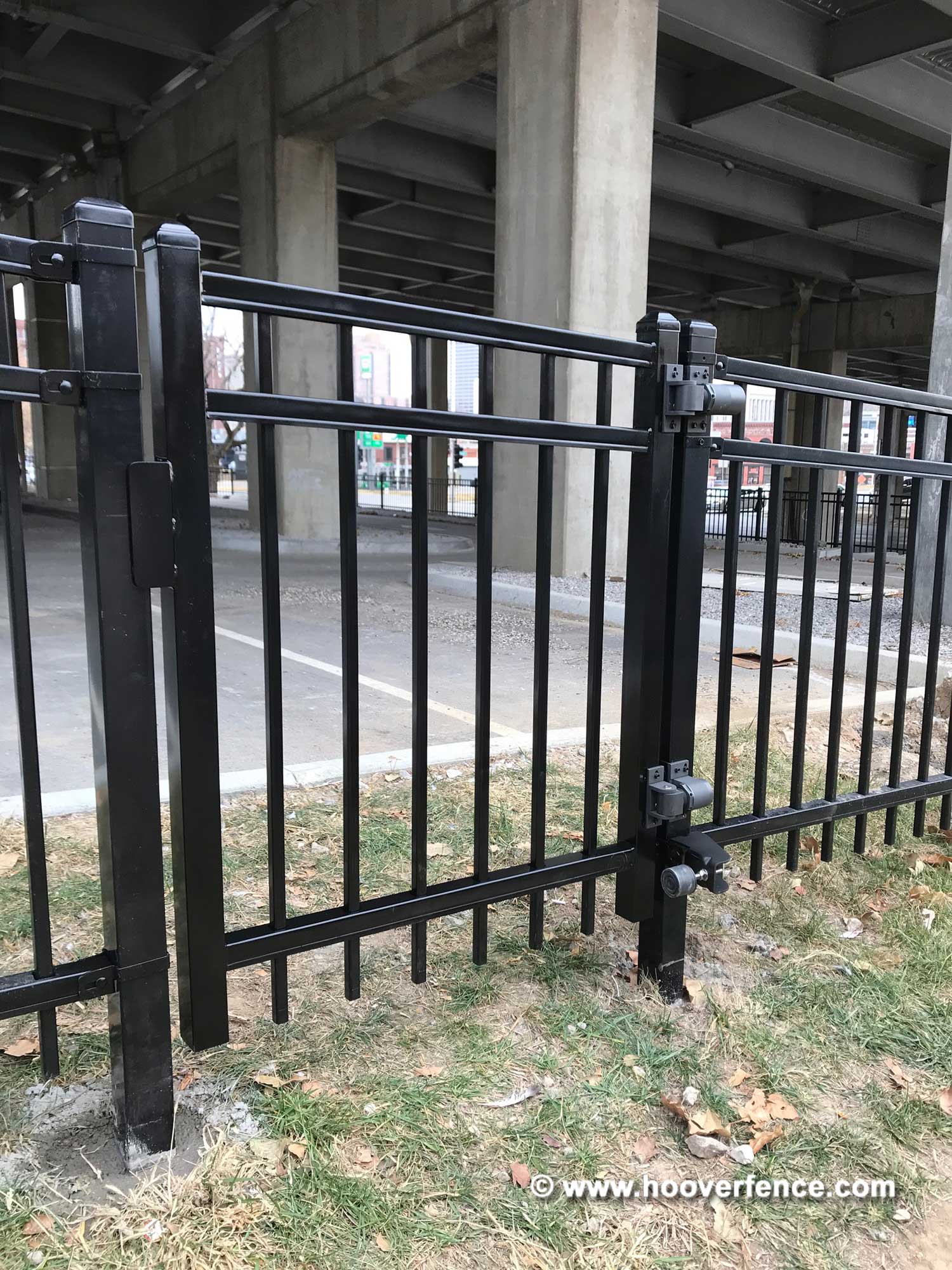

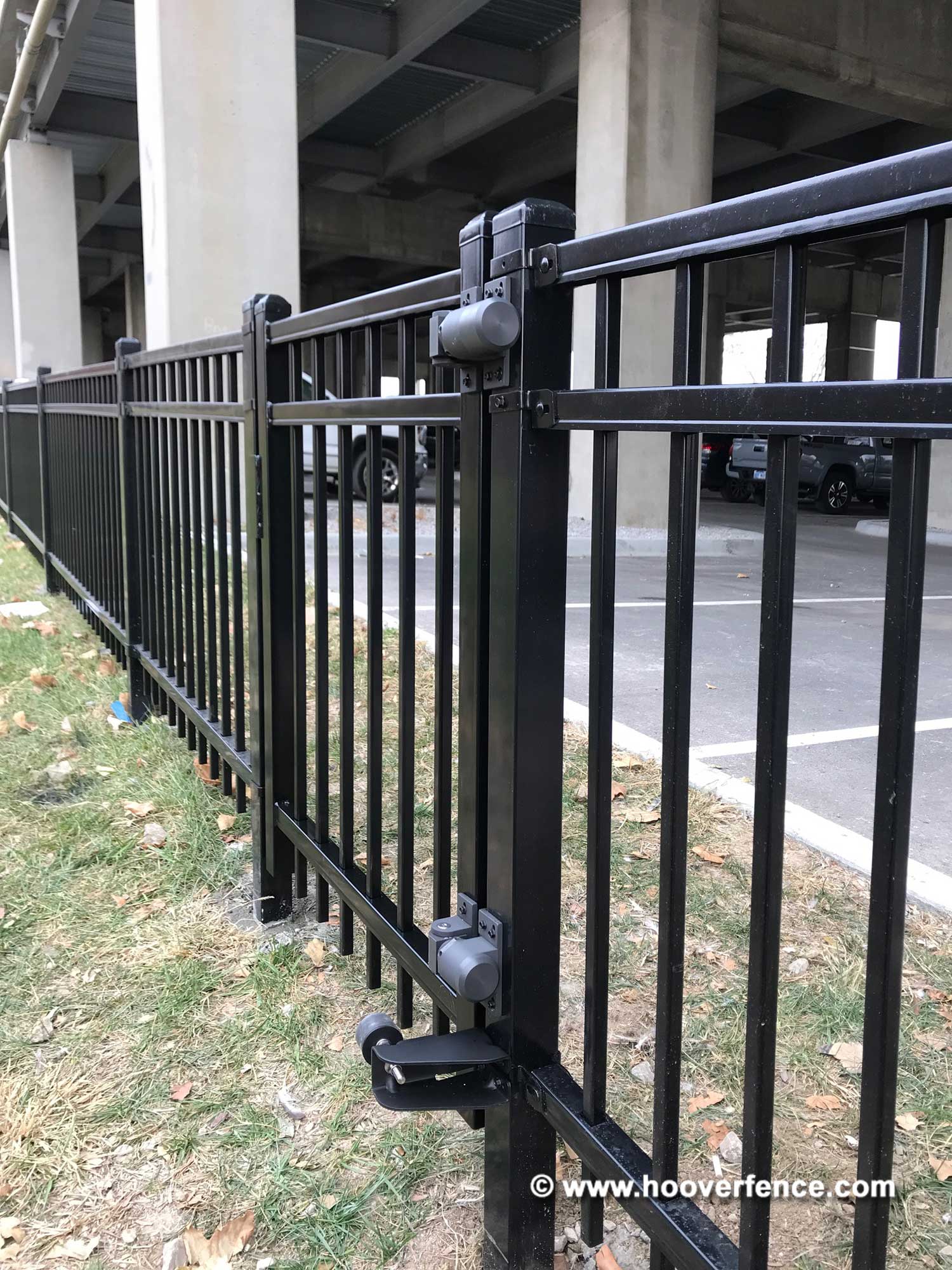

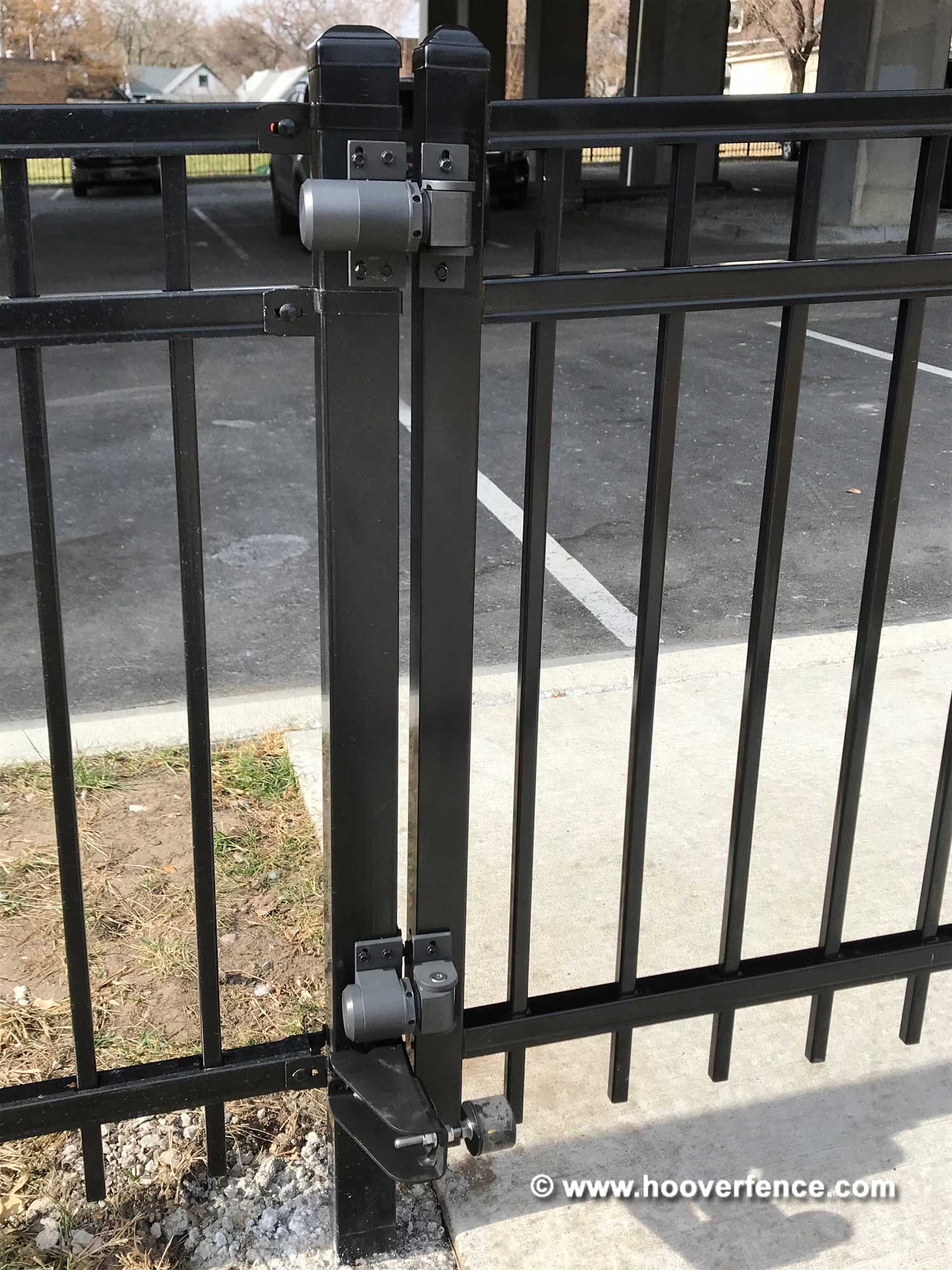

Customer Photo - SureClose ReadyFit Installation - Black Metal Fence Gate - Lees Summit, MO

Here are some great pictures from our customer over in Missouri. We are proud that they chose to use our SureClose ReadyFit hinges for this metal fence gate project that looks to be under a bridge, or parking garage. Rachael used a combination of RF-SM-S (74001313) and RF-108SF-S (74108323) gate hinges and closers along with a SureClose ReadyFit Gate Stop (7403) which keeps the gate from being overextended.

The install looks great Rachael! Keep up the wonderful work!

Customer Install - SureClose Ready Fit Installation with 7403 Gate Stop
