The SureClose® ReadyFit Hinges are compact, heavy-duty, hydraulic, hinge-closers designed for commercial, industrial and estate gates. Stylishly designed and corrosion resistant, SureClose ReadyFit hinges use high strength aluminum with stainless steel components, aluminum components have a 50 micron thick anodizing finish. The external mounting brackets allow quick and easy alignment and installation. No need for drilling large holes! Designed for commercial, industrial, custom residential and estate gates, SureClose ReadyFit hinges come in three basic models, with choice of aluminum or steel mounting brackets. The standard self-closing model (RF 108) features a final snap action for overcoming electric or coded locks found in many security applications. Optional Safety Model (RF 108SF) does not hold open at 90°, making it ideal for Safety Gates. Also available is a non-self-closing model (RF SM) for access control and most heavy commercial or residential gates. Hinges can be used in different combinations for a variety of applications.
SureClose® ReadyFit 108 Hinge Features:
SureClose® ReadyFit Hinge Features:
Additional SureClose® ReadyFit Hinge Images
WARNING: California's Proposition 65
SureClose Specifications (PDF)
SureClose ReadyFit Hinge Comparison Chart:
Item # | Model | Description | Fixing Method | Self-Closing From | Max Opening Angle | Final Snap/Close Action | Hinge Gap | Post Size Minimum | Weight Each |
---|---|---|---|---|---|---|---|---|---|
74001313 | RF SM S | Hinge Only | Aluminum Weld or Screw | n/a | 178° | n/a | 1/2" to 1-3/8" | 2"+ | 2.10 lbs. |
74001315 | RF SM W | Hinge Only | Steel Weld or Screw | n/a | 178° | n/a | 1/2" to 1-3/8" | 2"+ | 2.93 lbs. |
74108313 | RF 108 S | Hinge/Closer | Aluminum Weld or Screw | 83° | 178° | YES | 1/2" to 1-3/8" | 2"+ | 2.91 lbs. |
74108315 | RF 108 W | Hinge/Closer | Steel Weld or Screw | 83° | 178° | YES | 1/2" to 1-3/8" | 2"+ | 3.74 lbs. |
74108323 | *RF 108SF S | Safety Hinge/Closer | Aluminum Weld or Screw | 88° | 88° | YES | 1/2" to 1-3/8" | 2"+ | 2.91 lbs. |
74108325 | *RF 108SF W | Safety Hinge/Closer | Steel Weld or Screw | 88° | 88° | YES | 1/2" to 1-3/8" | 2"+ | 3.74 lbs. |
7403 | **RF Gate Stop | Gate Stop | Steel Weld or Screw | n/a | 85° | n/a | n/a | 3"+ | -- |
*Pool Safety Rated
**NOTE: Gate Stop must be used in conjunction with Safety Hinges. Gate must not be allowed to open past 90° (or 170° on 180 Model). Doing so voids warranty. (Example (PDF))
NOTE: Safety Hinges (SF) will NOT hold open at 90° . Do NOT use a hinge with a 90° hold open feature for pool/child safety gates. (Example)
Hinge Combination | *Self-Closing Gate Weight Max |
---|---|
108 + 108 | 260 lbs. (120kgs) |
108 + SM | 180 lbs. (80 kgs) |
Access Control | Weight Capacity |
---|---|
SM + SM | 1,500 lbs. (680kgs) |
*Caution: Based on max gate size of 72"H x 40"W (1800x1000mm). For gates with greater HxW, or if conditions such as wind play a role, use hinge combinations with higher self-closing weight ratings.

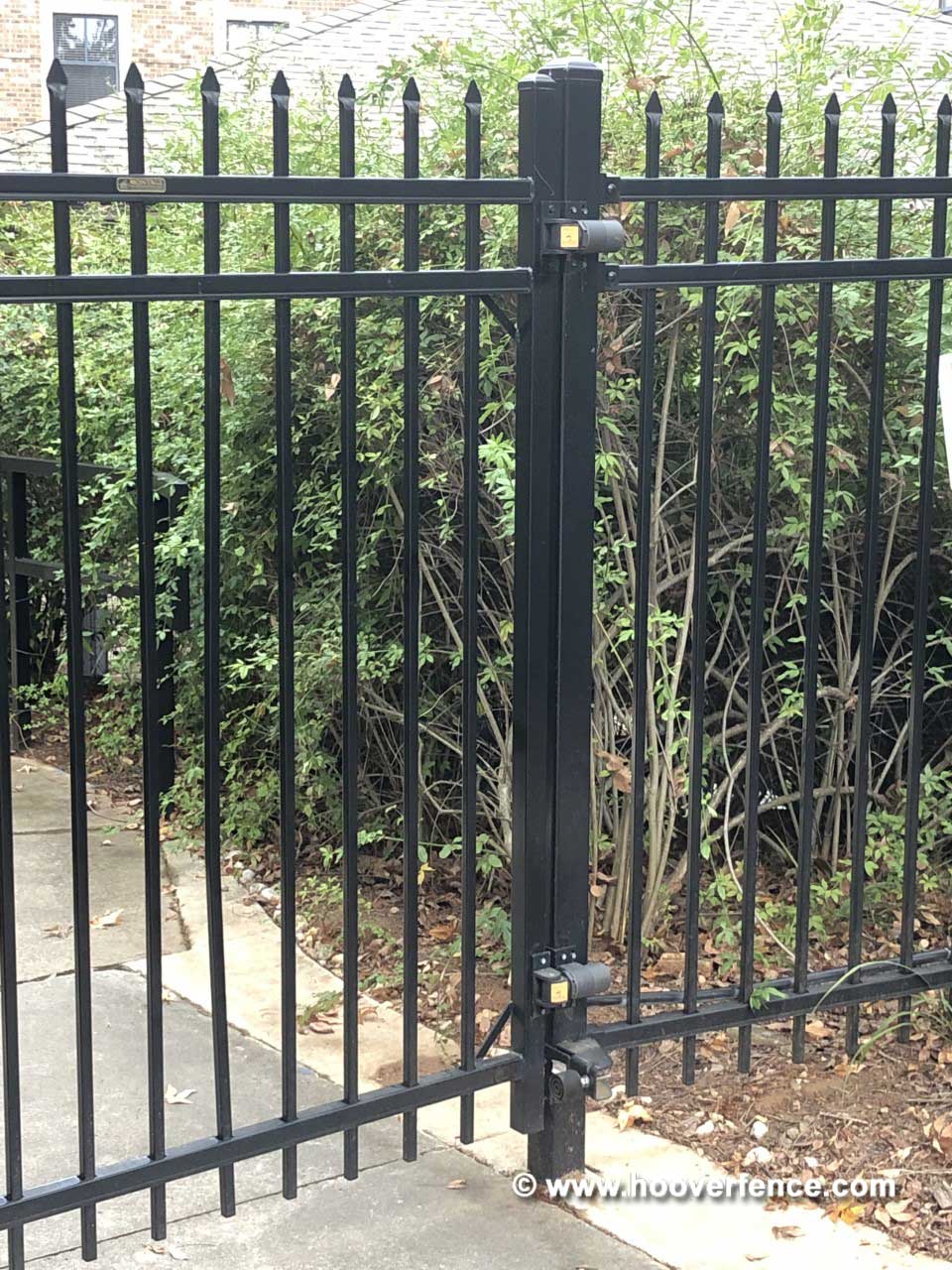

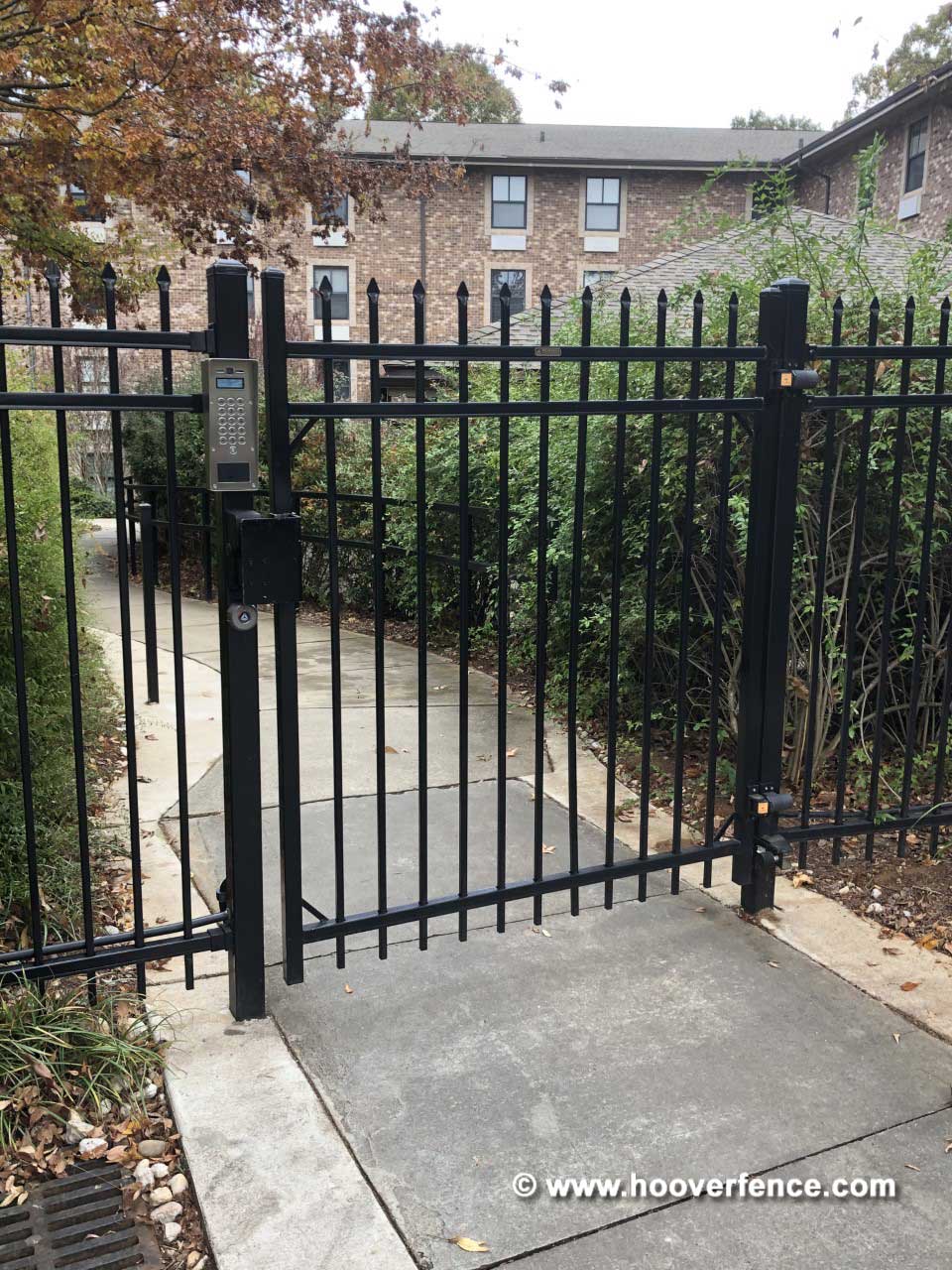

Here are a couple of great photos from a customer of our out in Greenville, South Caroline, of a black metal swing gate hung using the D&D Technologies SureClose ReadyFit Hinges. This particular install used the 74108313 version and closes this access controlled gate safely and securely. Great job Alva, the project looks wonderful!
