Snug Cottage Hardware Old Fashioned Heavy Duty Hinges for Wood Gates
Item # 8292-P
Details
Details
Old-Fashioned Heavy Duty Hinges (8292)
The Old-Fashioned Heavy Duty Hinge Set is corrosion resistant, incredibly strong, and offers a traditional design that has been around since the 1850s! The Old-Fashioned design style compliments and enhances the classic New England Garden Style Gates and fence designs that are so popular within the fencing industry.
The Old-Fashioned Heavy Duty Hinge Set has forged steel straps and cast iron cups are that are then hot-dipped galvanized. The Black finish hinges are additionally Black Polyester Powder Coated (BPPCG), making them ideal for harsh climates! These hinges are available in 7", 12", 16", 18", 24", 30", and 36" lengths and are ideal for pedestrian gates, garden gates, barn doors, shed doors, carriage houses, drive gates, and more!
When choosing your strap hinge, choose a hinge length that is 1/4 to 1/3rd the gate width. Optional Faux Hinge Fronts are available for this hinge set, which will provide a more secure installation and a finished look to the front and back of your gate.
We also carry a version of these strap hinges for Vinyl Gates (#8292-PSS-P)
Old-Fashioned Heavy Duty Hinges (8292-P) Features:- Heavy duty exterior wood or cellular PVC gate hardware that is ideal for harsh environments!
- Each set includes two hot-dipped galvanized or Black (BPPCG) hinges.
- Color matched stainless steel wood screws (2" x #12) included.
- Carriage Bolts sold separately!
- Strap hinges are through bolted to help keep your gate corners square at 90° and to prevent the gate from sagging.
- Minimum 1/4" gate gap required to allow for seasonal expansion and contraction of the wood.
- Gates will open approximately 180° in one direction, folding back against adjacent fence or structure.
- Can Be Flush Mounted or Jamb Mounted
- This item is also available in a Stainless Steel (#8292-SS-P) and a Curved (#8292-C) version.
- Optional Faux Hinge Fronts can be purchased to add strength to your gate and provide a finished look on both sides of the gate.
- Optional Extra Long Stainless Steel Wood Screws available (#FP-3XL24).
Ordering Notes:
Carriage bolts for the hinge straps are sold separately! Each strap hinge requires one carriage bolt, except for the 36" strap, which requires two carriage bolts. Carriage bolts must be 1" greater than the thickness of your door/gate. If you are using the optional #8293 Faux Hinge Fronts, then the carriage bolts need to be 1-1/2" greater than the thickness of your gate/door.
All gates will require two Hinges per gate leaf. Only use three hinges per leaf if the gate is over 6'H.
If you are building a double gate, then you will need a minimum of one cane bolt/drop rod to prevent damage to your hardware and/or gate. Use two cane bolts/drop rods if you will need to hold both gate leafs open.
Optional Accessories:
Optional #8293 Faux Hinge Fronts are available for the strap hinges to ensure a more secure installation and to provide a finished look on the front and back of your gate. Snug Cottage Hardware offers latch styles for traditional or contemporary esthetics. Consider adding a traditional gate closer to your auto latching hardware so that your gate isn't left swinging open.Faux Hinge Fronts (8293-P) | Snug Cottage Hardware Latches | Snug Cottage Hardware Gate Closers
Building Notes:
Please check out our free DIY Wood Gate Plans. Our plans will provide details on how to build the most popular wood gate styles and will also include full materials lists with links to the product on our website!
Specifications
Specifications
8292 Old Fashioned Hinge Specifications
| SKU | Length of Band | Pin Diameter | Finish | Weight Per Pair |
|---|---|---|---|---|
| 8292-07SP | 7" | 1/2" | Black | 5.0 lbs. |
| 8292-072 | 7" | 1/2" | Galvanized | 5.0 lbs. |
| 8292-12SP | 12" | 1/2" | Black | 6.0 lbs. |
| 8292-122 | 12" | 1/2" | Galvanized | 6.0 lbs. |
| 8292-16SP | 16" | 1/2" | Black | 6.0 lbs. |
| 8292-162 | 16" | 1/2" | Galvanized | 6.0 lbs. |
| 8292-18SP | 18" | 5/8" | Black | 9.0 lbs. |
| 8292-182 | 18" | 5/8" | Galvanized | 9.0 lbs. |
| 8292-20SP | 20" | 5/8" | Black | 10.0 lbs. |
| 8292-202 | 20" | 5/8" | Galvanized | 10.0 lbs. |
| 8292-24SP | 24" | 5/8" | Black | 12.0 lbs. |
| 8292-242 | 24" | 5/8" | Galvanized | 12.0 lbs. |
| 8292-30SP | 30" | 3/4" | Black | 15.0 lbs. |
| 8292-302 | 30" | 3/4" | Galvanized | 15.0 lbs. |
| 8292-36SP | 36" | 3/4" | Black | 18.0 lbs. |
| 8292-362 | 36" | 3/4" | Galvanized | 18.0 lbs. |
Weights shown are approximate.
Instructions
Instructions
Old Fashioned Heavy Duty Reversible Hinge Installation Instructions - 7", 12", and 16" Models
Old Fashioned Heavy Duty Reversible Hinge Installation Instructions - 18", 20", and 24" Models
Old Fashioned Heavy Duty Reversible Hinge Installation Instructions - 30" and 36" Models
Installation Diagrams: Flush Mount | Jamb Mount | Jam Mount with Filler Strip
- Flush mounting is the most common method of installation. The hinge is mounted directly onto the face of the gate and post. We recommend a minimum 1/4" space be maintained between the gate and post to allow for expansion of the wood in changing seasons.
- Jamb mounting requires the cast iron cups be mounted on the side of the post. The recommended spacing between the gate and post varies depending on the hinge length utilized and how it is applied to the gate. Please refer to our Installation Details for more information.
Customer Photos
Customer Photos

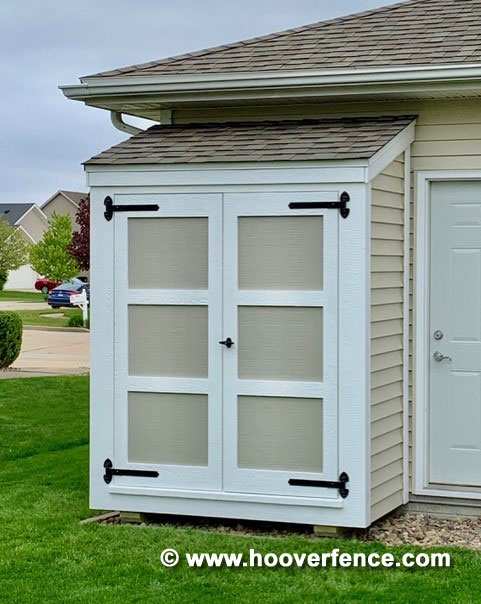

Here is a very nice picture from our customer Thomas over in Normal, Illinois, of a garden shed and gates he built and hung using our Snug Cottage 8292-14SP hinges in black. Here is what he had to say:
"Awesome hinges, worked out very well."
The project looks great Thomas! Thanks again for the pictures!

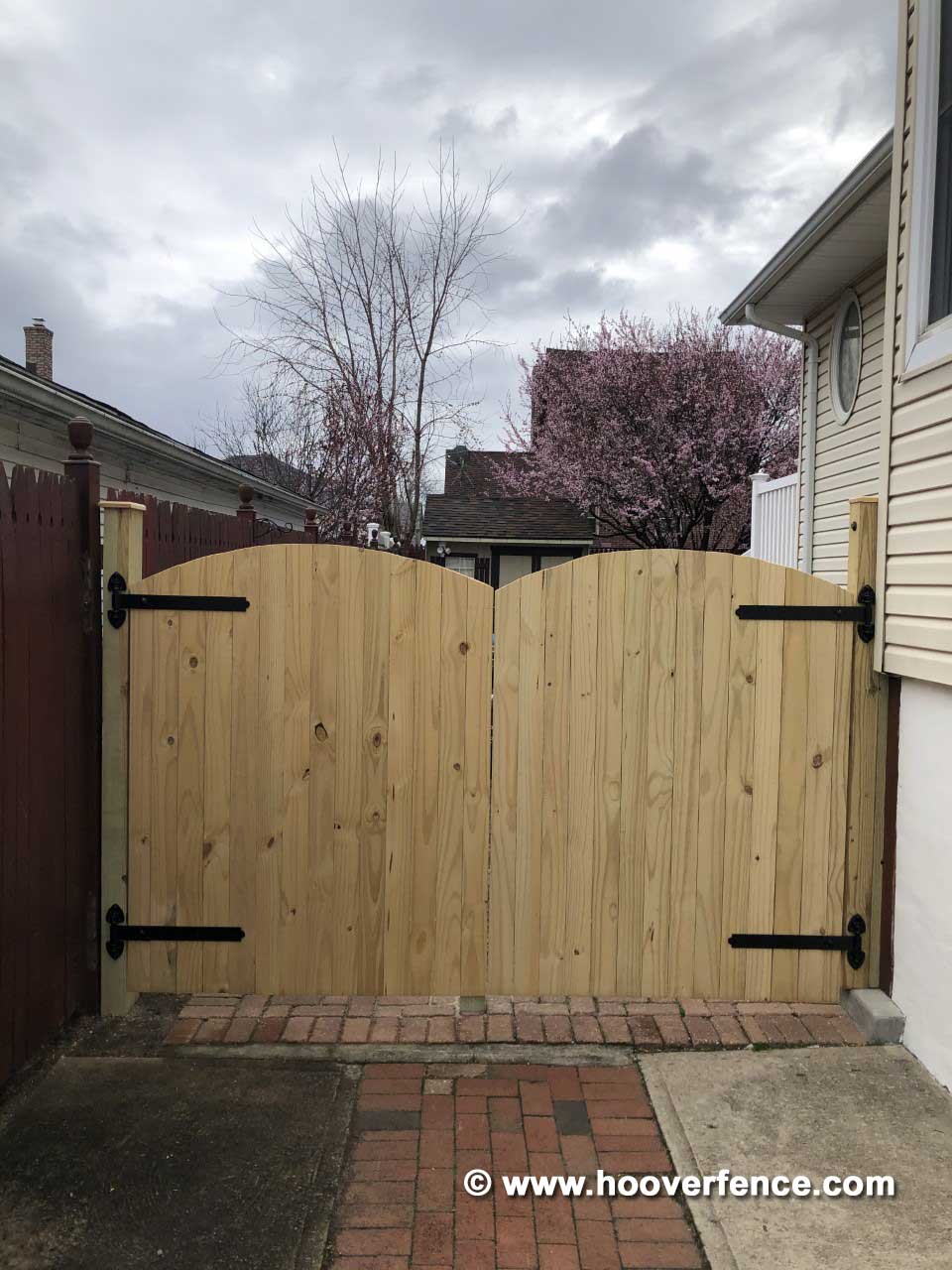

Here are a couple of great pictures from a customer of ours over in Howard Beach, NY of a Convex Top Privacy double gate he built out of treated wood materials and hung using our Snug Cottage 8292-18SP Old Fashioned Heavy Duty Hinges. The gate looks great James! Thank you for the pictures and please let us know if you ever need anything else.
Here are some beautiful pictures from our customer out in Monterey, California, of her backyard garden and fence which features a wooden arbor with gate, hung with our Snug Cottage Hardware. Katherine used our 8292-07SP Hinges and 4149-LDSP Twisted Ring Latch. The project looks great Katherine - Thank you so much for the pictures!
