Bufftech Imperial Select Cedar Vinyl Fence Panels

Item # IMPERIAL-WT-S

Actual product(s) may vary from pictures shown

Bufftech Imperial Select Cedar Vinyl Fence Panels (IMPERIAL-WT-S)

Details

The Imperial Select Cedar style features an authentic wood texture appearance. The Imperial vinyl fence is ideal for a semi-private fence. The narrow spaces all but block the view, especially at angles, as you can see in the pictures, while at the same time allowing some air to move through the fence. For that reason, this style is a better choice than a solid vinyl fence in high wind prone areas. This style is available in 4', 5' and 6' heights. A steel reinforced bottom rail prevents sagging. The steel rail is hidden inside the vinyl rail. Optional aluminum rail available for extremely corrosive environment. The 4' heights have two horizontal rails, 5' and 6' heights have three horizontal rails. This vinyl fence in all heights used with the Magna Latch meets BOCA pool safety codes. Sections are capable of raking out of square to follow grades (see specs). Sections include rails and pickets. Posts and post caps sold separately.

ColorLast Fade Protection ColorLast™ Dark Color Fade Protection: Exclusive acrylic formulation provides superior protection from the harsh rays of the sun, resulting in richer color that retains it's vibrant hue for years to come. ColorLast is offered in Natural Clay, Arctic Blend, Brazilian Blend, Honey Blend, Sierra Blend, Weathered Blend, and Canyon Blend. Not all colors available in all styles.

WindZone™ Performance: Miami-Dade County-approved for exceptional performance in high wind conditions. With optional components, this style in 6' height meets the Florida building code for hurricane zones. Recommended for areas that frequently experience high velocity winds. More Info.

Pool Safe Fence: This style meets requirements of the ASTM and complies with most local codes for swimming pool applications. Check with your local building code official as local codes may vary.

Matching Gates available.

Shop Bufftech Accessories

Shop this Collection - Imperial Select Cedar

Specifications

Bufftech WindZone Performance - Miami-Dade NOA Code Approval (PDF)

Section Width: 8'

Heights: 4', 5', and 6'

Picket Size: 7/8"x 3"

Picket Spacing: 7/16"

Rails: 2x4 (actual 1-3/4" x 3-1/2", 5' and 6' heights have middle rail)

Steel Rail Channel: bottom rail

Post Size: 5"sq.

4' High Sections - Specifications

Imperial Select Cedar Style - 4' high specifications

Top Rail (A): 2" x 4" x 95-1/2" Routed to accept pickets (clay section includes steel channel)
Pickets (B): 26 pieces of 7/8" x 3" x 48"
Bottom Rail (C): 2" x 4" x 90" Routed to accept pickets. Includes steel channel. Drain holes are pre-drilled.
Post (in-ground) (D): 5" x 5" x 84"
Steel reinforcement: Yes-channel located in bottom rail (steel channel in top and bottom for clay color sections)
Aluminum reinforcement: Optional
Picket Spacing: 27 spaces of 9/16"
Post Spacing (center to center): 96"
Color(s): Select Cedar Almond, Arbor Blend, Arctic Blend, Brazilian Blend, Clay, Frontier Blend, Sierra Blend, Timber Blend, Weathered Blend, and White
Misc.: Sections can rake up to 10°

5' High Sections - Specifications

Imperial Select Cedar Style - 5' high specifications

Top Rail (A): 2" x 4" x 95-1/2" Routed to accept pickets (clay section includes steel channel)
Middle Rail (B): 2" x 4" x 95-1/2" Routed clear through to accept pickets
Pickets (C): 26 pieces of 7/8" x 3" x 59-5/8"
Bottom Rail (D): 2" x 4" x 95-1/2" Routed to accept pickets. Includes steel channel. Drain holes are pre-drilled.
Post (in-ground) (E): 5" x 5" x 96"
Steel reinforcement: Yes-channel located in bottom rail (steel channel in top and bottom for clay color sections)
Aluminum reinforcement: Optional
Picket Spacing: 27 spaces of 9/16"
Post Spacing (center to center): 97"
Color(s): Select Cedar Almond, Arbor Blend, Arctic Blend, Brazilian Blend, Clay, Frontier Blend, Sierra Blend, Timber Blend, Weathered Blend, and White
Misc.: Sections can rake up to 5°

6' High Sections - Specifications

Imperial Select Cedar Style - 6' high specifications

Top Rail (A): 2" x 4" x 95-1/2" Routed to accept pickets (clay section includes steel channel)
Middle Rail (B): 2" x 4" x 95-1/2" Routed clear through to accept pickets
Pickets (C): 26 pieces of 7/8" x 3" x 71 5/8"
Bottom Rail (D): 2" x 4" x 95-1/2" Routed to accept pickets. Includes steel channel. Drain holes are pre-drilled.
Post (in-ground) (E): 5" x 5" x 107"
Steel reinforcement: Yes-channel located in bottom rail (steel channel in top and bottom for clay color sections)
Aluminum reinforcement: Optional
Picket Spacing: 27 spaces of 9/16"
Post Spacing (center to center): 97"
Color(s): Select Cedar Almond, Arbor Blend, Arctic Blend, Brazilian Blend, Clay, Frontier Blend, Sierra Blend, Timber Blend, Weathered Blend, and White
Misc.: Sections can rake up to 5°

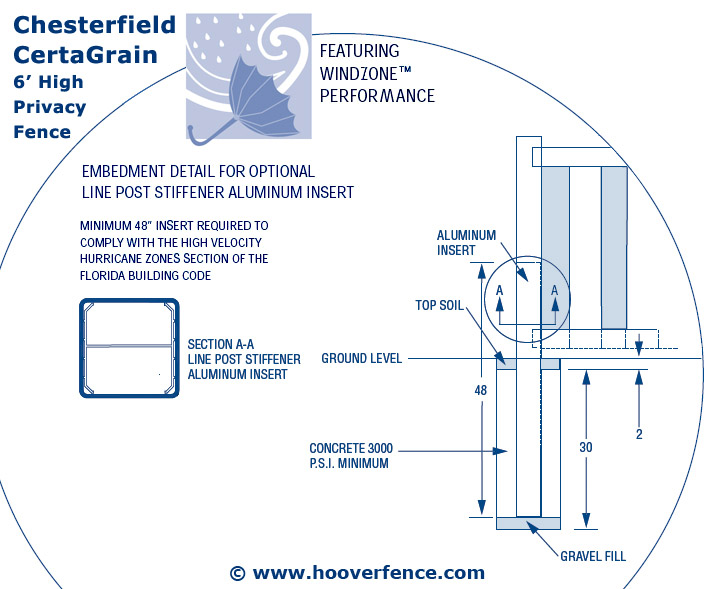

With optional steel reinforcement channel for top rail and aluminum line post stiffener kit, this style in the 6' height meets the Florida building code for high velocity hurricane zone areas.
