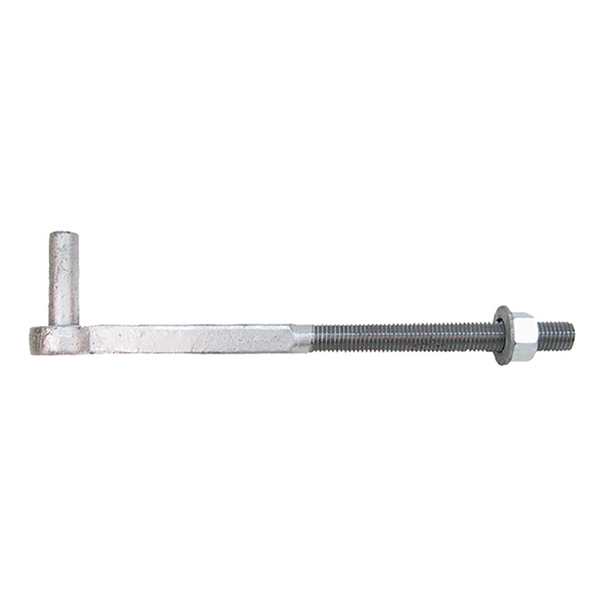

Snug Cottage Hardware 13" Square Shouldered Gate Male Hinge Pin

Name: 13" Square Shouldered Gate Male Hinge Pin
Brand: Snug Cottage Hardware
SKU: 8317-P
Price: 23.200 USD
Availability: InStock

Item # 8317-P

Sold Individually

Snug Cottage Hardware 13" Square Shouldered Gate Male Hinge Pin

Actual product(s) may vary from pictures shown

$23.20 - $35.68

Finish:

Please Select

Galvanized
Black

Quantity:

Add to Projects

Details

13" Square Shouldered Gate Pin (8317-P)

The 13" Square Shouldered Gate Pins are used to prevent your gate hinge pin from rotating within gate post in a 'behind the post' type installation. In this type of install, the gate is constantly pulling to the side of the pin and the square shoulder of this pin prevents it from rotating in the hole which can cause gate sag.

This hardware is ideal for use with Wood Gates.

13" Square Shouldered Gate Pin (8317) Features:

Fully threaded design provides for easy adjustment of gate position.
Intended for all through-bolt applications of gate posts.
Available in 13" lengths.
Standard 3/4-10 threads.
3/4" dia. pin.
Sold individually.
Manufactured from forged steel.
Available in Hot Dipped Galvanize or Black (BPPCG) finishes.

Specifications

13" Field Gate Pin Specifications

SKU	Finish	Weight Each
8317-002	Galvanized	3.0 lbs.
8317-00P	Black	3.0 lbs.

Weights shown are approximate.

Instructions

The 8317 square shouldered pins are used to prevent your pin from rotating within the post in a "behind the post" type installation. Rotation of the pin with hole in this type of installation usually causes the gate to sag.
Drill a 3/4" hole right through the post. Insert the threaded portion of the pin through hole until it protrudes through the opposite side. Thread on the nut and washer and then tighten and draw the square shoulder into the post to your desired depth.
Suitable for posts 5" to 9" thick.
